625 Table Scale Information Flow Troubleshooting

Model

 625 -004
Serial Number All

625 Table Scale Information Flow

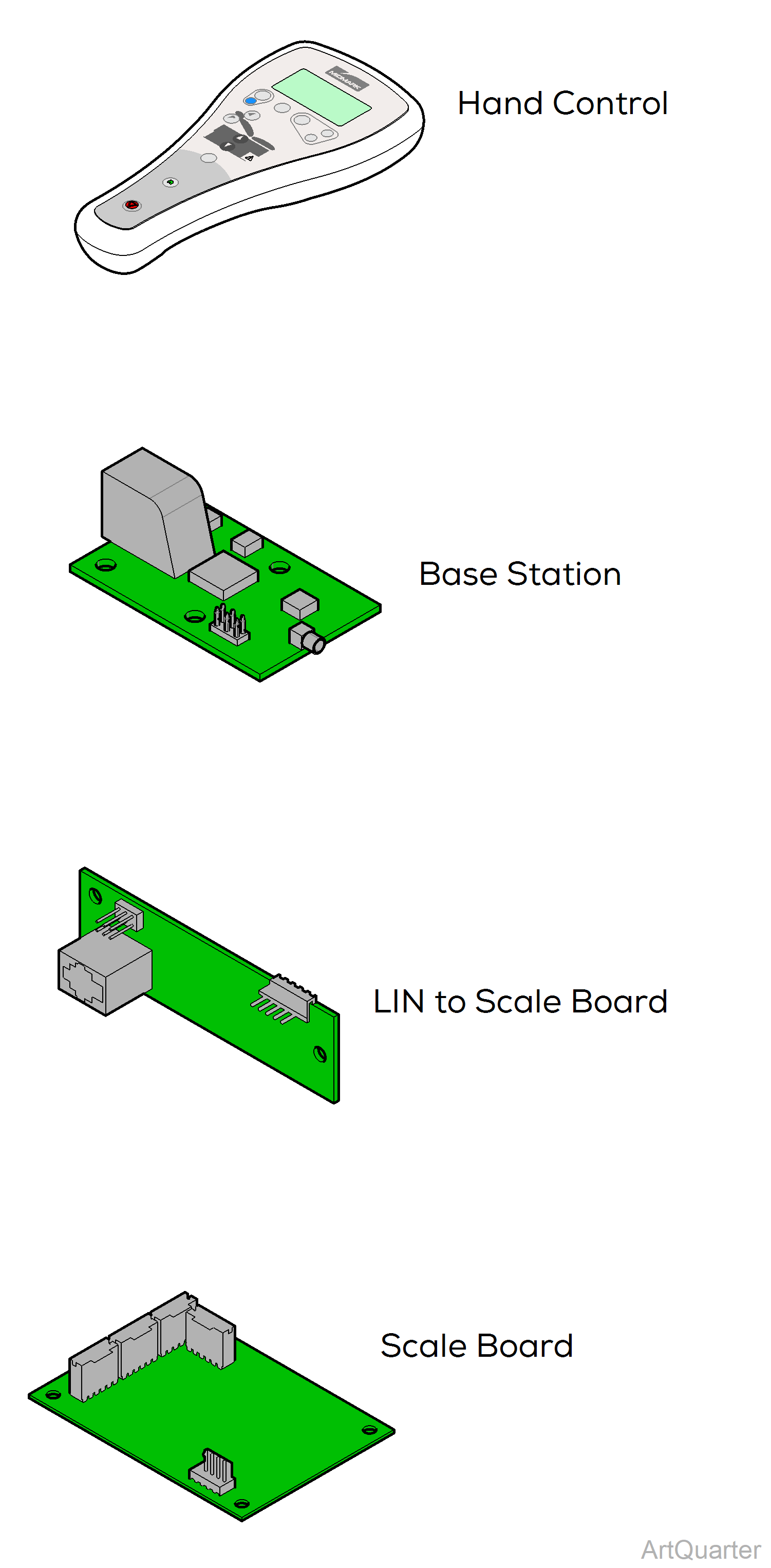

This illustration shows only the components that affect the flow of information for weight. A detailed description of information flow during this function also appears below.

Hand Control

When activated, the hand control transmits the request through the antenna to the Base Station.

Base Station

When the Base Station receives the request, the “TX” light will flash momentarily. The Base Station then sends the request to the “LIN to Scale” board.

LIN to Scale Board

The LIN to Scale Board receives request from Base Station.

*The LIN to Scale Board then asks for weight from the Scale Board.

Scale Board

*When the Scale Board receives request from LIN to Scale Board, the Red light will flash momentarily.

*The Scale Board reads the weight from the load cells.

*The Amber light will flash momentarily when the information is sent back to the LIN to Scale Board.

Load cells are plugged into the Scale Board.

*These steps happen even if the Hand Control has not requested a weight. The LIN to Scale Board is constantly monitoring weight.

The LIN to Scale Board sends information back to Base Station. The Base Station sends information back to Hand Control. The Hand Control displays information.
