625 Table Upholstered Top Access Procedures

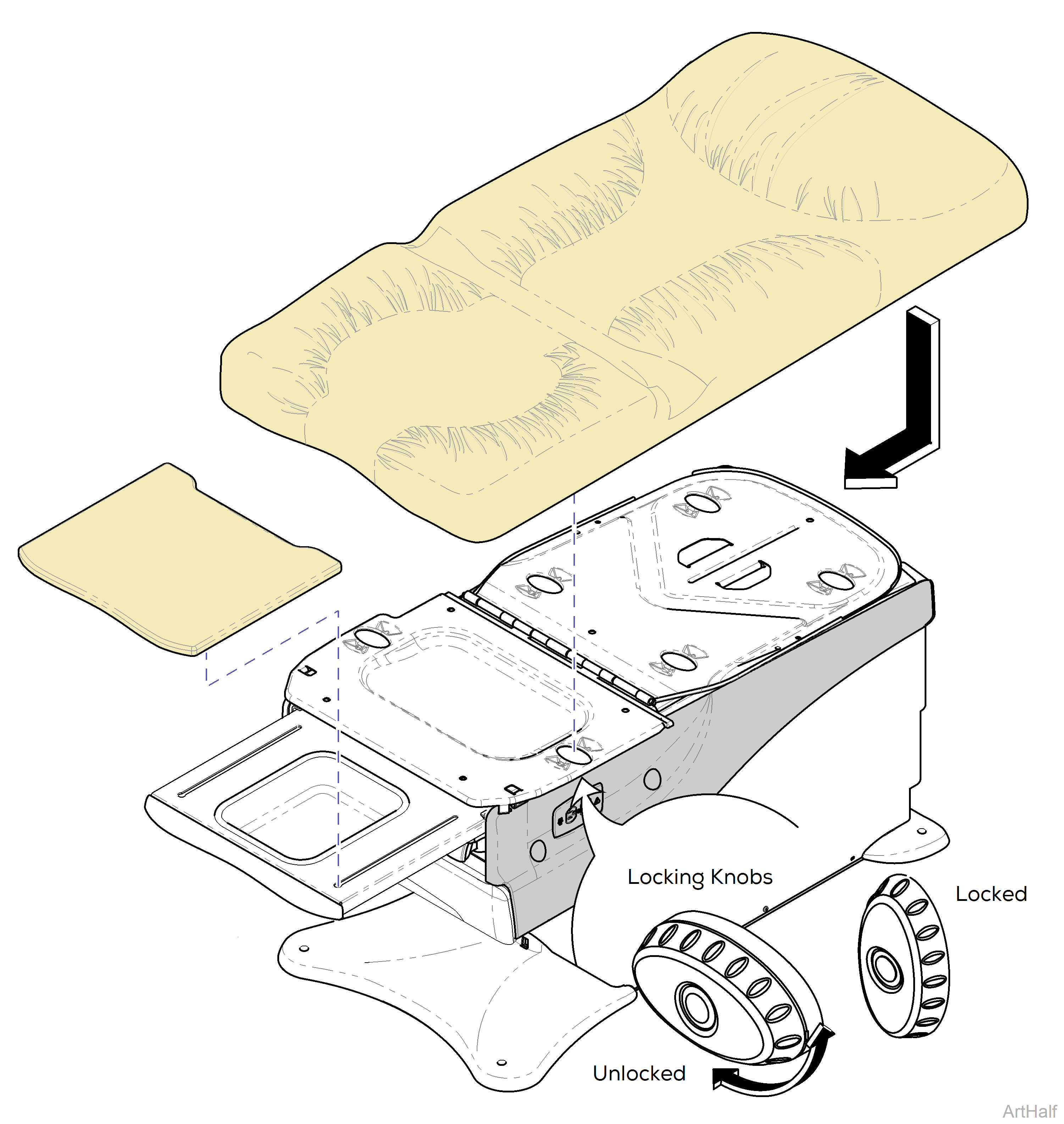

625 Table Upholstered Top Remove and Install

Removal / Installation

1.Rotate all locking knobs to unlocked position.

There are four locking knobs under back section, and two locking knobs under seat section.

2.Remove upholstered top and footrest pad.

Slide upholstery up to remove from back support plate.

3.Position upholstered top and footrest pad on table.

Back support plate must slide under paper roll holder. Be sure locking knobs align with holes in back / seat mounting plates.

4.Rotate locking knobs to locked position.
