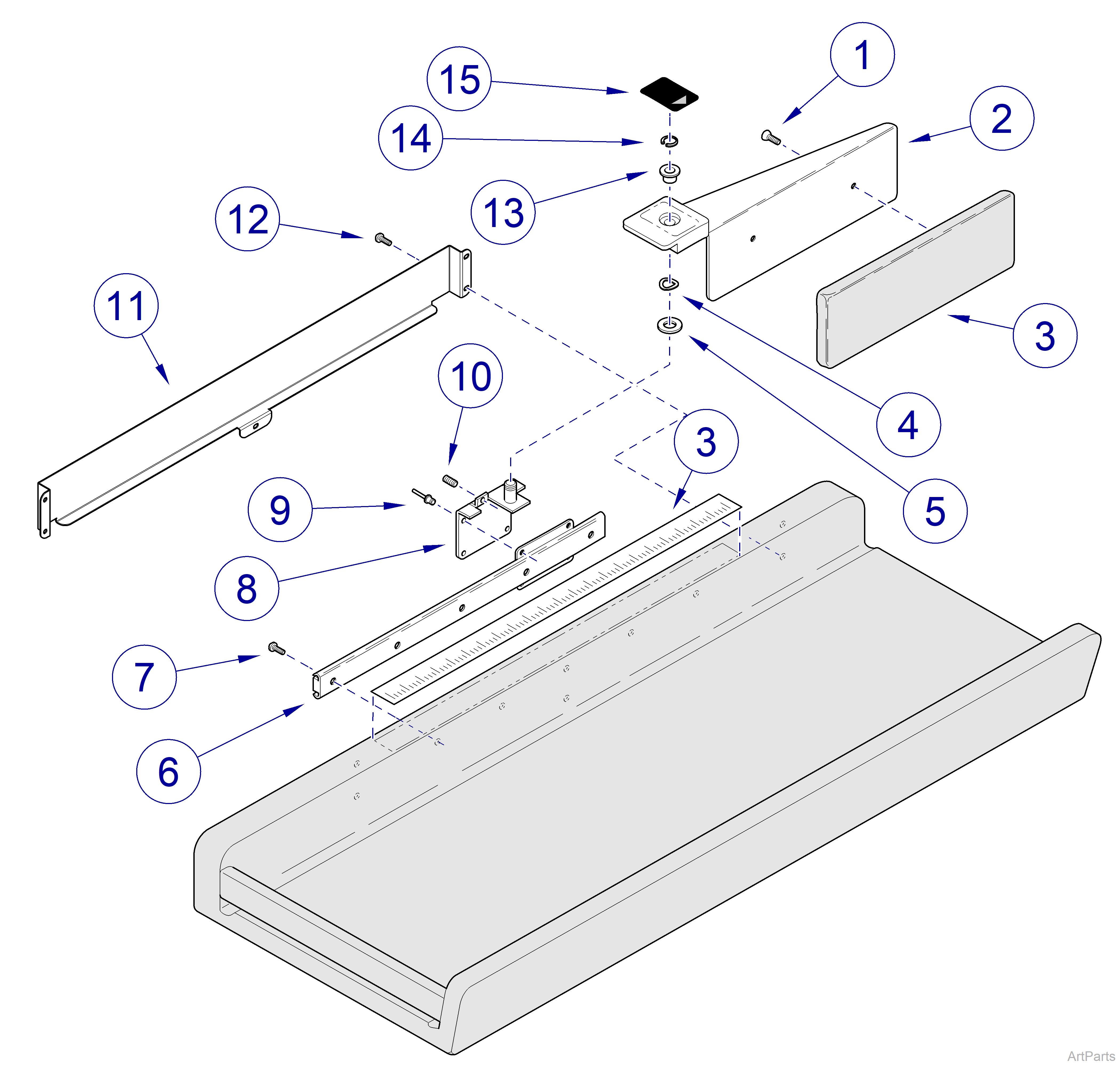

640 Doran Scale Exam Table Linear Scale
|
Model |
640 |
| Serial Number | V1515926 thru Present |
|
640 Doran Scale Exam Table Linear Scale |
|||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0010-56 | Screw #10-24 x 5/8” Flat Hd Phillips | 2 |
|
2 |
030-1056-00-216 | Measuring Arm Weldment | 1 |
|
3 |
Refer to: | Upholstered Top | 1 |
|
4 |
045-0001-109 | Spring Washer | 1 |
|
5 |
053-0383-00 | Pivot Washer | 1 |
|
6 |
016-0398-00 | Linear Motion Slide | 1 |
|
7 |
040-0008-46 | Screw #8 x 3/4” Pan Hd | 5 |
|
8 |
030-0715-00-216 | Pivot Bracket | 1 |
|
9 |
042-0010-04 | Pop Rivet | 4 |
|
10 |
040-0010-63 | Set Screw #10-32 x 3/8” Hex Socket | 1 |
|
11 |
002-2089-00 | Slide Cover Kit - includes item 12 | 1 |
|
12 |
040-0008-46 | Screw #8 x 3/4” | 5 |
|
13 |
053-0114-03 | Flange Bearing | 1 |
|
14 |
042-0077-00 | Snap Ring | 1 |
| 15 | 061-0275-00 | Indicator Label | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
