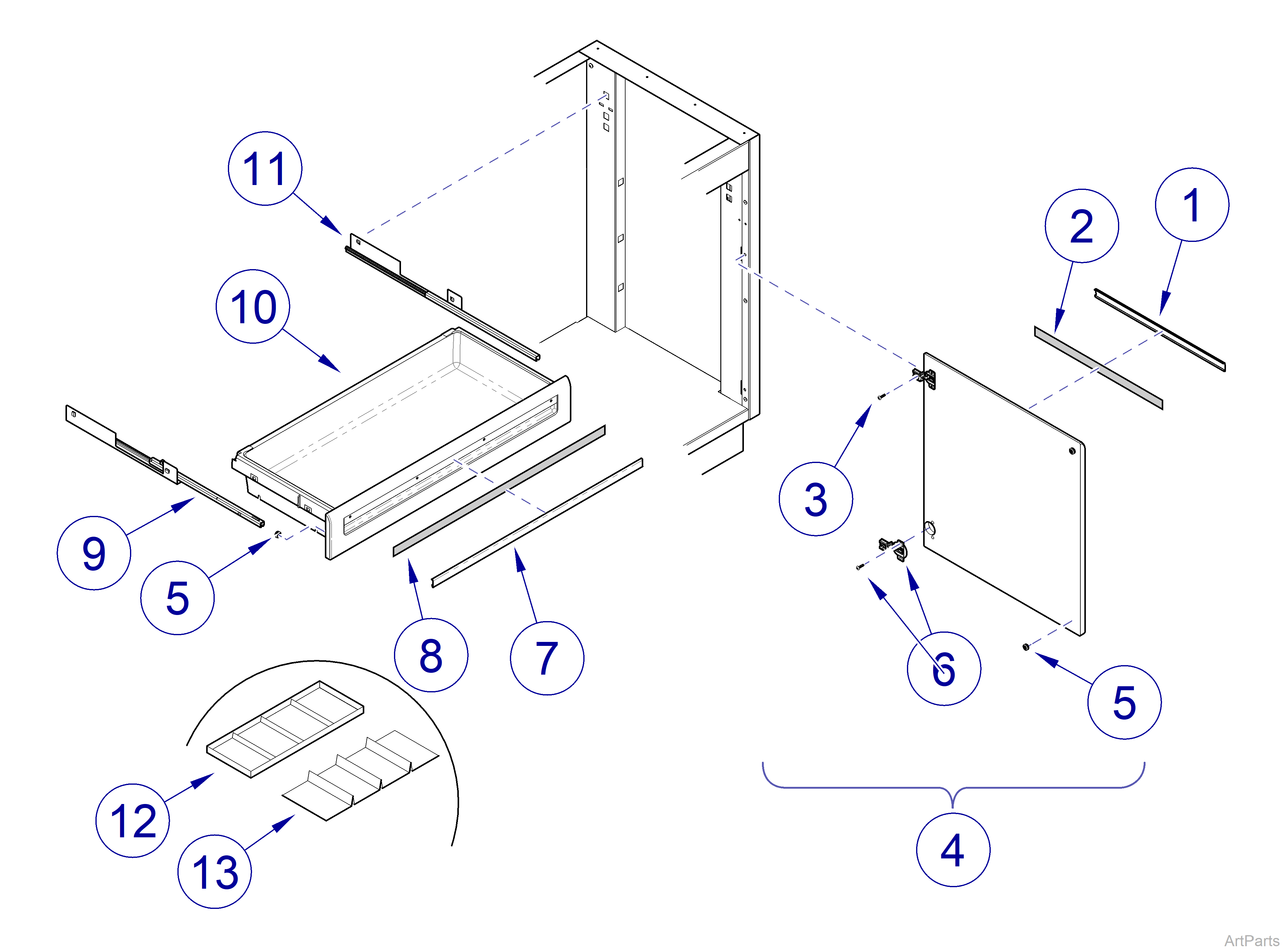

640 Tanita Scale Exam Table Doors and Drawers
|
Model |
640 |
| Serial Number |
V2200 through V1515925 |
Refer to: the Cabinet Color Options for the order number extension of your desired color.
|
640 Tanita Scale Exam Table Doors and Drawers |
|||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
053-1574-03 | Clear Door Handle Cover | 2 |
|
2 |
053-1591-02-xxx | Colored Door Handle Insert | 2 |
|
3 |
040-0010-157 | Screw #10-24 x 5/8" | 4 |
|
4 |
Door Assembly Options - Includes items 5 & 6 | ||
| 029-4434-01-216 | LH Door Assembly | 2 | |
| 029-4434-00-216 | RH Door Assembly | 2 | |
|
5 |
053-0716-00 | Bumper | 2 |
|
6 |
016-0510-00 | Hinge - includes screws | 2 |
|
7 |
053-1574-07 | Clear Drawer Handle Cover | 1 |
|
8 |
053-1591-06-xxx | Colored Drawer Handle Insert | 1 |
|
9 |
016-0513-00 | Drawer Slide LH | 1 |
|
10 |
029-3680-12 | Drawer Assembly - includes item 5 | 1 |
|
11 |
016-0513-01 | Drawer Slide RH | 1 |
|
12 |
053-0693-00-216 | Drawer Divider | 1 |
|
13 |
053-0682-00-216 | Drawer Divider | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
