Canis Major Hand Control Test and Repair
Serial Number Range: V732680 Thru V2636305
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | V732680 Thru V2636305 | V732680 Thru V2636305 |
The only control available for the wet table is the hand control, which is used to raise and lower the work surface.

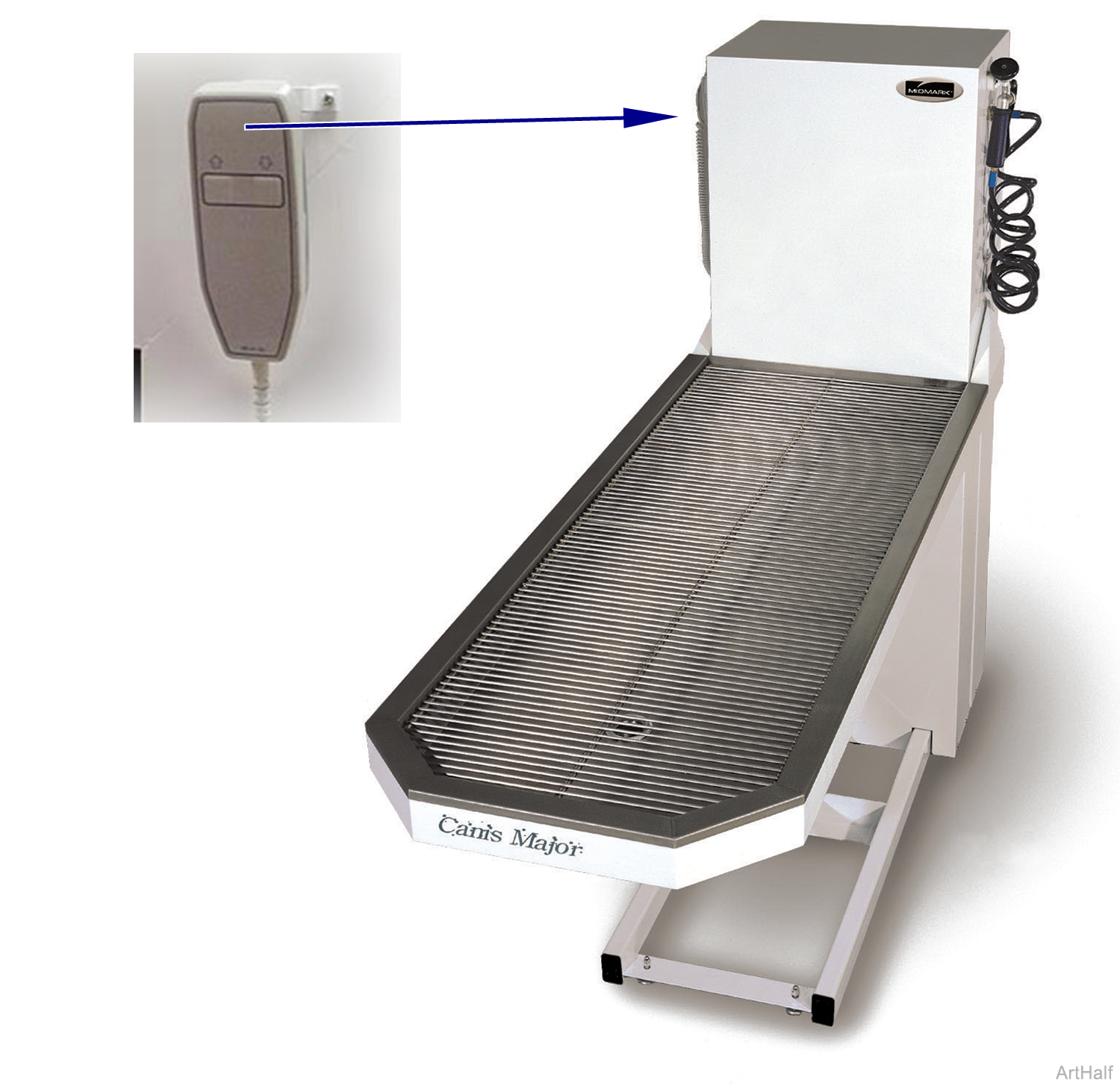

The location to connect the hand control to the table is on the top left side of the column.
The hand control has continuous current flow that travels to the control box through separate wires.
When a direction is selected, the signal voltage is interrupted. This sends a signal to the control box activating the actuator, lifting the work surface up or down.
When testing components with power on use care to prevent electrical shock.
Hand Control Test
1.Check to see if LED light on control box is on.
You have to place your finger in front of the LED light. See if the light shines on your fingernail. If there is no light, check Control Box.
2.Unplug the hand control cord.
3.Bend a paper clip into a “U” shape.
4.Hold paper clip with insulated needle nose pliers.

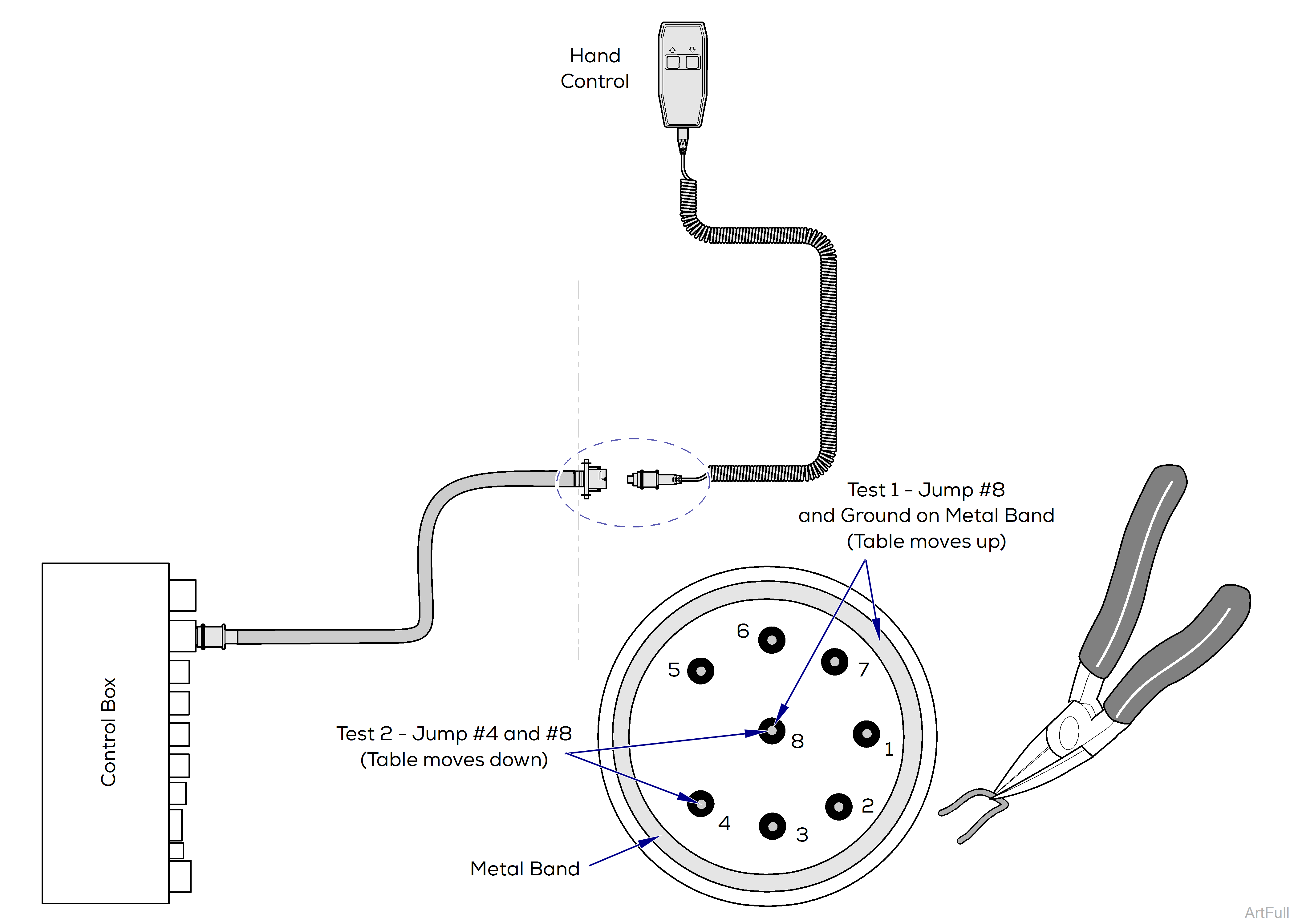

5.Test holes shown.
The two checks shown in the illustration will move table up and down if hand control is OK.
Serial Number Range: V2636306 Thru Present
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | V2636306 Thru Present | V2636306 Thru Present |
The only control available for the wet table is the hand control, which is used to raise and lower the work surface.
The location to connect the hand control to the table is on the top left side of the column.
The hand control has continuous current flow that travels to the control box through separate wires.
When a direction is selected, the signal voltage is interrupted. This sends a signal to the control box activating the actuator, lifting the work surface up or down.
When testing components with power on use care to prevent electrical shock.
Hand Control Test
1.Check to see if LED light located at the bottom left of the control box is on.
You have to place your finger in front of the LED light. See if the light shines on your fingernail. If there is no light, check Control Box.
2.Unplug the hand control cord.

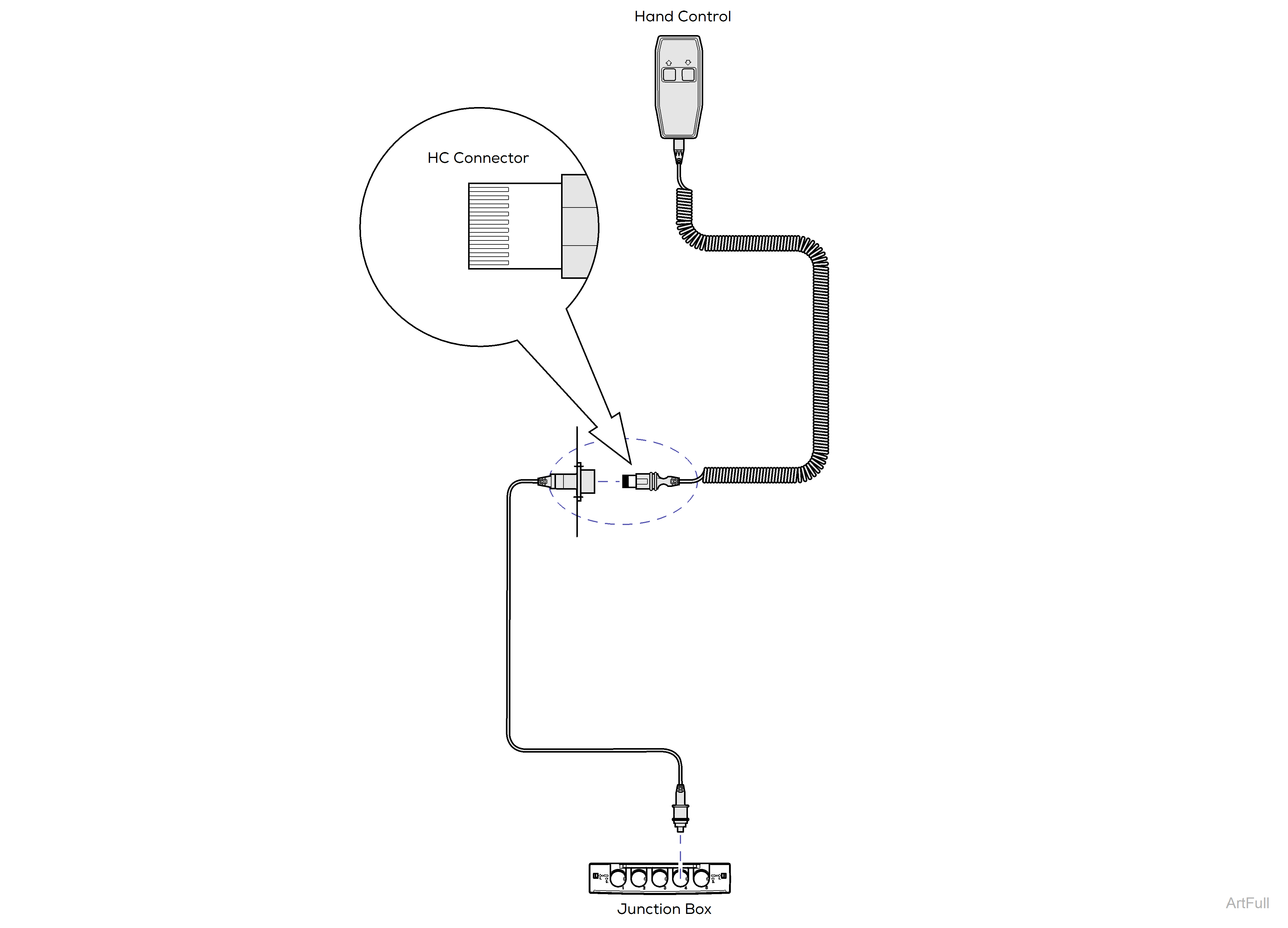

3.Use thin multimeter leads to check RJ50 port pins shown.
The two checks shown in the illustration will move table up and down if hand control is NOT OK.
