Canis Major Pump Test and Repair

Model

 CMDT CMDT-WS 45 and 60
Serial Number V732680 Thru V2636305 V732680 Thru V2636305

Canis Major Pump

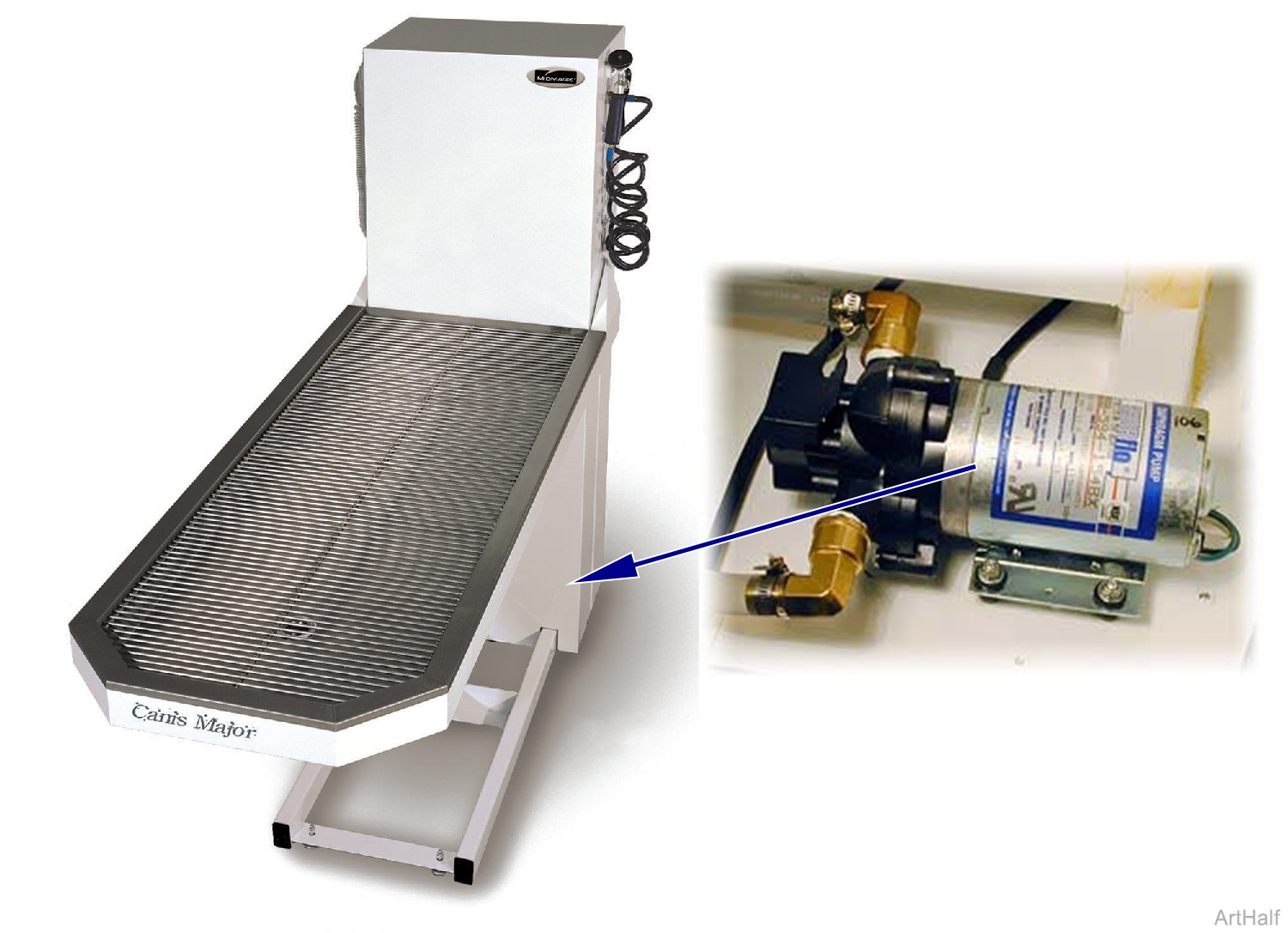

The wet table is equipped with a pump, located at the bottom rear of the column. The pump is activated by a water sensor located prior to the inlet of the pump. When the water sensor stops detecting water movement, the system timer allows the pump to run three additional seconds. This will ensure the table has been drained completely. The pump is powerful enough to move waste liquids to a floor, sink, or wall drain.

WARNING

When testing components with power on use care to prevent electrical shock.

Canis Major Pump

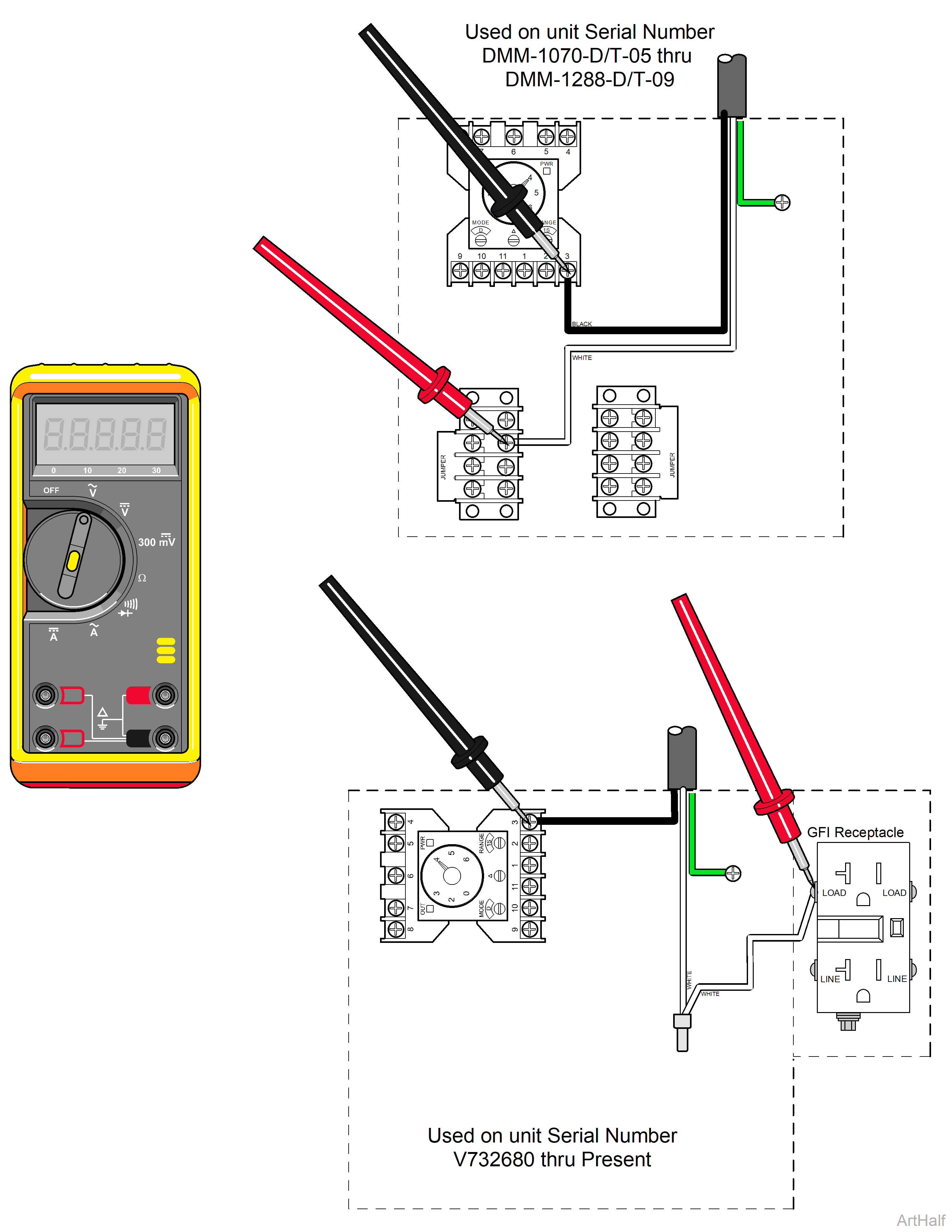

Only pump wires are shown for clarity.

1.Remove back panel from column. Refer to: Back Panel

2. If pump is running and not pumping water, replace pump. If water sensor light is on but pump isn't running, continue with next step.

3.Set meter to V.

4.Check voltage.

Meter Reading

Status

Required Action
115 Volts Thumbs Up Pump OK
< 115 Volts Thumbs Down Replace Pump
