Canis Major Safety Pan Access Procedures

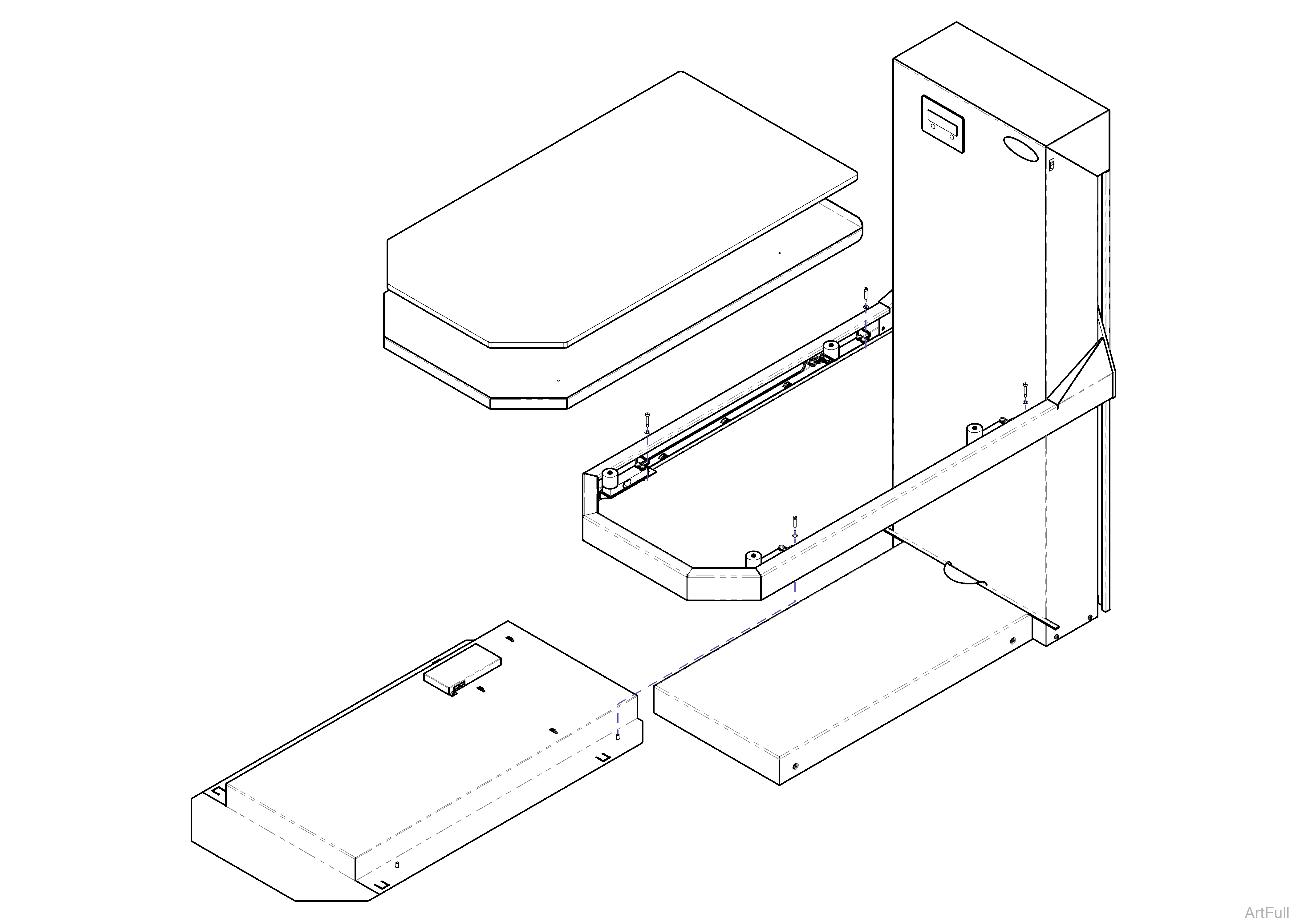

Serial Number Range: V2200 - V2363616
|
Model |
CMWO | CMWS | |
| Serial Number | V2200 - V2363616 | V2200 - V2363616 | |
Removal
1.Lift mat off table top.
2.Lift table top off rubber mounts.
3.Unplug scale connections from PC board if applicable.
4.Unscrew safety pan from platform and remove.
Installation
1.Screw safety pan to platform.
2.Plug scale connections into PC board if applicable.
3.Seat table top on rubber mounts.
4.Place mat on table top.

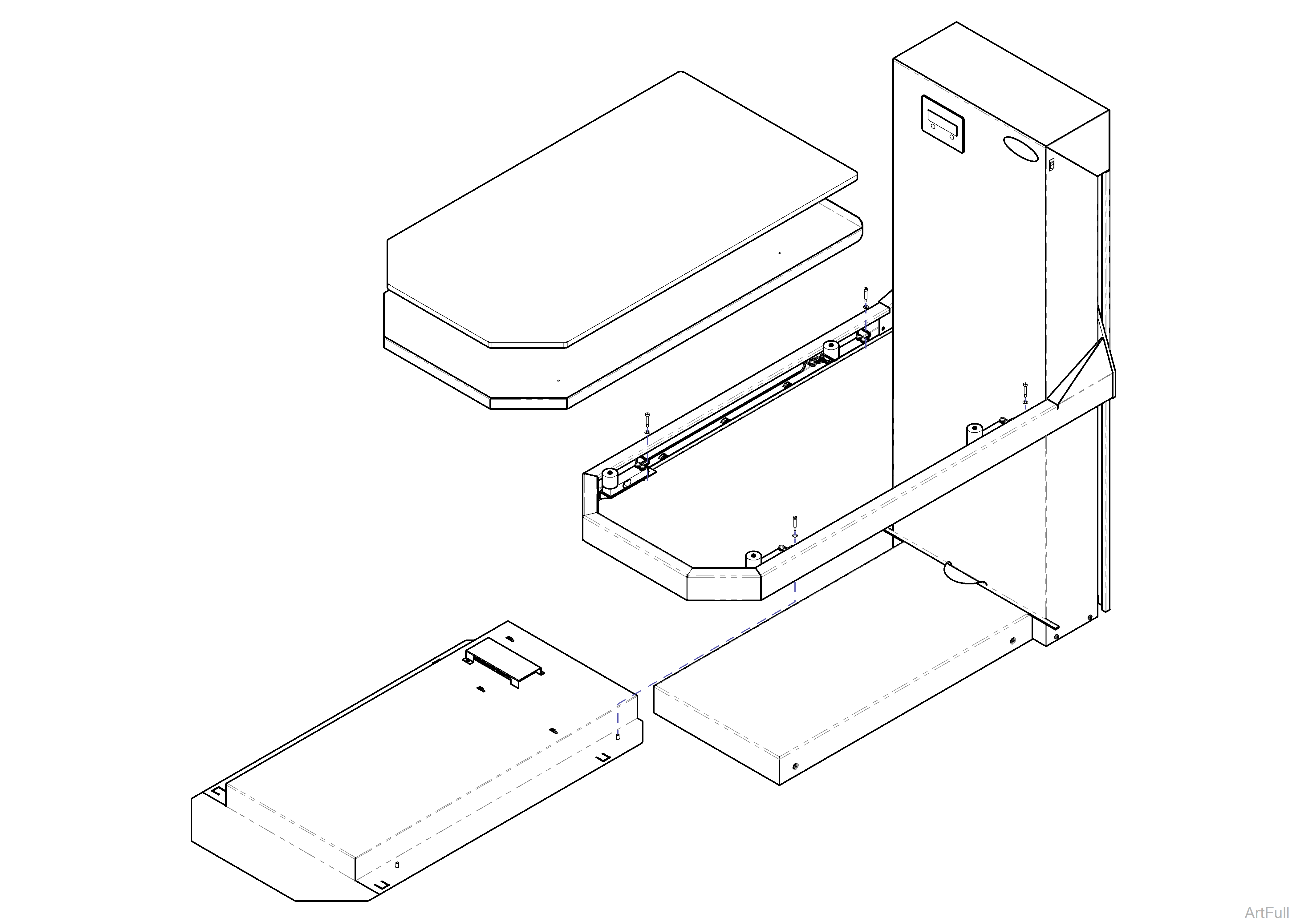

Serial Number Range: V2363617 - Present
|
Model |
CMWO | CMWS | |
| Serial Number | V2363617 - Present | V2363617 - Present | |
Removal
1.Lift mat off table top.
2.Lift table top off rubber mounts.
3.Unplug scale connections from PC board if applicable.
4.Unscrew safety pan from platform and remove.
Installation
1.Screw safety pan to platform.
2.Plug scale connections into PC board if applicable.
3.Seat table top on rubber mounts.
4.Place mat on table top.
