Canis Major Wiring Diagram
Dry Table w/O Scale Serial Number Range: DMM-1280-05 thru DMM-1450-06
|
Model |
CMWO | CMWS |
| Serial Number | DMM-1280-05 thru DMM-1450-06 | DMM-1280-05 thru DMM-1450-06 |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-0737-23 | Limit Switch to Limit Switch |
|
B |
015-0737-23 | Limit Switch to Limit Switch |
|
C |
015-0737-23 | Limit Switch to Limit Switch |
|
D |
015-2215-00 | Rocker Switch to "T" Cable |
|
E |
015-2218-00 | Control Box to "T" Cable |
|
F |
015-2207-00 | Control Box to Limit Switch |
|
G |
015-2186-00 | Control Box to Outlet |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Dry Table w/O Scale Serial Number Range: DMM-1451-06 thru V2636305
|
Model |
CMWO | CMWS |
| Serial Number | DMM-1451-06 thru V2636305 | DMM-1451-06 thru V2636305 |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-0737-23 | Limit Switch to Limit Switch |
|
B |
015-0737-23 | Limit Switch to Limit Switch |
|
C |
015-0737-23 | Limit Switch to Limit Switch |
|
D |
015-2215-00 | Rocker Switch to "T" Cable |
|
E |
015-2218-00 | Control Box to "T" Cable |
|
F |
015-2207-00 | Control Box to Limit Switch |
|
G |
015-2186-00 | Control Box to Outlet |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Dry Table w/O Scale Serial Number Range: DMM-1451-06 thru Present
|
Model |
CMWO | CMWS |
| Serial Number | V2636306 thru Present | V2636306 thru Present |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-0737-23 | Limit Switch to Limit Switch |
|
B |
015-11781-00 | Outlet to Control Box |
|
C |
015-11744-00 | Control Box Port 1 to Actuator |
|
D |
015-11746-00 | Control Box Center "Straight" Port to Junction Box Port 1 |
|
E |
015-11748-00 | Junction Box Port 2 to Limit Switch, Dry |
|
F |
015-11749-00 | Junction Box Port 5 to Rocker Switch |
|
G |
015-11941-00 | Junction Box Port 4 to Panelmount Cable |
|
H |
015-11710-00 | Panelmount Cable to Foot Control |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Dry Table with Scale Serial Number Range: DMM-1280-05 thru DMM-1450-06
|
Model |
CMWO | CMWS |
| Serial Number | DMM-1280-05 thru DMM-1450-06 | DMM-1280-05 thru DMM-1450-06 |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-0737-23 | Limit Switch to Limit Switch |
|
B |
015-0737-23 | Limit Switch to Limit Switch |
|
C |
015-0737-23 | Limit Switch to Limit Switch |
|
D |
015-2200-00 | PC Board to Scale Display |
|
E |
015-2215-00 | Rocker Switch to "T" Cable |
|
F |
015-2218-00 | Control Box to "T" Cable |
|
G |
015-2207-00 | Control Box to Limit Switch |
|
H |
029-4142-00 | Control Box to Outlet |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Dry Table with Scale Serial Number Range: DMM-1451-06 thru V2363616
|
Model |
CMWO | CMWS |
| Serial Number | DMM-1451-06 thru V2363616 | DMM-1451-06 thru V2363616 |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-0737-23 | Limit Switch to Limit Switch |
|
B |
015-0737-23 | Limit Switch to Limit Switch |
|
C |
015-0737-23 | Limit Switch to Limit Switch |
|
D |
015-2200-00 | PC Board to Scale Display |
|
E |
015-2215-00 | Rocker Switch to "T" Cable |
|
F |
015-2218-00 | Control Box to "T" Cable |
|
G |
015-2207-00 | Control Box to Limit Switch |
|
H |
029-4142-00 | Control Box to Outlet |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Dry Table with Scale Serial Number Range: V2363617 thru V2636305
|
Model |
CMWO | CMWS |
| Serial Number | V2363617 thru V2636305 | V2363617 thru V2636305 |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-0737-23 | Limit Switch to Limit Switch |
|
B |
015-0737-23 | Limit Switch to Limit Switch |
|
C |
015-0737-23 | Limit Switch to Limit Switch |
|
D |
015-11276-00 | PC Board to Scale Display |
|
E |
015-2215-00 | Rocker Switch to "T" Cable |
|
F |
015-2218-00 | Control Box to "T" Cable |
|
G |
015-2207-00 | Control Box to Limit Switch |
|
H |
029-4142-00 | Control Box to Outlet |
| I | 015-11277-01 | PC Board to Electrical Box |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||

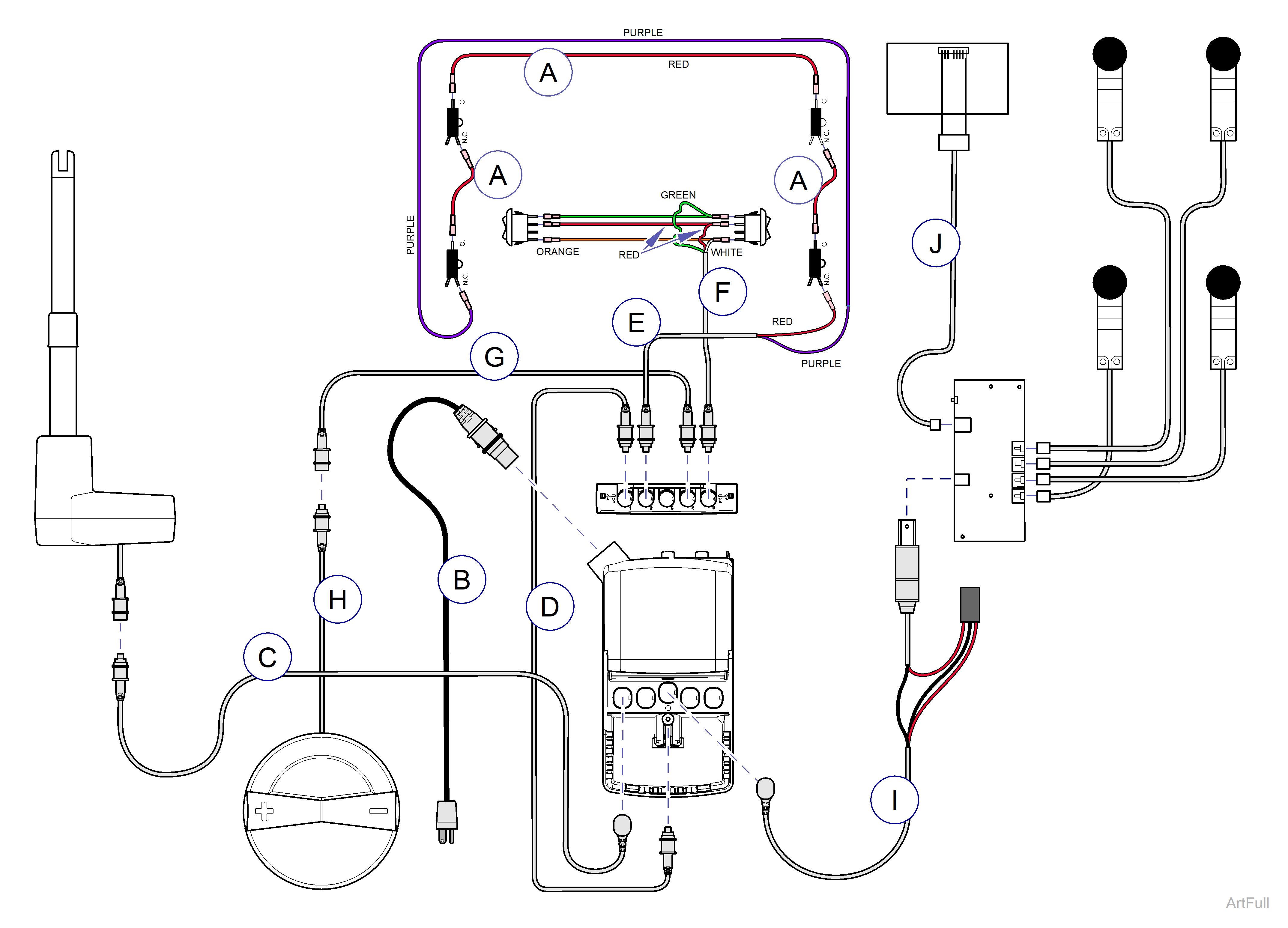

Dry Table with Scale Serial Number Range: V2636306 thru Present
|
Model |
CMWO | CMWS |
| Serial Number | V2636306 thru Present | V2636306 thru Present |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-0737-23 | Limit Switch to Limit Switch |
|
B |
015-11781-00 | Outlet to Control Box |
|
C |
015-11744-00 | Control Box Port 1 to Actuator |
|
D |
015-11746-00 | Control Box Center "Straight" Port to Junction Box Port 1 |
|
E |
015-11748-00 | Junction Box Port 2 to Limit Switch, Dry |
|
F |
015-11749-00 | Junction Box Port 5 to Rocker Switch |
|
G |
015-11941-00 | Junction Box Port 4 to Panelmount Cable |
|
H |
015-11710-00 | Panelmount Cable to Foot Control |
| I | 015-11341-00 | Control Box Middle Port to USB Scale |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Wet Table w/O Scale Serial Number Range: DMM-1070-D/T-05 thru DMM-1474-D/T-06
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | DMM-1070-D/T-05 thru DMM-1474-D/T-06 | DMM-1070-D/T-05 thru DMM-1474-D/T-06 |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-2288-00 | Control Box to Limit Switch |
|
B |
002-10945-01 |
Electrical Box to Water Sensor |
|
C |
015-2289-00 | Pump to Electrical Box |
|
D |
015-2275-00 | Control Box to Timer |
|
E |
015-2285-00 | Control Box to Hand Control |
|
F |
015-2270-00 | Control Box to Electrical Box |
|
G |
015-1139-01 | Electrical Box to Outlet |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Wet Table w/O Scale Serial Number Range: DMM-1475-D/T-06 thru DMM-1237-D/T-08
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | DMM-1475-D/T-06 thru DMM-1237-D/T-08 | DMM-1475-D/T-06 thru DMM-1237-D/T-08 |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-2288-00 | Control Box to Limit Switch |
|
B |
015-2262-00 | Electrical Box to Water Sensor |
|
C |
015-2289-00 | Pump to Electrical Box |
|
D |
015-2275-00 | Control Box to Timer |
|
E |
015-2285-00 | Control Box to Hand Control |
|
F |
015-2270-00 | Control Box to Electrical Box |
|
G |
015-1139-01 | Electrical Box to Outlet |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Wet Table w/O Scale Serial Number Range: DMM-1238-D/T-08 thru V2636305
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | DMM-1238-D/T-08 thru V2636305 | DMM-1238-D/T-08 thru V2636305 |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-2288-00 | Control Box to Limit Switch |
|
B |
002-10945-01 |
Water Sensor Kit |
|
C |
015-2289-00 | Pump to Electrical Box |
|
D |
015-2275-00 | Control Box to Timer |
|
E |
015-2285-00 | Control Box to Hand Control |
|
F |
015-2270-00 | Control Box to Electrical Box |
|
G |
015-1139-01 | Electrical Box to Outlet |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Wet Table w/O Scale Serial Number Range: V2636306 thru Present
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | V2636306 thru Present | V2636306 thru Present |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-1139-01 | Outlet to GFCI Receptacle |
|
B |
015-12021-00 |
GFCI Receptacle (Load Side) to Control Box |
|
C |
015-11744-00 | Control Box Port 1 to Actuator |
|
D |
015-11746-00 | Control Box Center "Straight" Port to Junction Box Port 1 |
|
E |
015-11780-00 | Junction Box Port 2 to Limit Switch, Wet |
|
F |
015-11941-00 | Junction Box Port 4 to Panelmount Cable |
|
G |
015-11641-00 | Panelmount Cable to Hand Control |
|
H |
015-11747-00 | Junction Box Port 5 to Float Switch |
|
I |
015-11636-00 | Control Box Port 3 to Pump |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Wet Table w/ Scale Serial Number Range: DMM-1070-D/T-05 thru DMM-1474-D/T-06
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | DMM-1070-D/T-05 thru DMM-1474-D/T-06 | DMM-1070-D/T-05 thru DMM-1474-D/T-06 |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-2279-00 | PC Board to Electrical Box |
|
B |
015-2200-00 | PC Board to Scale Display |
|
C |
015-2285-00 | Control Box to Hand Control |
|
D |
015-2288-00 | Electrical Box to Limit Switch |
|
E |
015-2270-00 | Control Box to Electrical Box |
|
F |
015-2289-00 | Pump to Electrical Box |
|
G |
015-2275-00 | Control Box to Timer |
|
H |
015-1139-01 | Electrical Box to Outlet |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Wet Table w/ Scale Serial Number Range: DMM-1475-D/T-06 thru DMM-1237-D/T-08
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | DMM-1475-D/T-06 thru DMM-1237-D/T-08 | DMM-1475-D/T-06 thru DMM-1237-D/T-08 |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-2200-00 | PC Board to Scale Display |
|
B |
015-2373-00 | Water Sensor to Electrical Box |
|
C |
015-2285-00 | Control Box to Hand Control |
|
D |
015-2288-00 | Electrical Box to Limit Switch |
|
E |
015-2270-00 | Control Box to Electrical Box |
|
F |
015-2289-00 | Pump to Electrical Box |
|
G |
015-2279-00 | PC Board to Electrical Box |
|
H |
015-2275-00 | Control Box to Timer |
|
I |
015-1139-01 | Electrical Box to Outlet |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Wet Table w/ Scale Serial Number Range: DMM-1238-D/T-08 thru V2363616
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | DMM-1238-D/T-08 thru V2363616 | DMM-1238-D/T-08 thru V2363616 |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-2200-00 | PC Board to Scale Display |
|
B |
002-10945-01 |
Water Sensor Kit |
|
C |
015-2285-00 | Control Box to Hand Control |
|
D |
015-2288-00 | Electrical Box to Limit Switch |
|
E |
015-2270-00 | Control Box to Electrical Box |
|
F |
015-2289-00 | Pump to Electrical Box |
|
G |
015-2279-00 | PC Board to Electrical Box |
|
H |
015-2275-00 | Control Box to Timer |
|
I |
015-1139-01 | Electrical Box to Outlet |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Wet Table w/ Scale Serial Number Range: V2363617 thru V2636305
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | V2363617 thru V2636305 | V2363617 thru V2636305 |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-11276-00 | PC Board to Scale Display |
|
B |
002-10945-01 |
Water Sensor Kit |
|
C |
015-2285-00 | Control Box to Hand Control |
|
D |
015-2288-00 | Electrical Box to Limit Switch |
|
E |
015-2270-00 | Control Box to Electrical Box |
|
F |
015-2289-00 | Pump to Electrical Box |
|
G |
015-11277-00 | PC Board to Electrical Box |
|
H |
015-2275-00 | Control Box to Timer |
|
I |
015-1139-01 | Electrical Box to Outlet |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||

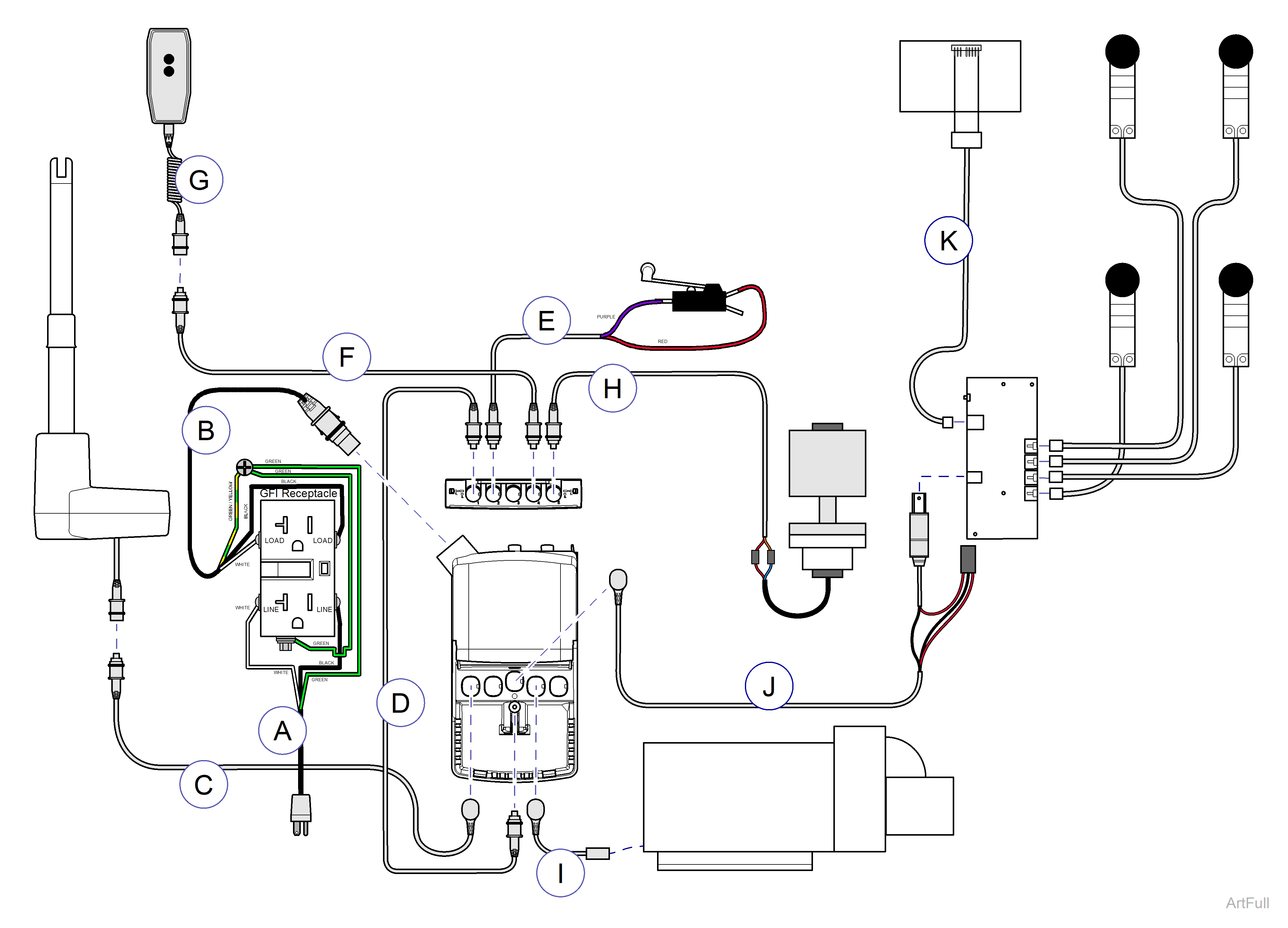

Wet Table w/ Scale Serial Number Range: V2636306 thru Present
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | V2636306 thru Present | V2636306 thru Present |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-1139-01 | Outlet to GFCI Receptacle |
|
B |
015-12021-00 |
GFCI Receptacle (load Side) to Control Box |
|
C |
015-11744-00 | Control Box Port 1 to Actuator |
|
D |
015-11746-00 | Control Box Center "Straight" Port to Junction Box Port 1 |
|
E |
015-11780-00 | Junction Box Port 2 to Limit Switch, Wet |
|
F |
015-11941-00 | Junction Box Port 4 to Panelmount Cable |
|
G |
015-11641-00 | Panelmount Cable to Hand Control |
|
H |
015-11747-00 | Junction Box Port 5 to Float Switch |
|
I |
015-11636-00 | Control Box Port 3 to Pump |
|
J |
015-11341-00 | Control Box Middle "Flat Port" to USB Scale |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Electrical Box - units w/O scale Serial Number Range: DMM-1070-D/T-05 thru DMM-1xxx-D/T-09
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | DMM-1070-D/T-05 thru DMM-1xxx-D/T-09 | DMM-1070-D/T-05 thru DMM-1xxx-D/T-09 |
| Item | Part Number | Description |
|---|---|---|
|
A |
002-10945-01 |
Water Sensor Kit |
|
B |
015-2289-00 | From Pump Motor |
|
C |
015-2275-00 | From Timer Cord |
|
D |
015-2270-00 | From Power Cord |
|
E |
015-1139-01 | From Electrical Cord |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Electrical Box - units w/O scale Serial Number Range: V730066 thru V2636305
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | V730066 thru V2636305 | V730066 thru V2636305 |
| Item | Part Number | Description |
|---|---|---|
|
A |
002-10945-01 |
Water Sensor Kit |
|
B |
015-2289-00 | From Pump Motor |
|
C |
015-2275-00 | From Timer Cord |
|
D |
015-2270-00 | From Power Cord |
|
E |
015-1139-01 | From Electrical Cord |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Electrical Box - units w/ scale Serial Number Range: DMM-1070-D/T-05 thru DMM-1xxx-D/T-09
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | DMM-1070-D/T-05 thru DMM-1xxx-D/T-09 | DMM-1070-D/T-05 thru DMM-1xxx-D/T-09 |
| Item | Part Number | Description |
|---|---|---|
|
A |
002-10945-01 |
Water Sensor Kit |
|
B |
015-2279-01 | From Scale |
|
C |
015-2289-00 | From Pump Motor |
|
D |
015-2275-00 | From Timer Cord |
|
E |
015-2270-00 | From Power Cord |
|
F |
015-1139-01 | From Electrical Cord |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Electrical Box - units w/ scale Serial Number Range: V730066 thru V2363616
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | V730066 thru V2363616 | V730066 thru V2363616 |
| Item | Part Number | Description |
|---|---|---|
|
A |
002-10945-01 |
Water Sensor Kit |
|
B |
015-2279-01 | From Scale |
|
C |
015-2289-00 | From Pump Motor |
|
D |
015-2275-00 | From Timer Cord |
|
E |
015-2270-00 | From Power Cord |
|
F |
015-1139-01 | From Electrical Cord |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
Electrical Box - units w/ scale Serial Number Range: V2363617 thru V2636305
|
Model |
CMDT | CMDT-WS 45 and 60 |
| Serial Number | V2363617 thru V2636305 | V2363617 thru V2636305 |
| Item | Part Number | Description |
|---|---|---|
|
A |
002-10945-01 |
Water Sensor Kit |
|
B |
015-11277-01 | From Scale |
|
C |
015-2289-00 | From Pump Motor |
|
D |
015-2275-00 | From Timer Cord |
|
E |
015-2270-00 | From Power Cord |
|
F |
015-1139-01 | From Electrical Cord |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
