Fixed Height Tables Components

Refer to: the Cabinet Color Options for the order number extension of your desired color.

Refer to: the Countertop Color Options for the order number extension of your desired color.

Model

 8003-001 8003-002 8003-003 8003-004 8003-004
Serial Number All All All All All

Fixed Height Tables Table Components

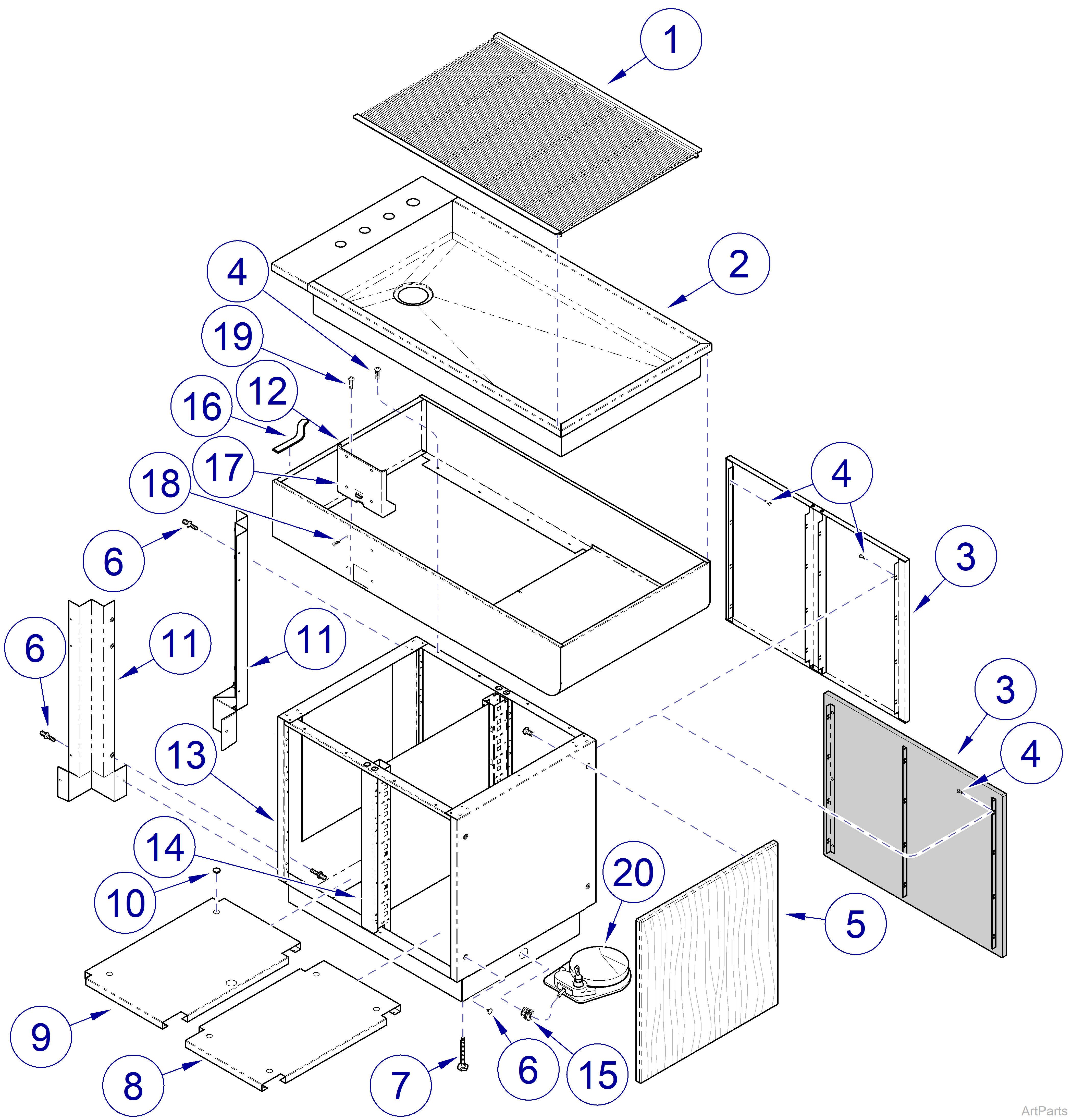

48" Wet Table Components
Item Part Number Description Qty

1

 030-1774-02 Recessed Rack 1

2

 050-8083-00 Stainless Steel Tub 1

3

 Back Panel Assembly Options
  029-4364-00-216 Back Panel Assembly 1


029-4539-00-xxx

 Laminate Back Panel Assembly NSS

4

 040-0010-157 #10-24 x 5/8” Screw AR

5

 068-0550-00-216 Side Panel - only applies on units with Laminate Back Panel 1

6

 029-1728-06 Hardware Kit
1

7

 016-0557-00 Leveling Screw 6

8

050-7446-00-216

 Base Bottom AR

9

 Sink Base Bottom Options
  050-7550-00-216 Sink Base Bottom Standard 1
  050-7795-00-216 Sink Base Bottom w/ Hole 1

10

029-1762-05

 Base Hole Plugs

NLA

11

 029-3829-04 36” Bracket Assembly 1

12

 48" Upper Wrap Options
  030-1820-00-216 48” Upper Wrap 1
  030-1825-00-216 48” Upper Wrap - with L.H. Whip Head - shown 1
  030-1825-04-216 48” Upper Wrap - with R.H. Whip Head 1

13

   Peninsula Shell Assembly NSS

14

   Slide Bracket Assembly NSS

15

 053-0068-09 Strain Relief Bushing - Units w/ Whip Head Only 1

16

 054-0611-00 Foam Tape - sold by the inch 144

17

 050-7611-00-216 Table Mount Whip Bracket 1

18

 040-0250-13 Pan Head Phillips 1/4-20 x 5/8” 4

19

 040-0010-113 Pan Head Phillips #10-24 x 5/8” 1

20

 016-1040-00 Foot Control, 4 Port, Wet-Dry 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 8003-005 8003-006 8003-007 8003-008
Serial Number All All All All

Fixed Height Tables Table Components

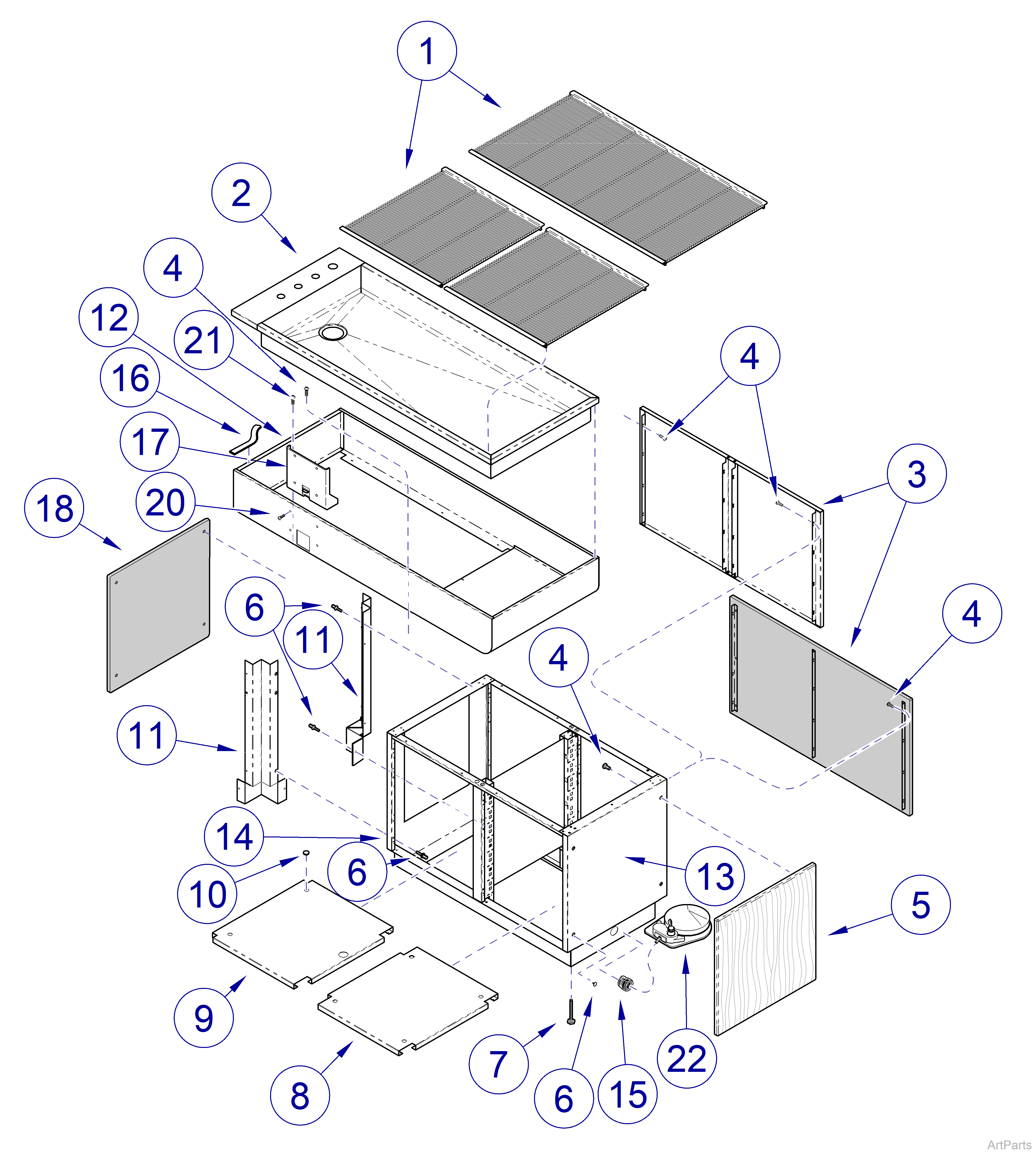

60" Wet Table Components
Item Part Number Description Qty

1

 Recessed Rack Options
  030-1774-04 Standard Recessed Rack 1
  030-1774-00 Optional Recessed Rack 2

2

 050-8082-00 Stainless Steel Tub 1

3

 Back Panel Assembly Options
  029-4364-02-216 Sheet Metal Back Panel - used on units with Snap-on and Ritter handles 1


029-4539-02-xxx

 Wood Grain Laminate Back Panel - used on units with Integrated handles NSS

4

 040-0010-157 #10-24 x 5/8” Screw AR

5

 068-0550-00-216 Side Panel - only applies on units with Laminate Back Panel 1

6

 029-1728-06 Hardware Kit 1

7

 016-0557-00 Leveling Screw 6

8

050-7446-02-216

 Base Bottom AR

9

 Sink Base Bottom Options
  050-7550-02-216 Sink Base Bottom Standard 1
  050-7795-02-216 Sink Base Bottom w/ Hole 1

10

029-1762-05

 Base Hole Plugs

NLA

11

 029-3829-04 36” Bracket Assembly - used only on peninsula applications 1

12

 48" Upper Wrap Options
  030-1820-02-216 60” Upper Wrap 1
  030-1825-02-216 60” Upper Wrap - with L.H. Whip Head - Shown 1
  030-1825-06-216 60” Upper Wrap - with R.H. Whip Head 1

13

 Shell Assembly
    Peninsula - side access plumbing - Shown NSS
    Island - floor access plumbing - Not Shown NSS

14

 Slide Bracket Assembly
    Peninsula - side access plumbing - Shown NSS
    Island - floor access plumbing - Not Shown NSS

15

 053-0068-09 Strain Relief Bushing 1

16

 054-0611-00 Foam Tape - sold by the inch 168

17

 050-7611-00-216 Table Mount Whip Bracket 1

18

 068-0715-00-216 Side Panel - Only used on integrated handle unitswith wood grain laminate back panel 1

19

   Hold-down Anti-Tip Bracket - Not Shown 1

20

 040-0250-13 Pan Head Phillips 1/4-20 x 5/8” 4

21

 040-0010-113 Pan Head Phillips #10-24 x 5/8” 1

22

 016-1040-00 Foot Control, 4 Port, Wet-Dry 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 8007-001 8007-002
Serial Number All All

Fixed Height Tables Table Components

48" Dry Table Components
Item Part Number Description Qty

1

 Top Assembly Options
  029-4896-01 Steel Top Assembly 1
  068-0643-00-xxx Laminate Top Assembly 1

2

 042-0010-04 Rivet 6

3

050-6228-00-216

 Mullion Mounting Bracket 1.25

NLA

4

 040-0006-71 Screw #6x.625 FH,PHL 6

5

 Back Panel Assembly Options


029-4854-02

 Steel Back Panel

NLA



029-4888-03-xxx

 Wood Grain Back Panel

NSS

6

 040-0010-157 Screw SEMS 0.190-24x.625 CD/ZN 16

7

 040-0010-48 Screw #10x5/8 PAN 14

8

 068-0605-00-216 Side Panel Assembly Wood Grain 1

9

 016-0557-00 Leveling Screw 4

10

050-7446-03-216

 Base Bottom 24” deep x 24” wide 1

11

 050-7448-00-216 Bottom Support Bracket 3

12

 050-7825-02-216 Base Bottom 24” deep x 24” wide 1

13

 040-0010-109 Screw 10

14

 029-1728-06 Hardware Kit 1

15

 029-3829-04 36” Bracket Assembly 2

16

 068-0169-09-xxx Mullion Assembly 47.688 X 1.25, Wood Grain Only 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 8007-005 8007-006
Serial Number All All

Fixed Height Tables Table Components

60" Dry Table Components
Item Part Number Description Qty

1

 Top Assembly Options


029-4896-03

 Steel Top Assembly

NLA



068-0643-01-xxx

Laminate Top Assembly 1

2

 068-0618-01-216 Mullion Assembly 1

3

 Back Panel Assembly Options


029-4810-01-xxx

 Back Panel Assembly - includes Items # 3, 4 and 6

NLA



029-4890-01-XXX

 Steel Back Panel

NSS



029-4841-01-xxx

 Wood Grain Back Panel NSS

4

 040-0010-48 Screw #10x5/8 PAN 14

5

 068-0605-00-216 Side Panel Assembly Wood Grain 2

6

 016-0557-00 Leveling Screw 4

7

 050-7446-01-216 Base Bottom 24"d x 15"w 1

8

 050-7757-00-216 Base Bottom 21" Center Zone 1

9

 050-7825-01-216 Base Bottom 21" 1

10

 040-0010-109 Screw 22

11

 050-7448-00-216 Bottom Support Bracket 5

12

 029-1728-06 Hardware Kit 1

13

 029-3829-04 36” Bracket Assembly 2

14

050-6228-00-216

 Mullion Mounting Bracket 1.25

NLA

15

 042-0010-04 Rivet 6

16

 040-0006-71 Screw #6x.625 4

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 8007-005 8007-006 8007-007 8007-008
Serial Number All All All All

Fixed Height Tables Table Components

60" Dry Table Components
Item Part Number Description Qty

1

 Top Assembly Options


029-4896-00

 48" Steel Top Assembly

NLA

  029-4896-02 60" Steel Top Assembly 1
  068-0643-00-xxx 48" Laminate Top Assembly 1
  068-0643-01-xxx 60" Laminate Top Assembly 1

2

050-6228-00-216

 Mullion Mounting Bracket 1.25

NLA

3

 040-0006-71 Screw #6x.625 6

4

 Back Panel Assembly Options


029-4854-00

 48" Steel Back Panel

NLA



029-4854-01

 60" Steel Back Panel

NLA



029-4888-00-xxx

 48" Wood Grain Back Panel

NSS



029-4888-02-xxx

 60" Wood Grain Back Panel

NSS

5

 040-0010-157 Screw 12

6

 040-0010-48 Screw #10x5/8 PAN 14

7

 068-0605-01-xxx Side Panel Assembly - Wood Grain Only 1

8

 040-0010-157 Screw 2

9

 016-0557-00 Leveling Screw 4

10

 Base Bottom 24"d x 24"w Options
  050-7446-00-216 48" Base Bottom 1


050-7446-02-216

 60" Base Bottom 1

11

 050-7448-00-216 Bottom Support Bracket 3

12

 Base Bottom 24"d x 24"w Options
  050-7825-00-216 48" Base Bottom 1
  050-7825-01-216 60" Base Bottom 1

13

040-0010-109

 Screw AR

14

 029-1728-06 Hardware Kit 1

15

 029-3829-04 36” Bracket Assembly 2

16

 Mullion Assembly 47.688 X 1.25 Wood Grain Only
  068-0169-05-xxx 48" Mullion Assembly 2
  068-0169-07-xxx 60"Mullion Assembly 2

17

 042-0010-04 Rivet 6

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 8004-001 8004-002 8004-003 8004-004 8004-005
Serial Number All All All All All

Fixed Height Tables Table Components

44" Island Table Components
Item Part Number Description Qty

1

050-6228-00-216

 Mullion Mounting Bracket 1.25

NLA

2

 040-0006-71 Screw #6x.625 FH, PHL 6

3

 Back Panel Assembly Options


029-4888-02-XXX

 Steel Back Panel

NSS



029-4854-01

 Wood Grain Back Panel

NLA

4

 040-0010-157 Screw SEMS 0.190-24x.625 CD/ZN - Steel Only 16

5

 040-0010-48 Screw #10x5/8 PAN Wood Grain Only 4

6

 068-0605-00-216 Side Panel Assembly Wood Grain 1

7

 016-0557-00 Leveling Screw 4

8

050-7446-02-216

 Base Bottom 24” deep x 24” wide 2

9

 050-7448-00-216 Bottom Support Bracket 3

10

 040-0010-109 Screw PNH 0.190-24X.375 PHIL. 6

11

 040-0010-48 Screw #10 x 5/8” PAN 10

12

 029-3467-07 Mullion Assembly 1

13

 042-0010-04 Rivet 3

14

 Top Assembly Options
  029-4885-00 Steel Top Assembly 1
  068-0604-00-xxx Laminate Top Assembly 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 8004-006 8004-007 8004-008
Serial Number All All All

Peninsula Table Table Components

59" Island Table Components
Item Part Number Description Qty

1

 Top Assembly Options
  029-4885-01 Steel Top Assembly 1
  068-0604-02-216 Laminate Top Assembly 1

2

 029-3467-14 Mullion Assembly 1

3

 Back Panel Assembly Options


029-4890-00

 Steel Back Panel

NLA



029-4841-00-xxx

 Wood Grain Back Panel

NSS

4

 040-0010-48 Pan Head Screw #10 x 5/8” AR

5

 040-0010-157 Screw SEMS 0.190-24x.625 CD/ZN AR

6

 068-0605-00-216 Side Panel Assembly Wood Grain 1

7

 016-0557-00 Leveling Screw 4

8

050-7446-01-216

 Bottom Base 1

9

 050-7448-00-216 Bottom Base - Center Zone 1

10

040-0010-109

Screw PNH 0.190-24X.375 PHIL.

6

11

 040-0010-109 Screw PNH 0.190-24X.375 PHIL. 22

12

 050-7448-00-216 Bottom Bracket Support 5

13

050-6228-00-216

 Mullion Mounting Bracket 1.25

NLA

14

 042-0010-04 Rivet 4

15

 040-0006-71 Screw #6 x .625, Flat Head PHL 4

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
