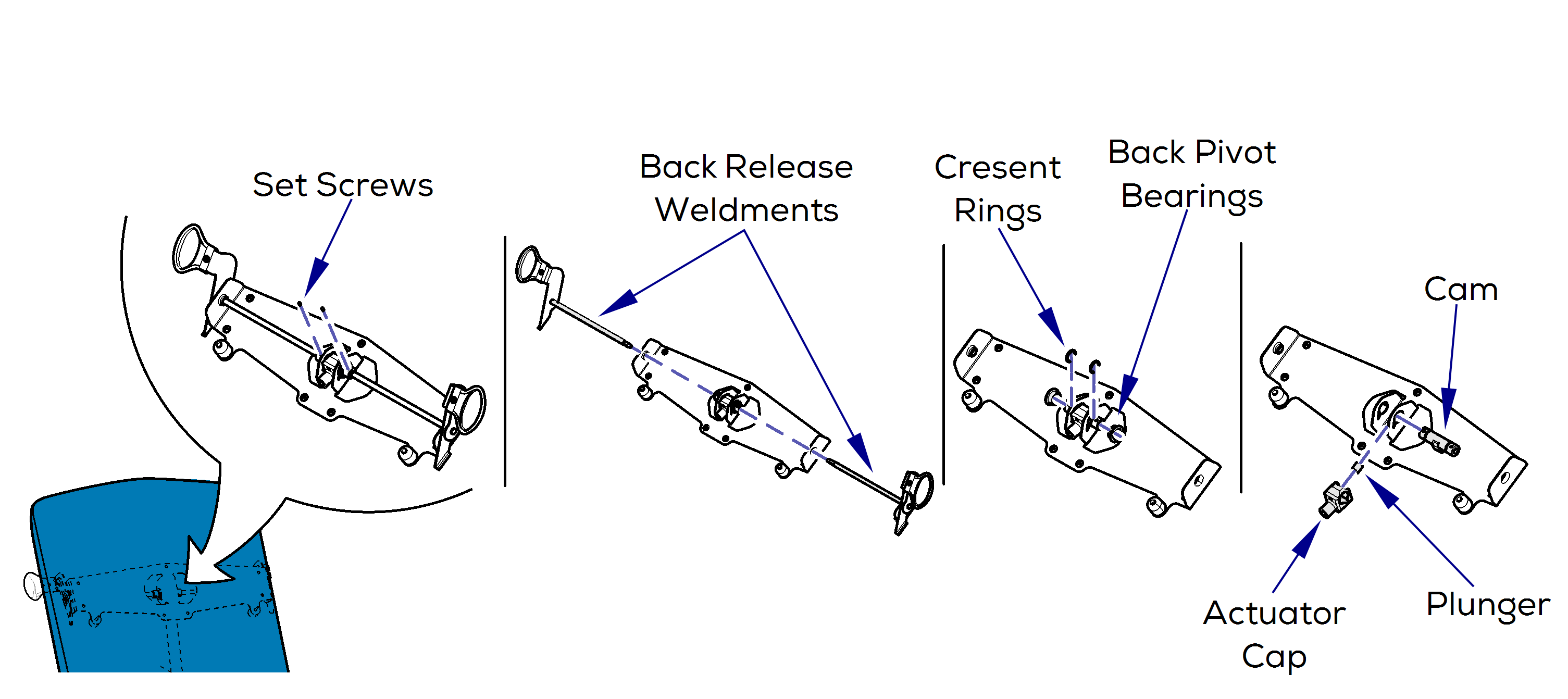

1.Remove gas cylinder as shown on previous page.

2.Remove (2) set screws from cam.

3.Slide LH and RH back release weldments out of cam.

4.Remove crescent ring from both sides of cam. Remove back pivot bearings from cam.

5.Pull cam out of actuator cap. Remove plunger from actuator cap and reinstall in new actuator cap.

1.Install cam through actuator cap.

2.Install back pivot bearings on cam. Install crescent ring on each side of cam.

3.Side LH and RH back release weldments into cam.

4.Install (2) set screw in cam. Install gas cylinder.
