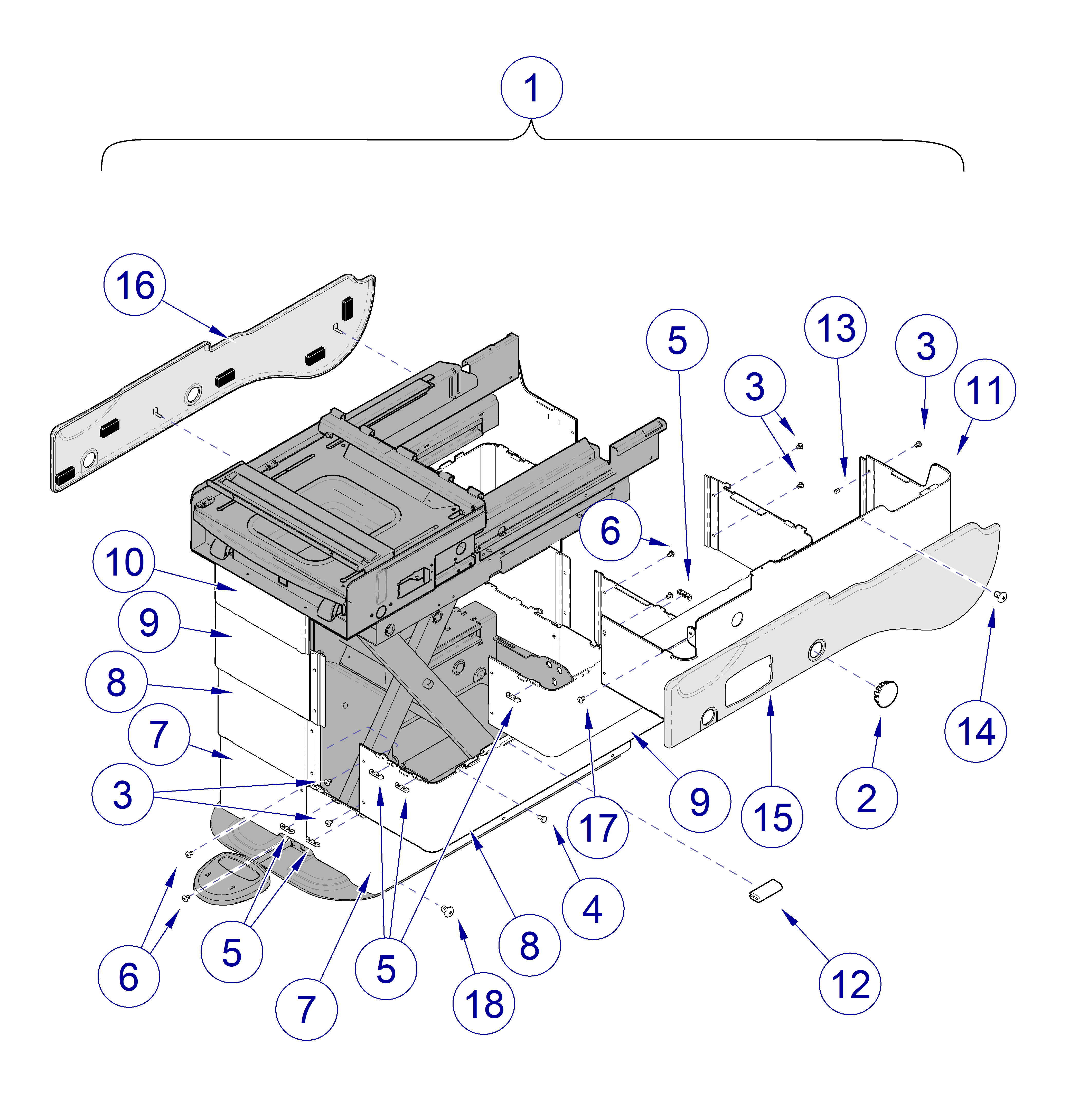

623 Exam Table Midmark® Model Table Shrouds

Model

 623 -009 thru -010
Serial Number V216996 thru V761999

Table Shrouds - Midmark Model

623 Exam Table Midmark® Model Table Shrouds
Item Part Number Description Qty

1

 002-1742-00 Table Shroud Assembly Set - includes items 2 through 14 1

2

 016-0936-00 Hole Plug 4

3

 040-0008-106 Screw #8-32 x .25" 12

4

 053-2301-00 Stem Bumper 14

5

 053-0752-00 Snap-on Guide 32

6

 040-0008-78 Screw #8 -32 x .25" 4

7

 029-3049-01 Inner Shroud Assembly - includes items 4, 5, and 13 2

8

002-10304-00

Mid Inner Shroud Assembly - includes items 4, 5, 12, and 13 2

9

 002-1717-00 Mid Outer Shroud Assembly - includes items 4, 5, and 13 2

10

 002-1743-02 Right Outer Shroud Assembly - includes items 3, 13, 14, and 17 1

11

 002-1743-03 Left Outer Shroud Assembly - includes items 3, 13, 14, and 17 1

12

 016-0140-05 Trim Lock 4

13

 042-0045-02 Nutsert 18

14

 040-0010-145 Screw 10-24 x 1/2" 2

15

 Cladding Assembly Options


029-6164-01-271

 LH Cladding Assembly w/ receptacle cutout

NLA

  029-6164-02-271 LH Cladding Assembly w/o receptacle cutout 1

16

029-6164-00-271

 RH Cladding Assembly

NLA

17

040-0008-114

 Screw #8-32 x 3/8" NLA

18

 040-0010-47 Screw 6

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

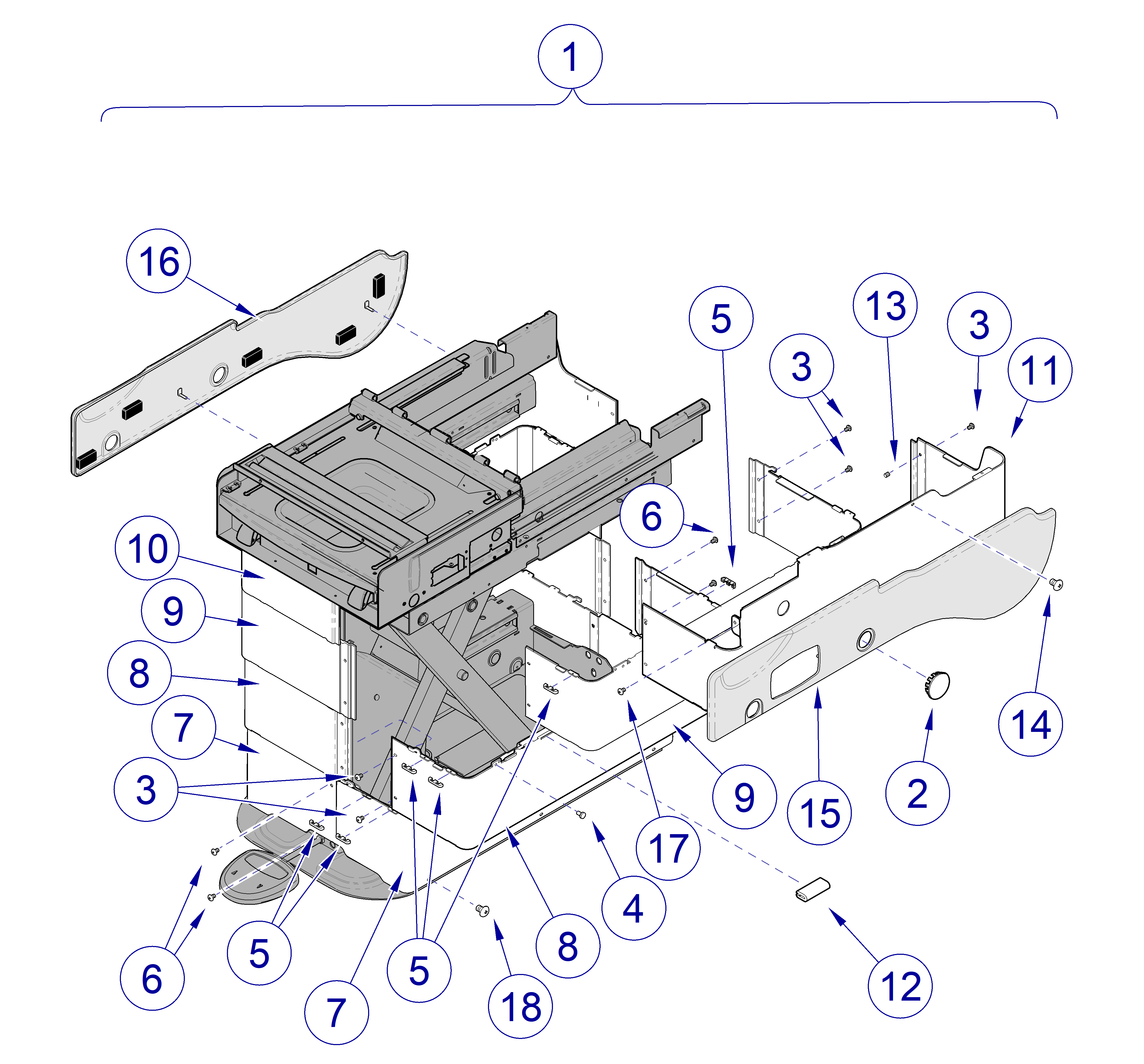

Model

 623 -009 thru -010
Serial Number V762688 thru V1077078

Table Shrouds - Midmark Model

623 Exam Table Midmark® Model Table Shrouds
Item Part Number Description Qty

1

 002-1742-00 Table Shroud Assembly Set - includes items 2 through 14 1

2

 016-0936-00 Hole Plug 4

3

 040-0008-106 Screw #8-32 x .25" 12

4

 053-2301-00 Stem Bumper 14

5

 053-0752-00 Snap-on Guide 32

6

 040-0008-78 Screw #8 -32 x .25" 4

7

 029-3049-01 Inner Shroud Assembly - includes items 4, 5, and 13 2

8

002-10304-00

Mid Inner Shroud Assembly - includes items 4, 5, 12, and 13 2

9

 002-1717-00 Mid Outer Shroud Assembly - includes items 4, 5, and 13 2

10

 002-1743-02 Right Outer Shroud Assembly - includes items 3, 13, 14, and 17 1

11

 002-1743-03 Left Outer Shroud Assembly - includes items 3, 13, 14, and 17 1

12

 016-0140-05 Trim Lock 4

13

 042-0045-02 Nutsert 18

14

 040-0010-145 Screw 10-24 x 1/2" 2

15

 Cladding Assembly Options


029-6164-01-271

 LH Cladding Assembly w/ receptacle cutout

NLA



 029-6164-02-271 LH Cladding Assembly w/o receptacle cutout 1

16

029-6164-00-271

 RH Cladding Assembly

NLA

17

 040-0010-47 Screw #10-24 x 3/8" 2

18

 040-0010-47 Screw 6

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 623 -009 thru -010
Serial Number V1077079 thru V1089389

Table Shrouds - Midmark Model

623 Exam Table Midmark® Model Table Shrouds
Item Part Number Description Qty

1

 002-1742-00 Table Shroud Assembly Set - includes items 2 through 15 1

2

 016-0936-00 Hole Plug 4

3

 040-0008-106 Screw #8-32 x .25" 12

4

 053-2301-00 Stem Bumper 14

5

 053-0752-00 Snap-on Guide 32

6

 040-0008-78 Screw #8 -32 x .25" 4

7

 029-3049-01 Inner Shroud Assembly - includes items 4, 5, and 13 2

8

002-10304-00

Mid Inner Shroud Assembly - includes items 4, 5, 12, 13 and 15 2

9

 002-1717-00 Mid Outer Shroud Assembly - includes items 4, 5, 12, 13 and 15 2

10

 002-1743-02 Right Outer Shroud Assembly - includes items 3, 13, 14, and 18 1

11

 002-1743-03 Left Outer Shroud Assembly - includes items 3, 13, 14, and 18 1

12

 016-0140-05 Trim Lock 4

13

 042-0045-02 Nutsert 18

14

 040-0010-145 Screw 10-24 x 1/2" 2

15

 053-2213-00 Shroud Isolator 4

16

 Cladding Assembly Options


029-6164-01-271

 LH Cladding Assembly w/ receptacle cutout

NLA



 029-6164-02-271 LH Cladding Assembly w/o receptacle cutout 1

17

029-6164-00-271

 RH Cladding Assembly

NLA

18

 040-0010-47 Screw #10-24 x 3/8" 2

19

 040-0010-47 Screw 6

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 623 -009 thru -010
Serial Number V1089390 thru V1545232

Table Shrouds - Midmark Model

623 Exam Table Midmark® Model Table Shrouds
Item Part Number Description Qty

1

 002-1742-00 Table Shroud Assembly Set - includes items 2 through 14 1

2

 016-0936-00 Hole Plug 4

3

 040-0008-106 Screw #8-32 x .25" 12

4

 053-2301-00 Stem Bumper 14

5

 053-0752-00 Snap-on Guide 32

6

 040-0008-78 Screw #8 -32 x .25" 4

7

 029-3049-01 Inner Shroud Assembly - includes items 4, 5, and 13 2

8

002-10304-00

Mid Inner Shroud Assembly - includes items 4, 5, 12, and 13 2

9

 002-1717-00 Mid Outer Shroud Assembly - includes items 4, 5, and 13 2

10

 002-1743-02 Right Outer Shroud Assembly - includes items 3, 13, 14, and 17 1

11

 002-1743-03 Left Outer Shroud Assembly - includes items 3, 13, 14, and 17 1

12

 016-0140-05 Trim Lock 4

13

 042-0045-02 Nutsert 18

14

 040-0010-145 Screw 10-24 x 1/2" 2

15

 Cladding Assembly Options


029-6164-01-271

 LH Cladding Assembly w/ receptacle cutout

NLA



 029-6164-02-271 LH Cladding Assembly w/o receptacle cutout 1

16

029-6164-00-271

 RH Cladding Assembly

NLA

17

 040-0010-47 Screw #10-24 x 3/8" 2

18

 040-0010-47 Screw 6

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 623 -009 thru -011
Serial Number V1545233 thru present

Table Shrouds - Midmark Model

623 Exam Table Midmark® Model Table Shrouds
Item Part Number Description Qty

1

 002-1742-00 Table Shroud Assembly Set - includes items 2 through 15 1

2

 Hole Plug Options



 016-0936-02-216 Hole Plug 2
  016-0936-03-216 Hole Plug 2

3

 040-0008-106 Screw #8-32 x .25" - Torque 12 - 17 in lb 12

4

 053-2301-00 Stem Bumper 14

5

 053-0752-00 Snap-on Guide 32

6

 040-0008-78 Screw #8 -32 x .25" - Torque 12 - 17 in lb 4

7

 029-3049-01 Inner Shroud Assembly - includes items 4, 5, and 13 2

8

002-10304-00

Mid Inner Shroud Assembly - includes items 4, 5, 12, 13 and 15 2

9

 002-1717-00 Mid Outer Shroud Assembly - includes items 4, 5, 13 and 15 2

10

 002-1743-02 Right Outer Shroud Assembly - includes items 3, 5, 13, and 18 1

11

 002-1743-03 Left Outer Shroud Assembly - includes items 3, 5, 13, and 18 1

12

 016-0140-05 Trim Lock 4

13

 Nutsert Options
  042-0045-02 Nutsert Round 18
  042-0663-00 Nutsert Hex 18

14

 040-0010-145 Screw 10-24 x 1/2" 2

15

 053-2213-00 Shroud Isolator 8

16

 LH Cladding Assembly Options


029-6164-01-271

 LH Cladding Assembly w/ receptacle cutout

NLA

  029-6164-02-271 LH Cladding Assembly w/o receptacle cutout - Not shown 1


029-6164-04-271

 LH Cladding Assembly w/ recept cutout/cer mag - Not shown

NLA



029-6164-05-271

 LH Cladding Assembly w/o recept cutout/cer mag - not shown

NLA

17

 RH Cladding Assembly Options



029-6164-03-271

 RH Cladding Assembly w/ ceramic magnet

NLA



029-6164-00-271

 RH Cladding Assembly w/o ceramic magnet - Not shown

NLA

18

 040-0010-47 Screw 10-24 x 3/8" 2

19

 040-0010-47 Screw 6

20

 016-0936-00 Hole Plug 2

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
