222 Exam Table, 223 and 623 Table Receptacle Operation Troubleshooting

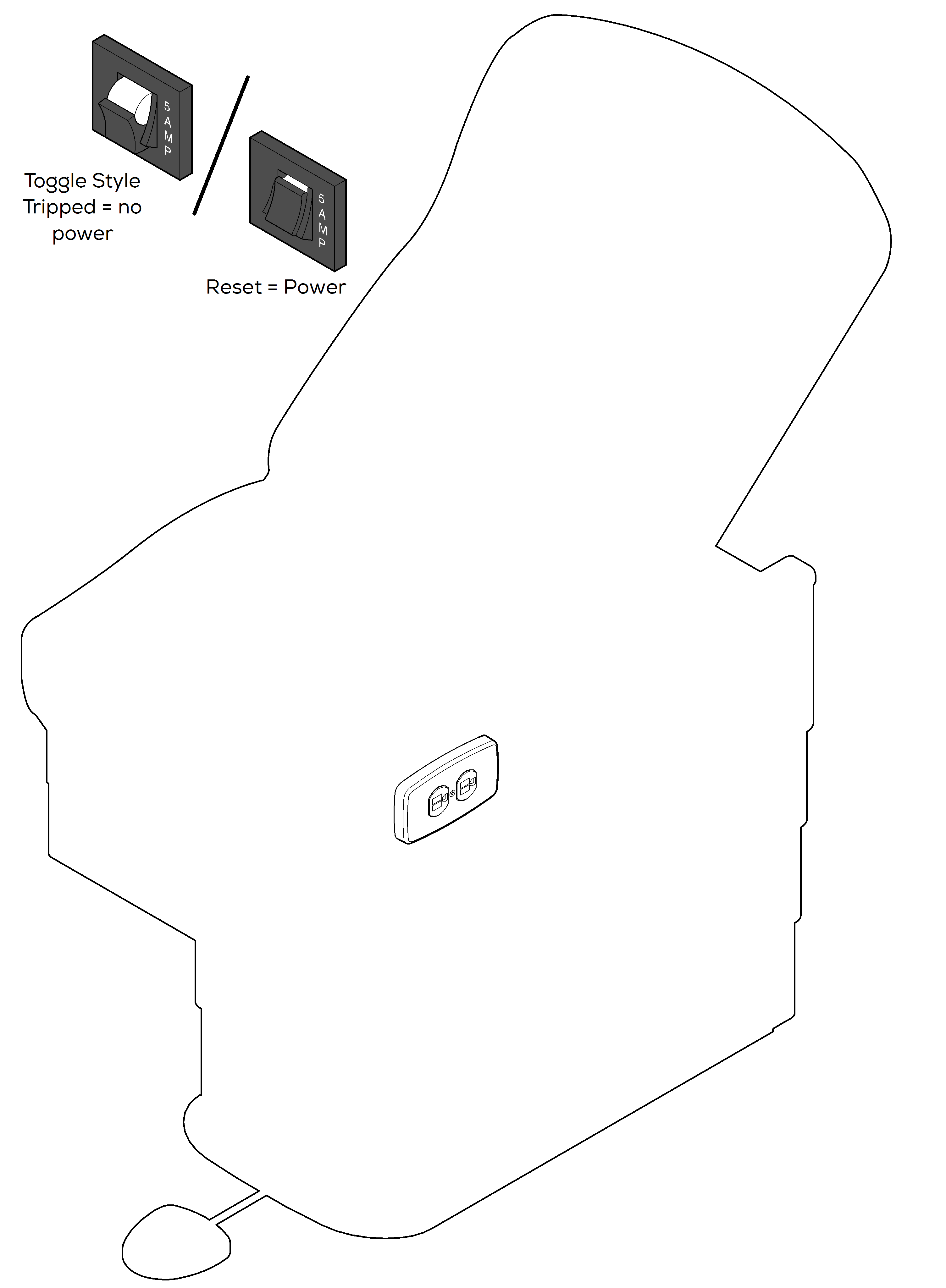

This illustration shows only the components that affect the table receptacle. A detailed description of current flow also appears below. 115 VAC is supplied directly to the table receptacle thru the circuit breakers. Voltage bypasses the Main PC Board.

Models w/ drawer heater only: There is a connection point for the receptacle wiring harness at the Distribution board. Current does not flow thru the Distribution board fuses.

Table Receptacle

Function Status Problem

Table Receptacle

Thumbs down

No power.

All other functions

Thumbs down

OK

Table Receptacle

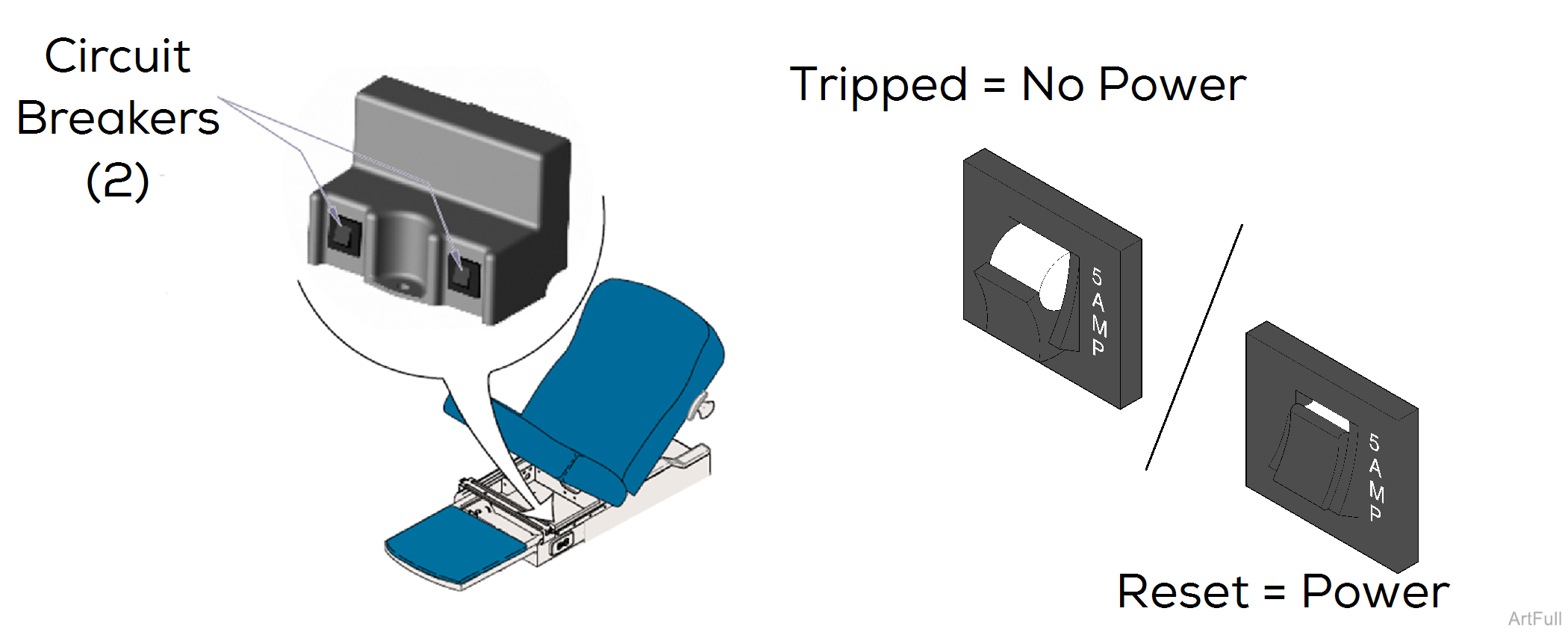

1.Is circuit breaker tripped? Lift seat section to access circuit breakers - press start to reset.

2.Loose wire connects between table receptacle and power cord.

3.Replace receptacle.
