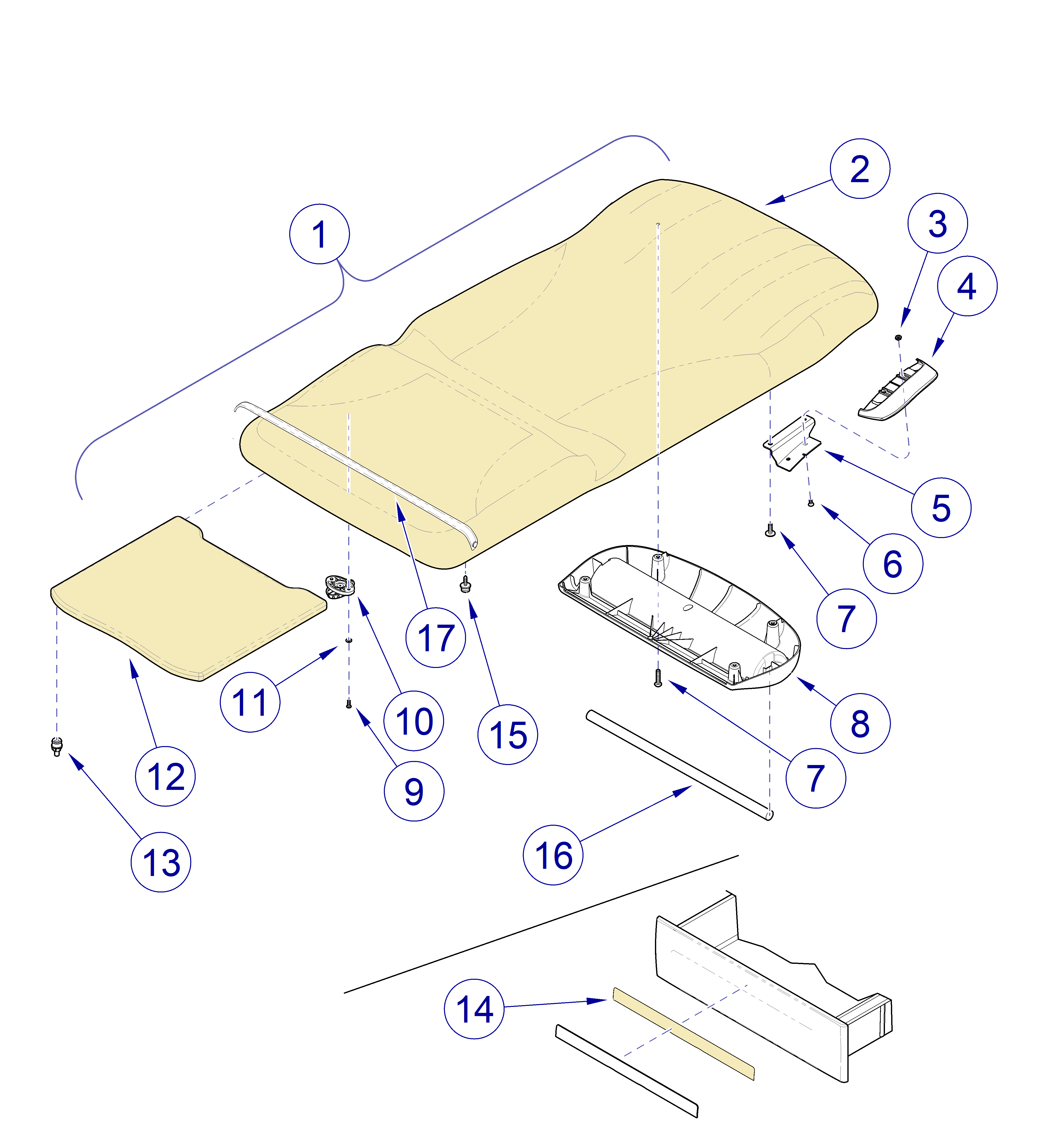

623 Exam Table Midmark® Premium Upholstery
|
Model |
623 -011 | |
| Serial Number | All | |
Refer to Upholstery Color Selector link for appropriate numbers to replace -xxx.
| 623 Exam Table Midmark® Premium Upholstery | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Standard Upholstery Set Options - includes items 2 thru 14 | ||
| 002-10118-xxx | Standard Upholstery Set | 1 | |
|
002-10376-xxx |
Std. W/Heater Upholstery Set |
NLA |
|
|
002-10120-xxx |
Cal. 133 Upholstery Set | NLA | |
|
002-0880-xxx |
Upholstery Set | NLA | |
|
2 |
Standard Seat/Back Upholstery Options | ||
| 028-10023-xxx | Standard Seat/Back Upholstery | 1 | |
|
028-0603-00-xxx |
Std. w/ Heater Seat/Back Upholstery |
NLA |
|
|
028-10025-xxx |
Cal. 133 Seat/Back Upholstery | NLA | |
|
028-0612-00-xxx |
Cal. 133 W/Heater Seat/Back Upholstery | NLA | |
|
3 |
041-0010-01 | Nut | 4 |
|
4 |
053-1368-00 | Handle | 2 |
|
5 |
Handle Bracket Options | ||
| 030-1494-51 | LH Handle Bracket | 2 | |
| 030-1494-50 | RH Handle Bracket | 2 | |
|
6 |
040-0010-154 | Screw | 4 |
|
7 |
042-0059-08 | Screw 10-24 x 5/8 | 8 |
|
8 |
053-1366-00 | Paper Roll Housing | 1 |
|
9 |
040-0010-12 | Screw | 12 |
|
10 |
Upholstery Lock Kit - includes screws and washers | 6 | |
|
11 |
045-0001-00 | Washer | 12 |
|
12 |
028-0606-00-xxx | Footrest Pad includes four glides - item 13 | 1 |
|
13 |
053-0424-00 | Footrest Glide | 4 |
|
14 |
053-1392-00-216 | Vinyl Drawer Insert | 6 |
|
15 |
016-0022-00 | Snap / Stud | 2 |
|
16 |
055-0005-00 | Dowel Rod | 1 |
|
17 |
002-1427-00 | Tear Strap | 1 |
|
18 |
002-1907-00 | Kit, Upholstery Packaging Not Shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
