Model |
623 -009 thru -011 |
|
| Serial Number | All | |
Refer to: Upholstery Color Options for the order number extension of your desired color.

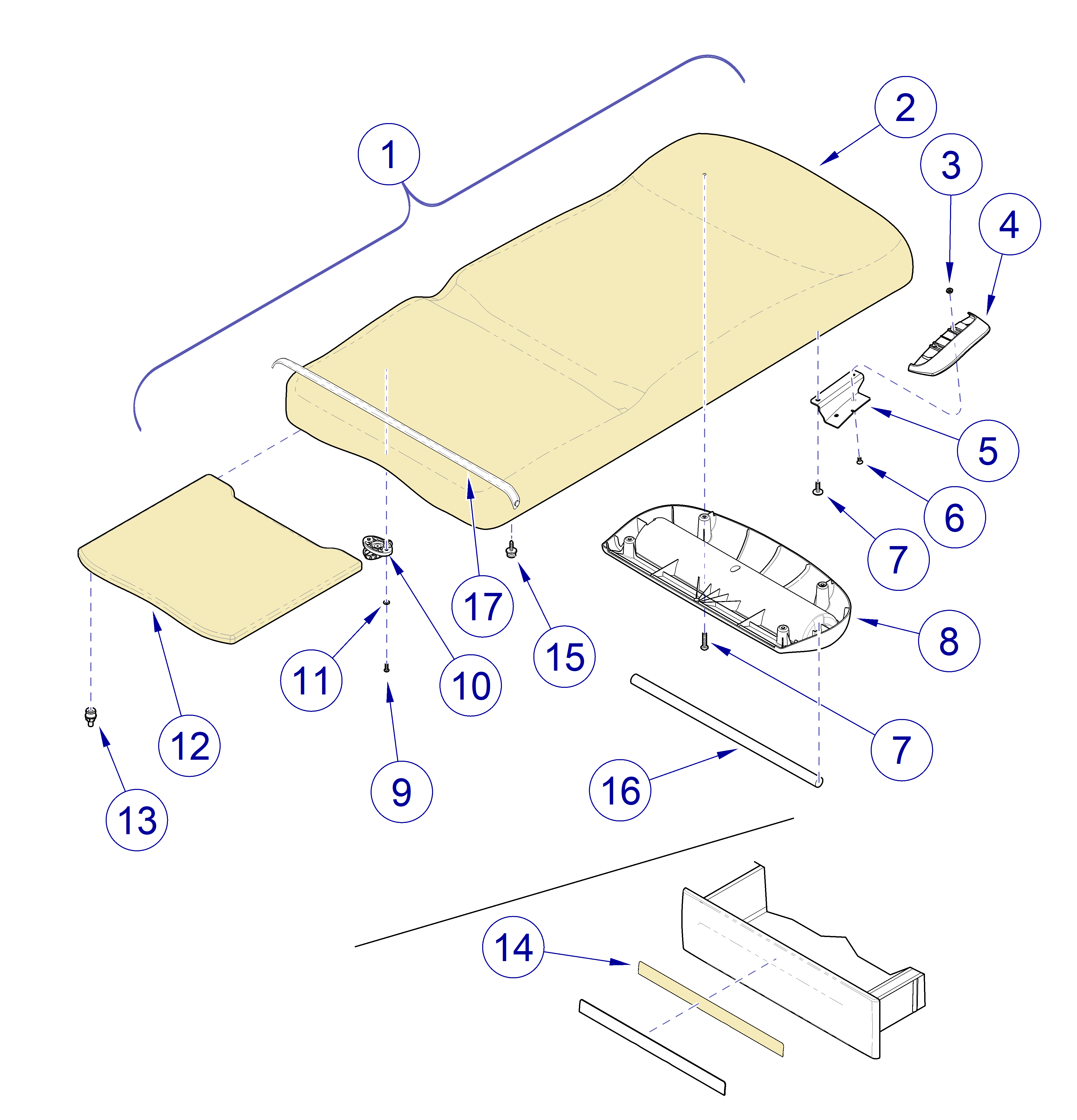

| 623 Exam Table Midmark® UltraFree Upholstery | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Standard Upholstery Set Options - includes items 2 thru 15 | ||
| 002-10156-xxx | Standard Upholstery Set | 1 | |
|
002-10377-xxx |
Std. w/ Htr Upholstery Set |
NLA |
|
|
002-10157-xxx |
UltraFree Cal 133 Upholstery Set | NLA | |
|
002-0881-xxx |
Cal 133 w/ Htr Upholstery Set | NLA | |
|
2 |
Standard Seat/Back Upholstery Options | ||
| 028-10031-xxx | Standard Seat/Back Upholstery | 1 | |
|
028-0604-00-xxx |
Std. w/Htr Seat/Back Upholstery |
NLA |
|
|
028-10032-xxx |
UltraFree Cal 133 Seat/Back Upholstery | NLA | |
|
028-0613-00-xxx |
Cal 133 w/ Htr Seat/Back Upholstery | NLA | |
|
3 |
041-0010-01 | Nut | 4 |
|
4 |
053-1368-00 | Handle | 2 |
|
5 |
Handle Bracket Options | ||
| 030-1494-51 | Left Handle Bracket | 2 | |
| 030-1494-50 | Right Handle Bracket | 2 | |
|
6 |
040-0010-154 | Screw | 4 |
|
7 |
042-0059-08 | Screw 10-24 x 5/8 | 8 |
|
8 |
053-1366-00 | Paper Roll Housing | 1 |
|
9 |
040-0010-12 | Screw | 12 |
|
10 |
Upholstery Lock Kit - includes screws and washers | 6 | |
|
11 |
045-0001-00 | Washer | 12 |
|
12 |
028-0606-00-xxx | Footrest Pad - includes four glides - item #13 | 1 |
|
13 |
053-0424-00 | Footrest Glide | 4 |
|
14 |
053-1392-00-216 | Vinyl Drawer Insert | 6 |
|
15 |
016-0022-00 | Snap / Stud | 2 |
|
16 |
055-0005-00 | Dowel Rod | 1 |
|
17 |
002-1427-00 | Tear Strap | 1 |
|
18 |
002-1907-00 | Upholstery Packaging Kit - Not shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
