Veterinary Folding Exam Table
Serial Number Range: V1479274 thru Vxxxxxxx
|
Model |
8012-00-001 |
| Serial Number |
V1479274 thru Present |
If gas spring needs changed, use screwdriver to pry the clip on gas spring to remove gas spring from ball studs.

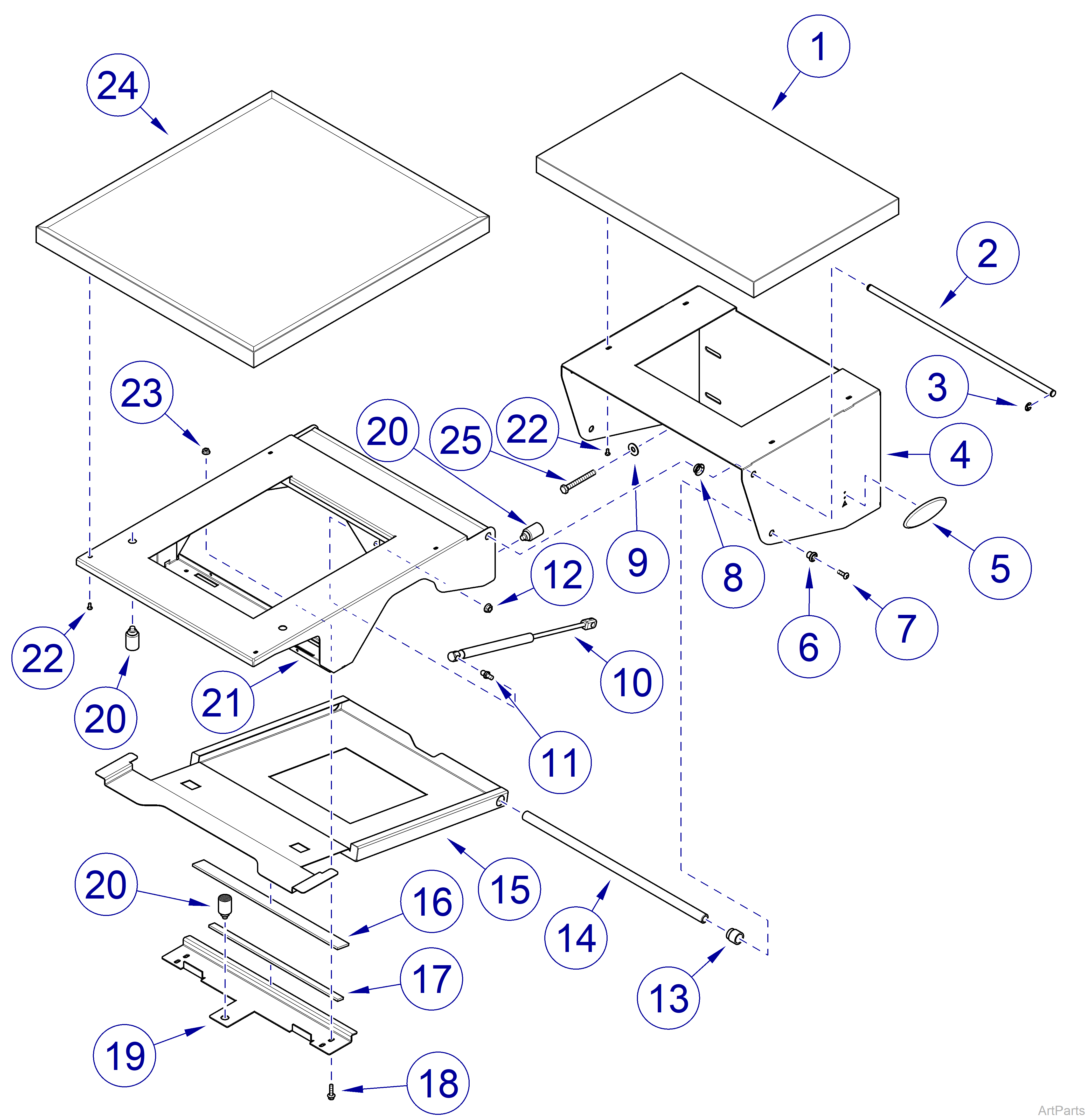

| Veterinary Folding Exam Table | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-5997-00 | Exam Surface Fixed Top | 1 |
|
2 |
057-1406-00 | Table Shaft | 1 |
|
3 |
042-0007-02 | E-Ring 1/2” | 2 |
|
4 |
030-2154-00-216 | Wall Base Weldment | 1 |
|
5 |
Midmark Logo Nameplate | 2 | |
|
6 |
057-1389-00-216 | Shaft Support | 2 |
|
7 |
040-0250-59 | Screw 1/4” - 20 x 7/8” | 2 |
|
8 |
016-0392-08 | Flanged Bearing | 2 |
|
9 |
045-0001-01 | Washer 3/8” | 6 |
|
10 |
016-1611-00 | Gas Spring | 1 |
|
11 |
016-1619-00 | Gas Spring Ball Stud | 2 |
|
12 |
041-0312-05 | Flange Nut 5/16” - 18 | 2 |
|
13 |
053-2505-00 | Spacer Bearing | 2 |
|
14 |
057-1388-00 | Lower Shaft | 1 |
|
15 |
050-9148-00-216 | Locking Arm | 1 |
|
16 |
054-0611-00 | Foam Tape | 16” |
|
17 |
053-2506-00 | Cushioned Bearing Tape | 18” |
|
18 |
040-0250-95 | Screw 1/4” - 20 x 3/4” | 4 |
|
19 |
050-9149-00-216 | Engagement Plate | 1 |
|
20 |
053-1565-00-312 | Back Rest Bumper | 5 |
|
21 |
030-2155-00-216 | Substrate Weldment | 1 |
|
22 |
040-0010-109 | Screw 10-24 x 3/8” | 8 |
|
23 |
041-0250-13 | Flange Nut 1/4” - 20 | 4 |
|
24 |
029-5998-00 | Exam Surface Drop Top | 1 |
|
25 |
040-0375-89 | Bolt 3/8” x 4” | 6 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
