Vet Synthesis® Tables Common Parts
|
Model |
All |
| Serial Number | All |

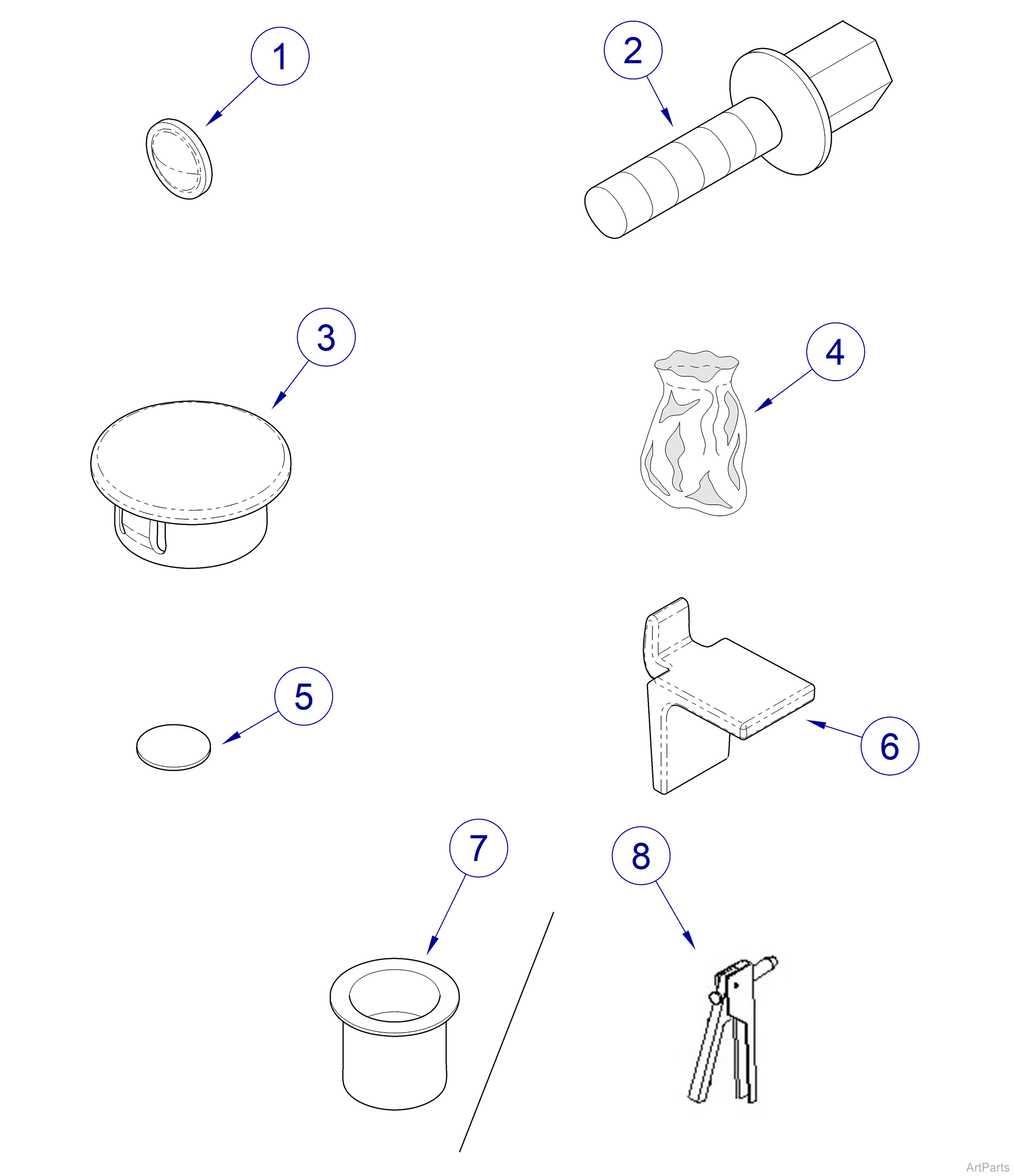

| Vet Synthesis® Tables Common Parts | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
053-2568-00 | Bumper | 1 |
|
2 |
042-0144-00 | Special Cabinet Connector Screw #10-24 x 3/4” | 1 |
|
3 |
Hole Plug Options - 4 plugs per bag | ||
| 029-6676-00 | Frost Hole Plugs | 1 | |
| 029-6676-01 | Pebble Grey Hole Plugs | 1 | |
| 029-6676-02 | Whisper Hole Plugs | 1 | |
| 029-6676-03 | Fawn Hole Plugs | 1 | |
|
4 |
029-1728-06 | Parts Bag - includes item 2 | 1 |
|
5 |
Adhesive Cover Options | ||
| 016-0916-00 | Pebble Grey Adhesive Cover | 1 | |
| 016-0916-01 | Frost Adhesive Cover | 1 | |
| 016-1687-00-xxx | Custom Adhesive Cover - Specify Color | 1 | |
|
6 |
029-6677-00 | Shelf Clips - 4 clips per bag | 1 |
|
7 |
042-0045-11 | Nutsert - Requires items 8 | AR |
|
8 |
Nutsert Installation Kit Options | ||
| 002-0521-00 | Nutsert Installation Kit w/ Mandrel and Pliers - Shown | AR | |
| 002-0521-01 | Nutsert Installation Kit w/ Mandrel Only | AR | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
