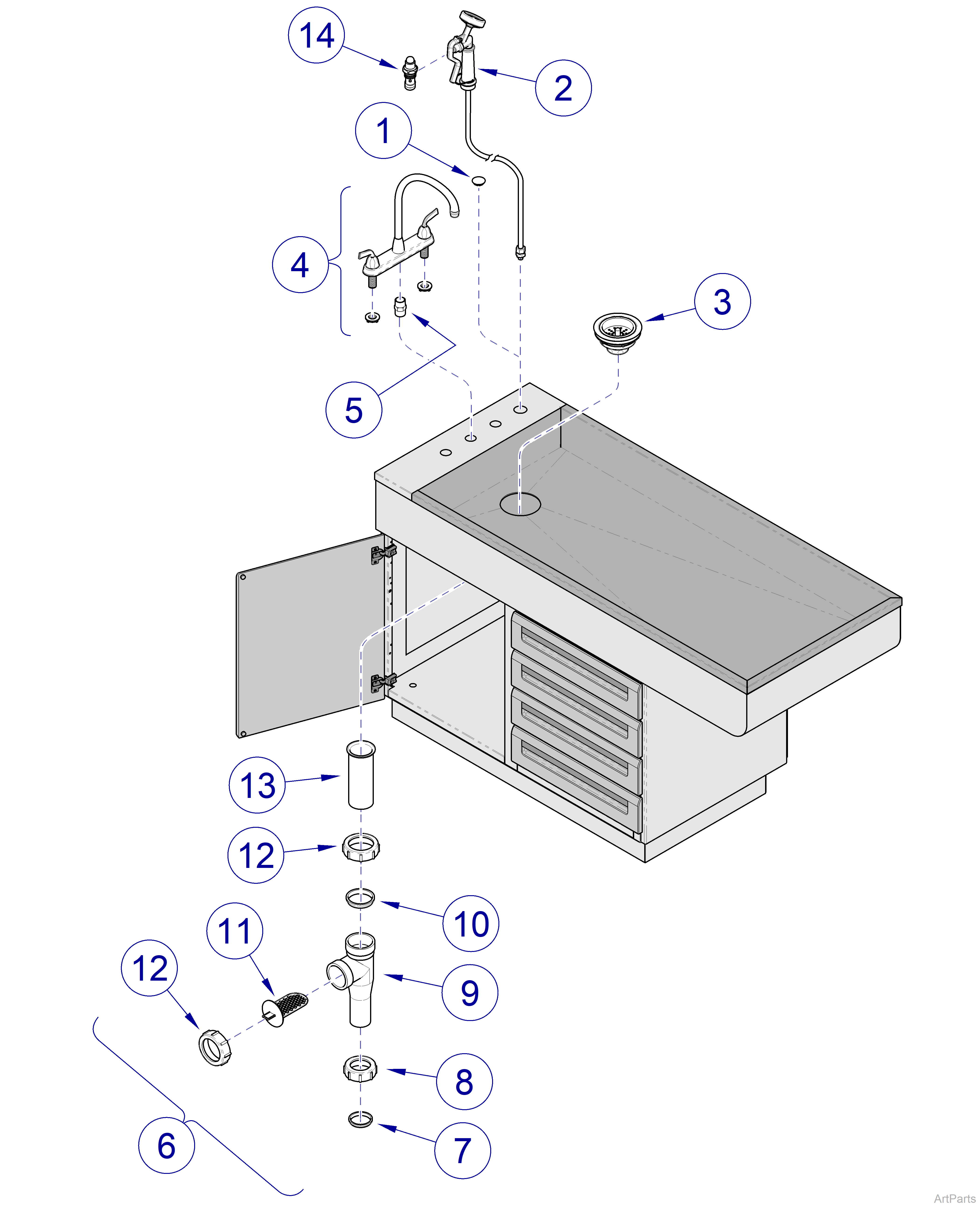

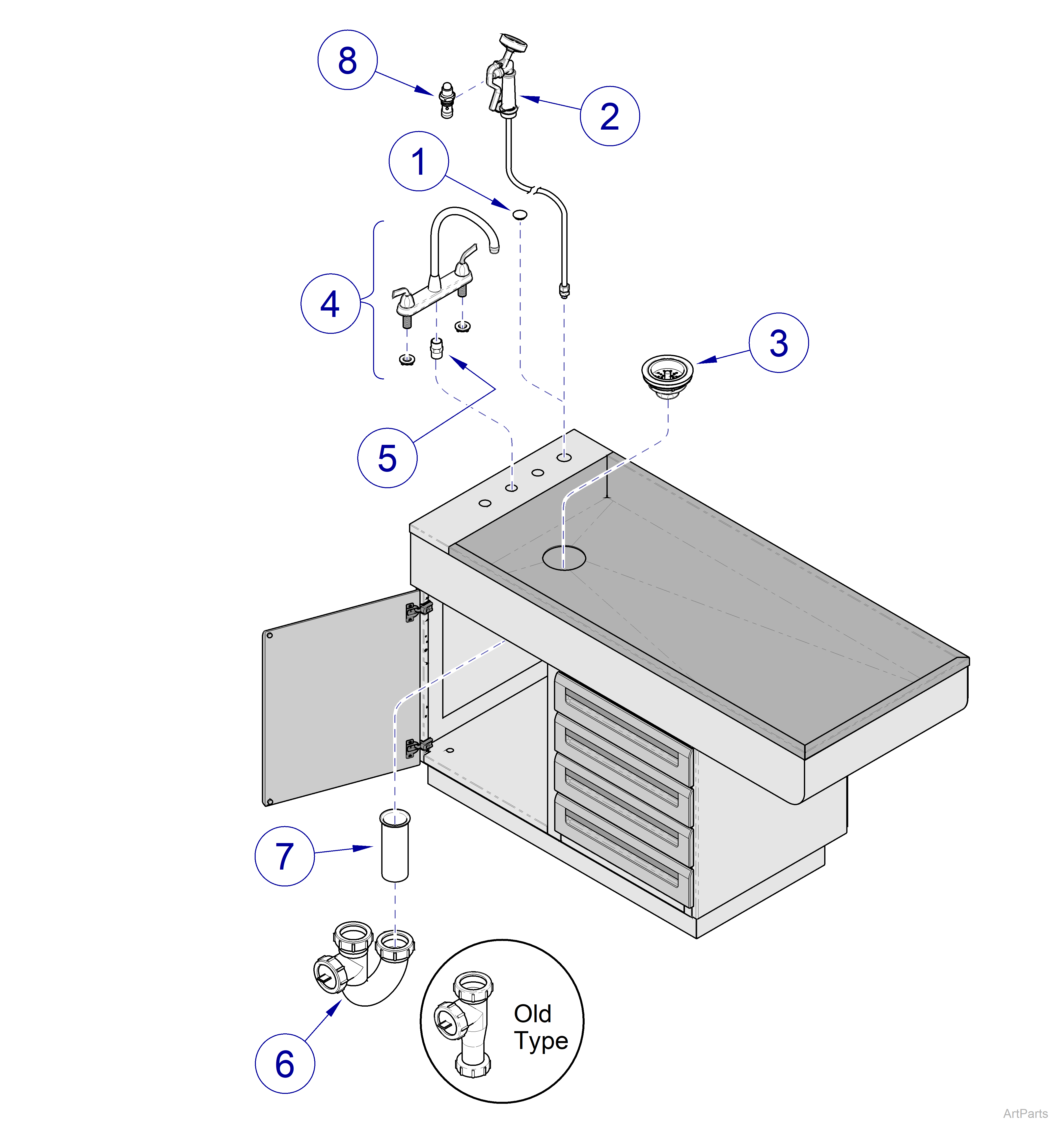

Vet Synthesis® Tables Plumbing Components
|
Model |
All |
| Serial Number | All |
| Vet Synthesis® Tables Plumbing Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
CPA-FCTHLCVR | Plug | 1 |
|
2 |
014-0637-00 | Sprayer | 1 |
|
3 |
016-1181-00 | Drain Assembly | 1 |
|
4 |
Faucet Options | ||
| 016-1300-00 | Faucet w/ Sprayer Hook-up | 1 | |
| CFT-6GS4WB-3 | Faucet w/o Sprayer Hook-up | 1 | |
| 016-1320-00 | Faucet w/ Sprayer and Vacuum Breaker | 1 | |
|
5 |
002-1355-00 |
Backflow Preventer - Optional | NLA |
|
6 |
014-0638-00 | Hair Trap Assembly - includes items 7 thru 12 | 1 |
|
7 |
Ring | NSS | |
|
8 |
PVC Nut | NSS | |
|
9 |
Main PVC Body | NSS | |
|
10 |
Ring | NSS | |
|
11 |
Trap | NSS | |
|
12 |
PVC Nut | NSS | |
|
13 |
016-1182-00 | Flanged Tail Piece Tube | 1 |
|
14 |
014-0597-03 | Bonnet Assembly Kit | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
