QuickClean™ Ultrasonic Cleaners Specifications
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
Operating Environment
| Operating Environment | |
|---|---|
|
Ambient Temperature |
41°F to 104°F (5 to 40°C) |
|
Maximum Relative Humidity |
80% R.H. in room temperatures up to 88°F (31°C) decreasing linearly to 50% R.H. at 104°F (40°C) |
|
Altitude Above Sea Level |
Up to 6,560 ft (2000 m) |
|
Operating Environment |
Indoor use only |
Electrical Requirements
Connect to a 115 VAC 60 Hz fully grounded supply via a 3 pin plug. It can be dangerous to operate an ultrasonic bath without a grounded connection.
The power plug is fitted with a 10A fuse (T10A H 250V). Never fit a fuse of a higher rating. Ensure that excess power cable is stored neatly.
Supply voltage fluctuations are not to exceed ±10% of the nominal supply voltage.
| 115V Electrical Details | |
|---|---|
|
Power Supply |
115V @ 60 Hz |
|
Ultrasonic Frequency |
32 to 38kHz |
|
Pollution Degree |
2 |
|
Installation Category |
II |
Standards
| Standards | |
|---|---|
|
UL 61010-1:2012 |
Safety requirements for electrical equipment for measurement, control, and laboratory use. |
|
FCC CFR 47 Part 15 PART B |
EMC Compliance |
|
EN 60601-1-2:2007 |
EMC Compliance |
|
EN 61326:2013 |
EMC Compliance |
Dimensions

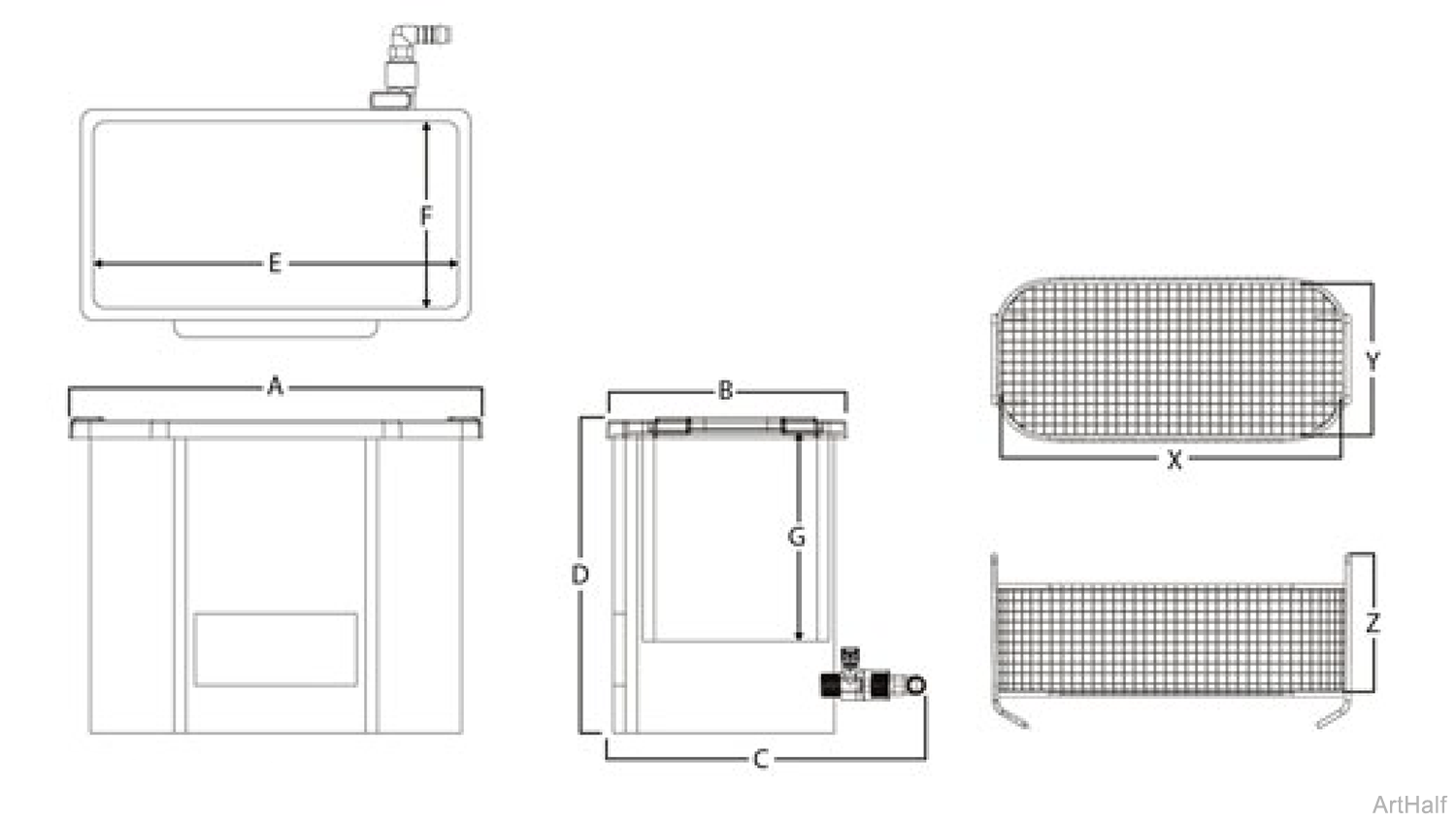

| Tank External Dimensions, inches (mm) | Tank Internal Dimensions, inches (mm) | Basket Internal Dimensions, inches (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
A |
B |
C |
D |
E |
F |
G |
X |
Y |
Z |
|
|
QC1 |
13.5 (345) |
7.8 (200) |
10.2 (260) |
10.4 (265) |
11.8 (300) |
5.9 (150) |
5.9 (150) |
10.4 (265) |
4.5 (115) |
4.3 (110) |
|
QC3 |
14.7 (375) |
13.5 (345) |
16.5 (420) |
10.4 (265) |
13.0 (330) |
11.8 (300) |
5.9 (150) |
11.6 (295) |
10.4 (265) |
4.3 (110) |
|
QC6 |
21.6 (550) |
13.7 (350) |
16.5 (420) |
14.3 (365) |
19.9 (505) |
11.8 (300) |
7.9 (200) |
18.3 (465) |
10.4 (265) |
6.3 (160) |
Capacity / Power
|
Working Capacity |
Tank Capacity Max. |
Total Power (W) |
Ultrasonic Power (W) |
|
|---|---|---|---|---|
|
QC1 |
1.2 gal (4.5 L) |
1.3 gal (5 L) |
110 |
100 |
|
QC3 (QC3R) |
3.3 gal (12.5 L) |
3.4 gal (13 L) |
210 |
200 |
|
QC6 (QC6R) |
6.6 gal (25 L) |
7.4 gal (28 L) |
410 |
400 |
