QuickClean™ Ultrasonic Cleaners Temperature Sensor Troubleshooting
To View Temperature Sensors

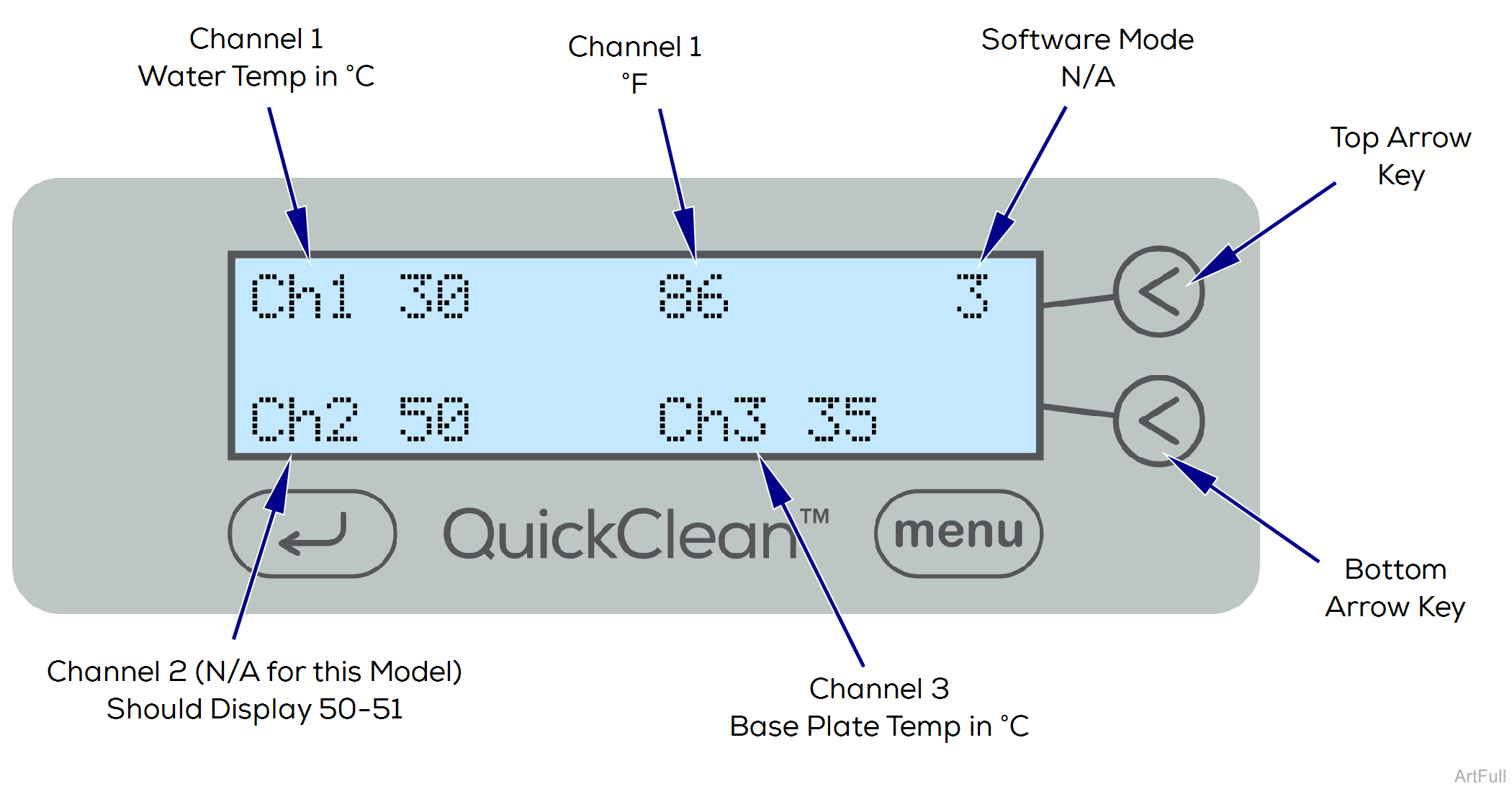

To view the current values of the temperature sensors on the display, press and hold the bottom arrow key while turning the power switch on.
Temperature sensor failures for Ch1 and Ch3 would be indicated by one of the two readings.
| Reading | Description |
|---|---|
|
197 |
Open sensor |
|
0 |
Shorted sensor |
| Celsius (°C) | Fahrenheit (°F) |
|---|---|
|
10 °C |
50.0 °F |
|
11 °C |
51.8 °F |
| 12 °C | 53.6 °F |
| 13 °C | 55.4 °F |
| 14 °C | 57.2 °F |
| 15 °C | 59.0 °F |
| 16 °C | 60.8 °F |
| 17 °C | 62.6 °F |
| 18 °C | 64.4 °F |
| 19 °C | 66.2 °F |
| 20 °C | 68.0 °F |
| 21 °C | 69.8 °F |
| 22 °C | 71.6 °F |
| 23 °C | 73.4 °F |
| 24 °C | 75.2 °F |
| 25 °C | 77.0 °F |
| 26 °C | 78.8 °F |
| 27 °C | 80.6 °F |
| 28 °C | 82.4 °F |
| 29 °C | 84.2 °F |
| 30 °C | 86.0 °F |
| 31 °C | 87.8 °F |
| 32 °C | 89.6 °F |
| 33 °C | 91.4 °F |
| 34 °C | 93.2 °F |
| 35 °C | 95.0 °F |
| 36 °C | 96.8 °F |
| 37 °C | 98.6 °F |
| 38 °C | 100.4 °F |
| 39 °C | 102.2 °F |
| 40 °C | 104.0 °F |
| 50 °C | 122.0 °F |
| 60 °C | 140.0 °F |
