QuickClean™ Ultrasonic Cleaners Power Socket Test and Repair
WARNING
To prevent risk of shock always disconnect power before removing covers or performing any service procedure.

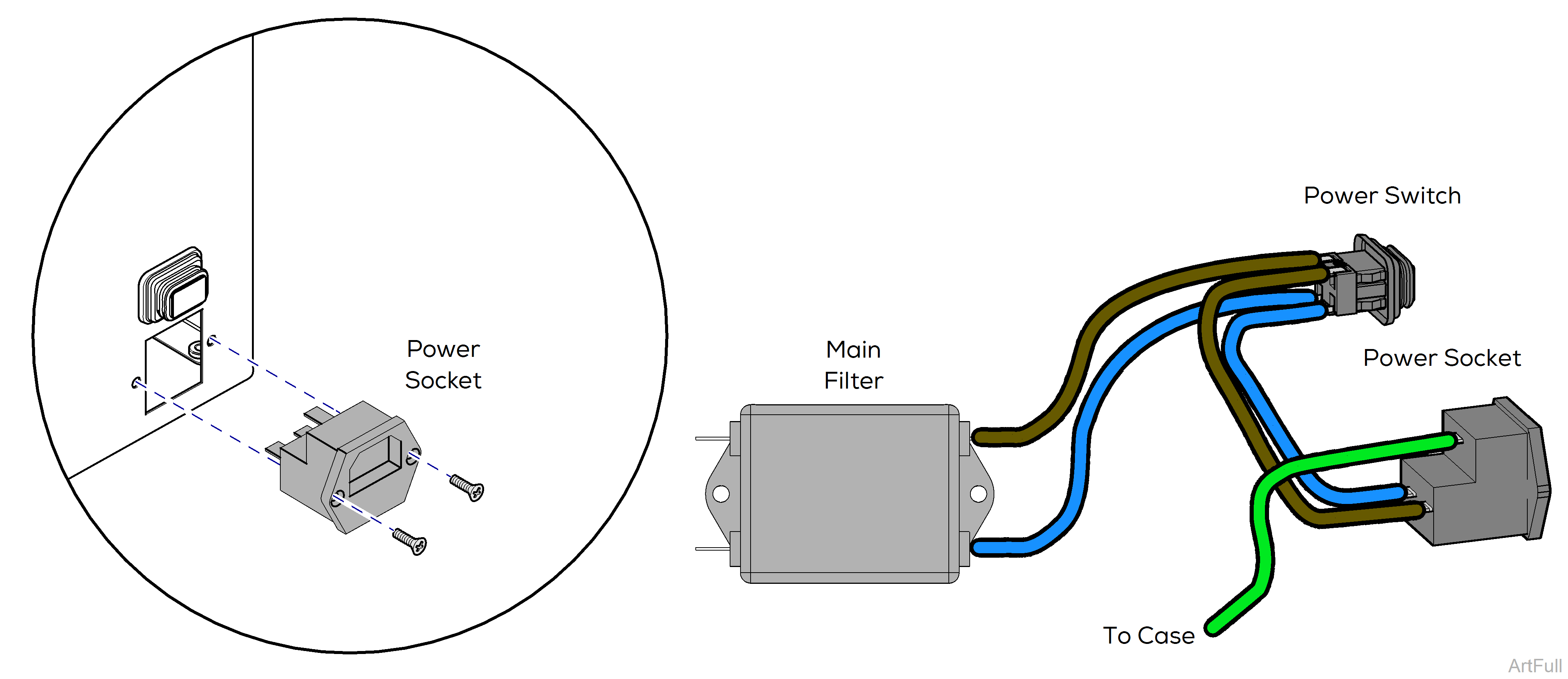

To Replace Power Socket
1.Turn power off, unplug, and drain water from tank.
2.Remove Bottom Plate Assembly. Refer to: Access Procedures
3.Remove the brown, blue, and green wires from the back of the socket.
4.Remove the screws and pull the socket out of the case.
5.Replace socket, install wires, and reassemble.
