QuickClean™ Ultrasonic Cleaners Removal From Counter Top Access Procedures
To prevent risk of shock always disconnect power before removing covers or performing any service procedure.

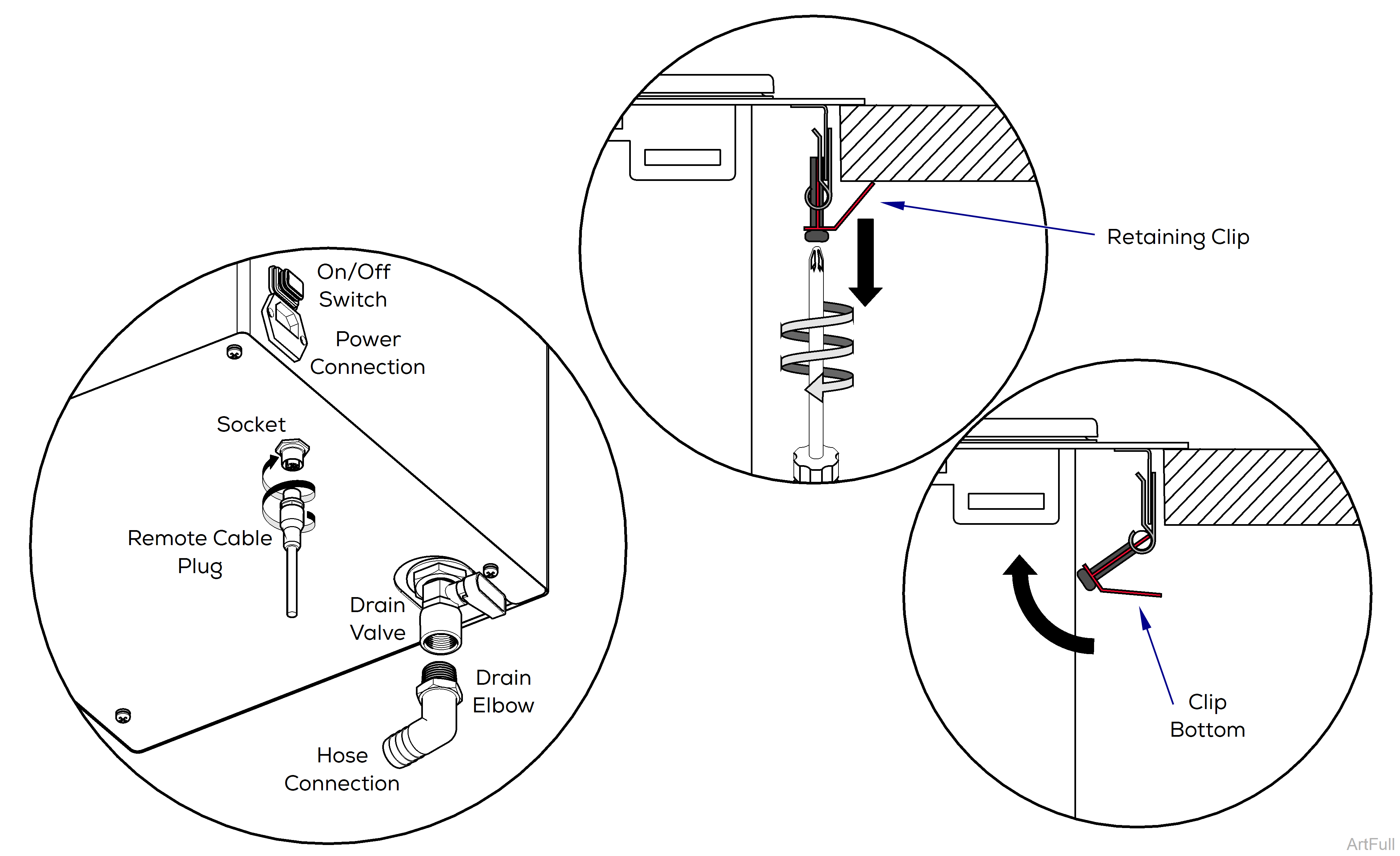

To Remove Ultrasonic Recessed Unit From Counter Top
1.Unthread and remove remote panel cable plug from socket at bottom of unit.
2.Remove power cord from power connection and hose from drain elbow.
3.Locate retaining clips in each corner holding onto under side of counter top, unthread screws almost all the way and pull down on bottom of clips.
4.Rotate bottom of retaining clips towards the side of the unit allowing the ultrasonic to clear the inside of the hole in the counter top.
5.Push/pull ultrasonic up and out of the counter top.
