QuickClean™ Ultrasonic Cleaners Tank Assembly

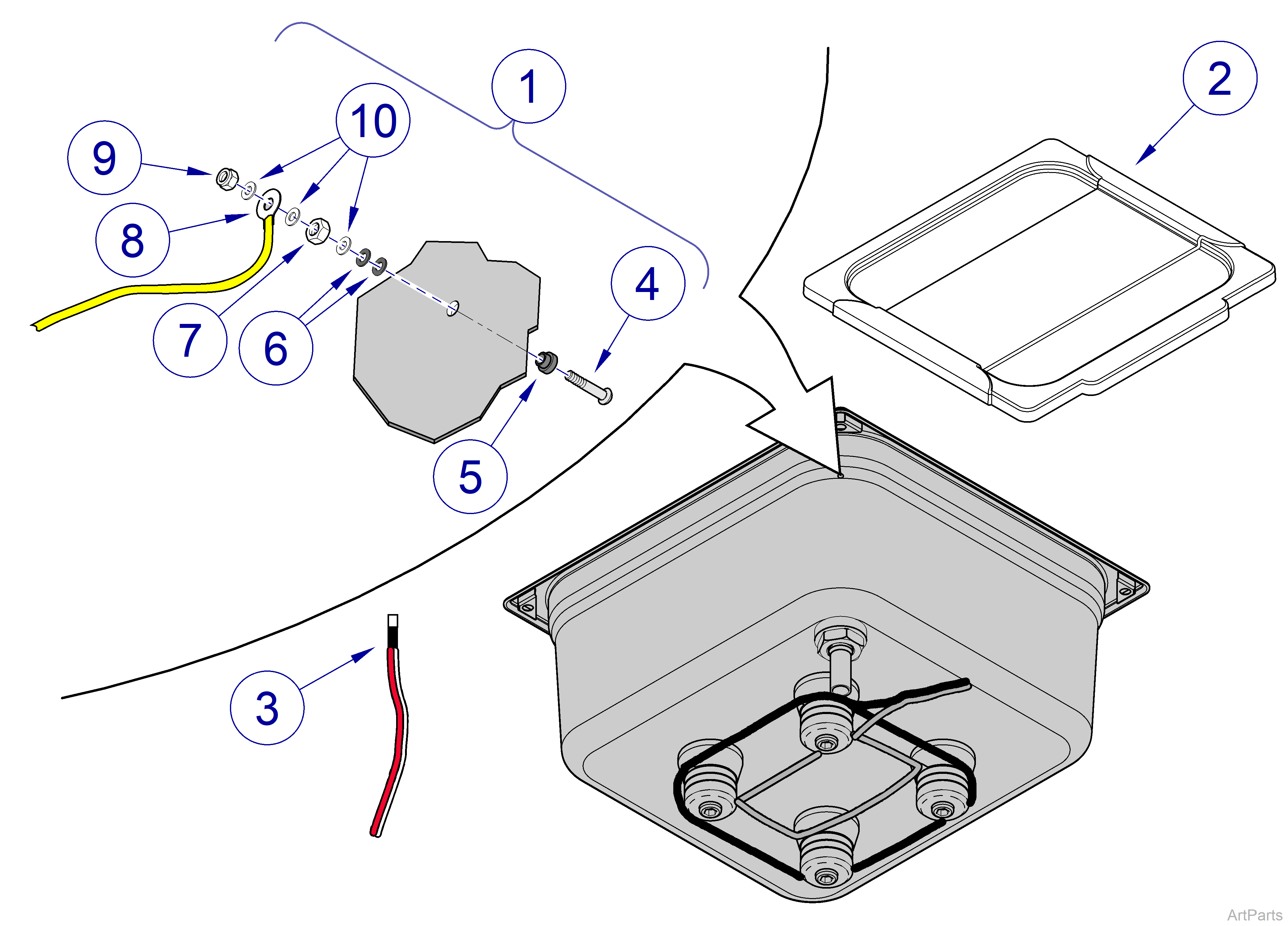

Table Top Unit
|
Model |
QC1-01 | QC3-01 | QC6-01 |
| Serial Number | All | All | All |
| QuickClean™ Ultrasonic Cleaners Tank Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-10107-00 | Fill Level Sensor - includes items 4 thru 10 | 1 |
|
2 |
Tank Lid Options | ||
| 053-10032-00 | QC1-01 | 1 | |
| 053-10033-00 | QC3-01 | 1 | |
| 053-10034-00 | QC6-01 | 1 | |
|
3 |
Temperature Sensor | NSS | |
|
4 |
Level Sensor Screw | NSS | |
|
5 |
Level Sensor Insulator | NSS | |
|
6 |
Level Sensor Nylon Washer | NSS | |
|
7 |
Level Sensor Plain Nut | NSS | |
|
8 |
Level Sensor Harness | NSS | |
|
9 |
Level Sensor Nyloc Nut | NSS | |
|
10 |
Level Sensor Plain Washer | NSS | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

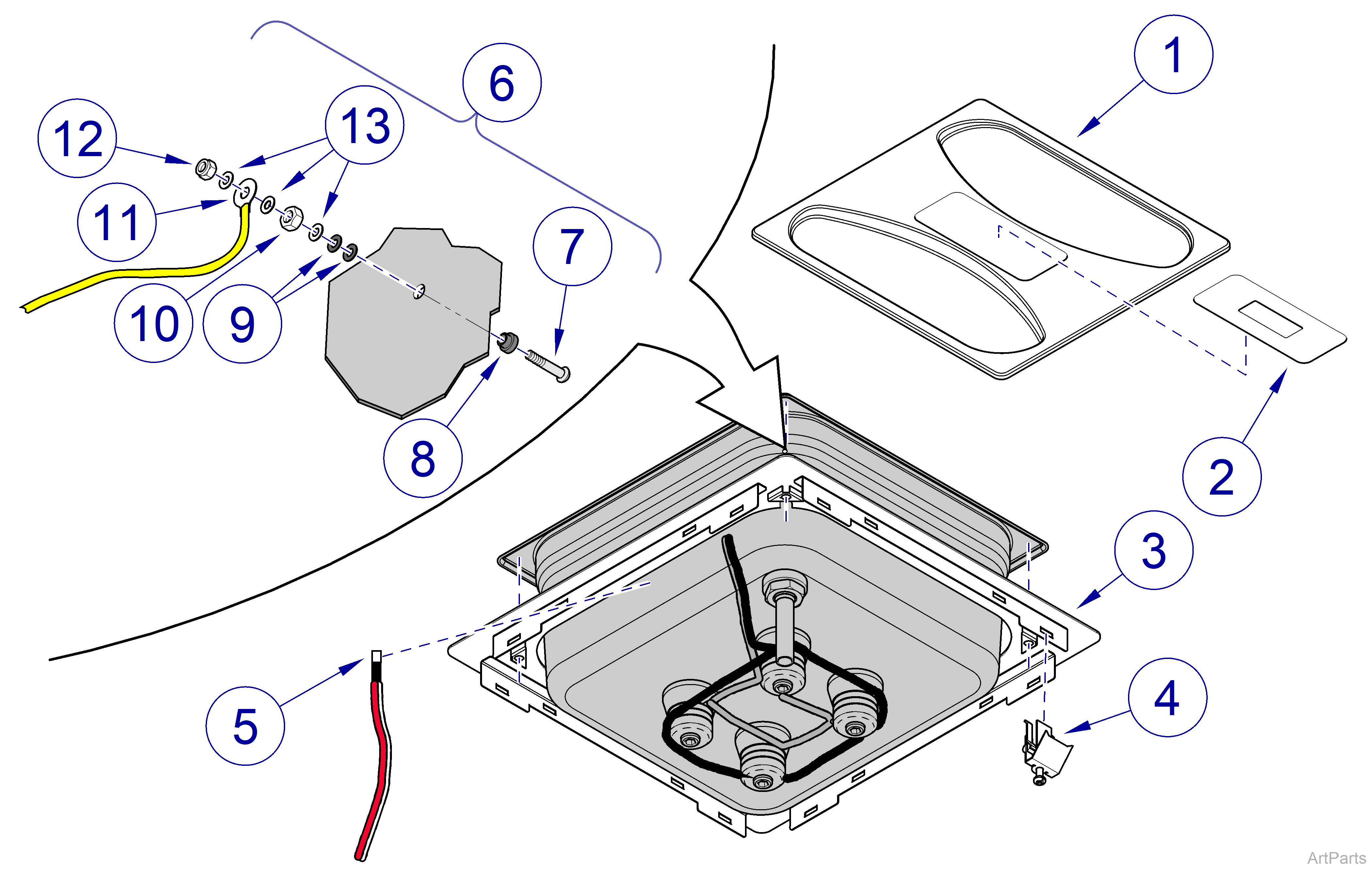

Recessed Unit
|
Model |
QC3R-01 | QC6R-01 |
| Serial Number | All | All |
| QuickClean™ Ultrasonic Cleaners Tank Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Tank Lid Options - includes item 2 | ||
| 029-10151-00 | QC3R-01 | 1 | |
| 029-10152-00 | QC6R-01 | 1 | |
|
2 |
061-10180-00 | Midmark Label | 1 |
|
3 |
Flange Plate Assy | ||
| 030-10009-00 | QC3R-01 | 1 | |
| 030-10010-00 | QC6R-01 | 1 | |
|
4 |
016-10041-00 | Retaining Clip | 4 |
|
5 |
Temperature Sensor | NSS | |
|
6 |
002-10107-00 | Fill Level Sensor - includes items 7 thru 13 | 1 |
|
7 |
Level Sensor Screw | NSS | |
|
8 |
Level Sensor Insulator | NSS | |
|
9 |
Level Sensor Nylon Washer | NSS | |
|
10 |
Level Sensor Plain Nut | NSS | |
|
11 |
Level Sensor Harness | NSS | |
|
12 |
Level Lock Nyloc Nut | NSS | |
|
13 |
Level Sensor Plain Washer | NSS | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
