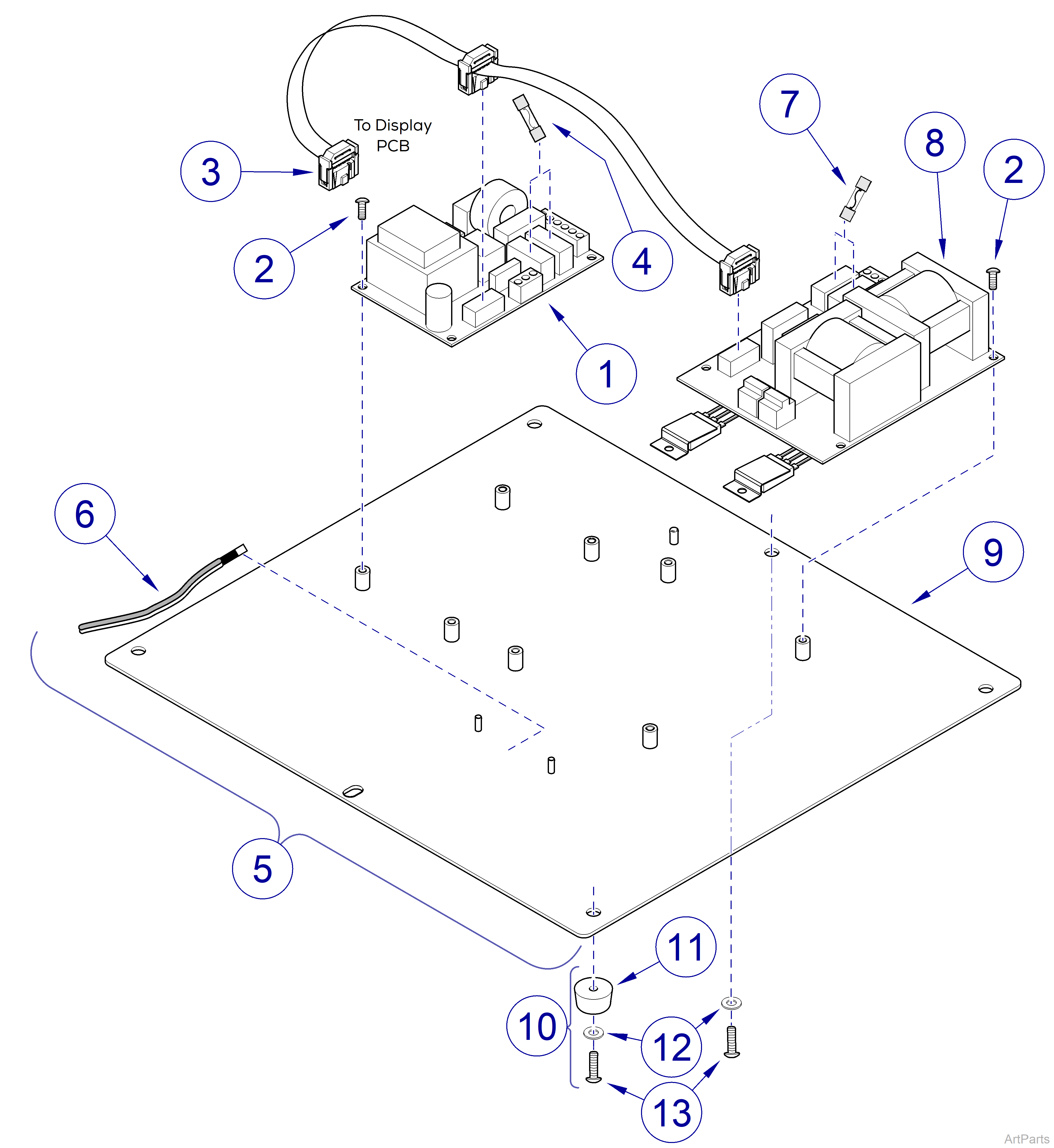

QuickClean™ Ultrasonic Cleaners Base Plate Assembly
Table Top Unit
|
Model |
QC1-01 | QC3-01 | QC6-01 |
| Serial Number | All | All | All |
| QuickClean™ Ultrasonic Cleaners Base Plate Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
015-10130-00 | Power Supply PCB | 1 |
|
2 |
Screw | NSS | |
|
3 |
015-10144-00 | Ribbon Cable | 1 |
|
4 |
015-10187-00 | Power Supply PCB Fuses - 10A (T) A/S, Slow Blow | 2 |
|
5 |
Base Plate Assembly Options - includes items 6 thru 9 | ||
| 029-10087-00 | QC1-01 | 1 | |
| 029-10089-00 | QC3-01 | 1 | |
| 029-10090-00 | QC6-01 | 1 | |
|
6 |
Temperature Sensor | NSS | |
|
7 |
015-10187-01 | Ultrasonic Generator PCB Fuses - 5A (T) A/S, Slow Blow | 2 |
|
8 |
Ultrasonic Generator PCB | NSS | |
|
9 |
Base Plate | NSS | |
|
10 |
002-10181-00 | Base Hardware Kit - includes items 11 thru 13 | 1 |
|
11 |
Foot | NSS | |
|
12 |
Washer | NSS | |
|
13 |
Screw | NSS | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

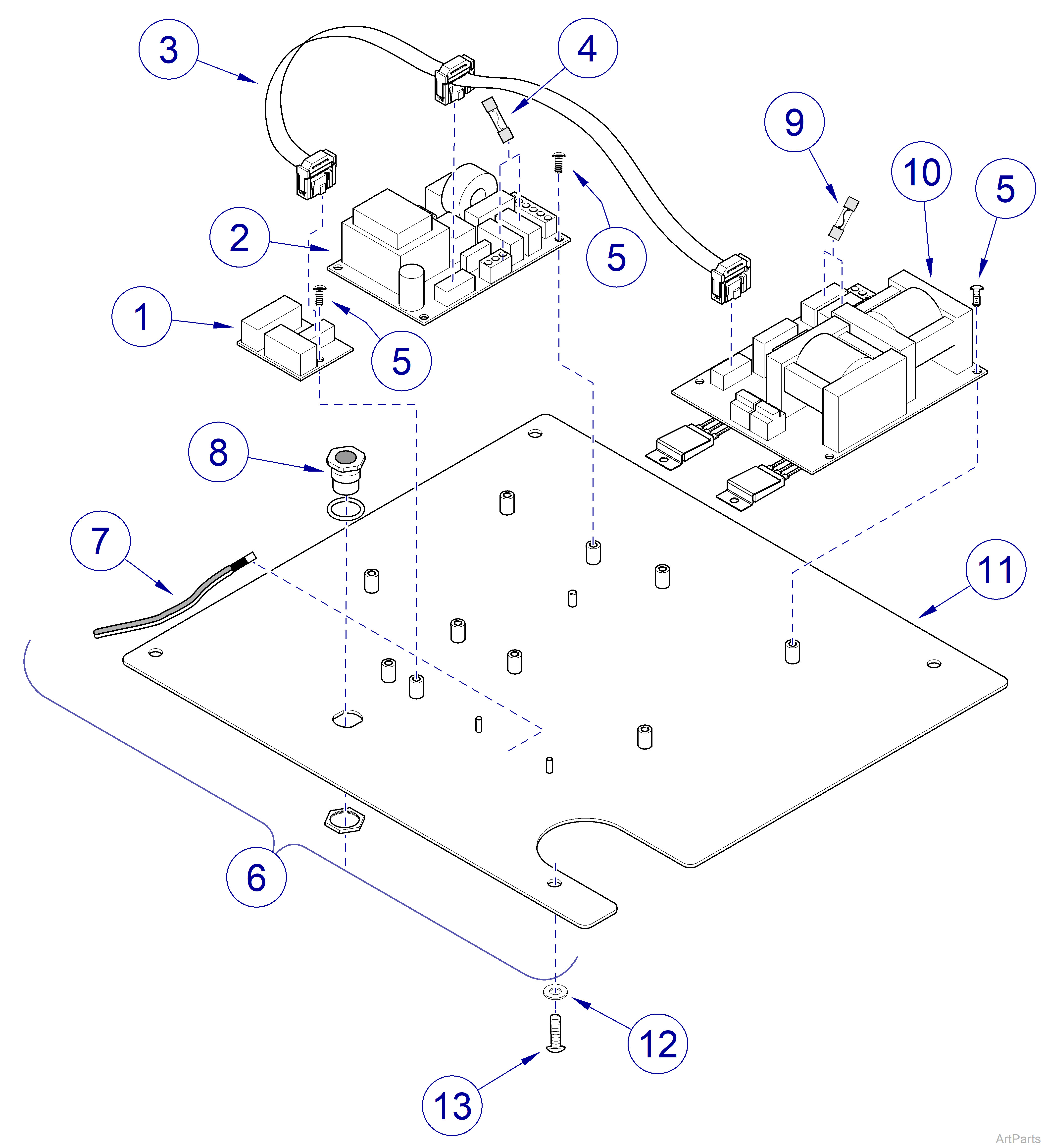

Recessed Unit
|
Model |
QC3R-01 | QC6R-01 |
| Serial Number | All | All |
| QuickClean™ Ultrasonic Cleaners Base Plate Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
015-10106-00 | IDC Breakout PCB | 1 |
|
2 |
015-10130-00 | Power Supply PCB | 1 |
|
3 |
015-10144-00 | Ribbon Cable | 1 |
|
4 |
015-10187-00 | Power Supply PCB Fuses - 20mm, 10A (T) A/S, Ceramic | 2 |
|
5 |
Screw | NSS | |
|
6 |
Base Plate Assembly Options - includes items 7 thru 11 | ||
| 029-10158-00 | QC3R-01 | 1 | |
| 029-10161-00 | QC6R-01 | 1 | |
|
7 |
Temperature Sensor | NSS | |
|
8 |
015-10155-00 | 12 pin connector | 1 |
|
9 |
015-10187-01 | Ultrasonic Generator PCB Fuses - 20mm, 5 A (T) A/S, Ceramic | 2 |
|
10 |
Ultrasonic Generator PCB | NSS | |
|
11 |
Base Plate | NSS | |
|
12 |
Washer | NSS | |
|
13 |
Screw | NSS | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
