QuickClean™ Ultrasonic Cleaners Front Panel Assembly

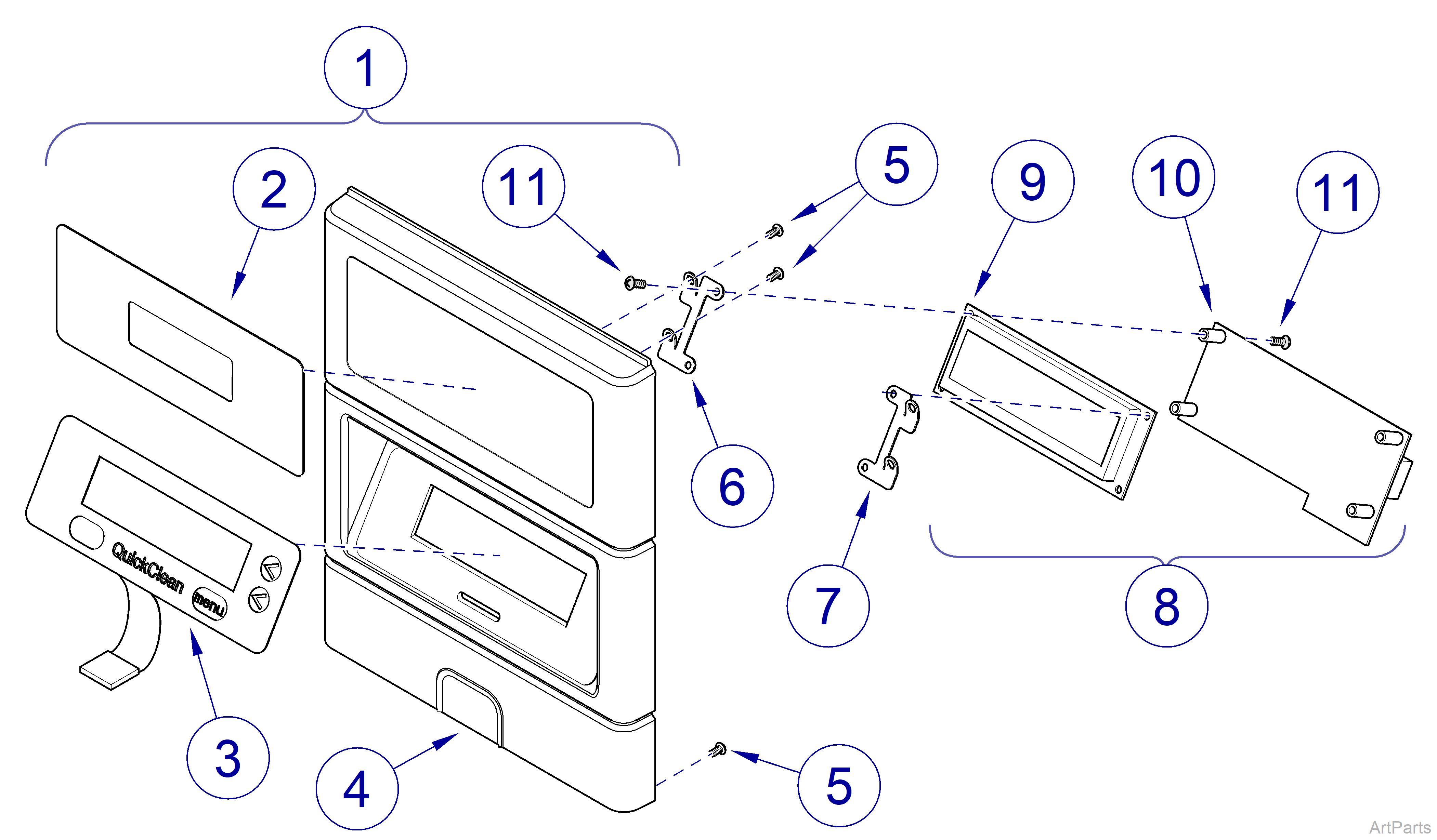

Table Top Unit
|
Model |
QC1-01 | QC3-01 | QC6-01 |
| Serial Number | All | All | All |
| QuickClean™ Ultrasonic Cleaners Front Panel Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Front Panel Assembly - includes items 2 thru 4 | ||
| 002-10177-00 | QC1-01 and QC3-01 | 1 | |
| 002-10179-00 | QC6-01 | 1 | |
|
2 |
061-10180-00 | Midmark Label | 1 |
|
3 |
015-10565-00 | Touch Pad | 1 |
|
4 |
Front Panel | NSS | |
|
5 |
Screw | NSS | |
|
6 |
Angled Plate Left | NSS | |
|
7 |
Angled Plate Right | NSS | |
|
8 |
002-10166-00 | Front Panel PCB Kit - includes items 9 and 10 | 1 |
|
9 |
Display PCB | NSS | |
|
10 |
Control PCB | NSS | |
|
11 |
Screw | NSS | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

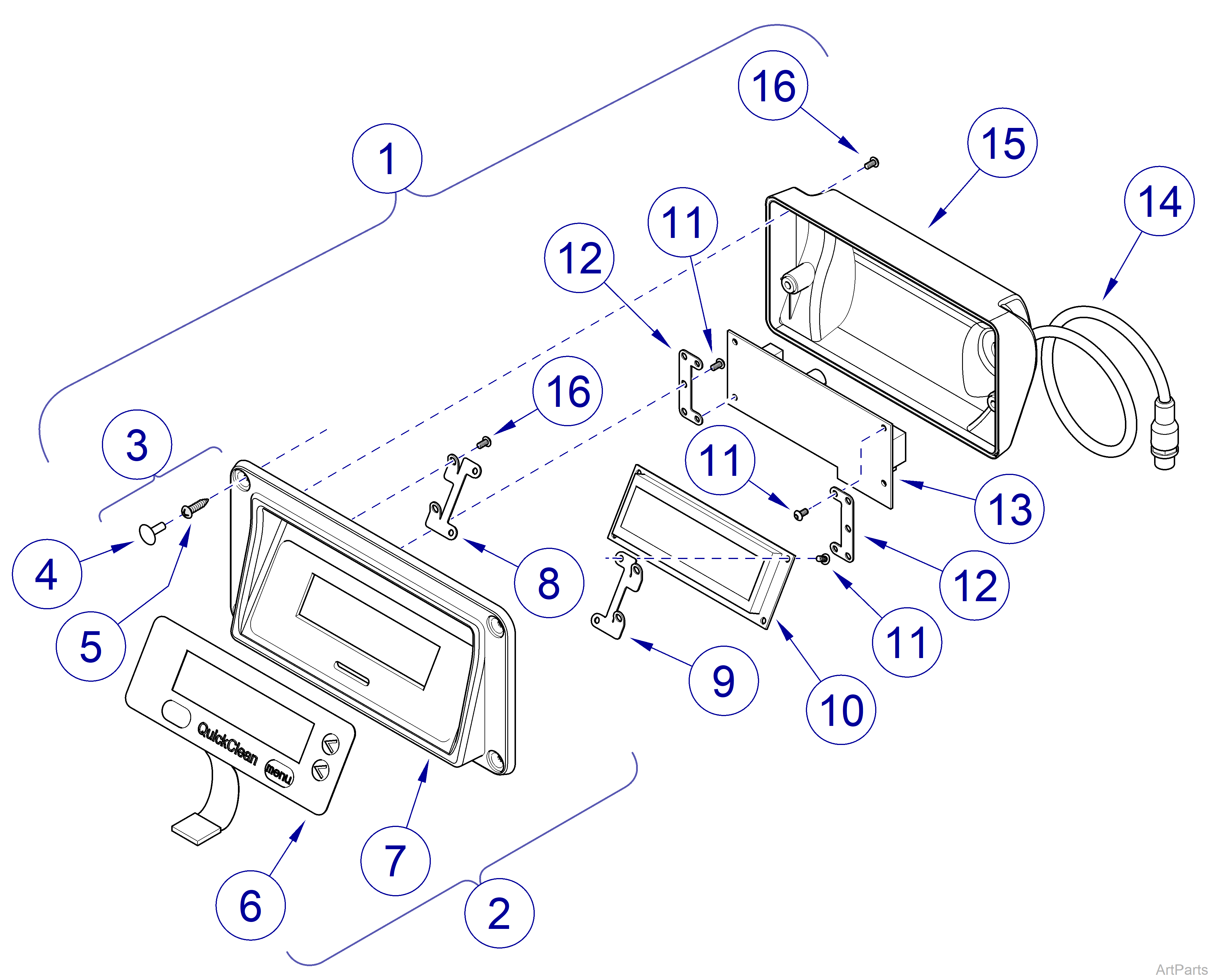

Recessed Unit
|
Model |
QC3R-01 | QC6R-01 |
| Serial Number | All | All |
| QuickClean™ Ultrasonic Cleaners Front Panel Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-10141-00 | Front Panel Assembly - includes items 3 thru 14 | 1 |
|
2 |
002-10167-00 | Front Panel Kit - includes items 4 thru 7 | 1 |
|
3 |
002-10182-00 | Screw and Screw Cover Kit - includes 4 and 5 | 1 |
|
4 |
Screw Cover | NSS | |
|
5 |
Screw | NSS | |
|
6 |
015-10565-00 | Touch Pad | 1 |
|
7 |
Front Cover | NSS | |
|
8 |
Angled Plate Left | NSS | |
|
9 |
Angled Plate Right | NSS | |
|
10 |
Display PCB | NSS | |
|
11 |
Screw | NSS | |
|
12 |
Bracket | NSS | |
|
13 |
015-10112-00 |
Control PCB |
1 |
|
14 |
002-10312-00 |
Control Cable Kit |
1 |
|
15 |
Back Cover | NSS | |
|
16 |
Screw | NSS | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
