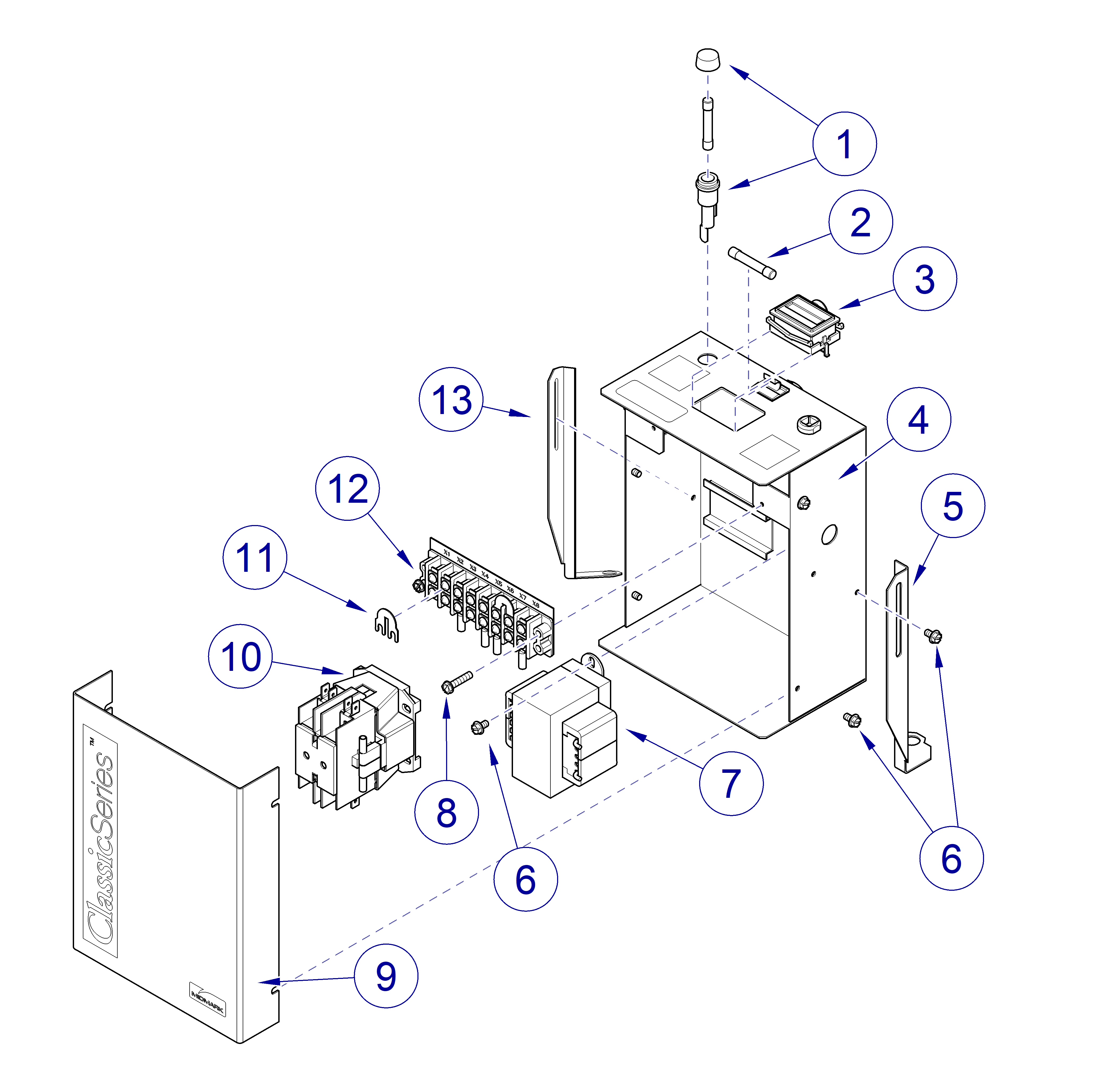

Classic Series Vacuums Single Electrical Box
Serial Number Range: 0705CV30001
thru V2098491, 0705CV3R0001
thru V2098491, 0705CV50001
thru V2098491, 0705CV5R0001
thru V2098491, and V785000
thru V2098491
|
Model |
CV3 | CV3R | CV5 | CV5R | All |
| Serial Number | 0705CV30001 thru V2098491 | 0705CV3R0001 thru V2098491 | 0705CV50001 thru V2098491 | 0705CV5R0001 thru V2098491 | V785000 thru V2098491 |
| Classic Series Vacuums Single Electrical Box | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
65927500 | Fuse Holder | 1 |
|
2 |
63882538 | Fuse .3 Amp | 2 |
|
3 |
20235600 | Hour Meter | 1 |
|
4 |
64932900 | Electrical Box | 1 |
|
5 |
63944101 | Right Hand Bracket | 1 |
|
6 |
62503801 | Screw #8-32 x 5/16" | 8 |
|
7 |
Transformer - CV3 Transformer - CV5 |
1 | |
|
8 |
77009204 | Screw #6-32 x 3/4" - CV3 and CV3R only | 2 |
|
9 |
63944600 | Electrical Box Cover | 1 |
|
10 |
002-10390-00 | Contactor | 1 |
|
11 |
77001176 | Terminal Jumper - CV3 and CV3R only | 3 |
|
12 |
Terminal Block - CV3 and CV3R only | 1 | |
|
13 |
63944102 | Left Hand Bracket | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2098492
thru V2703797
|
Model |
CV3 | CV3R | CV5 | CV5R | All |
| Serial Number | V2098492 thru V2703797 | V2098492 thru V2703797 | V2098492 thru V2703797 | V2098492 thru V2703797 | V2098492 thru V2703797 |
| Classic Series Vacuums Single Electrical Box | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
65927500 | Fuse Holder | 1 |
|
2 |
63882538 | Fuse .3 Amp | 2 |
|
3 |
20235600 | Hour Meter | 1 |
|
4 |
64932900 | Electrical Box | 1 |
|
5 |
63944101 | Right Hand Bracket | 1 |
|
6 |
62503801 | Screw #8-32 x 5/16" | 12 |
|
7 |
Transformer - CV3 Transformer - CV5 |
1 | |
|
8 |
77009204 | Screw #6-32 x 3/4" - CV3 and CV3R only | 2 |
|
9 |
63944600 | Electrical Box Cover | 1 |
|
10 |
002-10497-00 | Contactor | 1 |
|
11 |
77001176 | Terminal Jumper - CV3 and CV3R only | 3 |
|
12 |
Terminal Block - CV3 and CV3R only | 1 | |
|
13 |
63944102 | Left Hand Bracket | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: Vxxxxxxx
thru Present
|
Model |
CV3 | CV3R | CV5 | CV5R | All |
| Serial Number | V2703798 thru Present | V2703798 thru Present | V2703798 thru Present | V2703798 thru Present | V2703798 thru Present |
| Classic Series Vacuums Single Electrical Box | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
65927500 | Fuse Holder | 1 |
|
2 |
63882538 | Fuse .3 Amp | 2 |
|
3 |
20235600 | Hour Meter | 1 |
|
4 |
64932900 | Electrical Box | 1 |
|
5 |
63944101 | Right Hand Bracket | 1 |
|
6 |
62503801 | Screw #8-32 x 5/16" | 12 |
|
7 |
015-2703-00 | Transformer | 1 |
|
8 |
77009204 | Screw #6-32 x 3/4" - CV3 and CV3R only | 2 |
|
9 |
63944600 | Electrical Box Cover | 1 |
|
10 |
002-10497-00 | Contactor | 1 |
|
11 |
77001176 | Terminal Jumper - CV3 and CV3R only | 3 |
|
12 |
Terminal Block - CV3 and CV3R only | 1 | |
|
13 |
63944102 | Left Hand Bracket | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
