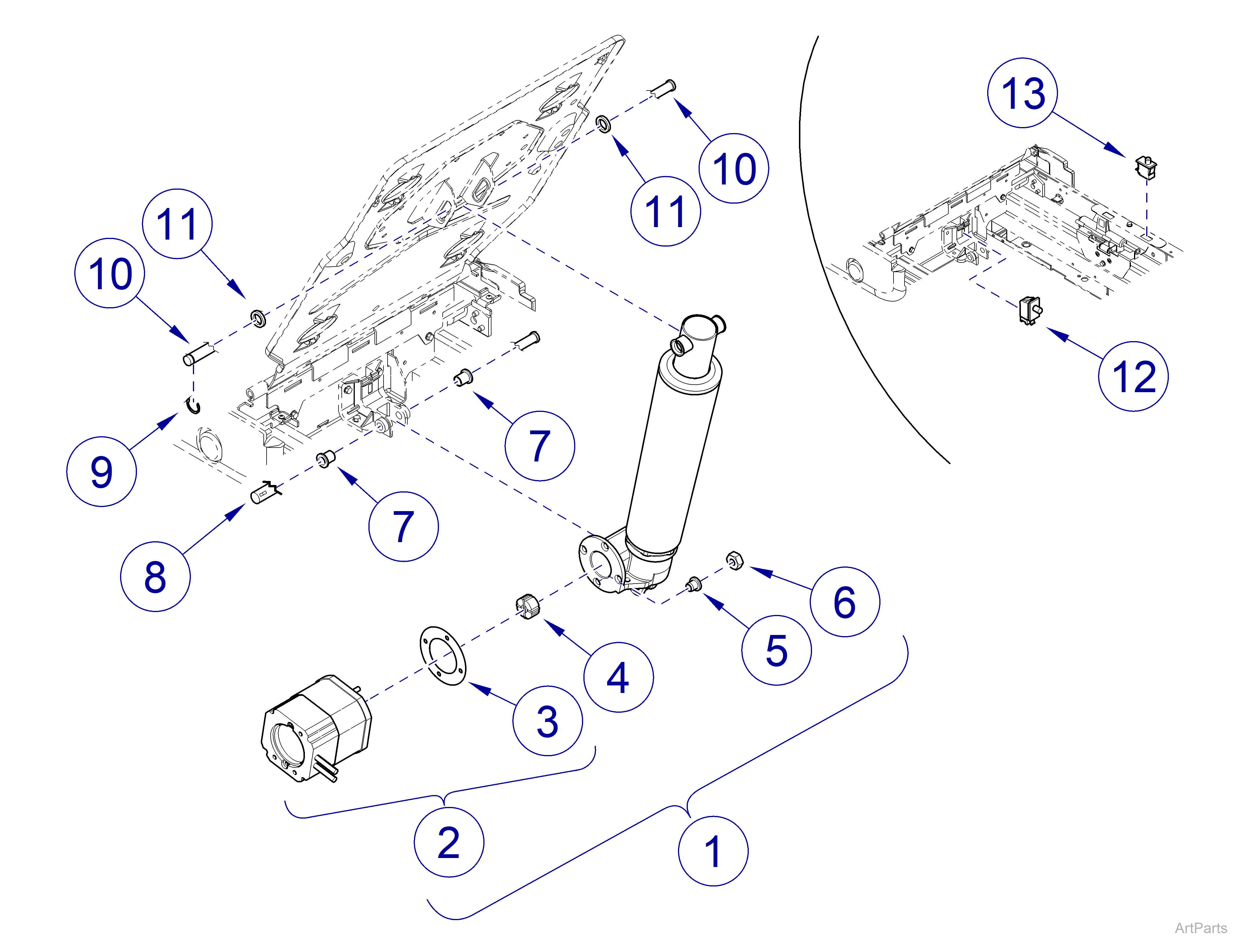

626 Chair Back Actuator / Limit Switches
|
Model |
626 |
| Serial Number | V2200 thru Present |
| 626 Chair Back Actuator / Limit Switches | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-10065-01 | Back Actuator Assembly - Includes item 2 | 1 |
|
2 |
002-10066-01 | Back Actuator Motor - Includes items 3 thru 6 | 1 |
|
3 |
053-1337-00 | Motor Isolator | 1 |
|
4 |
016-0662-00 | Motor Coupler | 1 |
|
5 |
053-0198-00 | Shoulder Washer | 2 |
|
6 |
041-0010-10 | Lock Nut | 2 |
|
7 |
016-0131-00 | Flange Bearing | 2 |
|
8 |
042-0063-00 | Rue Ring Cotter Pin | 1 |
|
9 |
042-0005-06 | Clevis Pin | 1 |
|
10 |
042-0007-02 | E-ring | 1 |
|
11 |
042-0606-11 | Clevis Pin | 1 |
|
12 |
053-0858-01 | Washer | 2 |
|
13 |
015-3025-00 | Panel Mount Limit Switch | 1 |
|
14 |
015-1055-00 | Limit Switch | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
