641 Chair Wiring Diagram

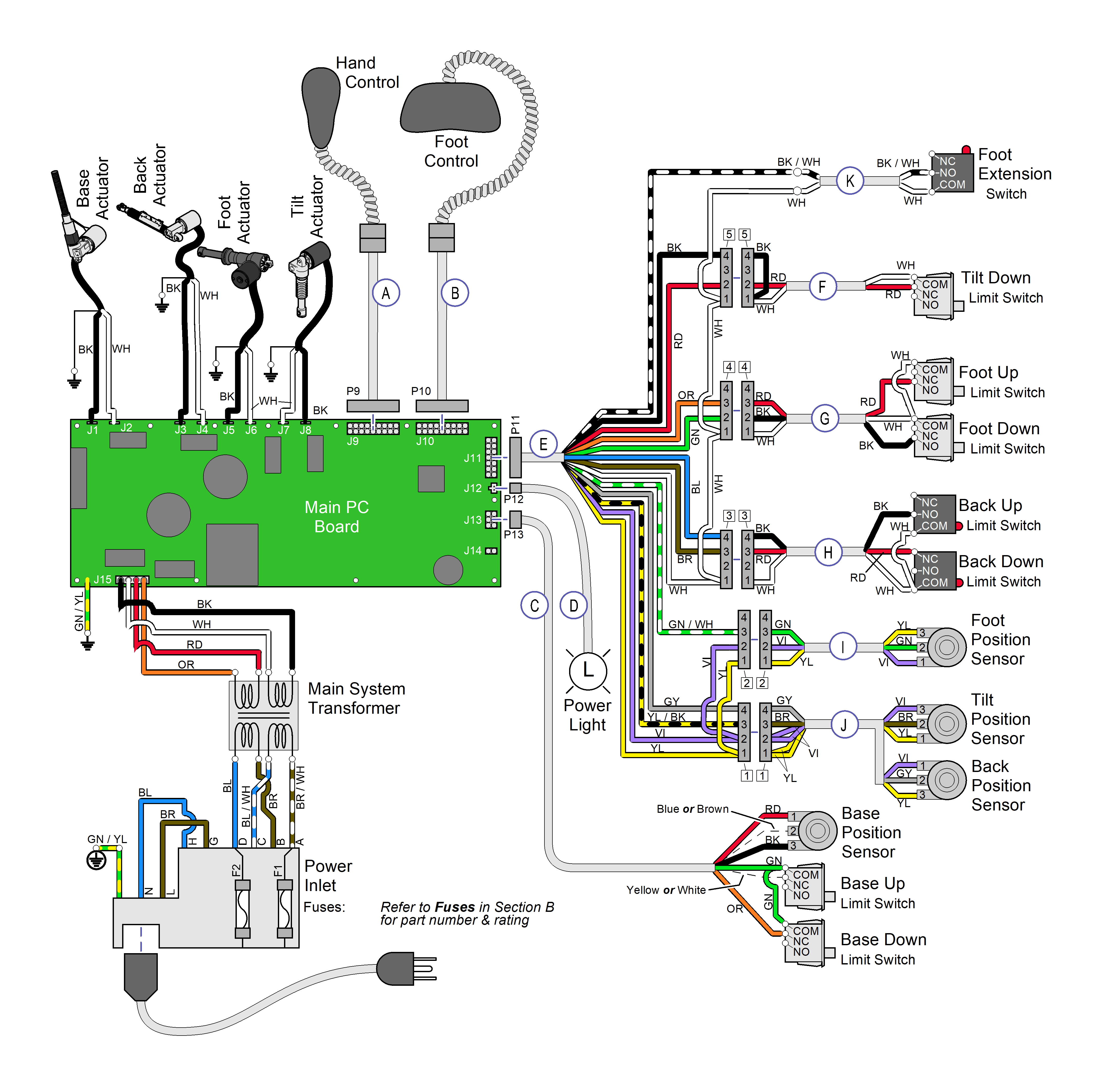

641-002
|
Model |
641-002 |
| Serial Number | All |
| Item | Part Number | Description |
|---|---|---|
|
A |
002-1110-00 |
Connection Port Harness short - head end |
|
B |
002-1110-01 |
Connection Port Harness long - foot end |
|
C |
015-1821-00 |
Position Sensor / Limit Switch Harness - Base |
|
D |
015-1793-00 |
Power Light Harness - includes green light |
|
E |
015-1937-00 |
PC Board to Junction Board Harness |
|
F |
015-2107-00 |
Tilt Limit Switch Harness |
|
G |
015-2098-00 |
Foot Limit Switch Assembly - includes harness and two switches |
|
H |
015-2097-00 |
Back Limit Switch Assembly - includes harness and two switches |
|
I |
015-1773-00 |
Position Sensor Harness - Foot - include sensor |
|
J |
015-1761-00 |
Position Sensor Harness - Tilt and Back - include both sensors |
|
K |
015-2106-00 |
Foot Extension Switch Harness |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||

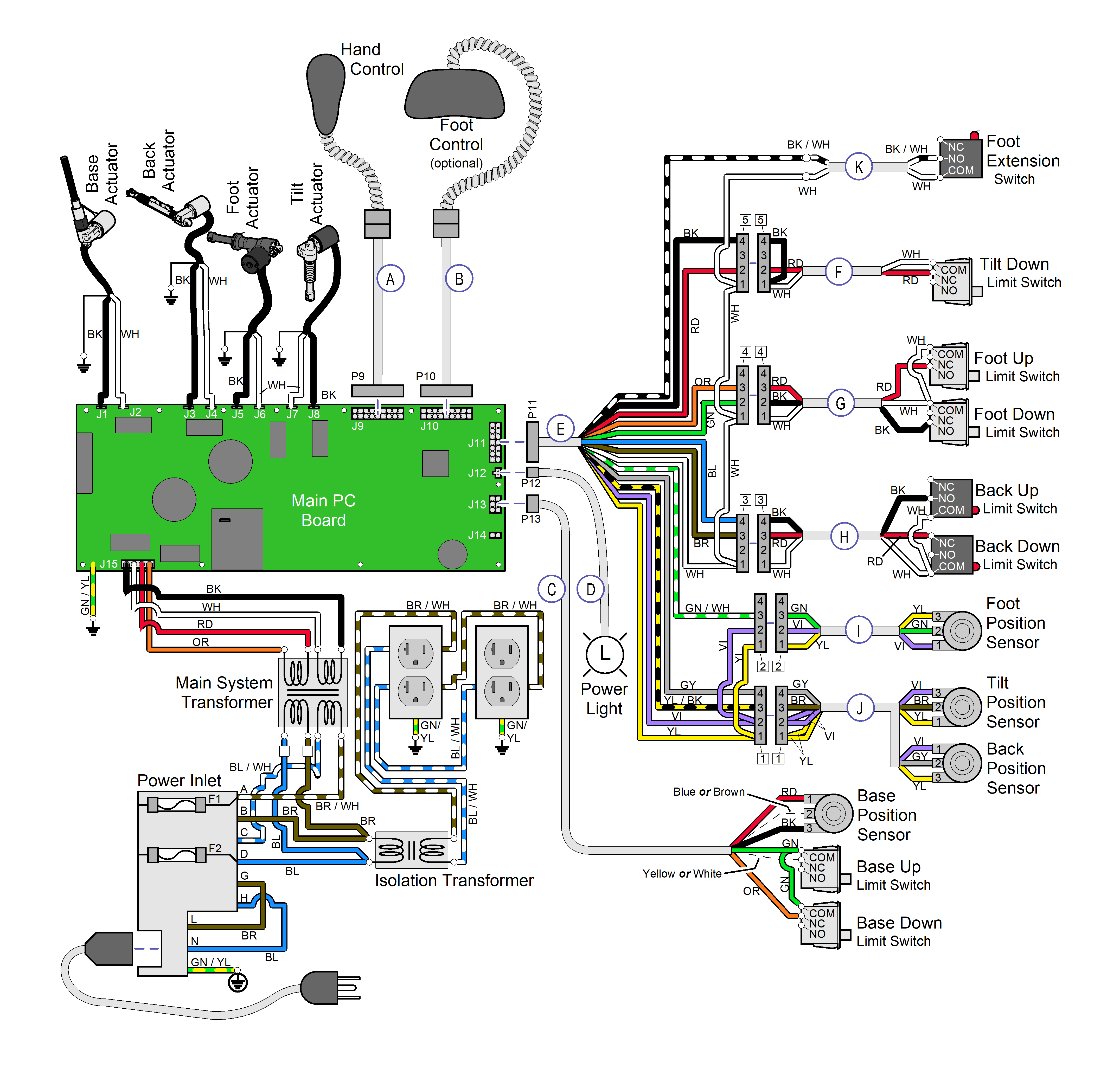

641-003
|
Model |
641-003 |
| Serial Number | All |
| Item | Part Number | Description |
|---|---|---|
|
A |
002-1110-00 |
Connection Port Harness short - head end |
|
B |
002-1110-01 |
Connection Port Harness long - foot end |
|
C |
015-1821-00 |
Position Sensor / Limit Switch Harness - Base |
|
D |
015-1793-00 |
Power Light Harness - includes green light |
|
E |
015-1937-00 |
PC Board to Junction Board Harness |
|
F |
015-2107-00 |
Tilt Limit Switch Harness |
|
G |
015-2098-00 |
Foot Limit Switch Assembly - includes harness and two switches |
|
H |
015-2097-00 |
Back Limit Switch Assembly - includes harness and two switches |
|
I |
015-1773-00 |
Position Sensor Harness - Foot - include sensor |
|
J |
015-1761-00 |
Position Sensor Harness - Tilt and Back - include both sensors |
|
K |
015-2106-00 |
Foot Extension Switch Harness |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||

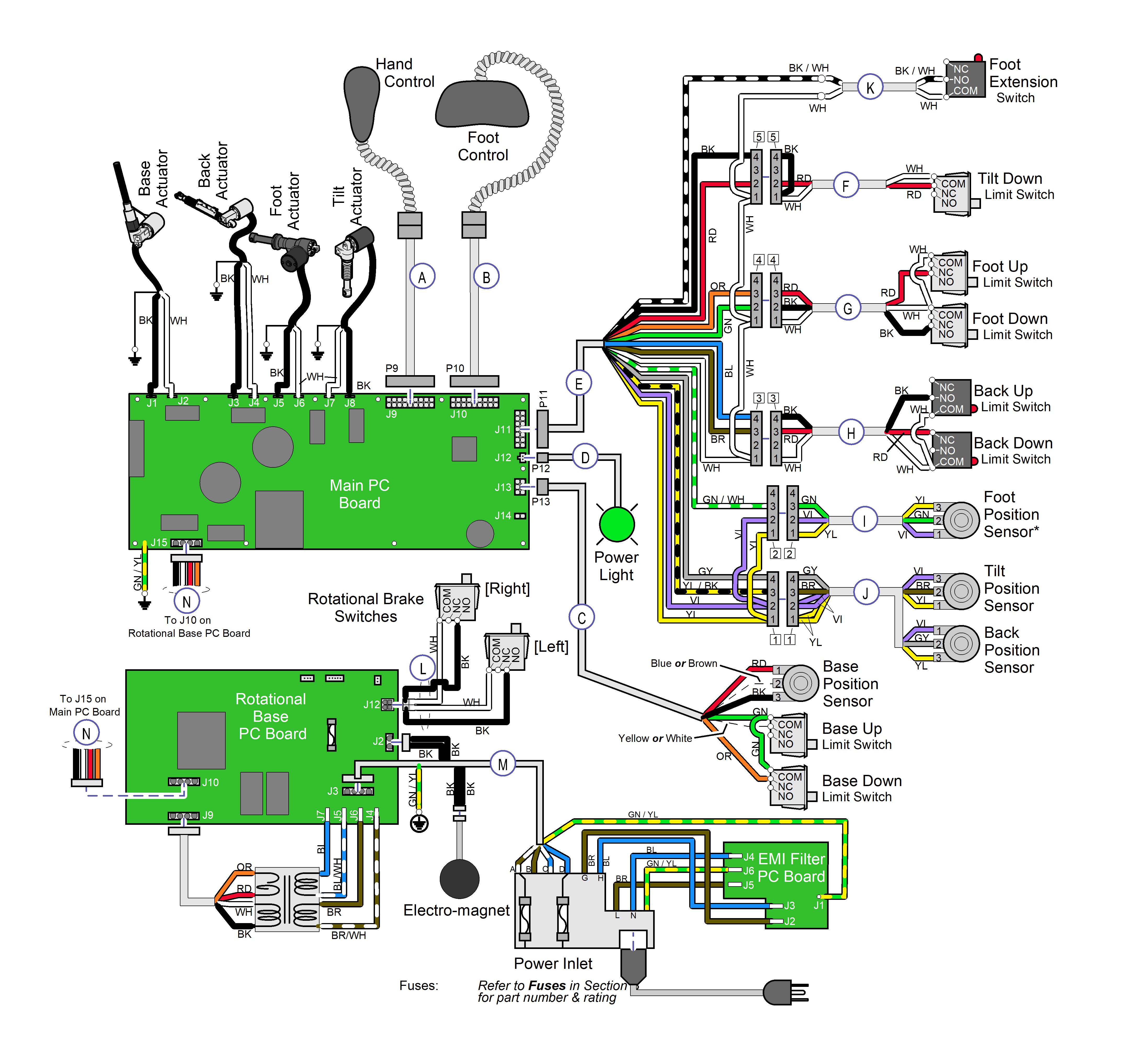

641-004 and -005
|
Model |
641 -004 and -005 |
| Serial Number | All |
| Item | Part Number | Description |
|---|---|---|
|
A |
002-1110-02 |
Connection Port Harness short - head end |
|
B |
002-1110-03 |
Connection Port Harness long - foot end |
|
C |
015-1821-00 |
Position Sensor / Limit Switch Harness - Base |
|
D |
015-1793-00 |
Power Light Harness - includes green light |
|
E |
015-1937-00 |
PC Board to Junction Board Harness |
|
F |
015-2107-00 |
Tilt Limit Switch Harness |
|
G |
015-2098-00 |
Foot Limit Switch Assembly - includes harness and two switches |
|
H |
015-2097-00 |
Back Limit Switch Assembly - includes harness and two switches |
|
I |
015-1773-00 |
Position Sensor Harness - Foot - include sensor |
|
J |
015-1761-00 |
Position Sensor Harness - Tilt and Back - include both sensors |
|
K |
015-2106-00 |
Foot Extension Switch Harness |
|
L |
015-1967-00 |
Brake Switch Harness |
|
M |
015-1966-00 |
Rotational Base PC Board - Power Inlet |
|
N |
015-1968-00 |
Rotational Base PC Board - Main PC Board |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
