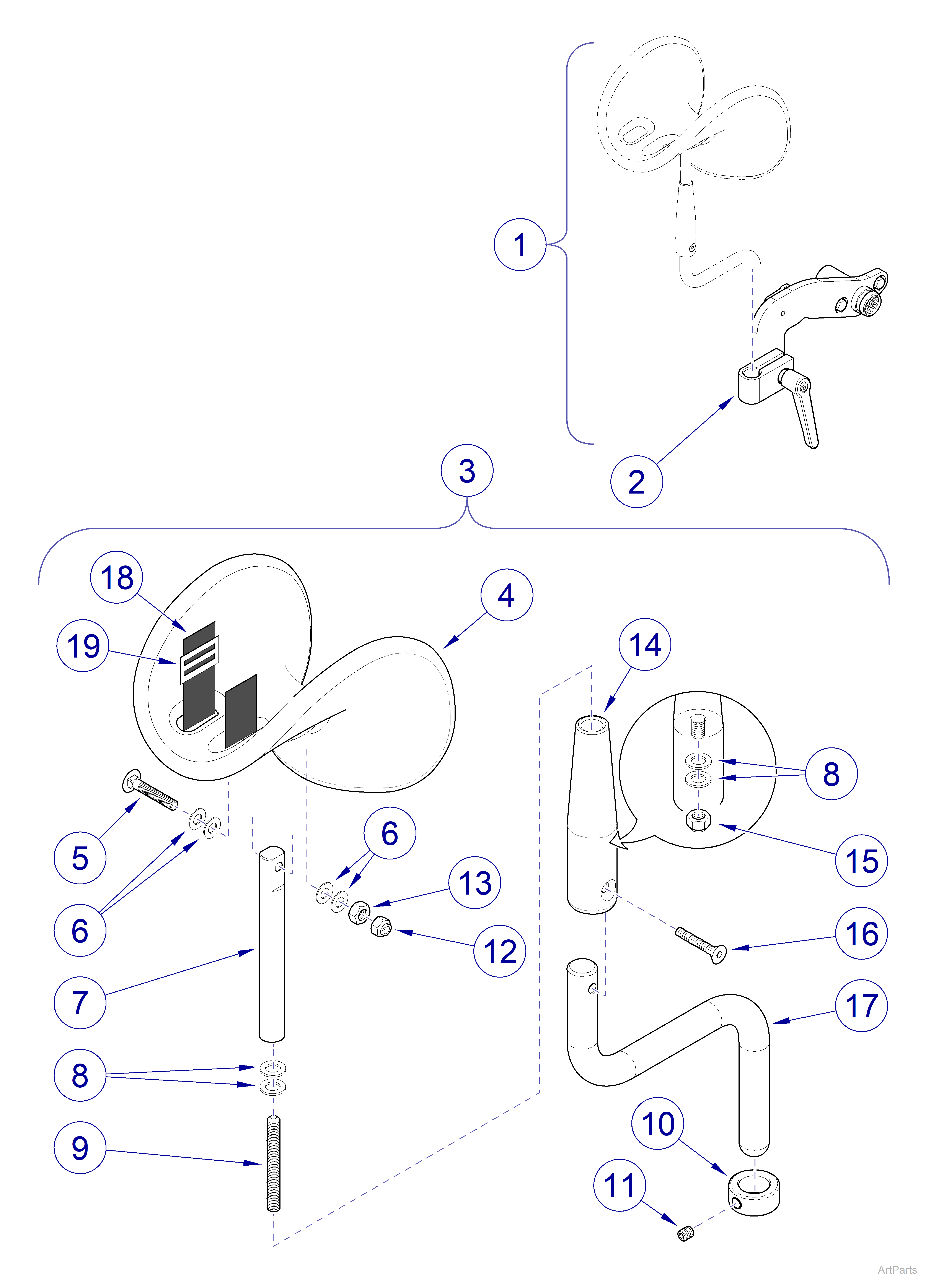

9A643001 Standard Knee Crutch Set
|
Accessory Number |
9A643001 |
| Serial Number | All |
| Used with Models | 224/225/626/627 |
|
9A643001 Standard Knee Crutch Set |
|||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
9A643001 |
Knee Crutch / Bracket Set - includes 2 & 3 |
NLA |
|
2 |
9A641001 | Bracket Set | 1 |
|
3 |
9A678001 | Standard Knee Crutch - includes 4 thru 19 | 1 |
|
4 |
053-1646-00-312 | Knee Holder | 1 |
|
5 |
040-0250-126 | Screw | 1 |
|
6 |
045-0001-134 | Washer | 4 |
|
7 |
057-0878-00 | Shaft | 1 |
|
8 |
045-0001-136 | Washer | 4 |
|
9 |
040-0312-83 | Threaded Stud | 1 |
|
10 |
057-0891-00 | Collar | 1 |
|
11 |
040-0312-60 | Set Screw | 1 |
|
12 |
041-0250-01 | Nut | 1 |
|
13 |
051-1099-00 | Nut | 1 |
|
14 |
057-0968-00 | Swivel | 1 |
|
15 |
041-0312-01 | Nut | 1 |
|
16 |
040-0250-173 | Screw | 1 |
|
17 |
057-10051-00 |
Knee Crutch Bar | NSS |
|
18 |
029-4157-00-312 | Security Strap | 1 |
|
19 |
016-1138-00-312 | Strap Buckle | 1 |
| 20 | Refer to: | Bracket Set Knee Crutch Brackets | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
