9A645001 Articulating Knee Crutch Set
|
Accessory Number |
9A645001 |
| Serial Number | All |
| Used with Models | 224/225/626/627 |

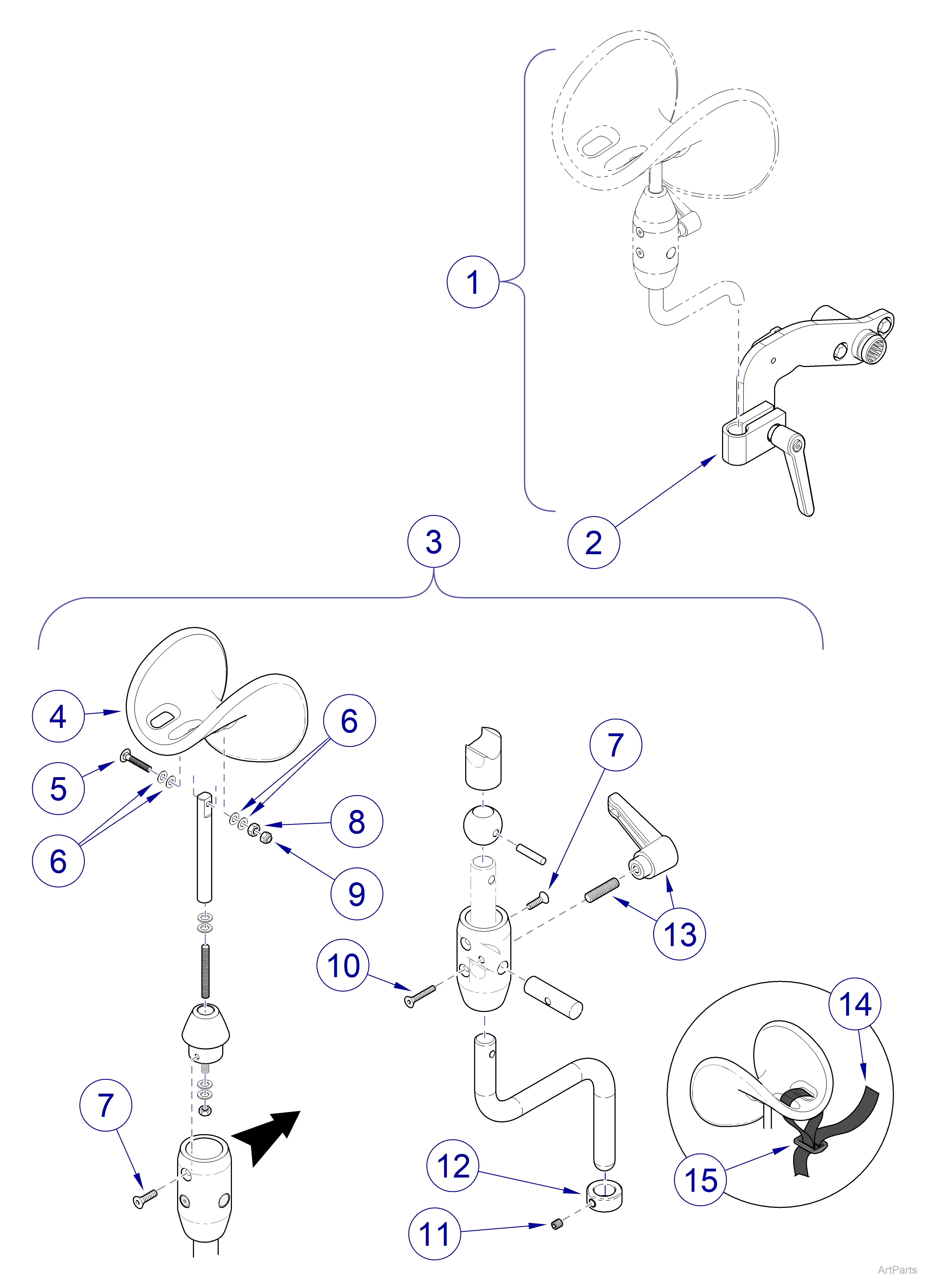

Parts that are not called out in the illustration are non-serviceable items.
Midmark does not recommend disassembling the clamp housing.
| 9A645001 Articulating Knee Crutch Set | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
9A645001 | Knee Crutch / Bracket Set - includes 2 & 3 | 1 |
|
2 |
9A641001 | Bracket Set | 1 |
|
3 |
9A679001 | Knee Crutch - includes 4 thru 15 | 1 |
|
4 |
053-1646-00-312 | Knee Holder | 1 |
|
5 |
040-0250-126 | Screw | 1 |
|
6 |
045-0001-134 | Washer | 4 |
|
7 |
040-0250-174 | Screw | 2 |
|
8 |
051-1099-00 | Nut | 1 |
|
9 |
041-0250-01 | Nut | 1 |
|
10 |
040-0250-77 | Screw | 1 |
|
11 |
040-0312-60 | Set Screw | 1 |
|
12 |
057-0891-00 | Collar | 1 |
|
13 |
002-1673-00 | Handle and Threaded Stud apply Loctite included | 1 |
|
14 |
029-4157-00-312 | Security Strap | 1 |
|
15 |
016-1138-00-312 | Strap Buckle | 1 |
|
16 |
Refer to: | Bracket Set Knee Crutch Brackets | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
