PowerAir Tank and Main Components
|
Model |
All |
| Serial Number | All |

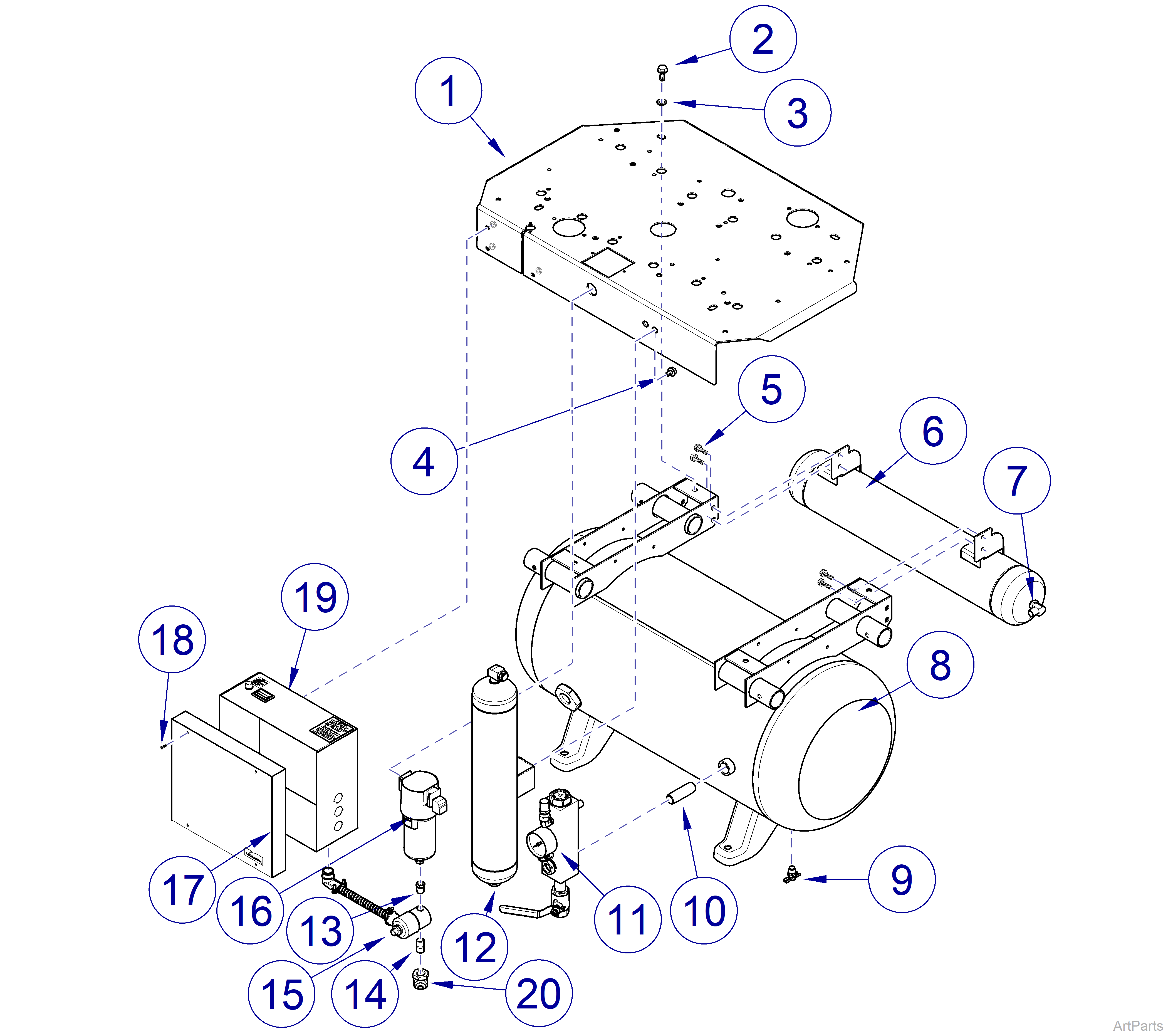

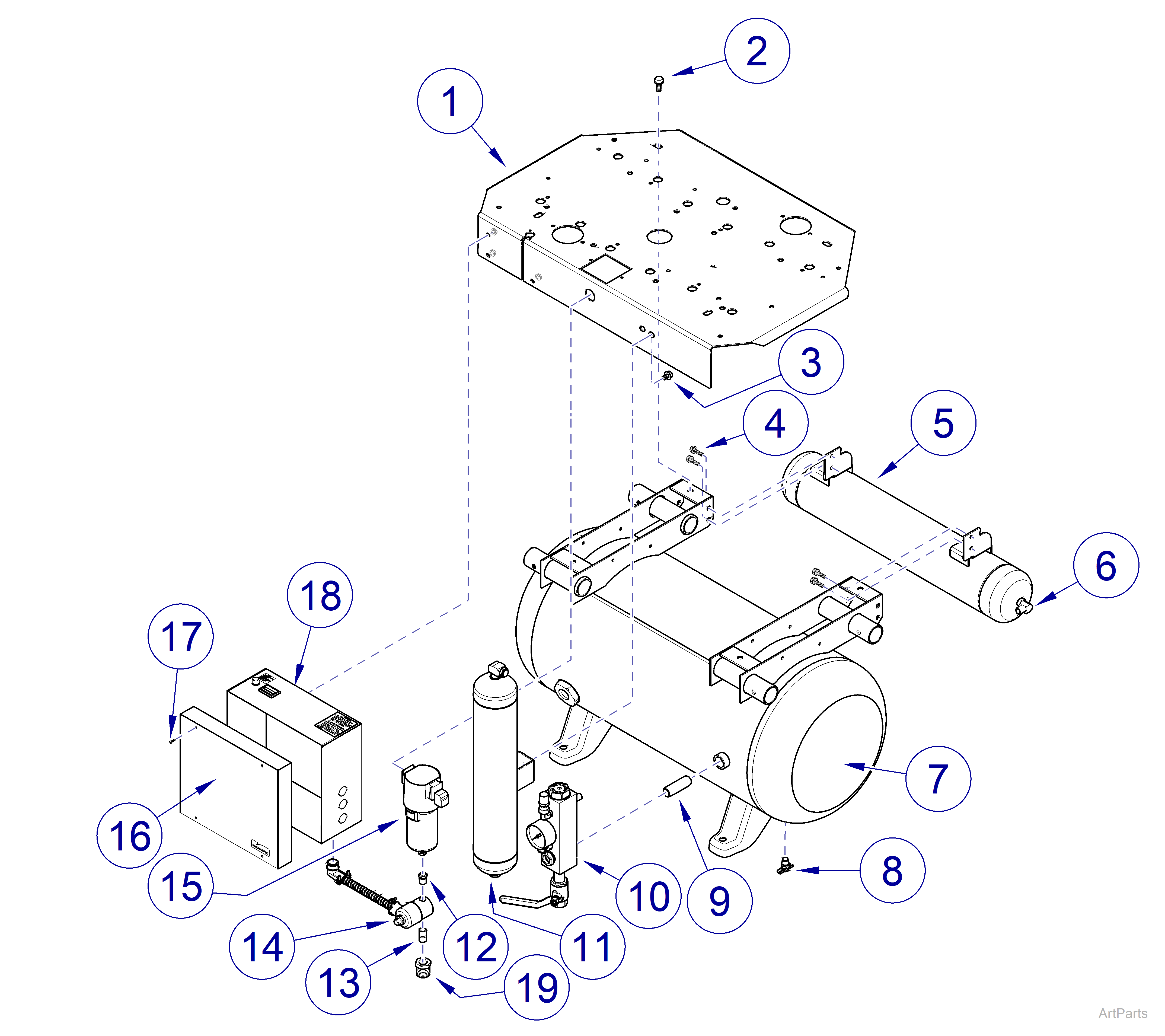

| PowerAir Tank and Main Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Saddle Options | ||
| 64997300 | 10 Gal | 1 | |
| 64997400 | 20 Gal | 1 | |
| 64997500 | 32 Gal | 1 | |
|
2 |
040-0375-00 | Hex Flange 3/8"-16 x 3/4" | 4 |
|
3 |
62600117 | Flat Washer 5/16" | 4 |
|
4 |
040-0312-00 | Hex Flange 5/8"-16 x 1/2" | 2 |
|
5 |
65971200 | Hex Flange 5/8"-18 x 1/2" | 4 |
|
6 |
Purge Tank Options | ||
| 63945500 | 10 Gal | 1 | |
| 63945600 | 20 Gal | 1 | |
| 63945700 | 32 Gal | 1 | |
|
7 |
62900712 | Street Elbow 1/4" Short | 1 |
|
8 |
Tank Assembly Options | ||
| 64997000 | 10 Gal | 1 | |
| 64997100 | 20 Gal | 1 | |
| 64997200 | 32 Gal | 1 | |
|
9 |
PVV50525 | Petcock | 1 |
|
10 |
62903208 | Nipple LG 1/2" NPT x 21/2" LG, SS Seal | 1 |
|
11 |
Refer to: | Manifold | - |
|
12 |
77001617 | Desiccant Dryer Tank | 1 |
|
13 |
Nipple, Hex 1/4" x 1/8" |
1 | |
|
14 |
77002055 | Nipple, Close 1/4" NPT | 1 |
|
15 |
Solenoid Assembly Options Listed by Model | ||
| 002-1386-00 | P22 | 1 | |
| 002-1387-00 | P32 | 1 | |
| 002-1388-00 | P52 | 1 | |
| 002-1389-00 | P72 | 1 | |
| 002-1391-00 | P21 | 1 | |
|
16 |
Refer to: | Coalescing Filter | - |
|
17 |
Electrical Box Cover Options | ||
| 64997800 | 10 Gal | 1 | |
| 64997900 | 20 and 30 Gal | 1 | |
|
18 |
77009108 | Phillips Pan HD Screw 6-32 x 1/2" | 4 |
|
19 |
Refer to: | Electrical Control Box | - |
|
20 |
62903606 | Bushing RDC 1/2M X 1/4F SEAL | 1 |
|
21 |
002-10463-00 | Drain Relief Valve Assembly Kit - Not Shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
