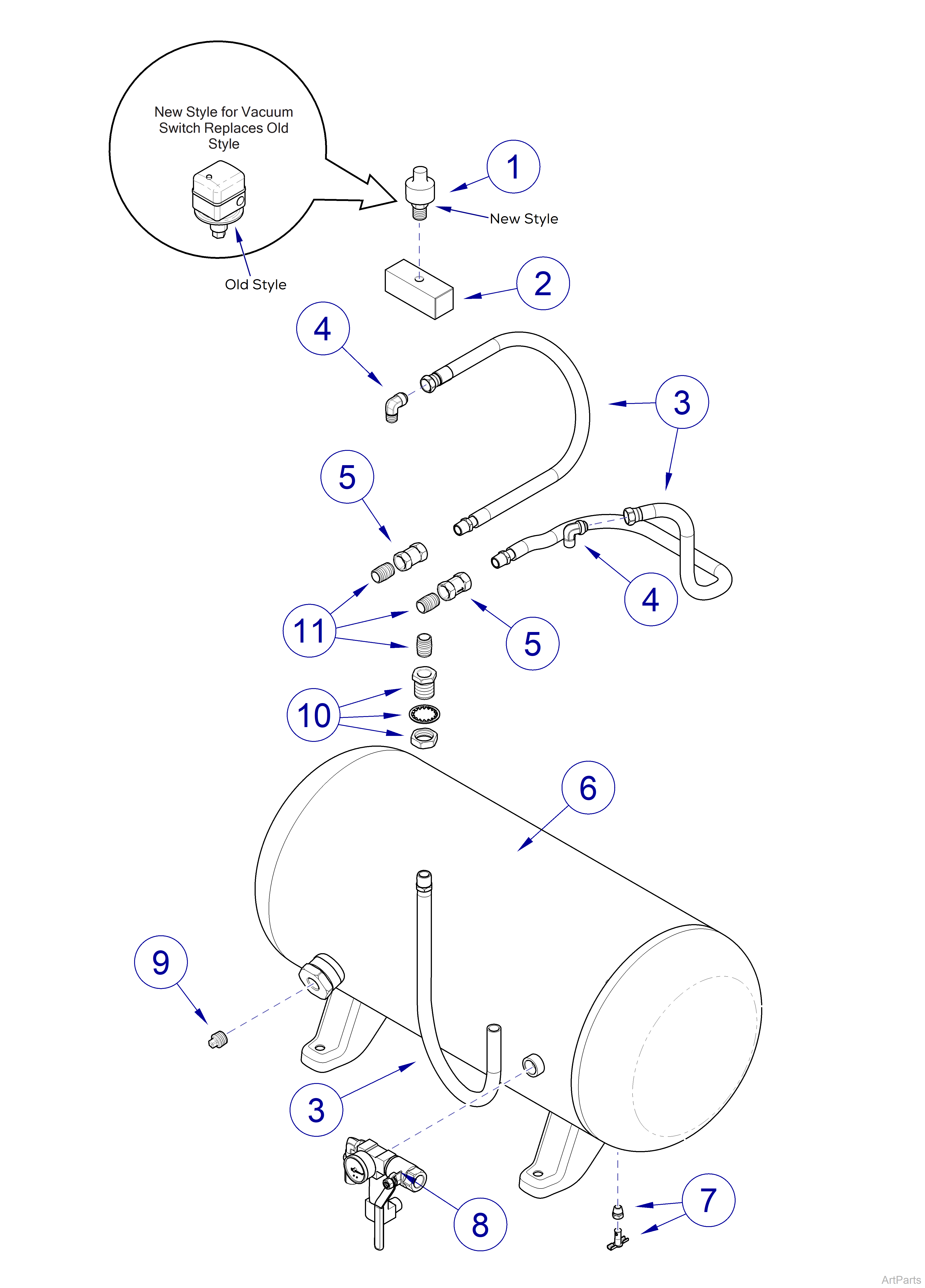

PowerMax Pneumatic Tubes and Hoses
Serial Number Range: 0708PM10001
thru 0904PM10022, 0708PM30001
thru 0902PM30083, and 0708PM40001
thru 0811PM40016
|
Model |
PM-1 | PM-3 | PM-4 |
| Serial Number | 0708PM10001 thru 0904PM10022 | 0708PM30001 thru 0902PM30083 | 0708PM40001 thru 0811PM40016 |
Configuration Shown is for a PM-3. PM-1 and PM-4 May Have Different Quantities of Items, Refer to Item List.
New style 24 VAC Vacuum Switch replaces the old style switch for this serial break only.
| PowerMax Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
10600600 |
Vacuum Switch |
NLA |
|
2 |
Manifold Block Options | ||
| 30166902 | Manifold Block Models PM-1 and PM-3 (20 Gallon) | 1 | |
| 30172402 | Manifold Block Model PM-4 (32 Gallon) | 1 | |
|
3 |
Hose Model Options | ||
| 20169204 | 24" Hose Models PM-1, PM-3 and PM-4 | 2 | |
| 20169205 | 32" Hose Models PM-3 and PM-4 Only | 1 | |
| 20169206 | 44" Hose Model PM-4 Only | 1 | |
|
4 |
90 degree Elbow 1/2" FTF x 3/8" NPT Options | ||
|
62933903 |
PM-1 | 1 | |
|
62933903 |
PM-3 | 2 | |
|
62933903 |
PM-4 | 3 | |
|
5 |
Check Valve (1/2" NPT) Options | ||
| 10378700 | PM-1 | 1 | |
| 10378700 | PM-3 | 2 | |
| 10378700 | PM-4 | 3 | |
|
6 |
Tank Options | ||
| 64997100 | Tank PM-1 and PM-3 (20 Gallon) | 1 | |
| 64997200 | Tank PM-4 (32 Gallon) | 1 | |
|
7 |
PVV50525 | Petcock Assembly | 1 |
|
8 |
Refer to: | Ball Valve Tank and Main Components | - |
|
9 |
77006066 | Pipe Plug 1/2" NPT | 1 |
|
10 |
Bulkhead Anchor 1/2" | 1 | |
|
11 |
Nipple, Close 1/2" NPT Options | ||
|
62903308 |
PM-1 | 2 | |
|
62903308 |
PM-3 | 3 | |
|
62903308 |
PM-4 | 4 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

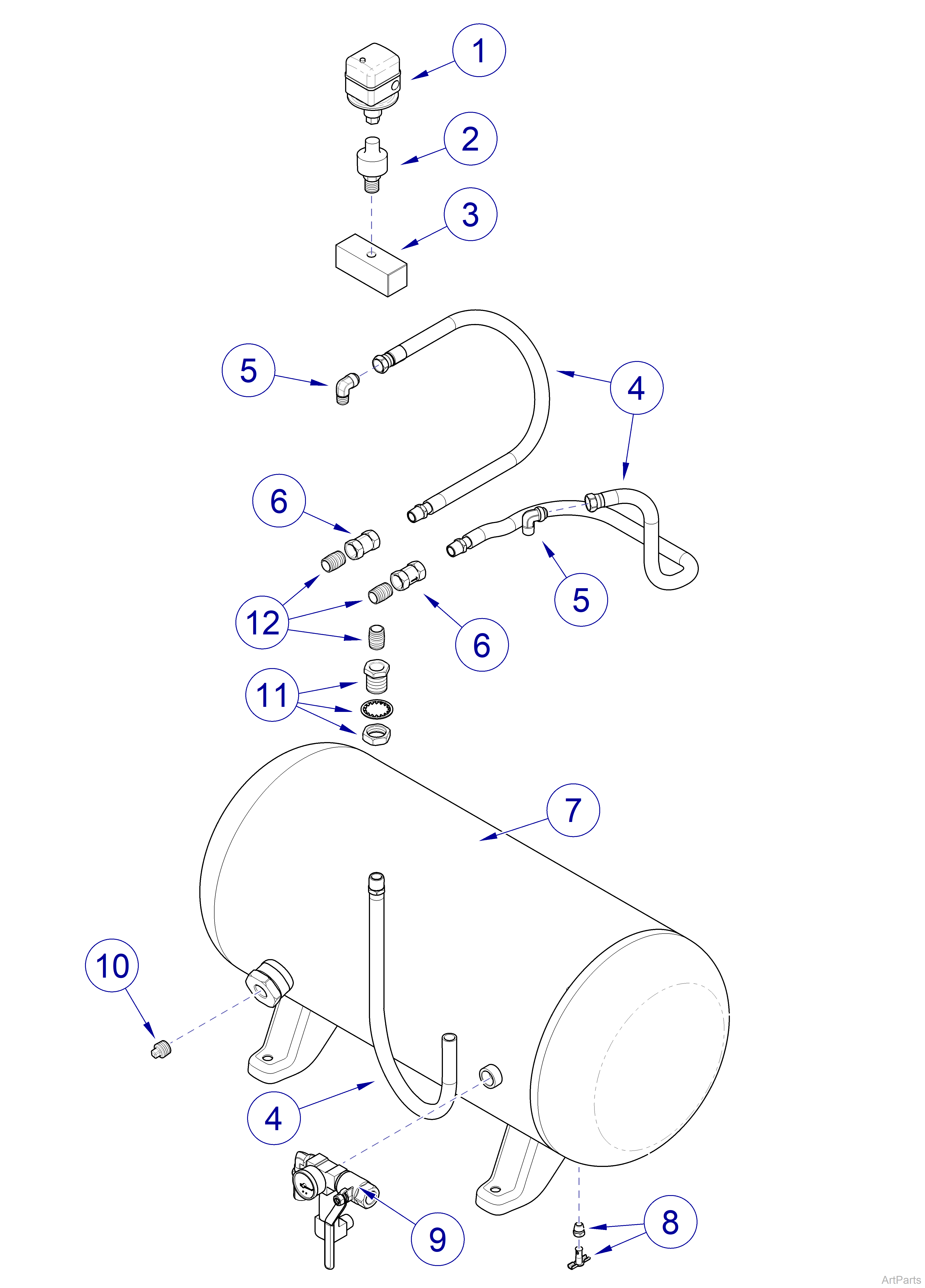

Serial Number Range: 0904PM10023
thru V1706473, 0902PM30084
thru V1706473, and 0811PM40017
thru V1706473
|
Model |
PM-1 | PM-3 | PM-4 |
| Serial Number | 0904PM10023 thru V1706473 | 0902PM30084 thru V1706473 | 0811PM40017 thru V1706473 |
Configuration Shown is for a PM-3. PM-1 and PM-4 May Have Different Quantities of Items, Refer to Item List.
| PowerMax Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
30126601 | Vacuum Switch | 1 |
|
2 |
62900510 |
Nipple, Hex 1/4" NPT x 1/4" NPT | 1 |
|
3 |
Manifold Block Options | ||
| 30166902 | Manifold Block Models PM-1 and PM-3 (20 Gallon) | 1 | |
| 30172402 | Manifold Block Model PM-4 (32 Gallon) | 1 | |
|
4 |
Hose Model Options | ||
| 20169204 | 24" Hose Models PM-1, PM-3 and PM-4 | 2 | |
| 20169205 | 32" Hose Models PM-3 and PM-4 Only | 1 | |
| 20169206 | 44" Hose Model PM-4 Only | 1 | |
|
5 |
90 degree Elbow 1/2" FTF x 3/8" NPT Options | ||
|
62933903 |
PM-1 | 1 | |
|
62933903 |
PM-3 | 2 | |
|
62933903 |
PM-4 | 3 | |
|
6 |
Check Valve (1/2" NPT) Options | ||
| 10378700 | PM-1 | 1 | |
| 10378700 | PM-3 | 2 | |
| 10378700 | PM-4 | 3 | |
|
7 |
Tank Options | ||
| 64997100 | Tank PM-1 and PM-3 (20 Gallon) | 1 | |
| 64997200 | Tank PM-4 (32 Gallon) | 1 | |
|
8 |
PVV50525 | Petcock Assembly | 1 |
|
9 |
Refer to: | Ball Valve Tank and Main Components | - |
|
10 |
77006066 | Pipe Plug 1/2" NPT | 1 |
|
11 |
Bulkhead Anchor 1/2" | 1 | |
|
12 |
Nipple, Close 1/2" NPT Options | ||
|
62903308 |
PM-1 | 2 | |
|
62903308 |
PM-3 | 3 | |
|
62903308 |
PM-4 | 4 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V1706474
thru Present
|
Model |
PM-1 | PM-3 | PM-4 |
| Serial Number | V1706474 thru Present | V1706474 thru Present | V1706474 thru Present |
Configuration Shown is for a PM-3. PM-1 and PM-4 May Have Different Quantities of Items, Refer to Item List.
| PowerMax Pneumatic Tubes and Hoses | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
30126601 | Vacuum Switch | 1 |
|
2 |
62900510 |
Nipple, Hex 1/4" NPT x 1/4" NPT | 1 |
|
3 |
Manifold Block Options | ||
| 30166902 | Manifold Block Models PM-1 and PM-3 (20 Gallon) | 1 | |
| 30172402 | Manifold Block Model PM-4 (32 Gallon) | 1 | |
|
4 |
Hose Model Options | ||
| 20169204 | 24" Hose Models PM-1, PM-3 and PM-4 | 2 | |
| 20169205 | 32" Hose Models PM-3 and PM-4 Only | 1 | |
| 20169206 | 44" Hose Model PM-4 Only | 1 | |
|
5 |
90 degree Elbow 1/2" FTF x 3/8" NPT Options | ||
|
62933903 |
PM-1 | 1 | |
|
62933903 |
PM-3 | 2 | |
|
62933903 |
PM-4 | 3 | |
|
6 |
Check Valve (1/2" NPT) Options | ||
| 10378700 | PM-1 | 1 | |
| 10378700 | PM-3 | 2 | |
| 10378700 | PM-4 | 3 | |
|
7 |
Tank Options | ||
| 64997100 | Tank PM-1 & PM-3 (20 Gallon) | 1 | |
| 64997200 | Tank PM-4 (32 Gallon) | 1 | |
|
8 |
PVV50525 | Petcock Assembly | 1 |
|
9 |
Refer to: | Ball Valve Tank and Main Components | - |
|
10 |
014-0344-00 | Pipe Plug 1/2" NPT | 1 |
|
11 |
Bulkhead Anchor 1/2" | 1 | |
|
12 |
Nipple, Close 1/2" NPT Options | ||
|
62903308 |
PM-1 | 2 | |
|
62903308 |
PM-3 | 3 | |
|
62903308 |
PM-4 | 4 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
