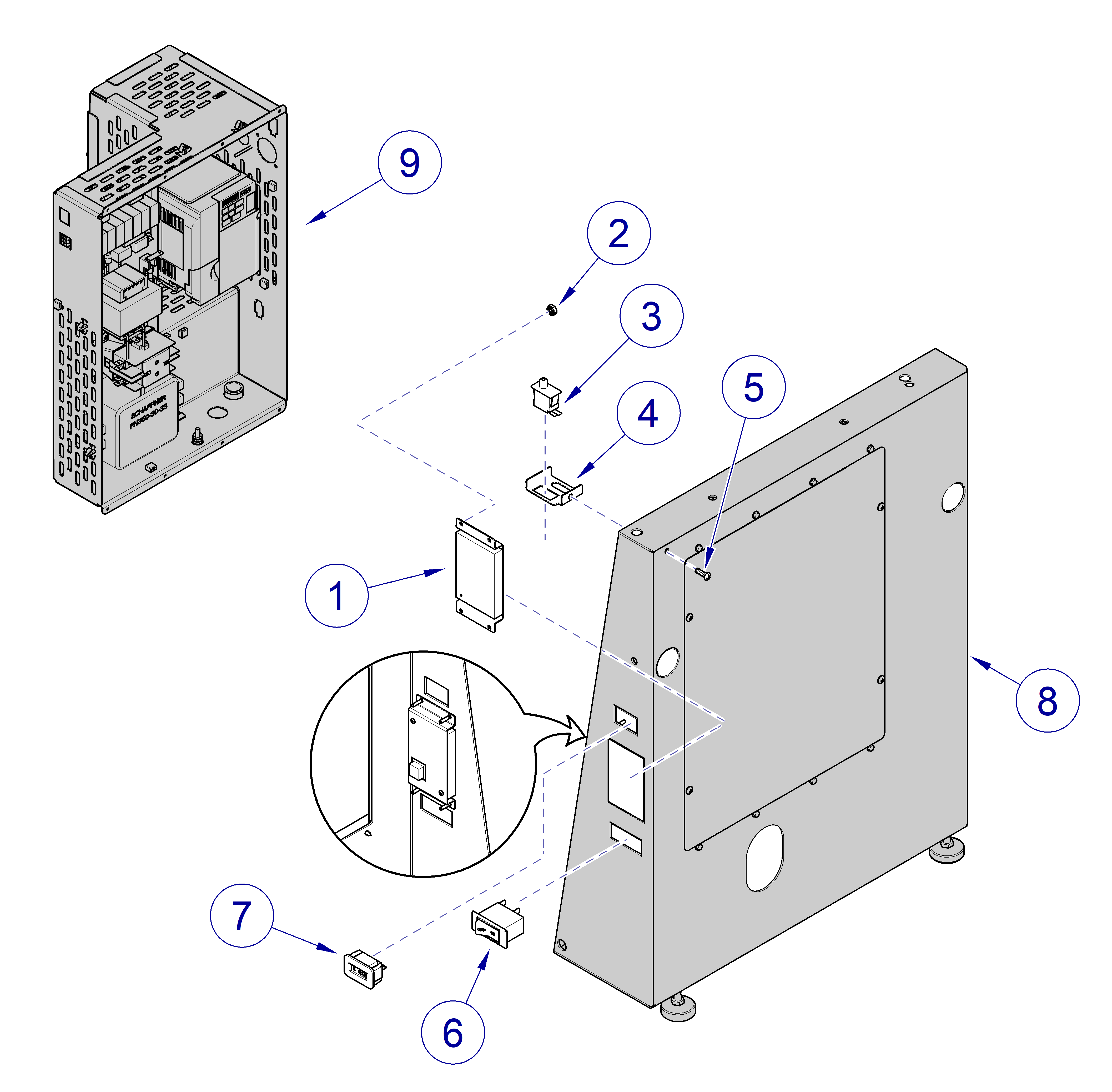

PowerVac G Front Panel Controls
|
Model |
All |
| Serial Number | All |
Single models require one vacuum assembly. Twin models require two vacuum assemblies.
| PowerVac G Front Panel Controls | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1433-00 | Keypad Kit | 1 |
|
2 |
61402702 | Keps Nut #6-32 | 4 |
|
3 |
Limit Switch | 1 | |
|
4 |
050-6581-00-312 | Mounting Bracket | 1 |
|
5 |
040-0010-159 | Screw 10-24 x 5/8” | 1 |
|
6 |
ECS10422 | On/Off Switch | 1 |
|
7 |
20235600 | Hour Meter | 1 |
|
8 |
Refer to: | Vacuum Base Unit | - |
|
9 |
Refer to: | Electrical Box | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
