PowerVac G Separator
Earlier production units had three reed switch floats. The middle float was not used and is not installed in current production units.
Single models require one separator assembly. Twin models require two separator assemblies.

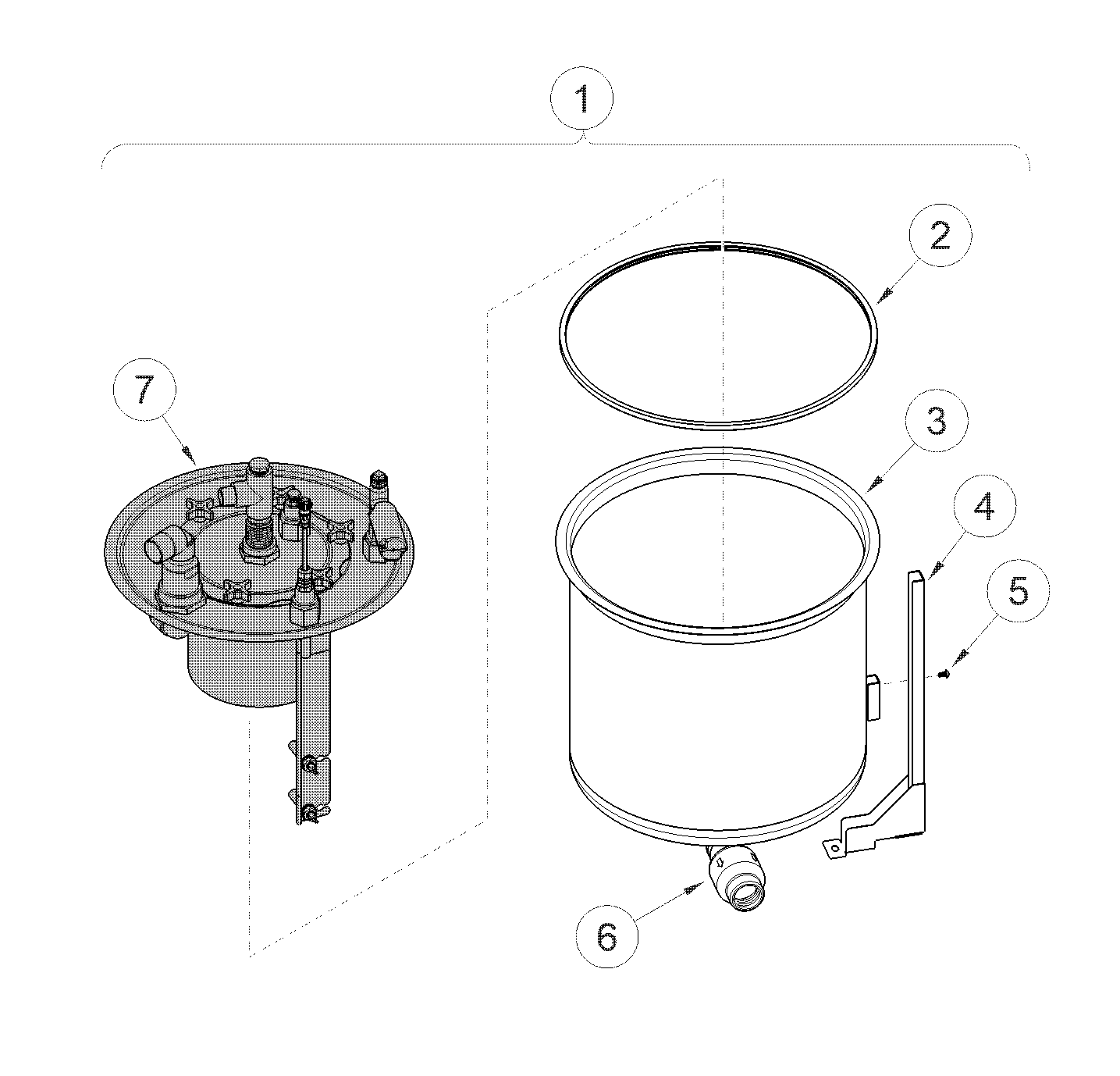

Serial Number Range: V998996 thru V1466496
|
Model |
All |
| Serial Number | V998996 thru V1466496 |
| PowerVac G Separator | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-5111-00 | Separator Assembly - includes items 2 thru 7 | 1 |
|
2 |
053-2159-00 | Gasket | 1 |
|
3 |
030-1905-00-312 | Tank | 1 |
|
4 |
030-1918-00-312 | Legs | 3 |
|
5 |
040-0250-188 | Screw 1/4” 20 x 1/2” ‘TT’ | 6 |
|
6 |
Refer to: | Drain Assembly | - |
|
7 |
Refer to: | Separator Lid Assembly | - |
|
8 |
002-11063-00 |
64 oz Bottle Precision Clense - Not shown |
AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

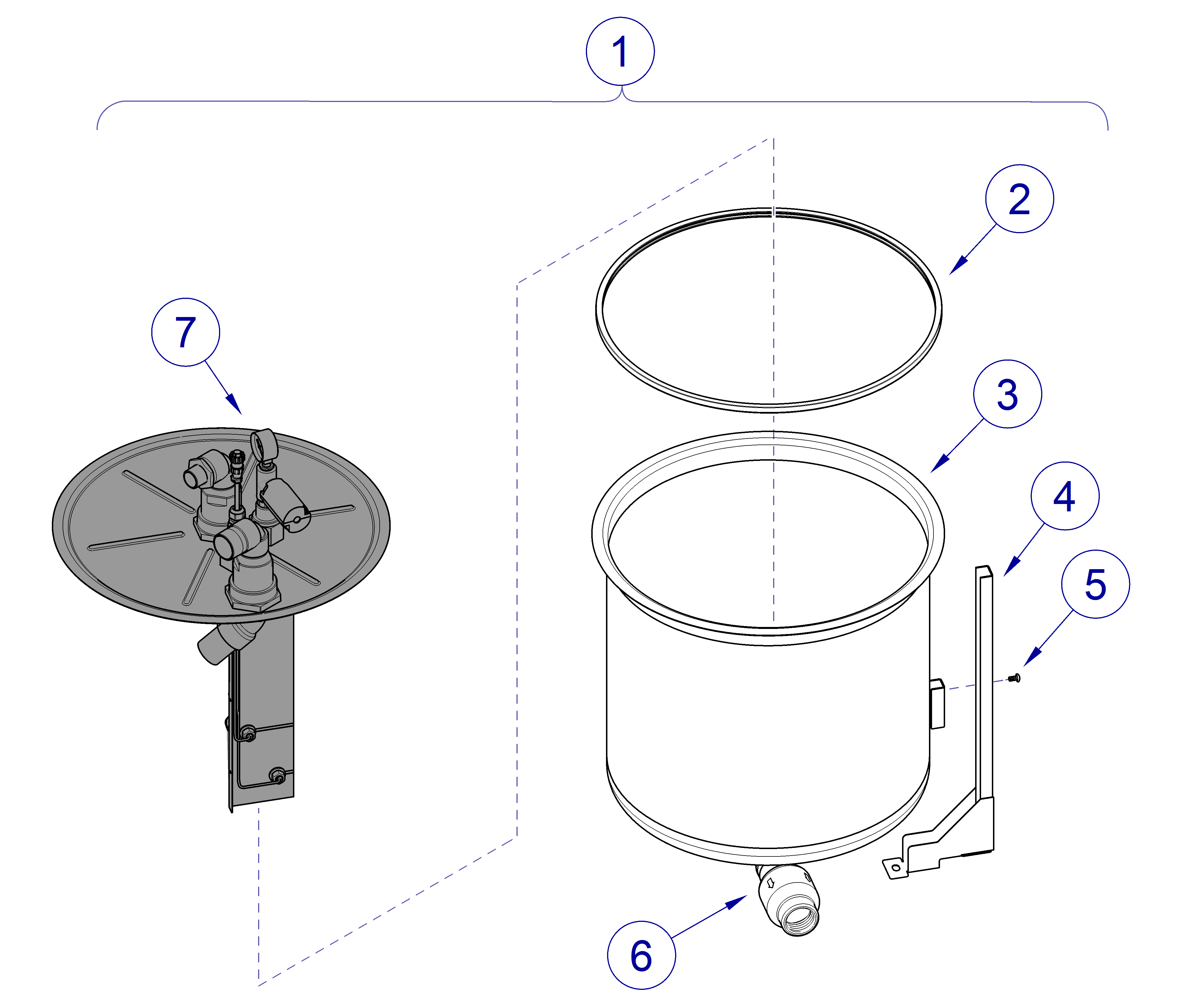

Serial Number Range: V1466497 thru V2618920
|
Model |
All |
| Serial Number | V1466497 thru V2618920 |
Beginning Serial Number Label on Separator Tanks
| PowerVac G Separator | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-5111-00 | Separator Assembly - includes items 2 thru 7 | 1 |
|
2 |
053-2159-00 | Gasket | 1 |
|
3 |
030-1905-00-312 | Tank | 1 |
|
4 |
030-1918-00-312 | Legs | 3 |
|
5 |
040-0250-188 | Screw 1/4” 20 x 1/2” ‘TT’ | 6 |
|
6 |
Refer to: | Drain Assembly | - |
|
7 |
Refer to: | Separator Lid Assembly | - |
|
8 |
002-11063-00 |
64 oz Bottle Precision Clense - Not shown |
AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2618921 thru Present
|
Model |
All |
| Serial Number | V2618921 thru Present |
Beginning Serial Number Label on Separator Tanks
| PowerVac G Separator | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-5111-00 | Separator Assembly - includes items 2 thru 7 | 1 |
|
2 |
053-2159-00 | Gasket | 1 |
|
3 |
030-1905-00-312 | Tank | 1 |
|
4 |
030-1918-00-312 | Legs | 3 |
|
5 |
040-0250-162 | Screw 1/4” 20 x 1/2” ‘TT’ | 6 |
|
6 |
Refer to: | Drain Assembly | - |
|
7 |
Refer to: | Separator Lid Assembly | - |
|
8 |
002-11063-00 |
64 oz Bottle Precision Clense - Not shown |
AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
