Model	P21-050	P22-050	P32-050	P52-050	P72-050
Serial Number	V2200 thru Present	V2200 thru Present	V2200 thru Present	V2200 thru Present	V2200 thru Present

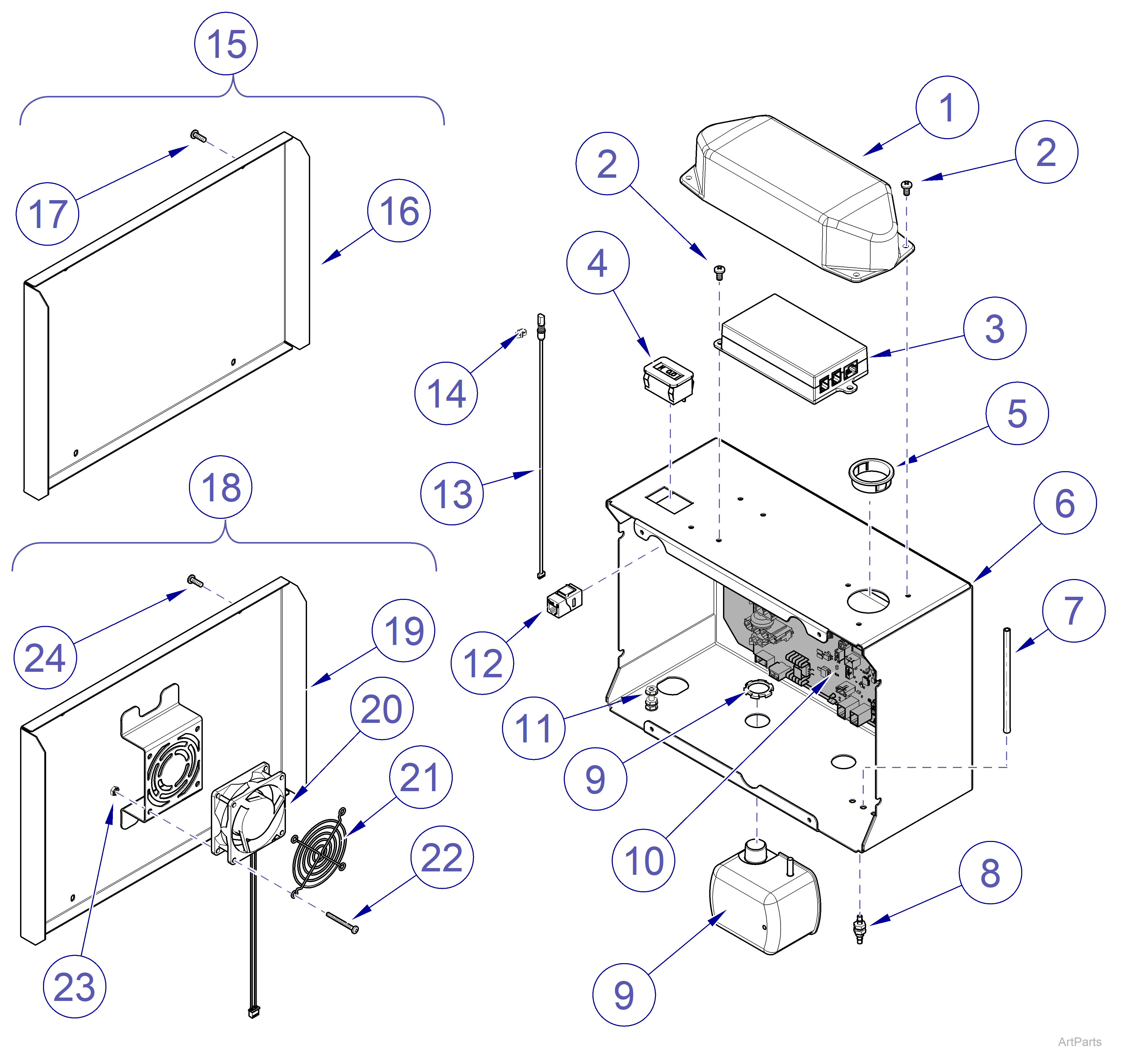

Electrical Control Box
Item	Part Number	Description	Qty
1	053-10472-00-312	Cover, Connectivity Module	1
2	040-0010-109	#10-24 X 3/8 inch PAN HD PHL	7
3	002-10785-00	Connectivity Module	1
4	20235600	Hour Meter	1
5	053-0068-17	Snap Bushing	1
6	030-10460-00-312	Electrical Box	1
7	014-10241-04	Tubing, 0.156 OD X 0.09 ID, Black	3
8	014-10232-00	Bulkhead Connector	3
9		Pressure Switch Options	-
	77005143	P21, P22, P32, P52	1
	77005144	P72	1
10	Refer to:	Electrical Panel Assy	-
11	BNT20210	Nut, KEPS #10-32	3
12	015-11422-00	RJ45 SNAP-IN Coupler	1
13	015-11457-00	Humidity and Temperature Sensor	1
14	015-11692-00	Routing Clip, 3/8 inch	1
15	029-11815-00	P21, P22, P32 Electrical Box Cover Assy. - Includes items 16 and 17	1
16	050-13057-00-312	P21, P22, P32 Electrical Box Cover	1
17	040-0008-79	P21, P22, P32 Screw, #8-32 X 1/2 inch PAN HD PHL, TYPE TT	4
18	029-11815-01	P52, P72 Electrical Box Cover Assy. - Includes items 19 thru 24	1
19	030-10514-00-312	P52, P72 Electrical Box Cover Weldment	1
20	015-12145-00	P52, P72 Harness, Fan	1
21	057-10615-00	P52, P72 Fan Guard	1
22	040-0006-112	P52, P72 #6-32 X 1-3/8 inch PAN HD PHL	4
23	041-0006-02	P52, P72 #6-32 Hex Nut w/Ext Lock Washer	4
24	040-0008-79	P52, P72 Screw, #8-32 X 1/2 inch PAN HD PHL, TYPE TT	4
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number
