Midmark® Smart G-Vacuum Fan Assembly
|
Model |
All |
| Serial Number | V2200 thru Present |

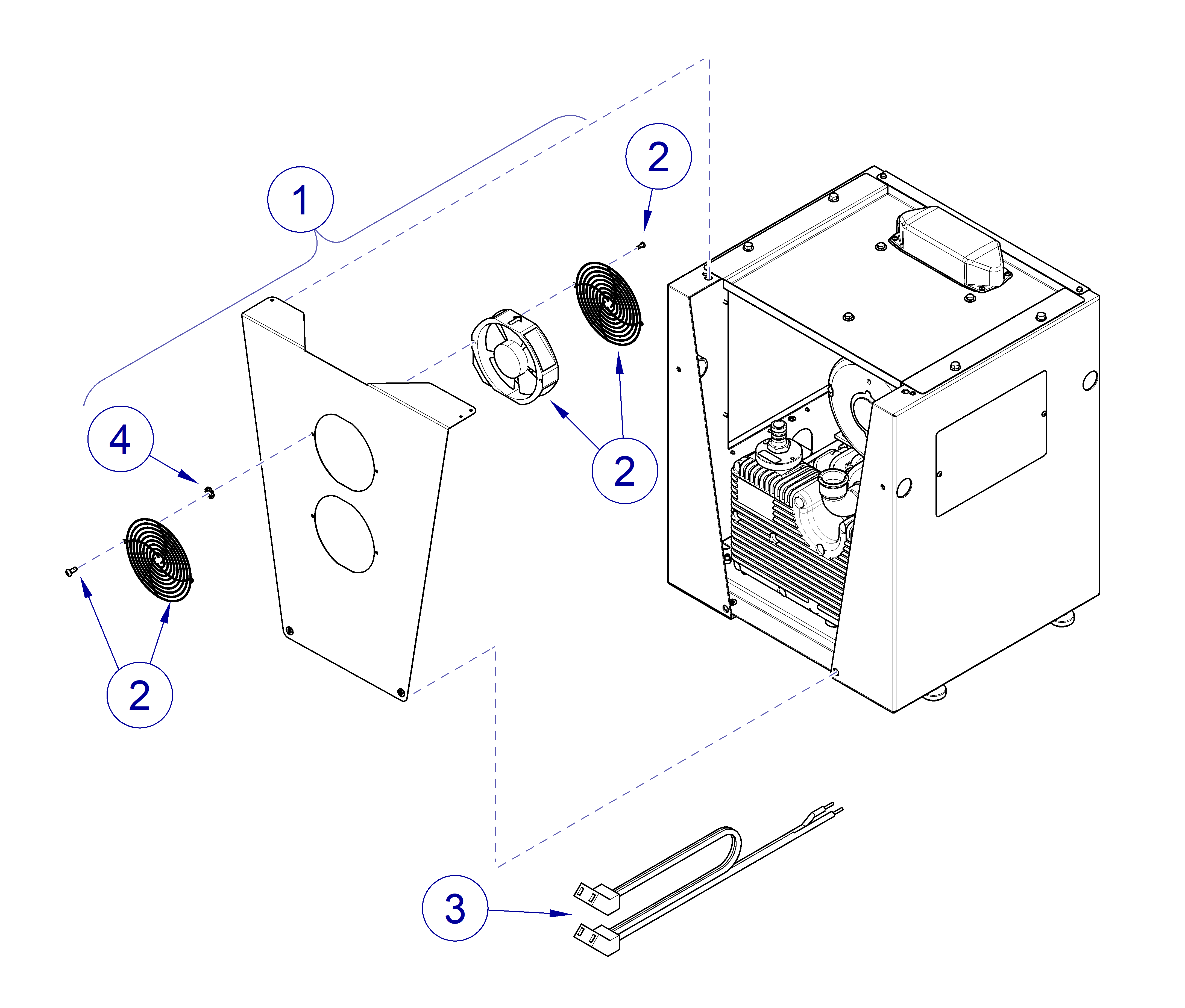

| Fan Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Rear Cover Assembly - includes Items 2 thru 4 Refer to: Vacuum Base Unit |
1 | |
|
2 |
002-1444-00 | Fan Kit - includes item 4 | 1 |
|
3 |
015-2746-00 | Daisy Chain Cord | 1 |
| 4 | 045-0001-31 | #10 Ext Tooth Lock Washer | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
