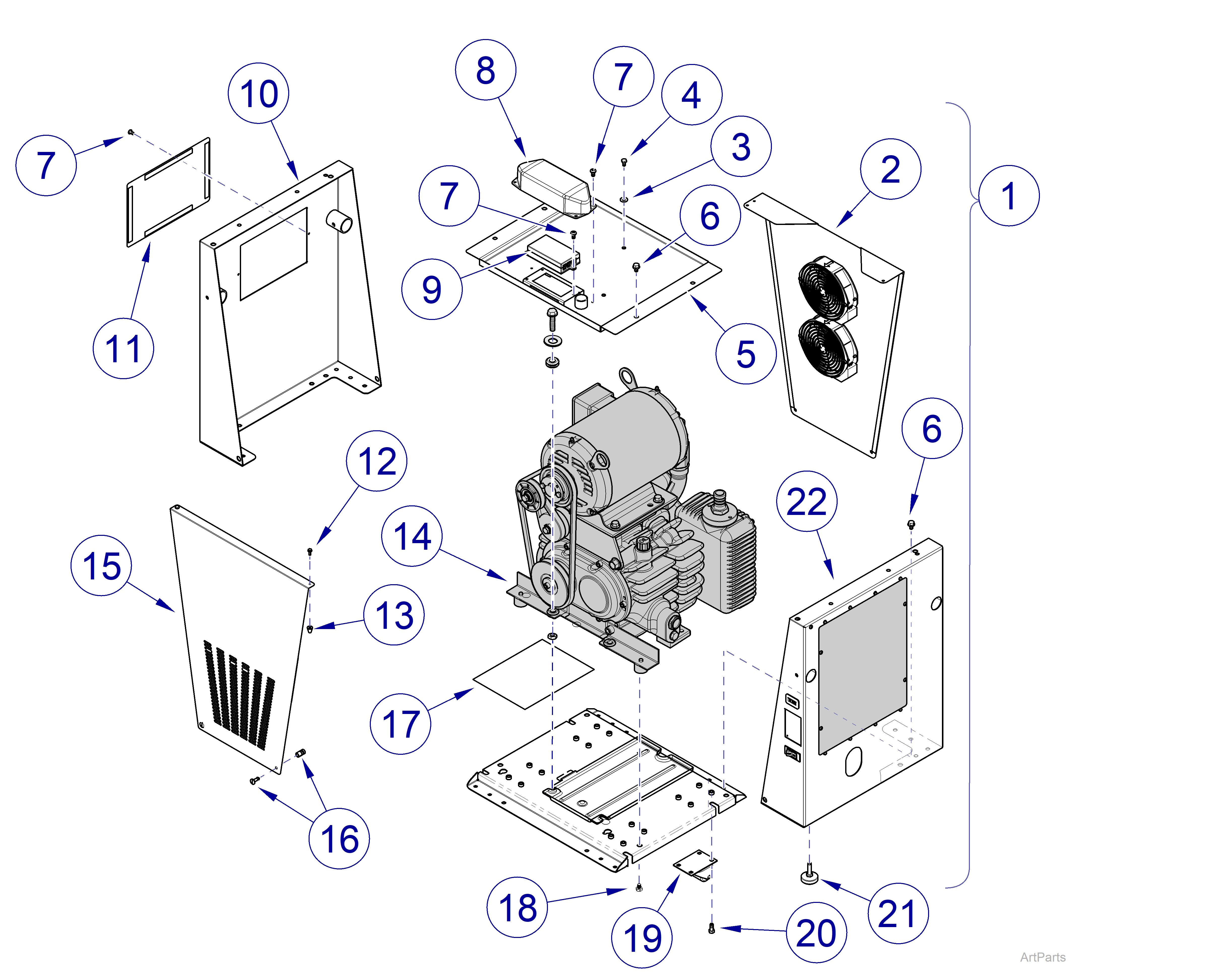

Midmark® Smart G-Vacuum Base Unit
Single models require one vacuum assembly. Twin models require two vacuum assemblies.
Serial Number Range: V2200 thru Present
|
Model |
All |
| Serial Number | V2200 thru Present |
| Vacuum Base Unit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Base Unit Assembly Options - includes items 2 thru 17 | ||
| 029-11477-00 | G3-050, G6-050 | 1 | |
| 029-11477-01 | G5-050, G10-050 | 1 | |
| 029-11477-02 | G7-050, G14-050 | 1 | |
|
2 |
029-11744-00 | Rear Cover Assembly - includes a fan kit | 1 |
|
3 |
BWR20390 | Flatwasher 1/4 inch | 3 |
|
4 |
62700113 | Bolt 1/4-20 Hex Head | 3 |
| 5 | 030-10384-00-312 | Top Plate Assembly | 1 |
|
6 |
040-0312-00 | Bolt 5/16-18 x 1/2 inch Hex Head | 12 |
| 7 | 040-0010-109 | Pan head Phillips Screws #10 x 3/8 | 9 |
| 8 | 053-10472-00-312 | Cover, Connectivity | 1 |
| 9 | 002-10785-00 | Connectivity Module | 1 |
| 10 | 030-10489-00-366 | Left Panel | 1 |
| 11 | 050-6565-00-366 | Lid, Electrical Box | 1 |
|
12 |
65959902 | Hex washer head screw #10 x 1/2 inch | 2 |
|
13 |
65963800 | Tapered Pin | 2 |
|
14 |
Refer to: | Vacuum Base Unit Pump Assembly/Motor | - |
| 15 | 050-12817-00-312 | Front Cover | 1 |
|
16 |
62977901 | Fastener 1/4 turn | 2 |
|
17 |
054-10049-00 | Absorbent Pad | 1 |
|
18 |
042-0626-00 | Bolt M8 x 10 mm Hex Head | 3 |
|
19 |
016-1059-00 | Caster | 4 |
|
20 |
BBT20106 | Bolt 5/16-18 x 3/4 inch Hex Head | 16 |
|
21 |
MMS72090 | Non-Skid Glide | 4 |
|
22 |
Refer to: |
Right Panel Cover and Screws |
- |
|
23 |
016-1064-00 | Belt Tension Checker Tool - Not Shown | AR |
|
24 |
067-0053-02-366 | Touch Up Paint - Brush-On - Not Shown | AR |
|
25 |
002-10101-00 | Touch Up-Paint Aerosol - Not Shown | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
