Integra™ Center Console Sink Drawer / Panel Options

All panels must be ordered separately to specify color.

Refer to: the Cabinet Color Options for the order number extension of your desired color.

Model

 FCC
Serial Number All

Integra™ Center Console Sink Drawer / Panel Options

Integra™ Center Console Sink Drawer / Panel Options

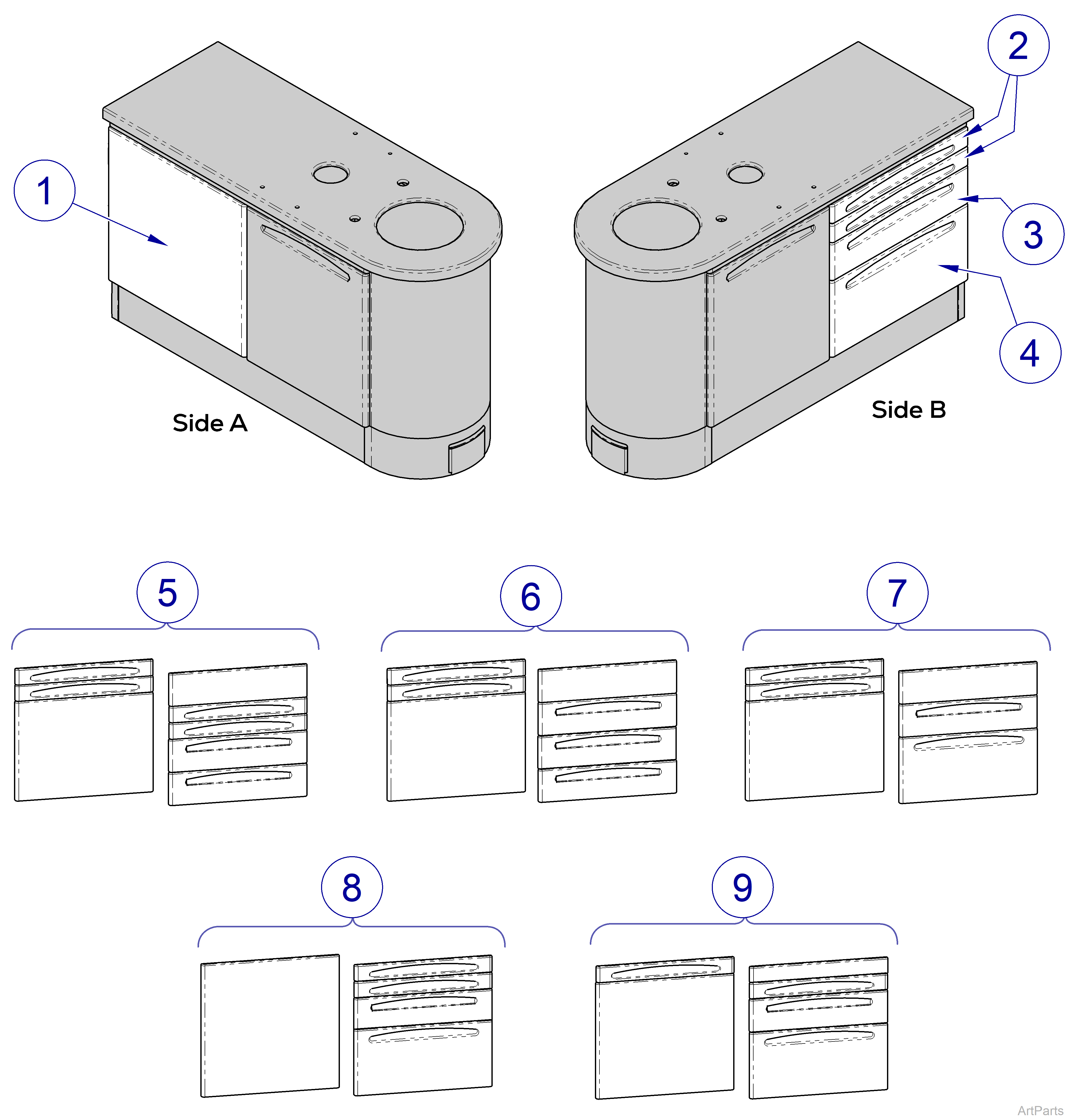

Item Part Number Description Qty

1

 Center Console False Panel Assembly Options - Width x Height
  029-4473-00 23.7” x 22.8" False Panel Assembly 1
  068-0528-00-xxx 23.7” x 22.8" False Slide Panel 1
  029-4473-03 23.7” x 19.9” False Panel Assembly 1
  068-0528-03-xxx 23.7” x 19.9” False Slide Panel 1
  029-4473-04 23.7” x 17.1” False Panel Assembly 1
  068-0528-04-xxx 23.7” x 17.1” False Slide Panel 1
  029-4473-02 23.7” x 5.6” False Panel Assembly 1
  068-0528-02-xxx 23.7” x 5.6” False Slide Panel 1
  029-4473-01 23.7” x 2.7” False Panel Assembly 1
  068-0528-01-xxx 23.7” x 2.7” False Slide Panel 1

2

 2” Drawer Assembly - 24” Drop in Tray Options
  029-4518-00 Non Lead Drawer Assembly 1
  029-4518-01 Leaded Drawer Assembly 1
  068-0416-21-xxx Drawer Panel 1

3

 4” Drawer Assembly Options
  029-4223-02 Non Lead Drawer Assembly 1
  068-0416-22-xxx Non Lead Drawer Assembly Panel 1
  029-4223-05 Leaded Drawer Assembly 1
  068-0466-22-xxx Leaded Drawer Assembly Panel 1

4

 8” Drawer Assembly Options
  029-4515-00 Non Lead Drawer Assembly 1
  068-0428-03-xxx Non Lead Drawer Assembly Panel 1
  029-4515-01 Leaded Drawer Assembly 1
  068-0458-03-xxx Leaded Drawer Assembly Panel 1

5

 SB-001 and SB-007 Model Options
  Reference Only

SB-001
A Side - (2) 2” Drawers, FF
B Side - FF, (2) 2”, (2) 4” Drawers

 -
  Reference Only

SB-007
A Side - FF, (2) 2”, (2) 4” Drawers
B Side - (2) 2” Drawers, FF

 -

6

 SB-002 and SB-008 Model Options
  Reference Only

SB-002
A Side - (2) 2” Drawers, FF
B Side - FF, (3) 4” Drawers

 -
  Reference Only

SB-008
A Side - FF, (3) 4” Drawers
B Side - (2) 2” Drawers, FF

 -

7

 SB-003 and SB-009 Model Options
  Reference Only

SB-003
A Side - (2) 2” Drawers, FF
B Side - FF, (1) 4”, (1) 8” Drawers

 -
  Reference Only

SB-009
A Side - FF, (1) 4”, (1) 8” Drawers
B Side - (2) 2” Drawers, FF

 -

8

 SB-004 and SB-010 Model Options
  Reference Only

SB-004
A Side - FF
B Side - (2) 2”, (1) 4”, (1) 8” Drawers

 -
  Reference Only

SB-010
A Side - (2) 2”, (1) 4”, (1) 8” Drawers
B Side - FF

 -

9

 SB-005 and SB-011 Model Options
  Reference Only

SB-005
A Side - (1) 2” Drawer, FF
B Side - FF, (1) 2” (1) 4”, (1) 8” Drawers

 -
  Reference Only

SB-011
A Side - FF, (1) 2”, (1) 4”, (1) 8” Drawers
B Side - (1) 2” Drawer, FF

 -

10

 Refer to: Door and Drawer Components -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 FCC
Serial Number All

Integra™ Center Console Sink Drawer / Panel Options

Integra™ Center Console Sink Drawer / Panel Options
Item Part Number Description Qty

1

 Center Console False Panel Assembly Options - Width x Height
  029-6364-00 23.7” x 22.8" False Panel Assembly 1
  068-1062-00-xxx 23.7” x 22.8" False Slide Panel 1
  029-6364-03 23.7” x 19.9” False Panel Assembly 1
  068-1062-03-xxx 23.7” x 19.9” False Slide Panel 1
  029-6364-04 23.7” x 17.1” False Panel Assembly 1
  068-1062-04-xxx 23.7” x 17.1” False Slide Panel 1
  029-6364-02 23.7” x 5.6” False Panel Assembly 1
  068-1062-02-xxx 23.7” x 5.6” False Slide Panel 1
  029-6364-01 23.7” x 2.7” False Panel Assembly 1
  068-1062-01-xxx 23.7” x 2.7” False Slide Panel 1

2

 2” Drawer Assembly - 24” Drop in Tray Options
  029-6370-00 Non Lead Drawer Assembly 1
  068-1041-13-xxx Non Lead Drawer Assembly Panel
  029-6370-01 Leaded Drawer Assembly 1
  068-1104-12-xxx Leaded Drawer Assembly Panel 1

3

 4” Drawer Assembly Options
  029-6336-02 Non Lead Drawer Assembly 1
  068-1041-14-xxx Non Lead Drawer Assembly Panel 1
  029-6336-05 Leaded Drawer Assembly 1
  068-1104-13-xxx Leaded Drawer Assembly Panel 1

4

 8” Drawer Assembly Options
  029-6369-00 Non Lead Drawer Assembly 1
  068-1042-02-xxx Non Lead Drawer Assembly Panel 1
  029-6369-01 Leaded Drawer Assembly 1
  068-1102-02-xxx Leaded Drawer Assembly Panel 1

5

 SB-001 and SB-007 Model Options
  Reference Only

SB-001
A Side - (2) 2” Drawers, FF
B Side - FF, (2) 2”, (2) 4” Drawers

 -
  Reference Only

SB-007
A Side - FF, (2) 2”, (2) 4” Drawers
B Side - (2) 2” Drawers, FF

 -

6

 SB-002 and SB-008 Model Options
  Reference Only

SB-002
A Side - (2) 2” Drawers, FF
B Side - FF, (3) 4” Drawers

 -
  Reference Only

SB-008
A Side - FF, (3) 4” Drawers
B Side - (2) 2” Drawers, FF

 -

7

 SB-003 and SB-009 Model Options
  Reference Only

SB-003
A Side - (2) 2” Drawers, FF
B Side - FF, (1) 4”, (1) 8” Drawers

 -
  Reference Only

SB-009
A Side - FF, (1) 4”, (1) 8” Drawers
B Side - (2) 2” Drawers, FF

 -

8

 SB-004 and SB-010 Model Options
  Reference Only

SB-004
A Side - FF
B Side - (2) 2”, (1) 4”, (1) 8” Drawers

 -
  Reference Only

SB-010
A Side - (2) 2”, (1) 4”, (1) 8” Drawers
B Side - FF

 -

9

 SB-005 and SB-011 Model Options
  Reference Only

SB-005
A Side - (1) 2” Drawer, FF
B Side - FF, (1) 2” (1) 4”, (1) 8” Drawers

 -
  Reference Only

SB-011
A Side - FF, (1) 2”, (1) 4”, (1) 8” Drawers
B Side - (1) 2” Drawer, FF

 -

10

 Refer to: Door and Drawer Components -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
