Integra™ Center Console Sink Door Options
All panels must be ordered separately to specify color.
Refer to: the Cabinet Color Options for the order number extension of your desired color.
Pebble Grey
|
Model |
FCC |
| Serial Number | All |

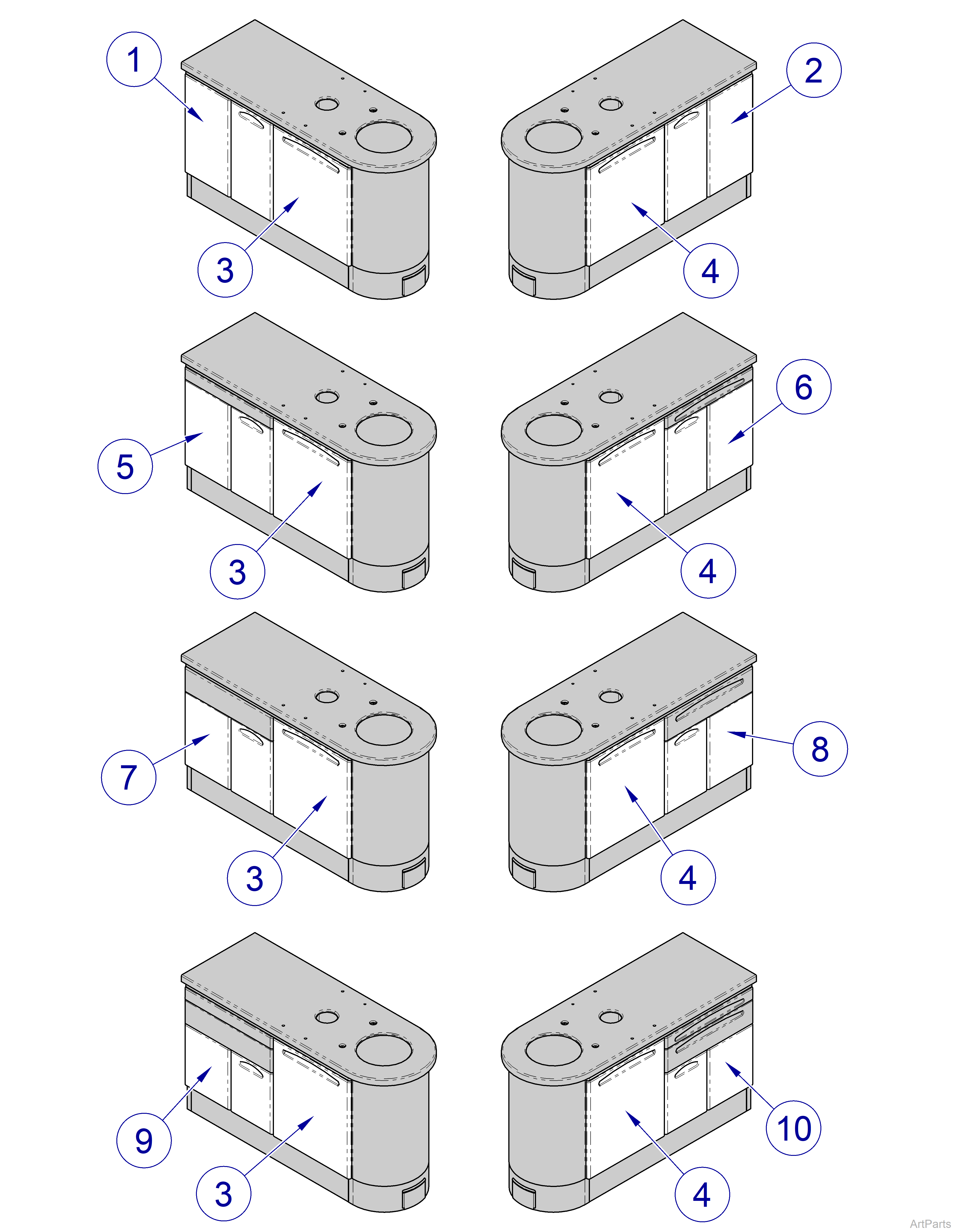

| Integra™ Center Console Sink Door Options | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
23” LH Sink Bi-Fold Door Assembly Options | ||
| 029-4494-01 | 23” LH Sink Bi-Fold Door Assembly | 1 | |
| 068-0537-01-xxx | 23” LH Bi-Fold Door Panel | 1 | |
| 068-0538-01-xxx | 23” LH Bi-Fold Fixed End Panel | 1 | |
| 029-4507-01 | Lead 23” LH Sink Bi-Fold Door Assembly | 1 | |
| 068-0544-01-xxx | Lead 23” LH Bi-Fold Door Panel | 1 | |
| 068-0543-01-xxx | Lead 23” LH Bi-Fold Fixed End Panel | 1 | |
|
2 |
23” RH Sink Bi-Fold Door Assembly Options | ||
| 029-4494-00 | 23” RH Sink Bi-Fold Door Assembly | 1 | |
| 068-0537-00-xxx | 23” RH Bi-Fold Door Panel | 1 | |
| 068-0538-00-xxx | 23” RH Bi-Fold Fixed End Panel | 1 | |
| 029-4507-00 | Lead 23” RH Sink Bi-Fold Door Assembly | 1 | |
| 068-0544-00-xxx | Lead 23” RH Bi-Fold Door Panel | 1 | |
| 068-0543-00-xxx | Lead 23” RH Bi-Fold Fixed End Panel | 1 | |
|
3 |
23” LH Solid Door Assembly Options | ||
| 029-4231-20 | 23” LH Solid Door Assembly | 1 | |
| 068-0416-17-xxx | 23” LH Door Panel | 1 | |
|
029-5659-01 |
Lead 23” LH Solid Door Assembly | NSS | |
| 068-0830-01-xxx | Lead 23” LH Door Panel | 1 | |
|
4 |
23” RH Solid Door Assembly Options | ||
| 029-4231-21 | 23” RH Solid Door Assembly | 1 | |
| 068-0416-17-xxx | 23” RH Door Panel | 1 | |
|
029-5659-00 |
Lead 23” RH Solid Door Assembly | NSS | |
| 068-0830-00-xxx | Lead 23” RH Door Panel | 1 | |
|
5 |
20” LH Sink Bi-Fold Door Assembly Components | ||
| 029-4494-03 | 20" LH Bi-Fold Door Assembly | 1 | |
| 068-0537-03-xxx | 20" LH Bi-Fold Door Panel | 1 | |
| 068-0538-03-xxx | 20" LH Bi-Fold Fixed End Panel | 1 | |
|
6 |
20” RH Sink Bi-Fold Door Assembly Components | ||
| 029-4494-02 | 20" RH Bi-Fold Door Assembly | 1 | |
| 068-0537-02-xxx | 20" RH Bi-Fold Door Panel | 1 | |
| 068-0538-02-xxx | 20" RH Bi-Fold Fixed End Panel | 1 | |
|
7 |
17” LH Sink Bi-Fold Door Assembly Components | ||
| 029-4494-05 | 17" LH Bi-Fold Door Assembly | 1 | |
| 068-0537-05-xxx | 17" LH Bi-Fold Door Panel | 1 | |
| 068-0538-05-xxx | 17" LH Bi-Fold Fixed End Panel | 1 | |
|
8 |
17” RH Sink Bi-Fold Door Assembly Components | ||
| 029-4494-04 | 17" RH Bi-Fold Door Assembly | 1 | |
| 068-0537-04-xxx | 17" RH Bi-Fold Door Panel | 1 | |
| 068-0538-04-xxx | 17" RH Bi-Fold Fixed End Panel | 1 | |
|
9 |
14” LH Sink Bi-Fold Door Assembly Components | ||
| 029-4494-07 | 14" LH Bi-Fold Door Assembly | 1 | |
| 068-0537-07-xxx | 14" LH Bi-Fold Door Panel | 1 | |
| 068-0538-07-xxx | 14" LH Bi-Fold Fixed End Panel | 1 | |
|
10 |
14” RH Sink Bi-Fold Door Assembly Components | ||
| 029-4494-06 | 14" RH Bi-Fold Door Assembly | 1 | |
| 068-0537-06-xxx | 14" RH Bi-Fold Door Panel | 1 | |
| 068-0538-06-xxx | 14" RH Bi-Fold Fixed End Panel | 1 | |
|
11 |
Refer to: | Door and Drawer Components | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Frost White
|
Model |
FCC |
| Serial Number | All |
| Integra™ Center Console Sink Door Options | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
23” LH Sink Bi-Fold Door Assembly Options | ||
| 029-6366-01 | 23” LH Sink Bi-Fold Door Assembly | 1 | |
| 068-1065-01-xxx | 23” LH Bi-Fold Door Panel | 1 | |
| 068-1066-01-xxx | 23” LH Bi-Fold Fixed End Panel | 1 | |
| 029-6368-01 | Lead 23” LH Sink Bi-Fold Door Assembly | 1 | |
| 068-1123-01-xxx | Lead 23” LH Bi-Fold Door Panel | 1 | |
| 068-1124-01-xxx | Lead 23” LH Bi-Fold Fixed End Panel | 1 | |
|
2 |
23” RH Sink Bi-Fold Door Assembly Options | ||
| 029-6366-00 | 23” RH Sink Bi-Fold Door Assembly | 1 | |
| 068-1065-00-xxx | 23” RH Bi-Fold Door Panel | 1 | |
| 068-1066-00-xxx | 23” RH Bi-Fold Fixed End Panel | 1 | |
| 029-6368-00 | Lead 23” RH Sink Bi-Fold Door Assembly | 1 | |
| 068-1123-00-xxx | Lead 23” RH Bi-Fold Door Panel | 1 | |
| 068-1124-00-xxx | Lead 23” RH Bi-Fold Fixed End Panel | 1 | |
|
3 |
23” LH Solid Door Assembly Options | ||
| 029-6338-13 | 23” LH Solid Door Assembly | 1 | |
|
068-1141-00-xxx |
23” LH Door Panel | NLA | |
|
029-6394-01 |
Lead 23” LH Solid Door Assembly | NLA | |
|
068-1138-01-xxx |
Lead 23” LH Door Panel | NLA | |
|
4 |
23” RH Solid Door Assembly Options | ||
| 029-6338-14 | 23” RH Solid Door Assembly | 1 | |
| 068-1041-11-xxx | 23” RH Door Panel | 1 | |
|
029-6394-00 |
Lead 23” RH Solid Door Assembly | NLA | |
|
068-1138-00-xxx |
Lead 23” RH Door Panel | NLA | |
|
5 |
20” LH Sink Bi-Fold Door Assembly Components | ||
| 029-6366-03 | 20" LH Bi-Fold Door Assembly | 1 | |
| 068-1065-03-xxx | 20” LH Bi-Fold Door Panel | 1 | |
| 068-1066-03-xxx | 20” LH Bi-Fold Fixed End Panel | 1 | |
|
6 |
20” RH Sink Bi-Fold Door Assembly Components | ||
| 029-6366-02 | 20" RH Bi-Fold Door Assembly | 1 | |
| 068-1065-02-xxx | 20” RH Bi-Fold Door Panel | 1 | |
| 068-1066-02-xxx | 20” RH Bi-Fold Fixed End Panel | 1 | |
|
7 |
17” LH Sink Bi-Fold Door Assembly Components | ||
| 029-6366-05 | 17" LH Bi-Fold Door Assembly | 1 | |
| 068-1065-05-xxx | 17" LH Bi-Fold Door Panel | 1 | |
| 068-1066-05-xxx | 17" LH Bi-Fold Fixed End Panel | 1 | |
|
8 |
17” RH Sink Bi-Fold Door Assembly Components | ||
| 029-6366-04 | 17" RH Bi-Fold Door Assembly | 1 | |
| 068-1065-04-xxx | 17" RH Bi-Fold Door Panel | 1 | |
| 068-1066-04-xxx | 17" RH Bi-Fold Fixed End Panel | 1 | |
|
9 |
14” LH Sink Bi-Fold Door Assembly Components | ||
| 029-6366-07 | 14" LH Bi-Fold Door Assembly | 1 | |
| 068-1065-07-xxx | 14" LH Bi-Fold Door Panel | 1 | |
| 068-1066-07-xxx | 14" LH Bi-Fold Fixed End Panel | 1 | |
|
10 |
14” RH Sink Bi-Fold Door Assembly Components | ||
| 029-6366-06 | 14" RH Bi-Fold Door Assembly | 1 | |
| 068-1065-06-xxx | 14" RH Bi-Fold Door Panel | 1 | |
| 068-1066-06-xxx | 14" RH Bi-Fold Fixed End Panel | 1 | |
|
11 |
Refer to: | Door and Drawer Components | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
