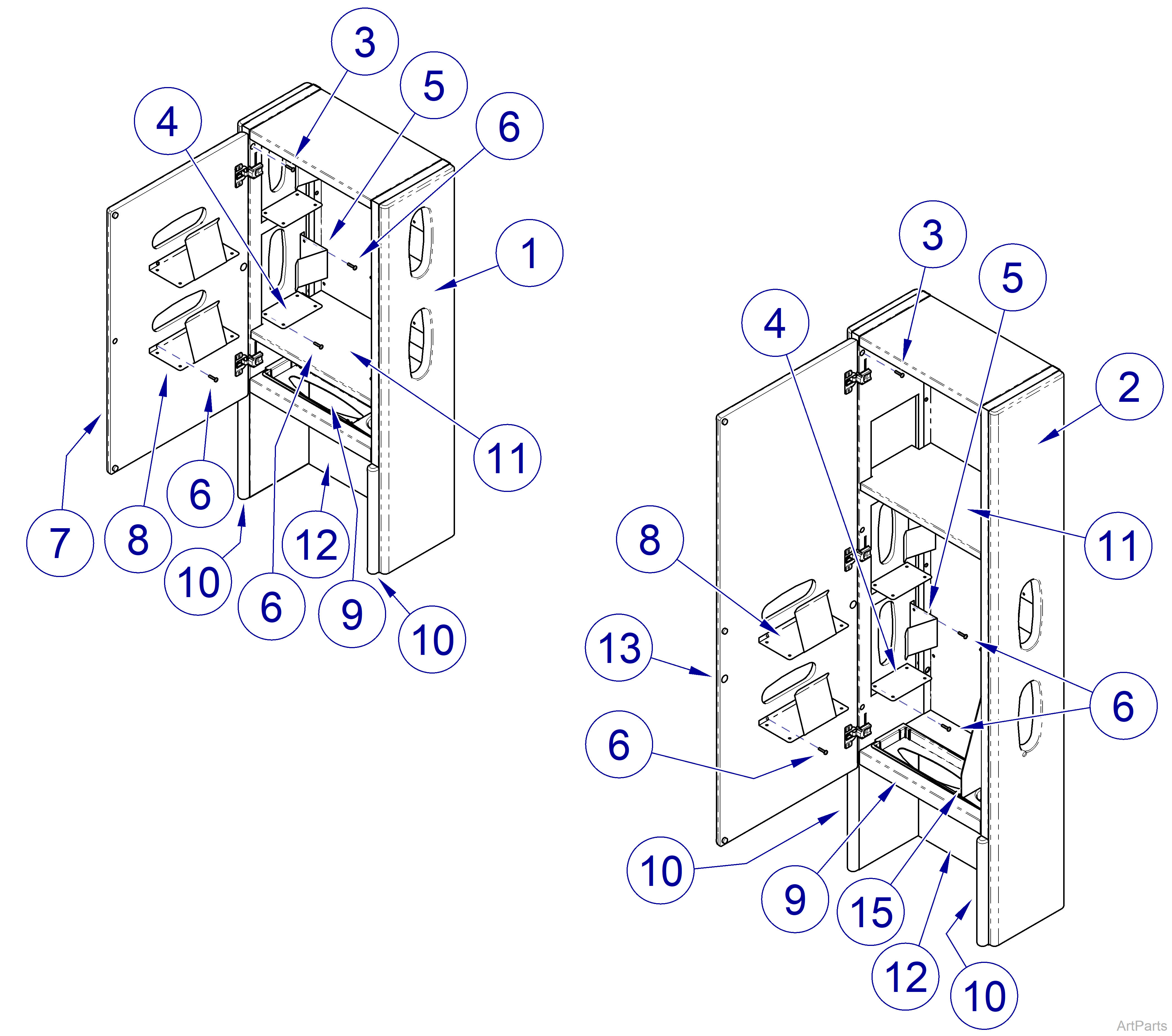

Integra™ Center Console Dispenser Unit
All panels must be ordered separately to specify color.
Refer to: the Cabinet Color Options for the order number extension of your desired color.
Pebble Grey
|
Model |
FCC |
| Serial Number | All |
| Integra™ Center Console Dispenser Unit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
72” Side Panel Assembly Options | ||
| 029-4340-00 | RH Side Panel Assembly w/ 2 Cut-Outs - includes items 3 thru 6 | 1 | |
| 029-4340-01 | LH Side Panel Assembly w/ 2 Cut-Outs - includes items 3 thru 6 | 1 | |
| 063-9992-00-xxx | Side Dispenser Panel w/ 2 Cut-Outs | 1 | |
| 029-4340-02 | RH Side Panel Assembly w/ 1 Cut-Out - includes items 3 thru 6 | 1 | |
| 029-4340-03 | LH Side Panel Assembly w/ 1 Cut-Out - includes items 3 thru 6 | 1 | |
| 063-9992-01-xxx | Side Dispenser Panel w/ 1 Cut-Out | 1 | |
| 029-4340-04 | Solid Side Panel Assembly - includes item 3 | 1 | |
| 063-9992-02-xxx | Solid Side Dispenser Panel | 1 | |
|
2 |
90” Side Panel Assembly Options | ||
| 029-4755-00 | RH Side Panel Assembly w/ 2 Cut-Outs - includes items 3 thru 6 | 1 | |
| 029-4755-01 | LH Side Panel Assembly w/ 2 Cut-Outs - includes items 3 thru 6 | 1 | |
| 063-9998-00-xxx | Side Dispenser Panel w/ 2 Cut-Outs | 1 | |
| 029-4755-02 | RH Side Panel Assembly w/ 1 Cut-Out - includes items 3 thru 6 | 1 | |
| 029-4755-03 | LH Side Panel Assembly w/ 1 Cut-Out - includes items 3 thru 6 | 1 | |
| 063-9998-01-xxx | Side Dispenser Panel w/ 1 Cut-Out | 1 | |
| 029-4755-04 | Solid Side Panel Assembly - includes item 3 | 1 | |
| 063-9998-02-xxx | Solid Side Dispenser Panel | 1 | |
|
3 |
040-0010-48 | Screw #13 x 5/8” | AR |
|
4 |
050-5472-50 | Glove Box Support Bracket | AR |
|
5 |
050-5471-50 | Side Retainer Bracket | AR |
|
6 |
040-0006-63 | Screw #18 x 5/8” | AR |
|
7 |
72" Door Assembly Options | ||
| 029-4338-00 | LH Door Assembly w/ 2 Cut-Outs - includes items 6 and 8 | 1 | |
| 029-4338-01 | RH Door Assembly w/ 2 Cut-Outs - includes items 6 and 8 | 1 | |
| 068-0485-00-xxx | Dispenser Door Panel w/ 2 Cut-Outs | 1 | |
| 029-4338-02 | LH Door Assembly w/ 1 Cut-Out - includes items 6 and 8 | 1 | |
| 029-4338-03 | RH Door Assembly w/ 1 Cut-Out - includes items 6 and 8 | 1 | |
| 068-0485-01-xxx | Dispenser Door Panel w/ 1 Cut-Out | 1 | |
| 029-4338-04 | LH Solid Panel Door Assembly | 1 | |
| 029-4338-05 | RH Solid Panel Door Assembly | 1 | |
| 068-0485-02-xxx | Solid Dispenser Door Panel | 1 | |
|
8 |
050-5473-50 | Retainer Bracket | AR |
|
9 |
053-0955-02 | Towel / Cup Dispenser | 1 |
|
10 |
Front Dispenser Mullion Assembly Components - includes item 3 | ||
| 029-4694-00 | Front Dispenser Mullion Assembly | 2 | |
| 068-0556-00-xxx | Front Dispenser Mullion Panel | 2 | |
|
11 |
050-5464-50 | Shelf | 1 |
|
12 |
Dispenser Panel Assembly Components | ||
| 029-4695-00 | Dispenser Panel Assembly | 1 | |
| 068-0557-00-xxx | Dispenser Lower Panel | 1 | |
|
13 |
90” Door Assembly Options | ||
| 029-4524-00 | LH Door Assembly w/ 2 Cut-Outs - includes items 6 and 8 | 1 | |
| 029-4524-01 | RH Door Assembly w/ 2 Cut-Outs - includes items 6 and 8 | 1 | |
| 068-0545-00-xxx | Dispenser Door Panel w/ 2 Cut-Outs | 1 | |
| 029-4524-02 | LH Door Assembly w/ 1 Cut-Out - includes items 6 and 8 | 1 | |
| 029-4524-03 | RH Door Assembly w/ 1 Cut-Out - includes items 6 and 8 | 1 | |
| 068-0545-01-xxx | Dispenser Door Panel w/ 1 Cut-Out | 1 | |
| 029-4524-04 | LH Solid Panel Door Assembly | 1 | |
| 029-4524-05 | RH Solid Panel Door Assembly | 1 | |
| 068-0545-02-xxx | Solid Dispenser Door Panel | 1 | |
|
14 |
Refer to: | Door and Drawer Components | - |
|
15 |
050-4108-50 | Towel Partition Plate | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Frost White
|
Model |
FCC |
| Serial Number | All |
| Integra™ Center Console Dispenser Unit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
72” Side Panel Assembly Options | ||
| 029-6346-00 | RH Side Panel Assembly w/ 2 Cut-Outs - includes items 3 thru 6 | 1 | |
| 029-6346-01 | LH Side Panel Assembly w/ 2 Cut-Outs - includes items 3 thru 6 | 1 | |
| 068-1143-00-xxx | Side Dispenser Panel w/ 2 Cut-Outs | 1 | |
| 029-6346-02 | RH Side Panel Assembly w/ 1 Cut-Out - includes items 3 thru 6 | 1 | |
| 029-6346-03 | LH Side Panel Assembly w/ 1 Cut-Out - includes items 3 thru 6 | 1 | |
| 068-1143-01-xxx | Side Dispenser Panel w/ 1 Cut-Out | 1 | |
| 029-6346-04 | Solid Side Panel Assembly - includes item 3 | 1 | |
| 068-1143-02-xxx | Solid Side Dispenser Panel | 1 | |
|
2 |
90" Side Panel Assembly Options | ||
| 029-6380-00 | RH Side Panel Assembly w/ 2 Cut-Outs - includes items 3 thru 6 | 1 | |
| 029-6380-01 | LH Side Panel Assembly w/ 2 Cut-Outs - includes items 3 thru 6 | 1 | |
| 068-1341-00-xxx | Side Dispenser Panel w/ 2 Cut-Outs | 1 | |
| 029-6380-02 | RH Side Panel Assembly w/ 1 Cut-Out - includes items 3 thru 6 | 1 | |
| 029-6380-03 | LH Side Panel Assembly w/ 1 Cut-Out - includes items 3 thru 6 | 1 | |
| 068-1341-01-xxx | Side Dispenser Panel w/ 1 Cut-Out | 1 | |
| 029-6380-04 | Solid Side Panel Assembly - includes item 3 | 1 | |
| 068-1341-02-xxx | Solid Side Dispenser Panel | 1 | |
|
3 |
040-0010-48 | Screw #13 x 5/8” | AR |
|
4 |
050-5472-00-791 |
Glove Box Support Bracket | NSS |
|
5 |
050-5471-00-791 |
Side Retainer Bracket | NSS |
|
6 |
040-0006-63 | Screw #18 x 5/8” | AR |
|
7 |
72" Door Assembly Options | ||
| 029-6345-00 | LH Door Assembly w/ 2 Cut-Outs - includes items 6 and 8 | 1 | |
| 029-6345-01 | RH Door Assembly w/ 2 Cut-Outs - includes items 6 and 8 | 1 | |
| 068-1105-00-xxx | Dispenser Door Panel w/ 2 Cut-Outs | 1 | |
| 029-6345-02 | LH Door Assembly w/ 1 Cut-Out - includes items 6 and 8 | 1 | |
| 029-6345-03 | RH Door Assembly w/ 1 Cut-Out - includes items 6 and 8 | 1 | |
| 068-1105-01-xxx | Dispenser Door Panel w/ 1 Cut-Out | 1 | |
| 029-6345-04 | LH Solid Panel Door Assembly | 1 | |
| 029-6345-05 | RH Solid Panel Door Assembly | 1 | |
| 068-1105-02-xxx | Solid Dispenser Door Panel | 1 | |
|
8 |
050-5473-00-791 | Retainer Bracket | AR |
|
9 |
053-0955-03 | Towel / Cup Dispenser | 1 |
|
10 |
Front Dispenser Mullion Assembly Components - includes item 3 | ||
| 029-4694-00 | Front Dispenser Mullion Assembly | 2 | |
| 068-0556-00-xxx | Front Dispenser Mullion Panel | 2 | |
|
11 |
30500-00264-FW | Shelf | 1 |
|
12 |
Dispenser Panel Assembly Components | ||
| 029-6376-00 | Dispenser Panel Assembly | 1 | |
| 068-1070-00-xxx | Dispenser Lower Panel | 1 | |
|
13 |
90" Door Assembly Options | ||
| 029-6371-00 | LH Door Assembly w/ 2 Cut-Outs - includes items 6 and 8 | 1 | |
| 029-6371-01 | RH Door Assembly w/ 2 Cut-Outs - includes items 6 and 8 | 1 | |
| 068-1125-00-xxx | Dispenser Door Panel w/ 2 Cut-Outs | 1 | |
| 029-6371-02 | LH Door Assembly w/ 1 Cut-Out - includes items 6 and 8 | 1 | |
| 029-6371-03 | RH Door Assembly w/ 1 Cut-Out - includes items 6 and 8 | 1 | |
| 068-1125-01-xxx | Dispenser Door Panel w/ 1 Cut-Out | 1 | |
| 029-6371-04 | LH Solid Panel Door Assembly | 1 | |
| 029-6371-05 | RH Solid Panel Door Assembly | 1 | |
| 068-1125-02-xxx | Solid Dispenser Door Panel | 1 | |
|
14 |
Refer to: | Door and Drawer Components | - |
|
15 |
050-4108-00-791 | Towel Partition Plate | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
