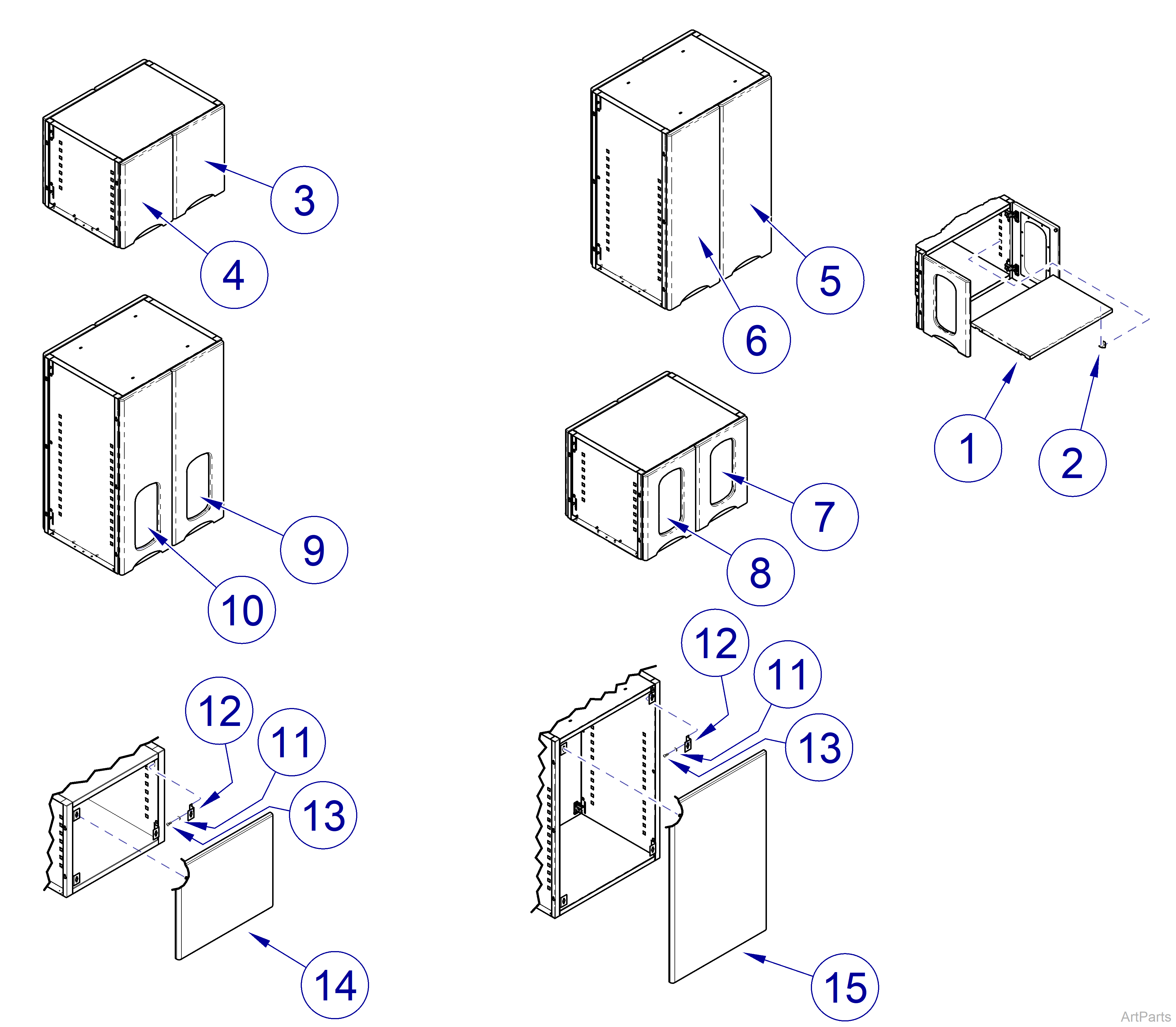

Integra™ Center Console Upper Unit Door and Fixed Panel Assembly
All panels must be ordered separately to specify color.
Refer to: the Cabinet Color Options for the order number extension of your desired color.
Pebble Grey
|
Model |
FCC |
| Serial Number | All |
| Integra™ Center Console Upper Unit Door and Fixed Panel Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-7710-00-216 | 24” Console Upper Shelf | 1 |
|
2 |
029-1761-02 | Shelf Clip | 4 |
|
3 |
17” RH Door Assembly Options | ||
| 029-4233-32 | RH Solid Door Assembly 11.82” x 17” | 1 | |
| 068-0451-09-xxx | Upper Overhead Door Panel | 1 | |
| 029-4233-34 | RH Lead Solid Door Assembly 11.82” x 17” | 1 | |
| 068-0497-14-xxx | Upper Overhead Lead RH Door Panel | 1 | |
|
4 |
17” LH Door Assembly Options | ||
| 029-4233-33 | LH Solid Door Assembly 11.82” x 17” | 1 | |
| 068-0451-09-xxx | Upper Overhead Door Panel | 1 | |
| 029-4233-35 | LH Lead Solid Door Assembly 11.82” x 17” | 1 | |
| 068-0497-15-xxx | Upper Overhead Lead LH Door Panel | 1 | |
|
5 |
35” RH Door Assembly Options | ||
| 029-4233-08 | RH Solid Door Assembly 11.82” x 35” | 1 | |
| 068-0451-04-xxx | Upper Overhead Door Panel | 1 | |
| 029-4233-18 | RH Lead Solid Door Assembly 11.82” x 35” | 1 | |
| 068-0497-08-xxx | Upper Overhead Lead RH Door Panel | 1 | |
|
6 |
35” LH Door Assembly Options | ||
| 029-4233-09 | LH Solid Door Assembly 11.82” x 35” | 1 | |
| 068-0451-04-xxx | Upper Overhead Door Panel | 1 | |
| 029-4233-19 | LH Lead Solid Door Assembly 11.82” x 35” | 1 | |
| 068-0497-09-xxx | Upper Overhead Lead LH Door Panel | 1 | |
|
7 |
17” RH Window Door Assembly Components | ||
| 029-4358-03 | RH Window Door Assembly 11.82” x 17” | 1 | |
| 029-4804-01-xxx | Window Assembly Door | 1 | |
| 068-0448-01-xxx | Window Overhead Panel | 1 | |
|
8 |
17” LH Window Door Assembly Components | ||
| 029-4358-02 | LH Window Door Assembly 11.82” x 17” | 1 | |
| 029-4804-01-xxx | Window Assembly Door | 1 | |
| 068-0448-01-xxx | Window Overhead Panel | 1 | |
|
9 |
35” RH Window Door Assembly Components | ||
| 029-4358-05 | RH Window Door Assembly 11.82” x 35” | 1 | |
| 029-4804-02-xxx | Window Assembly Door | 1 | |
| 068-0448-02-xxx | Window Overhead Panel | 1 | |
|
10 |
35” LH Window Door Assembly Components | ||
| 029-4358-04 | LH Window Door Assembly 11.82” x 35” | 1 | |
| 029-4804-02-xxx | Window Assembly Door | 1 | |
| 068-0448-02-xxx | Window Overhead Panel | 1 | |
|
11 |
045-0001-08 | Lockwasher | 4 |
|
12 |
050-5634-50 | Fixed Panel Bracket | 4 |
|
13 |
040-0010-12 | Screw | 4 |
|
14 |
029-3014-01-xx |
Lead Line Fixed Panel 20.25” x 17” - includes screws | NLA |
|
15 |
029-3014-03-xx |
Lead Line Fixed Panel 20.25” x 35” - includes screws | NLA |
|
16 |
Refer to: | Door and Drawer Components | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Frost White
|
Model |
FCC |
| Serial Number | All |
| Integra™ Center Console Upper Unit Door and Fixed Panel Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
30500-00376-FW | 24” Console Upper Shelf - Includes item 2 | 1 |
|
2 |
029-1761-02 | Shelf Clip | 4 |
|
3 |
17” RH Door Assembly Options | ||
| 029-6340-14 | RH Solid Door Assembly 11.82” x 17” | 1 | |
| 068-1049-04-xxx | Upper Overhead Door Panel | 1 | |
| 029-6340-16 | RH Lead Solid Door Assembly 11.82” x 17” | 1 | |
| 068-1107-04-xxx | Upper Overhead Lead RH Door Panel | 1 | |
|
4 |
17” LH Door Assembly Options | ||
| 029-6340-15 | LH Solid Door Assembly 11.82” x 17” | 1 | |
| 068-1049-04-xxx | Upper Overhead Door Panel | 1 | |
| 029-6340-17 | LH Lead Solid Door Assembly 11.82” x 17” | 1 | |
| 068-1107-04-xxx | Upper Overhead Lead LH Door Panel | 1 | |
|
5 |
35” RH Door Assembly Options | ||
| 029-6340-02 | RH Solid Door Assembly 11.82” x 35” | 1 | |
| 068-1049-01-xxx | Upper Overhead Door Panel | 1 | |
| 029-6340-06 | RH Lead Solid Door Assembly 11.82” x 35” | 1 | |
| 068-1107-00-xxx | Upper Overhead Lead RH Door Panel | 1 | |
|
6 |
35” LH Door Assembly Options | ||
| 029-6340-03 | LH Solid Door Assembly 11.82” x 35” | 1 | |
| 068-1049-01-xxx | Upper Overhead Door Panel | 1 | |
| 029-6340-07 | LH Lead Solid Door Assembly 11.82” x 35” | 1 | |
| 068-1107-01-xxx | Upper Overhead Lead LH Door Panel | 1 | |
|
7 |
17” RH Window Door Assembly Components | ||
| 029-6347-03 | RH Window Door Assembly 11.82” x 17” | 1 | |
| 029-6385-01-xxx | Window Assembly Door | 1 | |
| 068-1047-01-xxx | Window Overhead Panel | 1 | |
|
8 |
17” LH Window Door Assembly Components | ||
| 029-6347-02 | LH Window Door Assembly 11.82” x 17” | 1 | |
| 029-6385-01-xxx | Window Assembly Door | 1 | |
| 068-1047-01-xxx | Window Overhead Panel | 1 | |
|
9 |
35” RH Window Door Assembly Components | ||
| 029-6347-05 | RH Window Door Assembly 11.82” x 35” | 1 | |
| 029-6385-02-xxx | Window Assembly Door | 1 | |
| 068-1047-02-xxx | Window Overhead Panel | 1 | |
|
10 |
35” LH Window Door Assembly Components | ||
| 029-6347-04 | LH Window Door Assembly 11.82” x 35” | 1 | |
| 029-6385-02-xxx | Window Assembly Door | 1 | |
| 068-1047-02-xxx | Window Overhead Panel | 1 | |
|
11 |
045-0001-08 | Lockwasher | 4 |
|
12 |
050-5634-00-791 |
Fixed Panel Bracket | NSS |
|
13 |
040-0010-12 | Screw | 4 |
|
14 |
029-3014-00-00 | Lead Line Fixed Panel 20.25” x 17” - includes screws | 1 |
|
15 |
029-3014-02-00 | Lead Line Fixed Panel 20.25” x 35” - includes screws | 1 |
|
16 |
Refer to: | Door and Drawer Components | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
