Integra™ Center Console Equipment Base Options

All panels must be ordered separately to specify color.

Refer to: the Cabinet Color Options for the order number extension of your desired color.

Model

 FCC10672 FCC10690
Serial Number All All

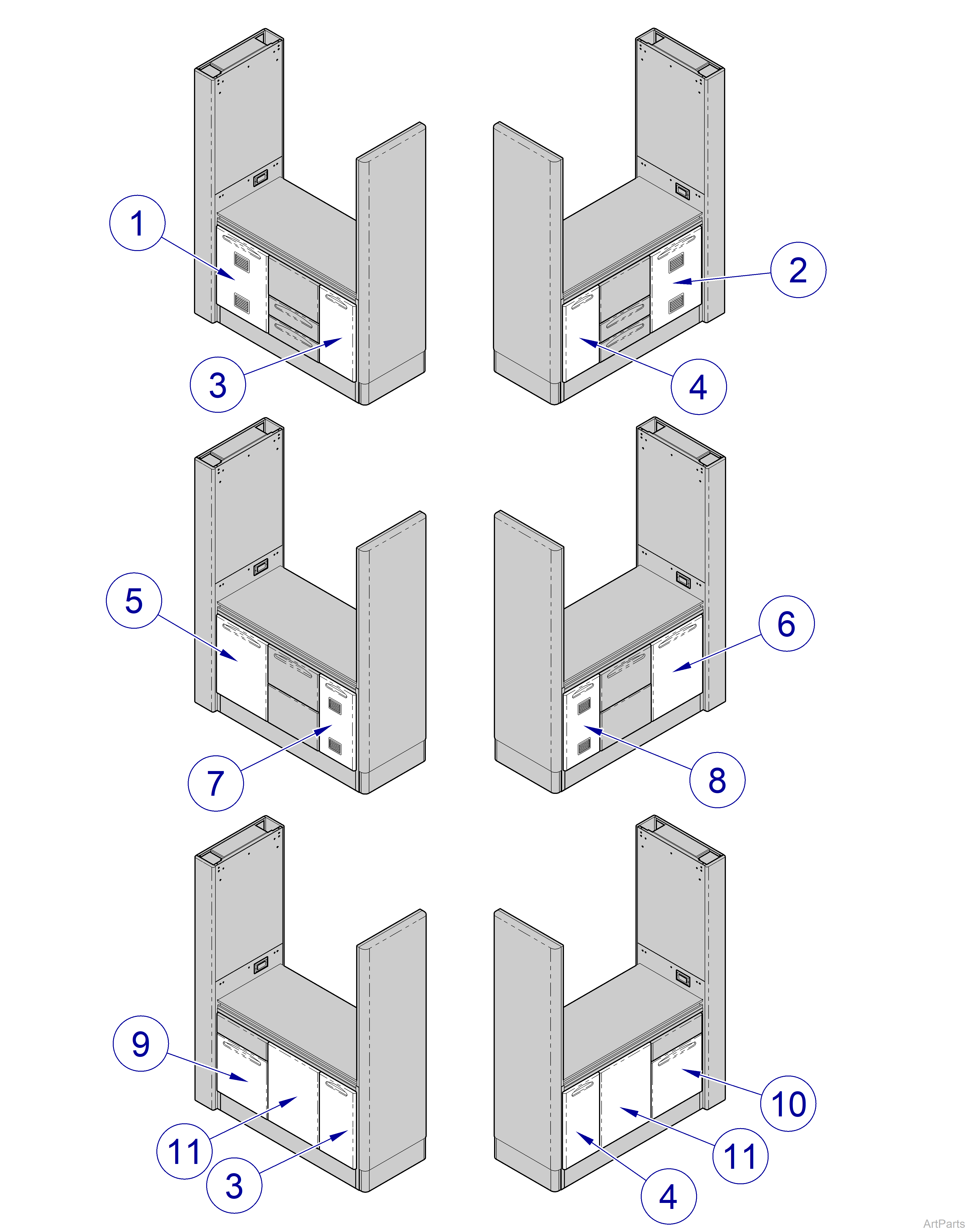

Integra™ Center Console 42" Equipment Base Door Options

Integra™ Center Console 42" Equipment Base Door Options
Item Part Number Description Qty

1

 CPU Vented Full Door, Lt. Hinge 14.69” x 22.78” Components
  029-4234-01 LH CPU Door Assembly AR
  068-0457-00-xxx CPU Door Panel AR

2

 CPU Vented Full Door, Rt. Hinge 14.69” x 22.78” Components
  029-4234-00 RH CPU Door Assembly AR
  068-0457-00-xxx CPU Door Panel AR

3

 Full Door, Rt. Hinge 12.19” x 22.78” Components
  029-4231-17 RH Solid Door Assembly AR
  068-0416-13-xxx Door Panel AR

4

 Full Door, Lt. Hinge 12.19” x 22.78” Options
  029-4231-16 LH Solid Door Assembly AR
  068-0416-13-xxx Door Panel AR
  029-4707-16 LH Lead Door Assembly AR
  068-0459-13-xxx Lead Door Panel AR

5

 Full Door, Lt. Hinge 14.69” x 22.78” Options
  029-4231-14 LH Solid Door Assembly AR
  068-0416-12-xxx Door Panel AR
  029-4707-14 LH Lead Door Assembly AR
  068-0459-12-xxx Lead Door Panel AR

6

 Full Door, Rt. Hinge 14.69” x 22.78” Components
  029-4231-15 RH Solid Door Assembly AR
  068-0416-12-xxx Door Panel AR

7

 CPU Vented Full Door, Rt. Hinge 12.19” x 22.78” Components
  029-4234-04 RH CPU Door Assembly AR
  068-0457-02-xxx CPU Door Panel AR

8

 CPU Vented Full Door, Lt. Hinge 12.19” x 22.78” Components
  029-4234-05 LH CPU Door Assembly AR
  068-0457-02-xxx CPU Door Panel AR

9

 Door, Lt. Hinge 14.69” x 17.05” Components
  029-4231-10 LH Solid Door Assembly AR
  068-0416-10-xxx Door Panel AR

10

 Door, Rt. Hinge 14.69” x 17.05” Components
  029-4231-11 RH Solid Door Assembly AR
  068-0416-10-xxx Door Panel AR

11

 False Panel Components
  029-4473-12 False Panel Assembly AR
  068-0528-12-xxx False Slide Panel AR

12

 Refer to: Door and Drawer Components -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 FCC10672 FCC10690
Serial Number All All

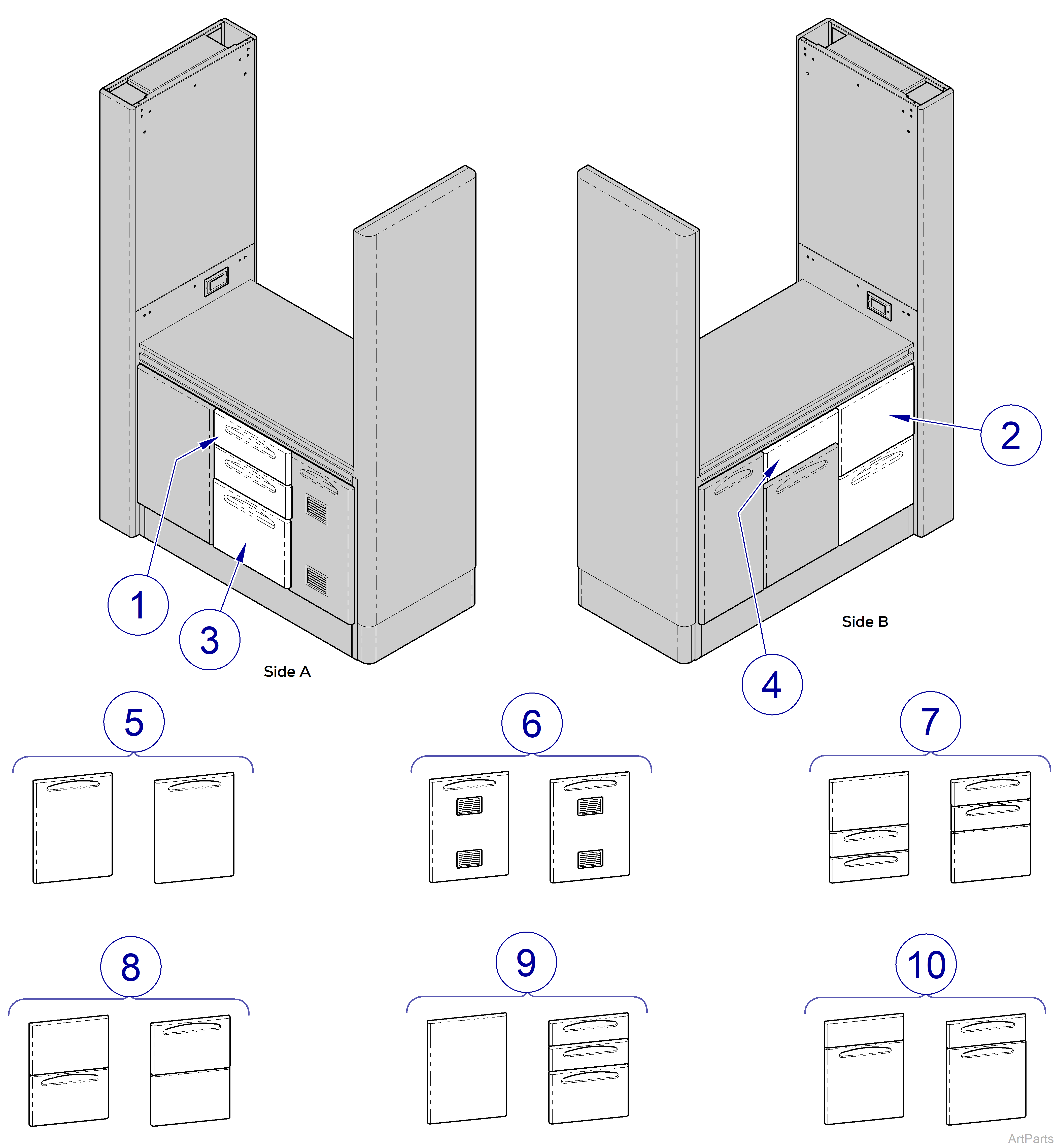

Integra™ Center Console 42" Equipment Base Drawer Options

Integra™ Center Console 42" Equipment Base Drawer Options
Item Part Number Description Qty

1

 4” Drawer Components
  029-4223-00 4” Drawer Assembly AR
  068-0416-07-xxx 4” Drawer Panel AR

2

 False Panel Components
  029-4473-11 False Panel Assembly AR
  068-0528-11-xxx False Slide Panel AR

3

 8” Drawer Components
  029-4515-02 8" Drawer Assembly AR
  068-0428-00-xxx 8" Drawer Panel AR

4

 False Panel Components
  029-4473-09 False Panel Assembly AR
  068-0528-09-xxx False Slide Panel AR

5

 Reference Only EB-15-001
Side A - Solid Door
Side B - Solid Door		 -

6

 Reference Only EB-15-002
Side A - CPU Door
Side B - CPU Door		 -

7

 EB-15-003 and EB-15-007 Model Options
  Reference Only EB-15-003
Side A - FF, (2) 4” Drawers
Side B - (2) 4” Drawers, FF		 -
  Reference Only EB-15-007
Side A - (2) 4” Drawers, FF
Side B - FF, (2) 4” Drawers		 -

8

 Model Options - EB-15-004 and EB-15-008
  Reference Only EB-15-004
Side A - FF, (1) 8” Drawer
Side B - (1) 8” Drawer, FF		 -
  Reference Only EB-15-008
Side A - (1) 8” Drawer, FF
Side B - FF, (1) 8” Drawer		 -

9

 EB-15-005 and EB-15-009 Model Options
  Reference Only EB-15-005
Side A - FF
Side B - (2) 4”, (1) 8” Drawers		 -
  Reference Only EB-15-009
Side A - (2) 4”, (1) 8” Drawers
Side B - FF		 -

10

 EB-15-006 and EB-15-010 Model Options
  Reference Only EB-15-006
Side A - FF, Door
Side B - (1) 4” Drawer, Door		 -
  Reference Only EB-15-010
Side A - (1) 4” Drawer, Door
Side B - FF, Door		 -

11

 Refer to: Door and Drawer Components -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 FCC11272 FCC11290
Serial Number All All

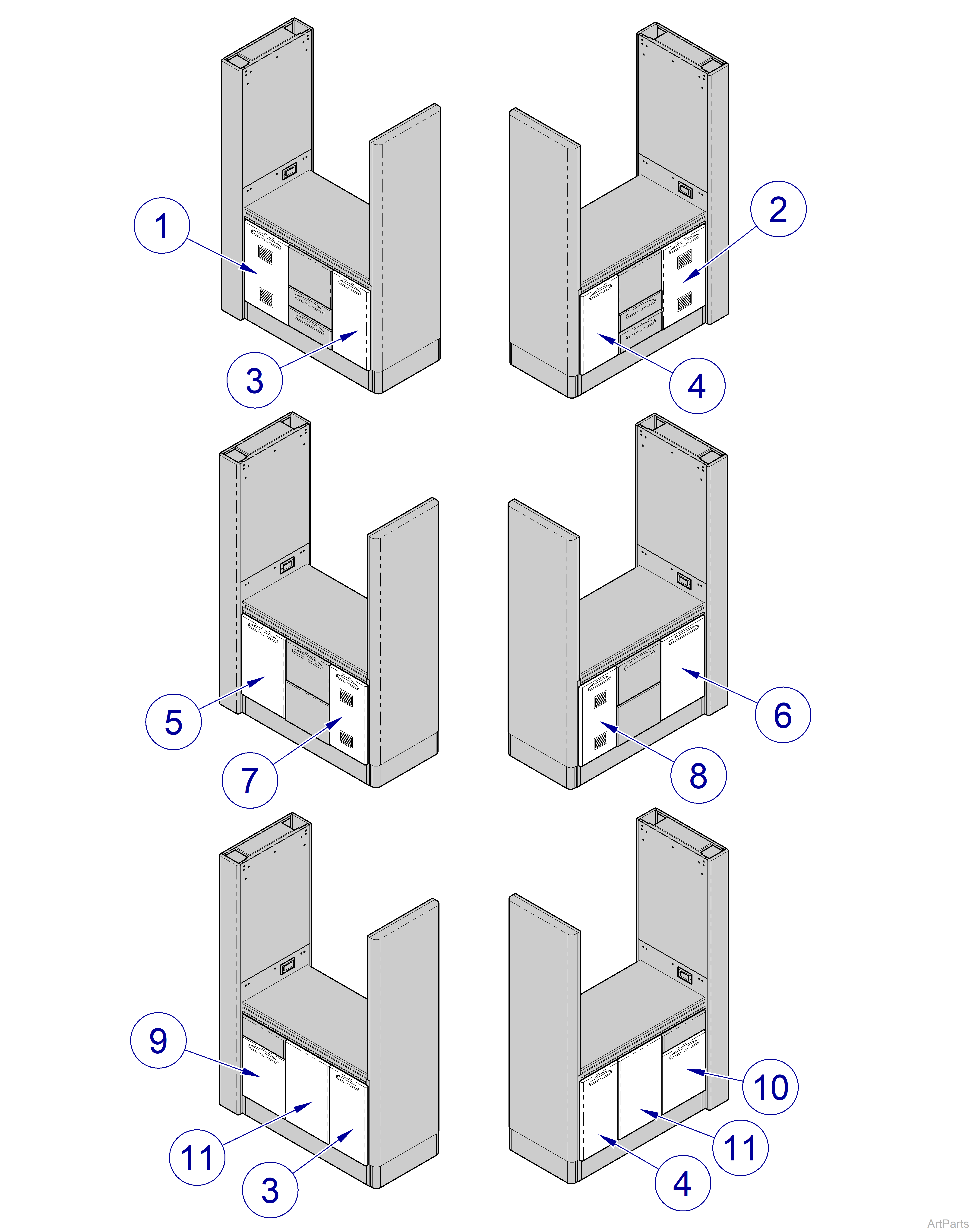

Integra™ Center Console 48" Equipment Base Door Options

Integra™ Center Console 48" Equipment Base Door Options
Item Part Number Description Qty

1

 CPU Vented Full Door, Lt. Hinge Components
  029-4234-03 LH CPU Door Assembly AR
  068-0457-01-xxx CPU Door Panel AR

2

 CPU Vented Full Door, Rt. Hinge Components
  029-4234-02 RH CPU Door Assembly AR
  068-0457-01-xxx CPU Door Panel AR

3

 Full Door, Rt. Hinge Components
  029-4231-17 RH Solid Door Assembly AR
  068-0416-13-xxx Door Panel AR

4

 Full Door, Lt. Hinge Components
  029-4231-16 LH Solid Door Assembly AR
  068-0416-13-xxx Door Panel AR

5

 Full Door, Lt. Hinge Components
  029-4231-04 LH Solid Door Assembly AR
  068-0416-04-xxx Door Panel AR

6

 Full Door, Rt. Hinge Components
  029-4231-05 RH Solid Door Assembly AR
  068-0416-04-xxx Door Panel AR

7

 CPU Vented Full Door, Rt. Hinge Components
  029-4234-04 RH CPU Door Assembly AR
  068-0457-02-xxx CPU Door Panel AR

8

 CPU Vented Full Door, Lt. Hinge Components
  029-4234-05 LH CPU Door Assembly AR
  068-0457-02-xxx CPU Door Panel AR

9

 Door, Lt. Hinge Components
  029-4231-34 LH Solid Door Assembly AR
  068-0416-35-xxx Door Panel AR

10

 Door, Rt. Hinge Components
  029-4231-35 RH Solid Door Assembly AR
  068-0416-35-xxx Door Panel AR

11

 False Panel Components
  029-4473-13 False Panel Assembly AR
  068-0528-13-xxx False Slide Panel AR

12

 Refer to: Door and Drawer Components -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 FCC11272 FCC11290
Serial Number All All

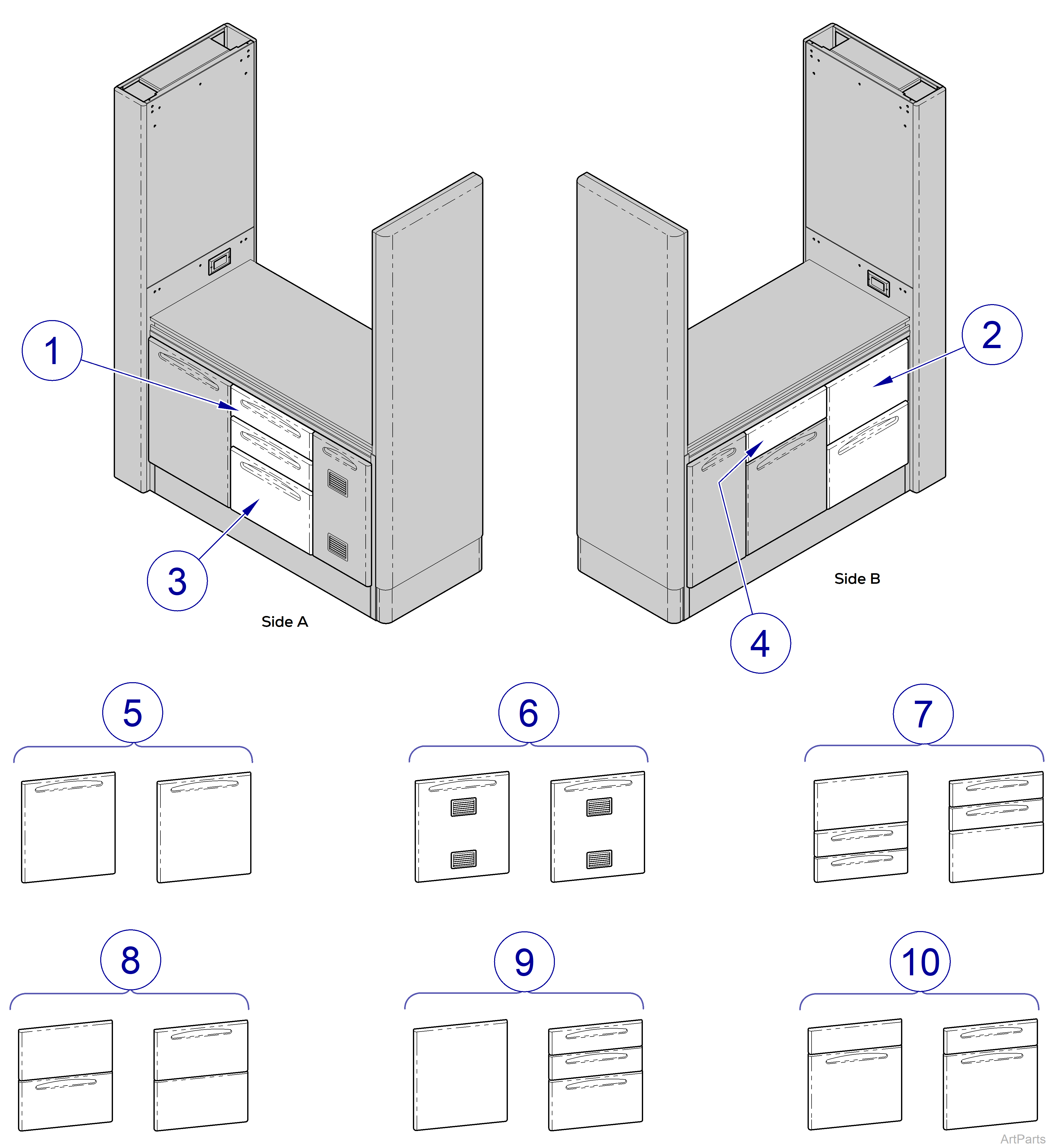

Integra™ Center Console 48" Equipment Base Drawer Options

Integra™ Center Console 48" Equipment Base Drawer Options
Item Part Number Description Qty

1

 4” Drawer Components
  029-4223-01 4” Drawer Assembly AR
  068-0416-01-xxx 4” Drawer Panel AR

2

 False Panel Components
  029-4473-08 False Panel Assembly AR
  068-0528-08-xxx False Slide Panel AR

3

 8” Drawer Components
  029-4515-04 8” Drawer Assembly AR
  068-0428-01-xxx 8” Drawer Panel AR

4

 False Panel Components
  029-4473-10 False Panel Assembly AR
  068-0528-10-xxx False Slide Panel AR

5

 Reference Only EB-18-001
Side A - Solid Door
Side B - Solid Door		 -

6

 Reference Only EB-18-002
Side A - CPU Door
Side B - CPU Door		 -

7

 EB-18-003 and EB-18-007 Model Options
  Reference Only EB-18-003
Side A - FF, (2) 4” Drawers
Side B - (2) 4” Drawers, FF		 -
  Reference Only EB-18-007
Side A - (2) 4” Drawers, FF
Side B - FF, (2) 4” Drawers		 -

8

 EB-18-004 and EB-18-008 Model Options
  Reference Only EB-18-004
Side A - FF, (1) 8” Drawer
Side B - (1) 8” Drawer, FF		 -
  Reference Only EB-18-008
Side A - (1) 8” Drawer, FF
Side B - FF, (1) 8” Drawer		 -

9

 EB-18-005 and EB-18-009 Model Options
  Reference Only EB-18-005
Side A - FF
Side B - (2) 4”, (1) 8” Drawers		 -
  Reference Only EB-18-009
Side A - (2) 4”, (1) 8” Drawers
Side B - FF		 -

10

 EB-18-006 and EB-18-010 Model Options
  Reference Only EB-18-006
Side A - FF, Door
Side B - (1) 4” Drawer, Door		 -
  Reference Only EB-18-010
Side A - (1) 4” Drawer, Door
Side B - FF, Door		 -

11

 Refer to: Door and Drawer Components -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 FCC10672 FCC10690
Serial Number All All

Integra™ Center Console 42" Equipment Base Door Options

Integra™ Center Console 42" Equipment Base Door Options
Item Part Number Description Qty

1

 CPU Vented Full Door, Lt. Hinge Components
  029-6341-01 LH CPU Door Assembly AR
  068-1050-00-xxx CPU Door Panel AR

2

 CPU Vented Full Door, Rt. Hinge Components
  029-6341-00 RH CPU Door Assembly AR
  068-1050-00-xxx CPU Door Panel AR

3

 Full Door, Rt. Hinge Components
  029-6338-12 RH Solid Door Assembly AR
  068-1041-09-xxx Door Panel AR

4

 Full Door, Lt. Hinge Options
  029-6338-11 LH Solid Door Assembly AR
  068-1041-09-xxx Door Panel AR
  029-6338-10 LH Lead Door Assembly AR
  068-1103-05-xxx Lead Door Panel AR

5

 Full Door, Lt. Hinge Options
  029-6338-09 LH Solid Door Assembly AR
  068-1041-08-xxx Door Panel AR
  029-6378-08 LH Lead Door Assembly AR
  068-1103-04-xxx Lead Door Panel AR

6

 Full Door, Rt. Hinge Components
  029-6338-10 RH Solid Door Assembly AR
  068-1041-08-xxx Door Panel AR

7

 CPU Vented Full Door, Rt. Hinge Components
  029-6341-04 RH CPU Door Assembly AR
  068-1050-02-xxx CPU Door Panel AR

8

 CPU Vented Full Door, Lt. Hinge Components
  029-6341-05 LH CPU Door Assembly AR
  068-1050-02-xxx CPU Door Panel AR

9

 Door, Lt. Hinge Components
  029-6338-05 LH Solid Door Assembly AR
  068-1041-06-xxx Door Panel AR

10

 Door, Rt. Hinge Components
  029-6338-06 RH Solid Door Assembly AR
  068-1041-06-xxx Door Panel AR

11

 False Panel Components
  029-6364-12 False Panel Assembly AR
  068-1062-12-xxx False Slide Panel AR

12

 Refer to: Door and Drawer Components -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 FCC10672 FCC10690
Serial Number All All

Integra™ Center Console 42" Equipment Base Drawer Options

Integra™ Center Console 42" Equipment Base Drawer Options
Item Part Number Description Qty

1

 4” Drawer Components
  029-6336-00 4" Drawer Assembly AR
  068-1041-03-xxx 4" Drawer Panel AR

2

 False Panel Components
  029-6364-11 False Panel Assembly AR
  068-1062-11-xxx False Slide Panel AR

3

 8” Drawer Components
  029-6369-02 8" Drawer Assembly AR
  068-1042-00-xxx 8" Drawer Panel AR

4

 False Panel Components
  029-6364-09 False Panel Assembly AR
  068-1062-09-xxx False Slide Panel AR

5

 Reference Only EB-15-001
Side A - Solid Door
Side B - Solid Door		 -

6

 Reference Only EB-15-002
Side A - CPU Door
Side B - CPU Door		 -

7

 EB-15-003 and EB-15-007 Model Options
  Reference Only EB-15-003
Side A - FF, (2) 4” Drawers
Side B - (2) 4” Drawers, FF		 -
  Reference Only EB-15-007
Side A - (2) 4” Drawers, FF
Side B - FF, (2) 4” Drawers		 -

8

 EB-15-004 and EB-15-008 Model Options
  Reference Only EB-15-004
Side A - FF, (1) 8” Drawer
Side B - (1) 8” Drawer, FF		 -
  Reference Only EB-15-008
Side A - (1) 8” Drawer, FF
Side B - FF, (1) 8” Drawer		 -

9

 EB-15-005 and EB-15-009 Model Options
  Reference Only EB-15-005
Side A - FF
Side B - (2) 4”, (1) 8” Drawers		 -
  Reference Only EB-15-009
Side A - (2) 4”, (1) 8” Drawers
Side B - FF		 -

10

 EB-15-006 and EB-15-010 Model Options
  Reference Only EB-15-006
Side A - FF, Door
Side B - (1) 4” Drawer, Door		 -
  Reference Only EB-15-010
Side A - (1) 4” Drawer, Door
Side B - FF, Door		 -

11

 Refer to: Door and Drawer Components -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 FCC11272 FCC11290
Serial Number All All

Integra™ Center Console 48" Equipment Base Door Options

Integra™ Center Console 48" Equipment Base Door Options
Item Part Number Description Qty

1

 CPU Vented Full Door, Lt. Hinge Components
  029-6341-03 LH CPU Door Assembly AR
  068-1050-01-xxx CPU Door Panel AR

2

 CPU Vented Full Door, Rt. Hinge Components
  029-6341-02 RH CPU Door Assembly AR
  068-1050-01-xxx CPU Door Panel AR

3

 Full Door, Rt. Hinge Components
  029-6338-12 RH Solid Door Assembly AR
  068-1041-09-xxx Door Panel AR

4

 Full Door, Lt. Hinge Components
  029-6338-11 LH Solid Door Assembly AR
  068-1041-09-xxx Door Panel AR

5

 Full Door, Lt. Hinge Components
  029-6338-01 LH Solid Door Assembly AR
  068-1041-02-xxx Door Panel AR

6

 Full Door, Rt. Hinge Components
  029-6338-02 RH Solid Door Assembly AR
  068-1041-02-xxx Door Panel AR

7

 CPU Vented Full Door, Rt. Hinge Components
  029-6341-04 RH CPU Door Assembly AR
  068-1050-02-xxx CPU Door Panel AR

8

 CPU Vented Full Door, Lt. Hinge Components
  029-6341-05 LH CPU Door Assembly AR
  068-1050-02-xxx CPU Door Panel AR

9

 Door, Lt. Hinge Components
  029-6338-15 LH Solid Door Assembly AR
  068-1041-15-xxx Door Panel AR

10

 Door, Rt. Hinge Components
  029-6338-16 RH Solid Door Assembly AR
  068-1041-15-xxx Door Panel AR

11

 False Panel Components
  029-6364-13 False Panel Assembly AR
  068-1062-13-xxx False Slide Panel AR

12

 Refer to: Door and Drawer Components -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 FCC11272 FCC11290
Serial Number All All

Integra™ Center Console 48" Equipment Base Drawer Options

Integra™ Center Console 48" Equipment Base Drawer Options
Item Part Number Description Qty

1

 4” Drawer Components
  029-6336-01 4” Drawer Assembly AR
  068-1041-00-xxx 4” Drawer Panel AR

2

 False Panel Components
  029-6364-08 False Panel Assembly AR
  068-1062-08-xxx False Slide Panel AR

3

 8” Drawer Components
  029-6369-04 8” Drawer Assembly AR
  068-1042-01-xxx 8” Drawer Panel AR

4

 False Panel Components
  029-6364-10 False Panel Assembly AR
  068-1062-10-xxx False Slide Panel AR

5

 Reference Only EB-18-001
Side A - Solid Door
Side B - Solid Door		 -

6

 Reference Only EB-18-002
Side A - CPU Door
Side B - CPU Door		 -

7

 EB-18-003 and EB-18-007 Model Options
  Reference Only EB-18-003
Side A - FF, (2) 4” Drawers
Side B - (2) 4” Drawers, FF		 -
  Reference Only EB-18-007
Side A - (2) 4” Drawers, FF
Side B - FF, (2) 4” Drawers		 -

8

 EB-18-004 and EB-18-008 Model Options
  Reference Only EB-18-004
Side A - FF, (1) 8” Drawer
Side B - (1) 8” Drawer, FF		 -
  Reference Only EB-18-008
Side A - (1) 8” Drawer, FF
Side B - FF, (1) 8” Drawer		 -

9

 EB-18-005 and EB-18-009 Model Options
  Reference Only EB-18-005
Side A - FF
Side B - (2) 4”, (1) 8” Drawers		 -
  Reference Only EB-18-009
Side A - (2) 4”, (1) 8” Drawers
Side B - FF		 -

10

 EB-18-006 and EB-18-010 Model Options
  Reference Only EB-18-006
Side A - FF, Door
Side B - (1) 4” Drawer, Door		 -
  Reference Only EB-18-010
Side A - (1) 4” Drawer, Door
Side B - FF, Door		 -

11

 Refer to: Door and Drawer Components -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
