Integra™ Center Console Equipment Upper Options
All panels must be ordered separately to specify color.
Refer to: the Cabinet Color Options for the order number extension of your desired color.
Pebble Grey

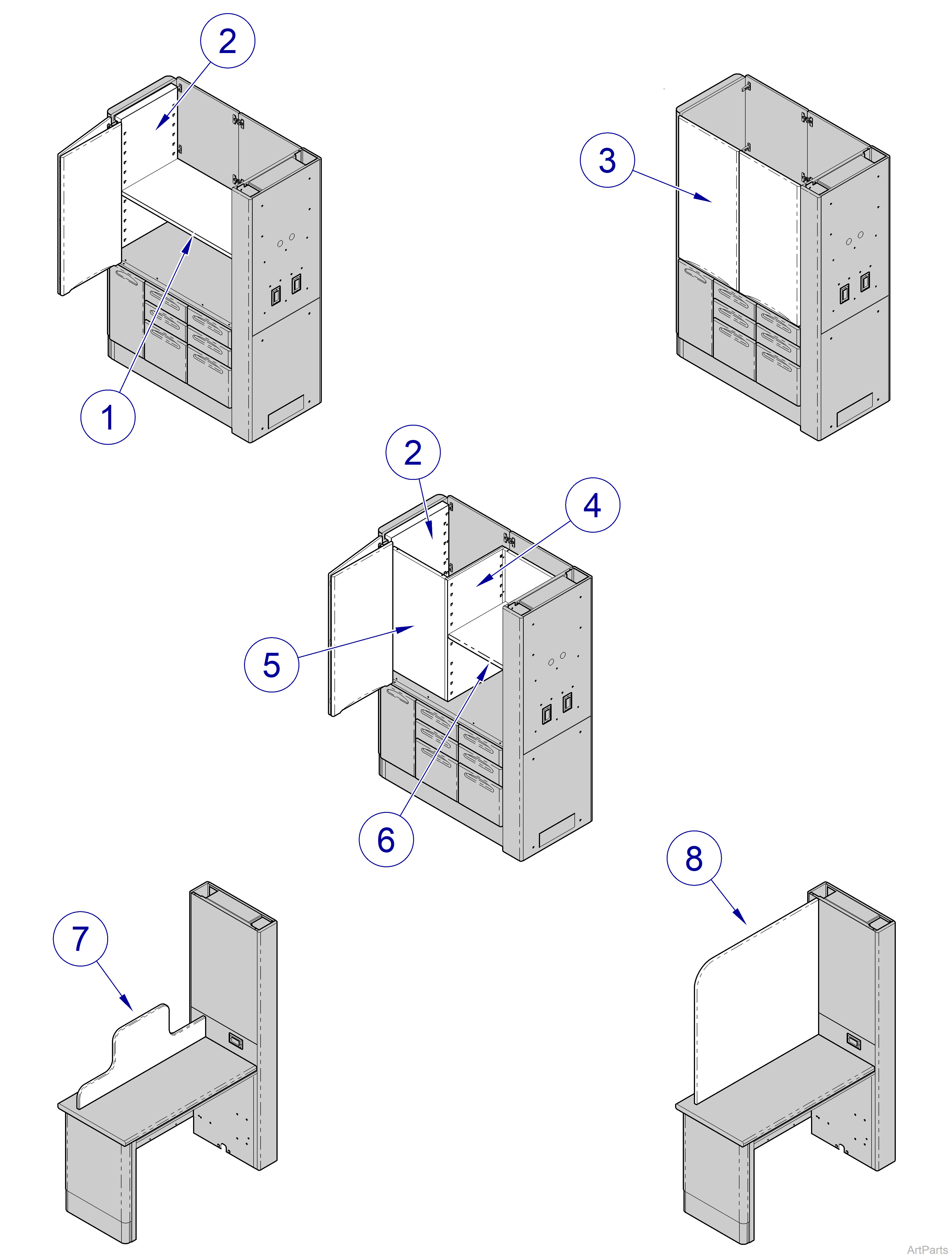

42" Equipment Upper Options
|
Model |
FCC10672 | FCC10690 |
| Serial Number | All | All |
| Integra™ Center Console 42" Equipment Upper Options | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-7511-00-216 | Adjustable Shelf - Open Storage | AR |
|
2 |
Panel Assembly Options | ||
| 029-2958-00 | Panel Assembly - Column End, 20.25” x 37” | AR | |
|
029-2959-00 |
Panel Assembly - Hinge End, 20.25” x 37” | NLA | |
| 029-2958-01 | Panel Assembly - Column End, 20.25” x 52” | AR | |
| 029-2959-01 | Panel Assembly - Hinge End, 20.25” x 52” | AR | |
|
3 |
Bi-Fold Door Options | ||
| 029-4459-00 | Bi-Fold Door LH 42” x 42.75” | AR | |
| 068-0511-00-xxx | LH Fixed End Panel | AR | |
| 068-0512-00-xxx | LH Free End Panel | AR | |
| 029-4459-10 | Bi-Fold Door RH 42” x 42.75” | AR | |
| 068-0511-10-xxx | RH Fixed End Panel | AR | |
| 068-0512-10-xxx | RH Free End Panel | AR | |
| 029-4459-02 | Lead Bi-Fold Door LH 42” x 42.75” | AR | |
| 068-0513-00-xxx | Lead LH Fixed End Panel | AR | |
| 068-0514-00-xxx | Lead LH Free End Panel | AR | |
| 029-4459-12 | Lead Bi-Fold Door RH 42” x 42.75” | AR | |
| 068-0513-10-xxx | Lead RH Fixed End Panel | AR | |
| 068-0514-10-xxx | Lead RH Free End Panel | AR | |
| 029-4460-00 | Bi Fold Door LH 42” x 60.75” | AR | |
| 068-0515-00-xxx | LH Fixed End Panel | AR | |
| 068-0516-00-xxx | LH Free End Panel | AR | |
| 029-4460-10 | Bi-Fold Door RH 42” x 60.75” | AR | |
| 068-0515-10-xxx | RH Fixed End Panel | AR | |
| 068-0516-10-xxx | RH Free End Panel | AR | |
| 029-4460-02 | Lead Bi Fold Door LH 42” x 60” | AR | |
| 068-0517-00-xxx | Lead LH Fixed End Panel | AR | |
| 068-0518-00-xxx | Lead LH Free End Panel | AR | |
| 029-4460-12 | Lead Bi-Fold Door RH 42” x 60” | AR | |
| 068-0517-10-xxx | Lead RH Fixed End Panel | AR | |
| 068-0518-10-xxx | Lead RH Free End Panel | AR | |
|
4 |
Center Panel Assembly Options | ||
|
029-4482-00 |
Center Panel Assembly 20.172” x 37” | NSS | |
|
029-4482-01 |
Center Panel Assembly 20.172” x 52” | NSS | |
|
5 |
Back Panel Options | ||
| 050-5569-50 | Back Panel 18.71” x 37” | AR | |
| 050-5569-52 | Back Panel 18.71” x 52” | AR | |
|
6 |
050-5474-50 | Adjustable Shelf - Split Storage | AR |
|
7 |
068-0535-00-xxx | X-Ray Privacy Panel | AR |
|
8 |
068-0533-00-xxx | Full Privacy Panel | AR |
|
9 |
Refer to: | Door and Drawer Components | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
48" Equipment Upper Options
|
Model |
FCC11272 | FCC11290 |
| Serial Number | All | All |
| Integra™ Center Console 48" Equipment Upper Options | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-7511-01-216 | Adjustable Shelf - Open Storage | AR |
|
2 |
Panel Assembly Options | ||
| 029-2958-00 | Panel Assembly - Column End, 20.25” x 37” | AR | |
|
029-2959-00 |
Panel Assembly - Hinge End, 20.25” x 37” | NLA | |
| 029-2958-01 | Panel Assembly - Column End, 20.25” x 52” | AR | |
| 029-2959-01 | Panel Assembly - Hinge End, 20.25” x 52” | AR | |
|
3 |
Bi-Fold Door Options | ||
| 029-4459-01 | Bi-Fold Door LH 48” X 42.75” | AR | |
| 068-0511-01-xxx | LH Fixed End Panel | AR | |
| 068-0512-01-xxx | LH Free End Panel | AR | |
| 029-4459-11 | Bi-Fold Door RH 48” X 42.75” | AR | |
| 068-0511-11-xxx | RH Fixed End Panel | AR | |
| 068-0512-11-xxx | RH Free End Panel | AR | |
| 029-4459-03 | Lead Bi-Fold Door LH 48” X 42.75” | AR | |
| 068-0513-01-xxx | Lead LH Fixed End Panel | AR | |
| 068-0514-01-xxx | Lead LH Free End Panel | AR | |
| 029-4459-13 | Lead Bi-Fold Door RH 48” X 42.75” | AR | |
| 068-0513-11-xxx | Lead RH Fixed End Panel | AR | |
| 068-0514-11-xxx | Lead RH Free End Panel | AR | |
| 029-4460-01 | Bi Fold Door LH 48” X 60.75” | AR | |
| 068-0515-01-xxx | LH Fixed End Panel | AR | |
| 068-0516-01-xxx | LH Free End Panel | AR | |
| 029-4460-11 | Bi-Fold Door RH 48” X 60.75” | AR | |
| 068-0515-11-xxx | RH Fixed End Panel | AR | |
| 068-0516-11-xxx | RH Free End Panel | AR | |
| 029-4460-13 | Lead Bi-Fold Door RH 48” X 60.75” | AR | |
| 068-0517-11-xxx | Lead RH Fixed End Panel | AR | |
| 068-0518-11-xxx | Lead RH Free End Panel | AR | |
| 029-4460-03 | Lead Bi-Fold Door LH 48” X 60.75” | AR | |
| 068-0517-01-xxx | Lead LH Fixed End Panel | AR | |
| 068-0518-01-xxx | Lead LH Free End Panel | AR | |
|
4 |
Center Panel Assembly Options | ||
|
029-4482-00 |
Center Panel Assembly 20.172” x 37” | NSS | |
|
029-4482-01 |
Center Panel Assembly 20.172” x 52” | NSS | |
|
5 |
Back Panel Options | ||
| 050-5569-51 | Back Panel 21.71” x 37” | AR | |
| 050-5569-53 | Back Panel 21.71” x 52” | AR | |
|
6 |
050-5474-51 | Adjustable Shelf - Split Storage | AR |
|
7 |
068-0535-01-xxx | X-Ray Privacy Panel | AR |
|
8 |
068-0533-01-xxx | Full Privacy Panel | AR |
|
9 |
Refer to: | Door and Drawer Components | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Frost White
42" Equipment Upper Options
|
Model |
FCC10672 | FCC10690 |
| Serial Number | All | All |
| Integra™ Center Console 42" Equipment Upper Options | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-7511-00-791 |
Adjustable Shelf - Open Storage | NSS |
|
2 |
Panel Assembly Options | ||
| 029-6829-00 | Panel Assembly - Column End, 20.25” x 37” | AR | |
| 029-6830-00 | Panel Assembly - Hinge End, 20.25” x 37” | AR | |
| 029-6829-01 | Panel Assembly - Column End, 20.25” x 52” | AR | |
| 029-6830-01 | Panel Assembly - Hinge End, 20.25” x 52” | AR | |
|
3 |
Bi-Fold Door Options | ||
| 029-6361-00 | Bi-Fold Door LH 42” x 42.75” | AR | |
|
068-1110-00-xxx |
LH Fixed End Panel | NSS | |
|
068-1111-00-xxx |
LH Free End Panel | NSS | |
| 029-6361-10 | Bi-Fold Door RH 42” x 42.75” | AR | |
|
068-1110-10-xxx |
RH Fixed End Panel | NSS | |
|
068-1111-10-xxx |
RH Free End Panel | NSS | |
| 029-6361-02 | Lead Bi-Fold Door LH 42” x 42.75” | AR | |
| 029-1112-00-xxx | Lead LH Fixed End Panel | AR | |
| 068-1113-00-xxx | Lead LH Free End Panel | AR | |
| 029-6361-12 | Lead Bi-Fold Door RH 42” x 42.75” | AR | |
| 029-1112-10-xxx | Lead RH Fixed End Panel | AR | |
| 068-1113-10-xxx | Lead RH Free End Panel | AR | |
| 029-6362-00 | Bi Fold Door LH 42” x 60.75” | AR | |
|
068-1114-00-xxx |
LH Fixed End Panel | NSS | |
|
068-1115-00-xxx |
LH Free End Panel | NSS | |
| 029-6362-10 | Bi-Fold Door RH 42” x 60.75” | AR | |
| 068-1114-10-xxx | RH Fixed End Panel | AR | |
| 068-1115-10-xxx | RH Free End Panel | AR | |
| 029-6362-02 | Lead Bi Fold Door LH 42” x 60” | AR | |
| 068-1116-00-xxx | Lead LH Fixed End Panel | AR | |
| 068-1117-00-xxx | Lead LH Free End Panel | AR | |
| 029-6362-12 | Lead Bi-Fold Door RH 42” x 60” | AR | |
| 068-1116-10-xxx | Lead RH Fixed End Panel | AR | |
| 068-1117-10-xxx | Lead RH Free End Panel | AR | |
|
4 |
Center Panel Assembly Options | ||
| 029-6831-00 | Center Panel Assembly 20.172” x 37” | AR | |
| 029-6831-01 | Center Panel Assembly 20.172” x 52” | AR | |
|
5 |
Back Panel Options | ||
|
050-5569-00-791 |
Back Panel 18.71” x 37” | NSS | |
|
050-5569-02-791 |
Back Panel 18.71” x 52” | NSS | |
|
6 |
050-5474-00-791 |
Adjustable Shelf - Split Storage | NSS |
|
7 |
068-1064-00-xxx |
X-Ray Privacy Panel | NSS |
|
8 |
068-1063-00-xxx |
Full Privacy Panel | NSS |
|
9 |
Refer to: | Door and Drawer Components | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
48" Equipment Upper Options
|
Model |
FCC11272 | FCC11290 |
| Serial Number | All | All |
| Integra™ Center Console 48" Equipment Upper Options | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-7511-01-791 | Adjustable Shelf - Open Storage | AR |
|
2 |
Panel Assembly Options | ||
| 029-6829-00 | Panel Assembly - Column End, 20.25” x 37” | AR | |
| 029-6830-00 | Panel Assembly - Hinge End, 20.25” x 37” | AR | |
| 029-6829-01 | Panel Assembly - Column End, 20.25” x 52” | AR | |
| 029-6830-01 | Panel Assembly - Hinge End, 20.25” x 52” | AR | |
|
3 |
Bi-Fold Door Options | ||
| 029-6361-01 | Bi-Fold Door LH 48” X 42.75” | AR | |
|
068-1110-01-xxx |
LH Fixed End Panel | NSS | |
|
068-1111-01-xxx |
LH Free End Panel | NSS | |
| 029-6361-11 | Bi-Fold Door RH 48” X 42.75” | AR | |
|
068-1110-11-xxx |
RH Fixed End Panel | NSS | |
|
068-1111-11-xxx |
RH Free End Panel | NSS | |
| 029-6361-03 | Lead Bi-Fold Door LH 48” X 42.75” | AR | |
|
068-1112-01-xxx |
Lead LH Fixed End Panel | NSS | |
|
068-1113-01-xxx |
Lead LH Free End Panel | NSS | |
| 029-6361-13 | Lead Bi-Fold Door RH 48” X 42.75” | AR | |
|
068-1112-11-xxx |
Lead RH Fixed End Panel | NSS | |
|
068-1113-11-xxx |
Lead RH Free End Panel | NSS | |
| 029-6362-01 | Bi Fold Door LH 48” X 60.75” | AR | |
|
068-1114-01-xxx |
LH Fixed End Panel | NSS | |
|
068-1115-01-xxx |
LH Free End Panel | NSS | |
| 029-6362-11 | Bi-Fold Door RH 48” X 60.75” | AR | |
|
068-1114-11-xxx |
RH Fixed End Panel | NSS | |
|
068-1115-11-xxx |
RH Free End Panel | NSS | |
| 029-6362-13 | Lead Bi-Fold Door RH 48” X 60.75” | AR | |
|
068-1116-11-xxx |
Lead RH Fixed End Panel | NSS | |
|
068-1117-11-xxx |
Lead RH Free End Panel | NSS | |
| 029-6362-03 | Lead Bi-Fold Door LH 48” X 60.75” | AR | |
|
068-1116-01-xxx |
Lead LH Fixed End Panel | NSS | |
|
068-1117-01-xxx |
Lead LH Free End Panel | NSS | |
|
4 |
Center Panel Assembly Options | ||
| 029-6831-00 | Center Panel Assembly 20.172” x 37” | AR | |
| 029-6831-01 | Center Panel Assembly 20.172” x 52” | AR | |
|
5 |
Back Panel Options | ||
|
050-5569-01-791 |
Back Panel 21.71” x 37” | NSS | |
|
050-5569-03-791 |
Back Panel 21.71” x 52” | NSS | |
|
6 |
050-5474-01-791 |
Adjustable Shelf - Split Storage | NSS |
|
7 |
068-1064-01-xxx |
X-Ray Privacy Panel | NSS |
|
8 |
068-1063-01-xxx |
Full Privacy Panel | NSS |
|
9 |
Refer to: | Door and Drawer Components | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
