Integra™ Center Console Top Cap Components
Pebble Grey
|
Model |
FCC |
| Serial Number | All |

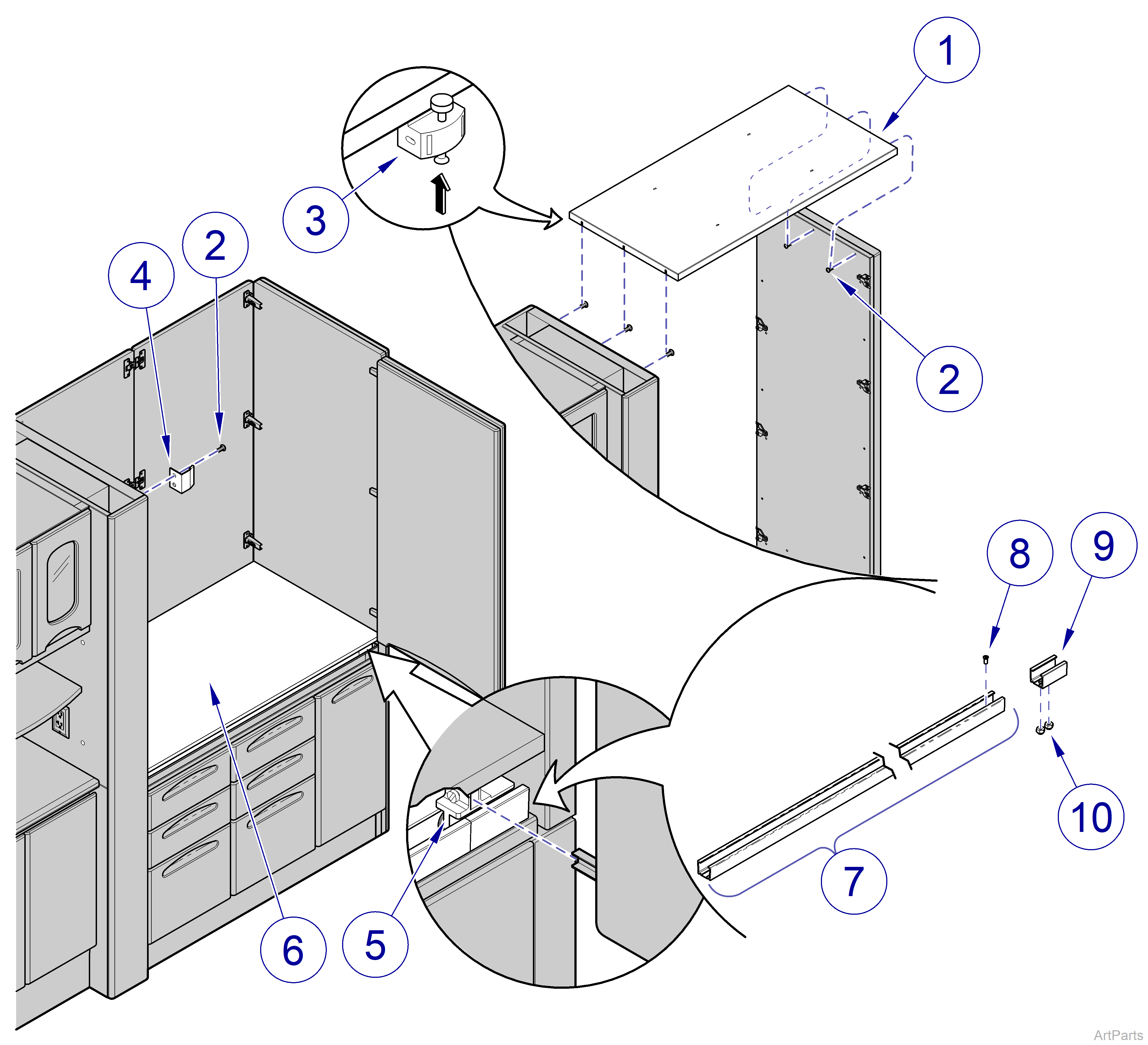

| Integra™ Center Console Top Cap Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Top Cap Options | ||
| 050-7524-00-216 | 42” Length Top Cap | 1 | |
| 050-7524-01-216 | 48” Length Top Cap | 1 | |
|
2 |
040-0010-12 | Machine Pan Head Screw #10-24 5/8” | AR |
|
3 |
Bi-Fold Door Guide Options | ||
| 016-1001-00 | Right Bi-Fold Door Guide | 1 | |
| 016-1001-01 | Left Bi-Fold Door Guide | 1 | |
|
4 |
050-5512-50 |
Bi-Fold Door Guide Bracket |
NLA |
|
5 |
002-10378-00 | Suspension Fitting Roller | 1 |
|
6 |
Equipment End Top w/ Bi-Fold Doors Options | ||
|
069-2400-00-216 |
42” Length Equipment End Top | NLA | |
| 069-2400-01-216 | 48” Length Equipment End Top | 1 | |
|
7 |
Base Door Track Options | ||
| 021-0068-03 | 39” Base Door Track - 42” Base Length | 2 | |
| 021-0068-04 | 45” Base Door Track - 48” Base Length | 2 | |
|
8 |
042-0010-04 | Pop Rivot | 8 |
|
9 |
021-0068-06 | 2-1/4” Door Track w/ Studs | 2 |
|
10 |
041-0008-02 | Nut #8 | 4 |
|
11 |
Refer to: | Door and Drawer Components | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Frost White
|
Model |
FCC |
| Serial Number | All |
| Integra™ Center Console Top Cap Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Top Cap Options | ||
|
050-7524-00-791 |
42” Length Top Cap | NSS | |
|
|
050-7524-01-791 |
48” Length Top Cap | NSS |
|
2 |
040-0010-12 | Machine Pan Head Screw #10-24 5/8” | AR |
|
3 |
Bi-Fold Door Guide Options | ||
| 016-1001-00 | Right Bi-Fold Door Guide | 1 | |
| 016-1001-01 | Left Bi-Fold Door Guide | 1 | |
|
4 |
050-5512-00-791 |
Bi-Fold Door Guide Bracket |
NLA |
|
5 |
002-10378-00 | Suspension Fitting Roller | 1 |
|
6 |
Equipment End Top w/ Bi-Fold Doors Options | ||
|
069-2400-00-791 |
42” Length Equipment End Top | NLA | |
|
069-2400-01-791 |
48” Length Equipment End Top | NLA | |
|
7 |
Base Door Track Options | ||
| 021-0068-03 | 39” Base Door Track - 42” Base Length | 2 | |
| 021-0068-04 | 45” Base Door Track - 48” Base Length | 2 | |
|
8 |
042-0010-04 | Pop Rivot | 8 |
|
9 |
021-0068-06 | 2-1/4” Door Track w/ Studs | 2 |
|
10 |
041-0008-02 | Nut #8 | 4 |
|
11 |
Refer to: | Door and Drawer Components | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
