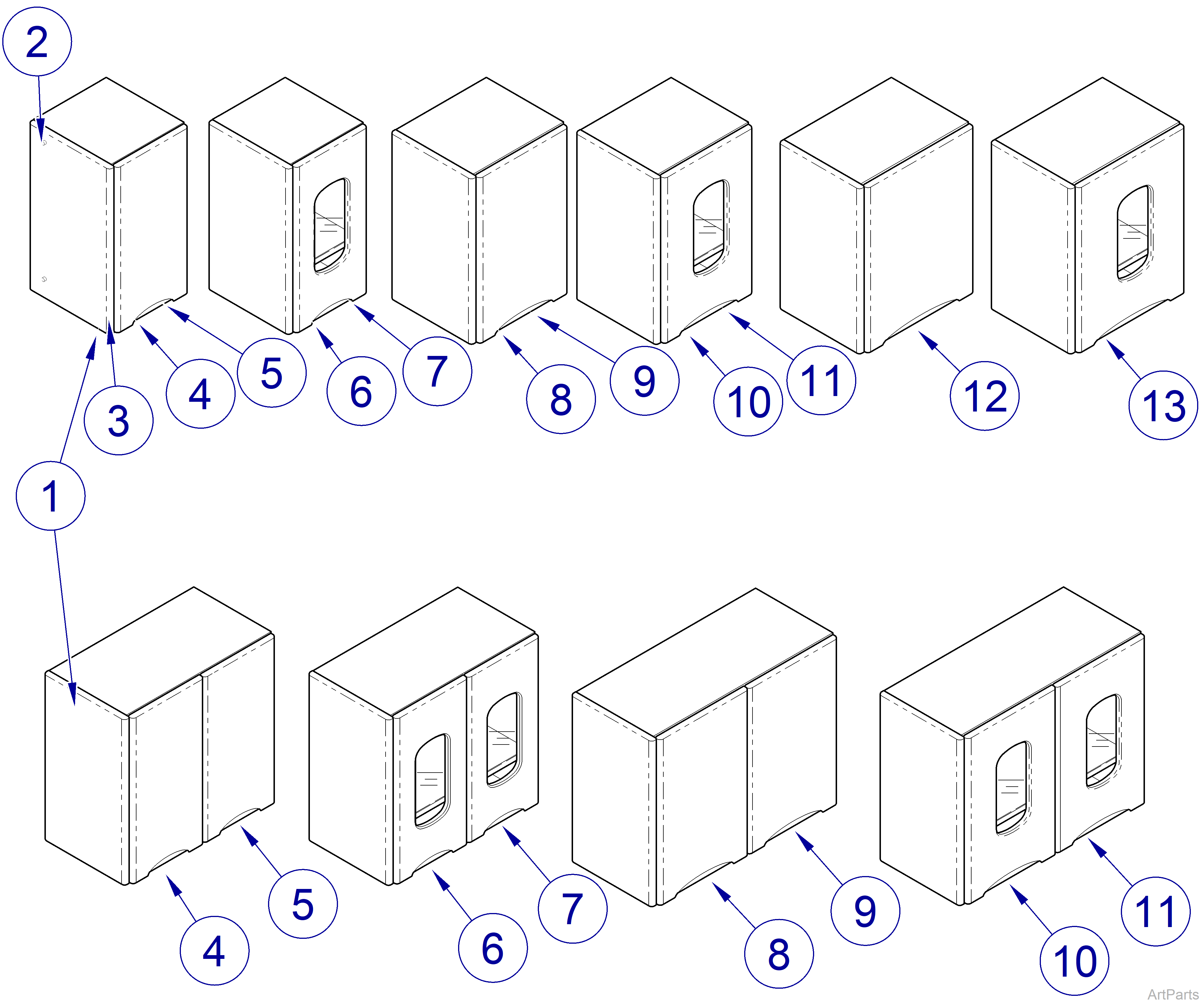

Integra™ Side Cabinetry Upper Storage Doors and Side Panels
All panels must be ordered separately to specify color.
Refer to: the Cabinet Color Options for the order number extension of your desired color.
Pebble Grey
|
Model |
OUC012 | OUC015 | OUC018 | OUC024 | OUC030 |
| Serial Number | All | All | All | All | All |
| Integra™ Side Cabinetry Upper Storage Doors and Side Panels | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Upper End Panel Assembly Components - includes item 2 | ||
| 029-4806-00 | Upper End Panel Assembly | 1 | |
| 068-0594-00-xxx | Upper End Panel | 1 | |
|
2 |
016-0958-01 | Magnet Plug | 1 |
|
3 |
040-0010-48 | Pan Head Screw #10 x 5/8” - Not Shown | 2 |
|
4 |
12” LH Solid Door Assembly Components 11.81” x 24” | ||
| 029-4233-01 | 12” LH Solid Door Assembly | 1 | |
| 068-0451-00-xxx | 12” LH Solid Door Panel | 1 | |
|
5 |
12” RH Solid Door Assembly Components 11.81” x 24” | ||
| 029-4233-00 | 12” RH Solid Door Assembly | 1 | |
| 068-0451-00-xxx | 12” RH Solid Door Panel | 1 | |
|
6 |
12” LH Window Door Assembly Components 11.81” x 24” | ||
| 029-4358-10 | 12” LH Window Door Assembly | 1 | |
| 029-4804-04-xxx | 12” LH Window Door Panel | 1 | |
|
7 |
12” RH Window Door Assembly Components 11.81” x 24” | ||
| 029-4358-11 | 12” RH Window Door Assembly | 1 | |
| 029-4804-04-xxx | 12” RH Window Door Panel | 1 | |
|
8 |
15” LH Solid Door Assembly Components 14.68” x 24” | ||
| 029-4233-23 | 15” LH Solid Door Assembly | 1 | |
| 068-0451-10-xxx | 15” LH Solid Door Panel | 1 | |
|
9 |
15” RH Solid Door Assembly Components 14.68” x 24” | ||
| 029-4233-22 | 15” RH Solid Door Assembly | 1 | |
| 068-0451-10-xxx | 15” RH Solid Door Panel | 1 | |
|
10 |
15” LH Window Door Assembly Components 14.68” x 24” | ||
| 029-4358-00 | 15” LH Window Door Assembly | 1 | |
| 029-4804-00-xxx | 15” LH Window Door Panel | 1 | |
|
11 |
15” RH Window Door Assembly Components 14.68” x 24” | ||
| 029-4358-01 | 15” RH Window Door Assembly | 1 | |
| 029-4804-00-xxx | 15” RH Window Door Panel | 1 | |
|
12 |
18” Solid Door Assembly Components 17.68” x 24” | ||
| 029-4233-11 | 18” LH Solid Door Assembly | 1 | |
| 029-4233-10 | 18” RH Solid Door Assembly | 1 | |
| 068-0451-06-xxx | 18” Solid Door Panel | 1 | |
|
13 |
18” Window Door Assembly Components 17.68” x 24” | ||
| 029-4358-06 | 18” LH Window Door Assembly | 1 | |
| 029-4358-07 | 18” RH Window Door Assembly | 1 | |
| 029-4804-03-xxx | 18” Window Door Panel | 1 | |
|
14 |
Refer to: | Door and Drawer Components | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Frost White
|
Model |
OUC012 | OUC015 | OUC018 | OUC024 | OUC030 |
| Serial Number | All | All | All | All | All |
| Integra™ Side Cabinetry Upper Storage Doors and Side Panels | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Upper End Panel Assembly Components - includes item 2 | ||
| 029-6386-00 | Upper End Panel Assembly | 1 | |
| 068-1077-00-xxx | Upper End Panel | 1 | |
|
2 |
016-0958-01 | Magnet Plug | 1 |
|
3 |
040-0010-48 | Pan Head Screw #10 x 5/8” - Not Shown | 2 |
|
4 |
12” LH Solid Door Assembly Components 11.81” x 24” | ||
| 029-6340-01 | 12” LH Solid Door Assembly | 1 | |
| 068-1049-00-xxx | 12” LH Solid Door Panel | 1 | |
|
5 |
12” RH Solid Door Assembly Components 11.81” x 24” | ||
| 029-6341-00 | 12” RH Solid Door Assembly | 1 | |
| 068-1049-00-xxx | 12” RH Solid Door Panel | 1 | |
|
6 |
12” LH Window Door Assembly Components 11.81” x 24” | ||
| 029-6347-10 | 12” LH Window Door Assembly | 1 | |
| 029-6385-05-xxx | 12” LH Window Door Panel | 1 | |
|
7 |
12” RH Window Door Assembly Components 11.81” x 24” | ||
| 029-6347-11 | 12” RH Window Door Assembly | 1 | |
| 029-6385-05-xxx | 12” RH Window Door Panel | 1 | |
|
8 |
15” LH Solid Door Assembly Components 14.68” x 24” | ||
| 029-6340-09 | 15” LH Solid Door Assembly | 1 | |
| 068-1049-05-xxx | 15” LH Solid Door Panel | 1 | |
|
9 |
15” RH Solid Door Assembly Components 14.68” x 24” | ||
| 029-6340-08 | 15” RH Solid Door Assembly | 1 | |
| 068-1049-05-xxx | 15” RH Solid Door Panel | 1 | |
|
10 |
15” LH Window Door Assembly Components 14.68” x 24” | ||
| 029-6347-00 | 15” LH Window Door Assembly | 1 | |
| 029-6385-00-xxx | 15” LH Window Door Panel | 1 | |
|
11 |
15” RH Window Door Assembly Components 14.68” x 24” | ||
| 029-6347-01 | 15” RH Window Door Assembly | 1 | |
| 029-6385-00-xxx | 15” RH Window Door Panel | 1 | |
|
12 |
18” Solid Door Assembly Components 17.68” x 24” | ||
| 029-6340-05 | 18” LH Solid Door Assembly | 1 | |
| 029-6340-04 | 18” RH Solid Door Assembly | 1 | |
| 068-1049-02-xxx | 18” Solid Door Panel | 1 | |
|
13 |
18” Window Door Assembly Components 17.68” x 24” | ||
| 029-6347-06 | 18” LH Window Door Assembly | 1 | |
| 029-6347-07 | 18” RH Window Door Assembly | 1 | |
| 029-6385-03-xxx | 18” Window Door Panel | 1 | |
|
14 |
Refer to: | Door and Drawer Components | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
