631 Chair Scissor Components
|
Model |
631-001 |
| Serial Number | V2200 thru Present |

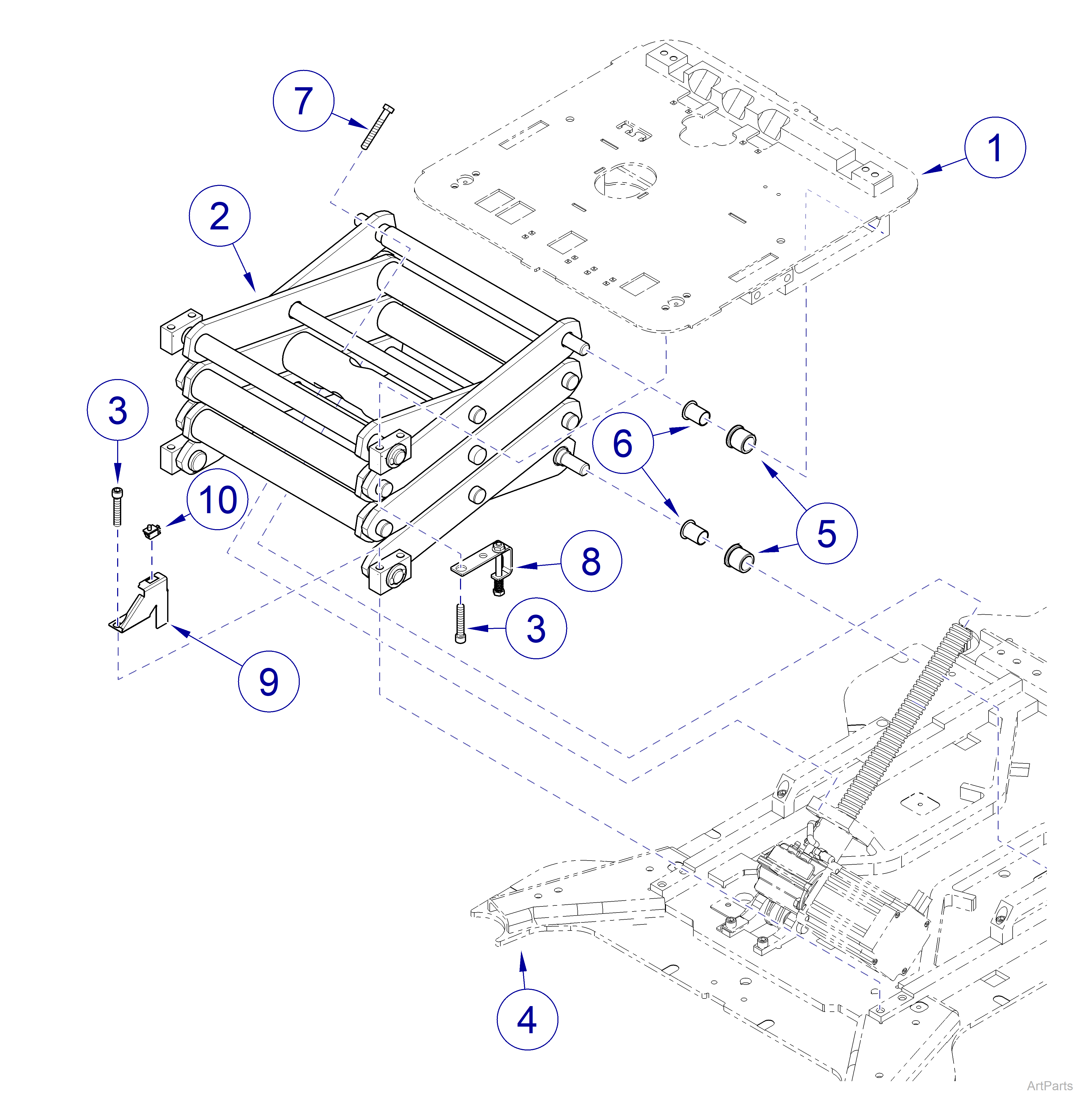

| 631 Chair Scissor Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Refer to: |
- |
|
|
2 |
Scissors Weldment - Non Serviceable |
NSS |
|
|
3 |
040-0312-78 |
Screw 5/16-18 x 1-3/4 in. |
8 |
|
4 |
Refer to: |
- |
|
|
5 |
057-1301-00 |
Spherical Roller |
4 |
|
6 |
016-0131-30 |
Flanged Bearing |
4 |
| 7 | 040-0312-92 | Screw 5/16-18 x 2-1/2 in | 2 |
| 8 | 029-12034-00 | Base Down Limit Switch Activation Assy - includes items 9 thru 12 |
1 |
| 9 | 041-0250-23 | 1/4-20 Hex Flange Nut, Nylon Insert |
1 |
| 10 | 050-12736-00 | Top Switch Bracket | 1 |
| 11 | 025-0042-05 | Compression Spring | 1 |
| 12 | 016-10527-00 | Leveler | 1 |
| 13 | 050-13460-00 | Down Switch Bracket | 1 |
| 14 | 015-3025-00 | Limit Switch | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
