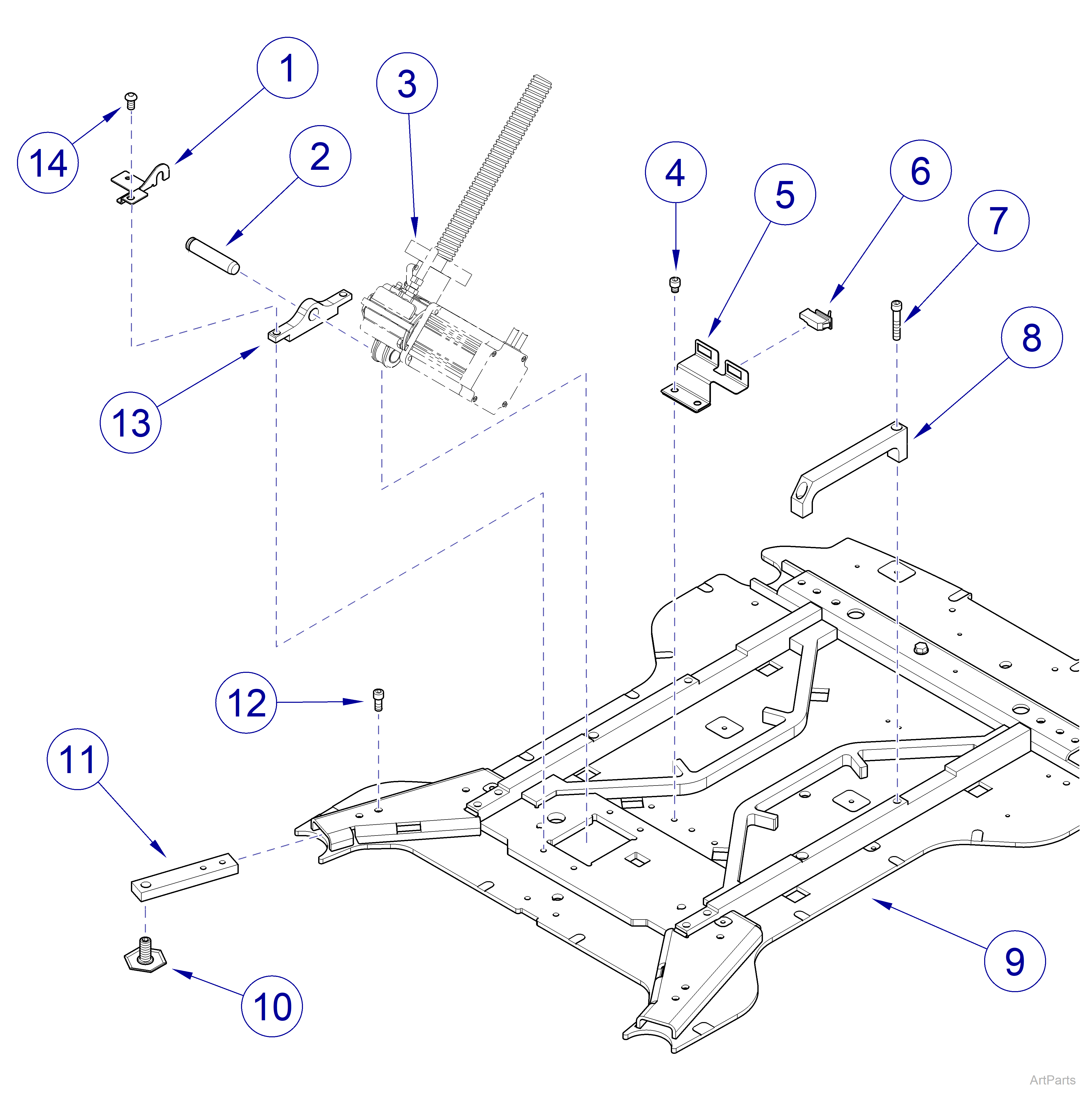

631 Chair Base Plate Components
|
Model |
631-001 |
| Serial Number | V2200 thru Present |
| 631 Chair Base Plate Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 1 | 050-12704-00 | Actuator Pin Retainer | 1 |
| 2 | 057-10478-00 | Base Clevis Pin | 1 |
|
3 |
Refer to: |
- |
|
|
4 |
040-0250-216 |
Screw 1/4-20 x 1/4 in. |
2 |
|
5 |
050-13408-00 |
Switch Bracket |
1 |
| 6 | 015-12346-00 | Chair Up Limit Switch | 2 |
| 7 | 040-0312-29 | Screw 5/16-18 x 1 1/4 in. | 4 |
| 8 | 051-10267-00 | Rail, Roller | 2 |
|
9 |
Base Weldment - Non Serviceable |
NSS | |
| 10 | 016-1196-00 | Leveling Foot | 4 |
| 11 | 051-1292-00-216 |
Leveling Foot Mount |
4 |
| 12 | 040-0312-108 | SEMS Screw 5/16-18 x 3/4 in. | 8 |
| 13 | 050-12702-00 | Actuator Plate | 2 |
| 14 | 040-0312-21 | Screw 5/16-18 x 3/4 in | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
