631 Chair Base Shrouds

Model

 631-001
Serial Number V2200 thru Present

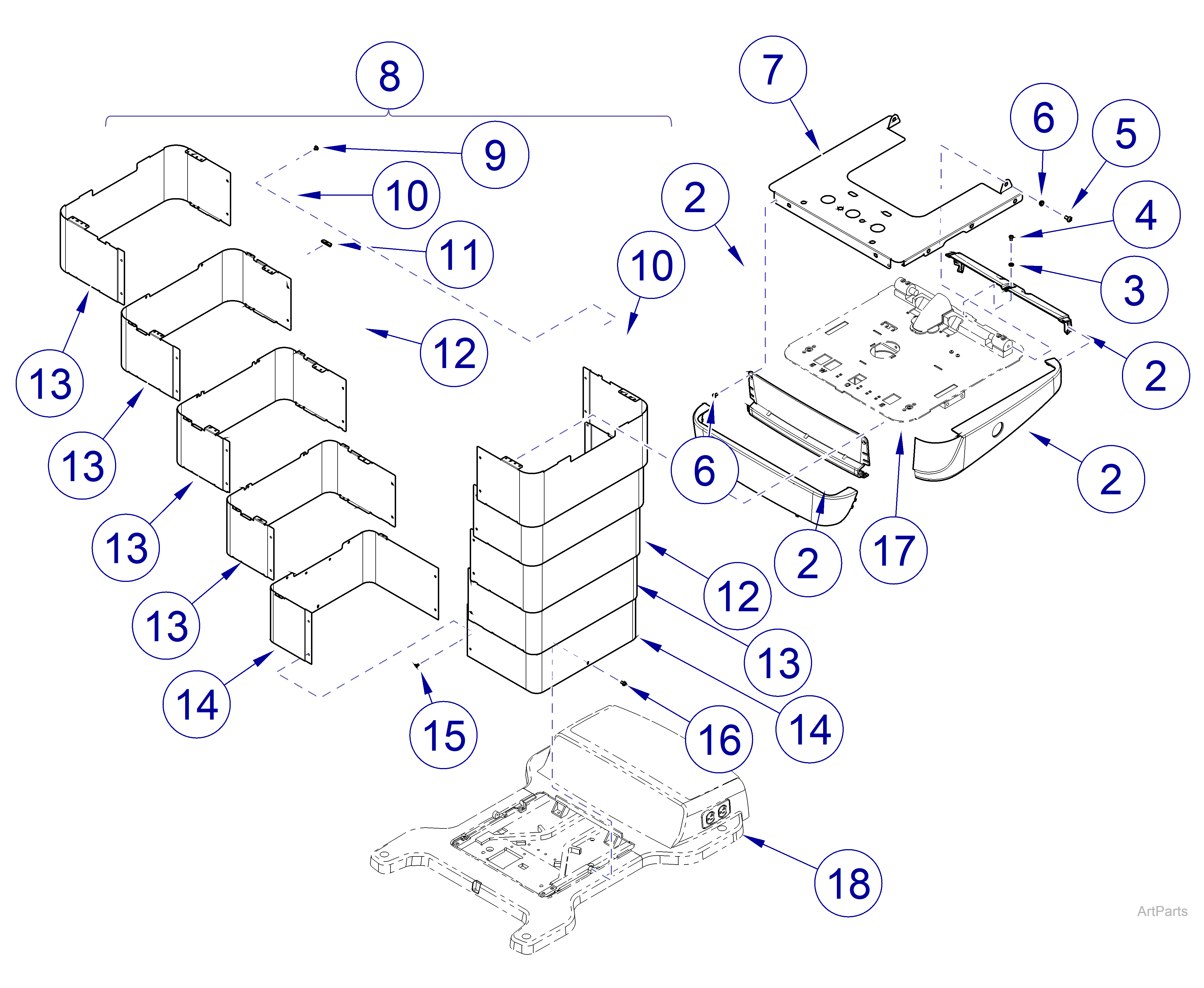

631 Procedure Chair630 Barrier-Free® Universal Procedures Table Base Shrouds

631 Chair Base Shrouds
Item Part Number Description Qty
1 002-11248-00 Cladding 1

2

045-0001-00

Washer #10

1

3

 040-0010-129

Screw 10-24 x 1/2 in.

3

4

040-0250-162

Screw 1/4-20 x 1/2 in.

2

5

016-0131-10

Flanged Bearing

2
6 002-11249-00 Seat Bail Kit - includes items 3 thru 5 1
7 002-11250-00 Shroud Assembly - includes items 8 thru 15 1
8 040-0008-106 Screw, 8-32 x 1/4 in. 20
9 002-11253-00 Top Shroud Assy - includes items 8 and 14 1
10 002-11254-00 Third Shroud - includes items 8, 14 and 15 2
11 002-11255-00 Second Shroud - includes items 8, 14 and 15 2
12 002-11256-00 First Shroud - includes items 8, 14 and 15 2
13 002-11257-00 Fixed Shroud - includes items 8 and 14 2

14

053-0752-00

Snap On Glide

AR

15 053-2213-00 Shroud Isolator AR
16 040-0010-109 Screw, 10-24 x 3/8 in. 2

17

Refer to:

Column Top Components

-

18

Refer to:

Base Plate Components

-

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
