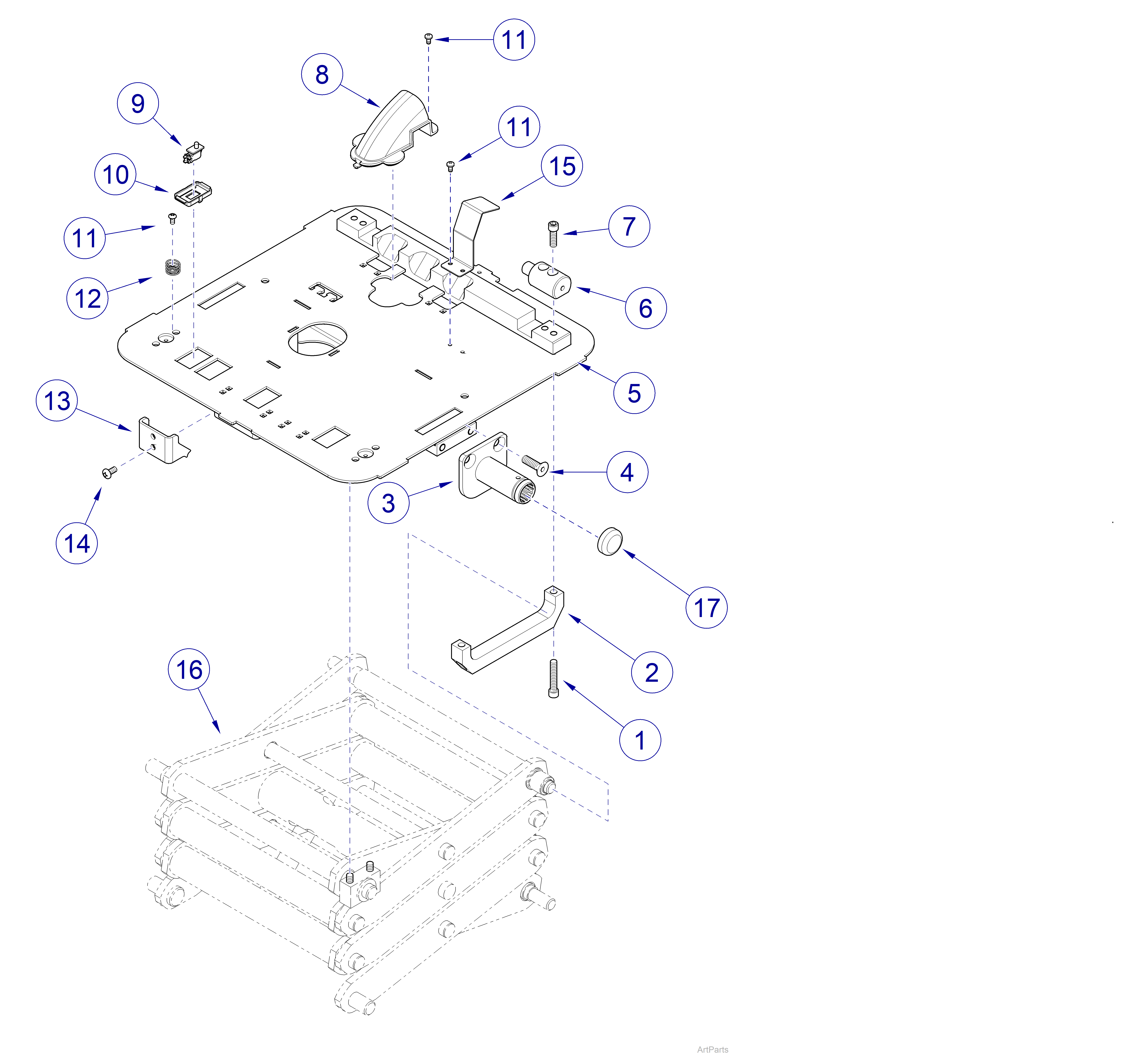

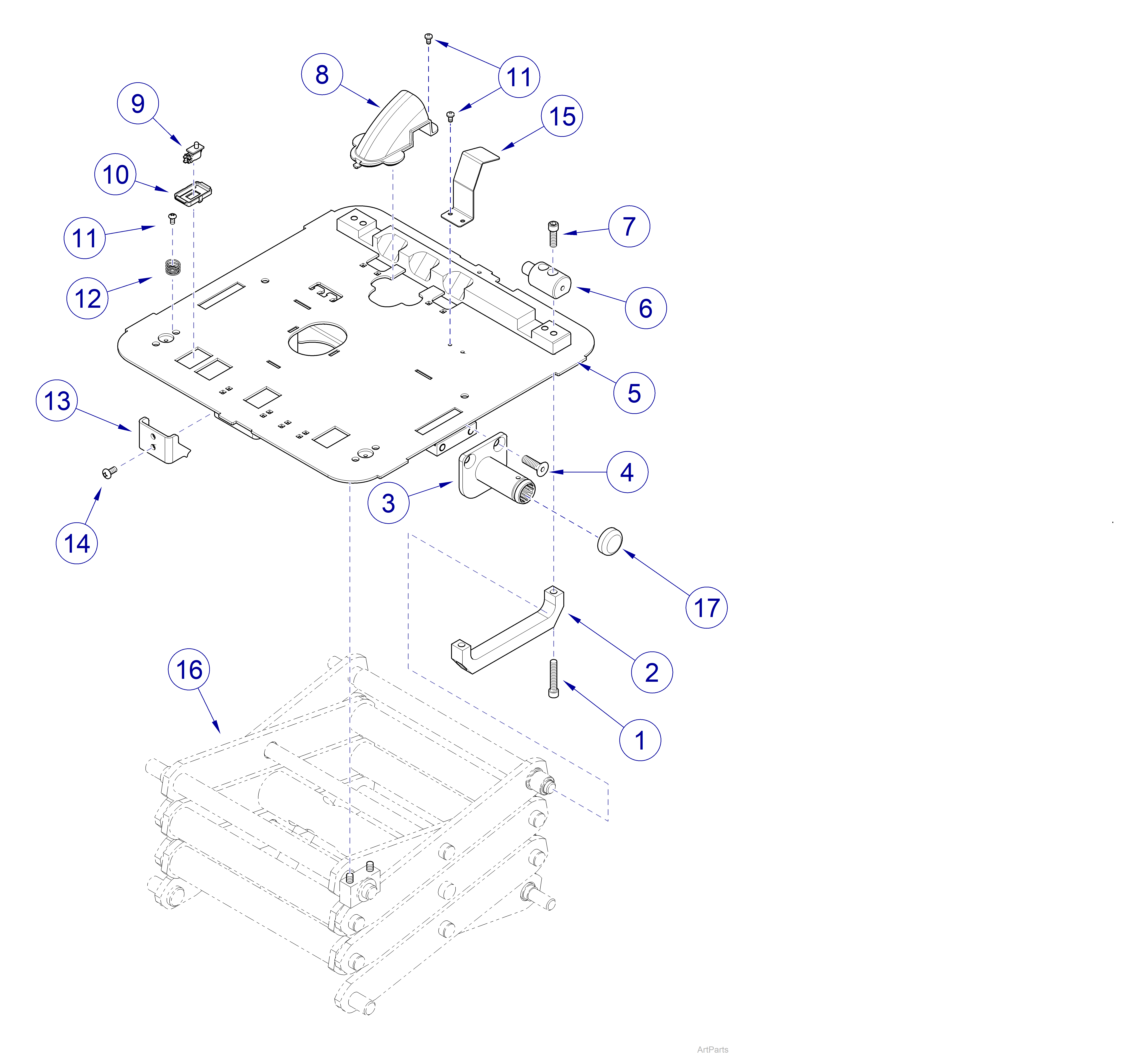

631 Chair Column Top Components
|
Model |
631-001 |
| Serial Number | V2200 thru Present |
| 631 Chair Column Top Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0312-29 |
Screw 5/16-18 x 1-1/4 in. |
4 |
|
2 |
051-10267-00 |
Roller Rail |
2 |
|
3 |
030-2083-00 |
Spline Weldment |
2 |
|
4 |
040-0375-45 |
Screw 3/8-16 x 1 in. |
4 |
|
5 |
Column Top Weldment - Non Serviceable |
NSS |
|
|
6 |
057-1270-00-815 |
Seat Pivot Pin |
2 |
|
7 |
040-0312-41 |
Screw 5/16-18 x 1 in. |
4 |
|
8 |
053-10769-00-815 |
Cover, Screw Tip |
1 |
|
9 |
015-3025-00 |
Switch |
4 |
|
10 |
053-2361-00-312 |
Limit Switch Bracket |
4 |
|
11 |
040-0010-47 |
Screw 10-24 x 3/8 in. |
5 |
|
12 |
025-0114-00 |
Foot Bail Spring |
2 |
|
13 |
050-8964-00-815 |
Tilt Pin Clamp |
1 |
|
14 |
040-0250-162 |
Screw 1/4-20 x 1/2 in. |
2 |
| 15 | 050-13294-00-815 | Bracket, Limit Switch | 1 |
|
16 |
Refer to: |
- |
|
| 17 | 053-1754-00 | Spline Cover | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
