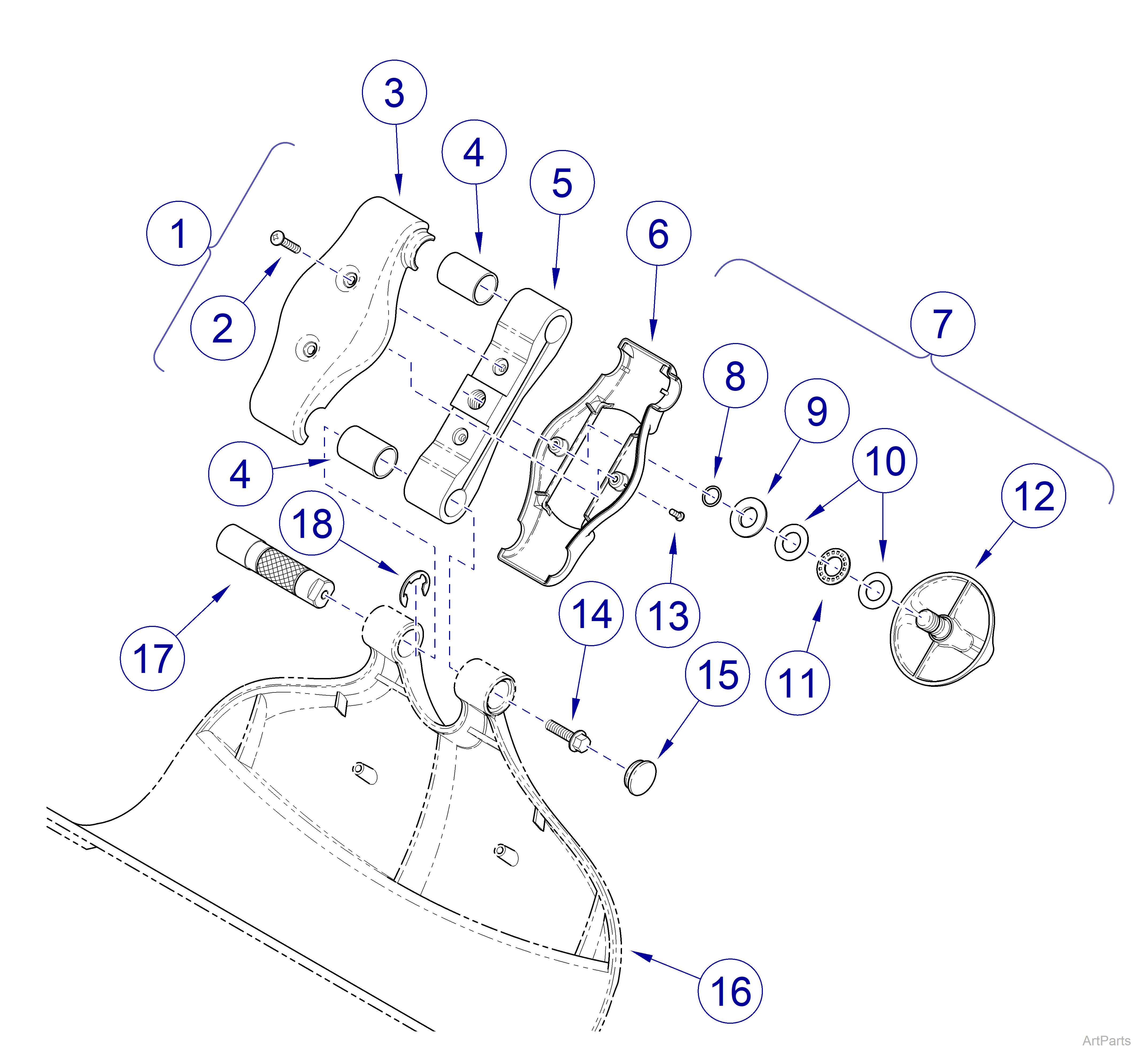

631 Chair Headlock Components
|
Model |
631-001 |
| Serial Number | V2200 thru Present |
| 631 Chair Headlock Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-10307-01 | Headlock Assembly - Includes items 2 thru 13 | 1 |
|
2 |
040-0010-144 | Screw 10-32 x 1/2 inch | 2 |
|
3 |
053-2357-00-813 | Headlock Rear Cover | 1 |
|
4 |
016-0836-00 | Sleeve Bearing | 2 |
|
5 |
002-11258-00 | Headrest Clamp - Includes item 4 | 1 |
|
6 |
053-2356-00-813 | Headlock Front Cover | 1 |
|
7 |
002-11266-00 | Knob Assembly - Includes items 8 thru 12 | 1 |
|
8 |
014-0176-06 | O-Ring | 1 |
|
9 |
045-0001-126 | Spring Washer | 1 |
|
10 |
120712 | Thrust Washer | 2 |
|
11 |
110207 | Bearing | 1 |
|
12 |
029-3922-00-815 | Knob | 1 |
|
13 |
042-0168-00 | Screw M3.5 x 1.57 x 10M | 2 |
|
14 |
040-0250-133 | Bolt 1/4-20 x 1/2 inch | 1 |
|
15 |
016-10044-00-813 | Plug | 2 |
|
16 |
Refer to: | Back Section - Main Components | - |
|
17 |
057-1355-00 | Headrest Pivot Pin | 1 |
|
18 |
119745 | E-Ring 3/4 inch | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
