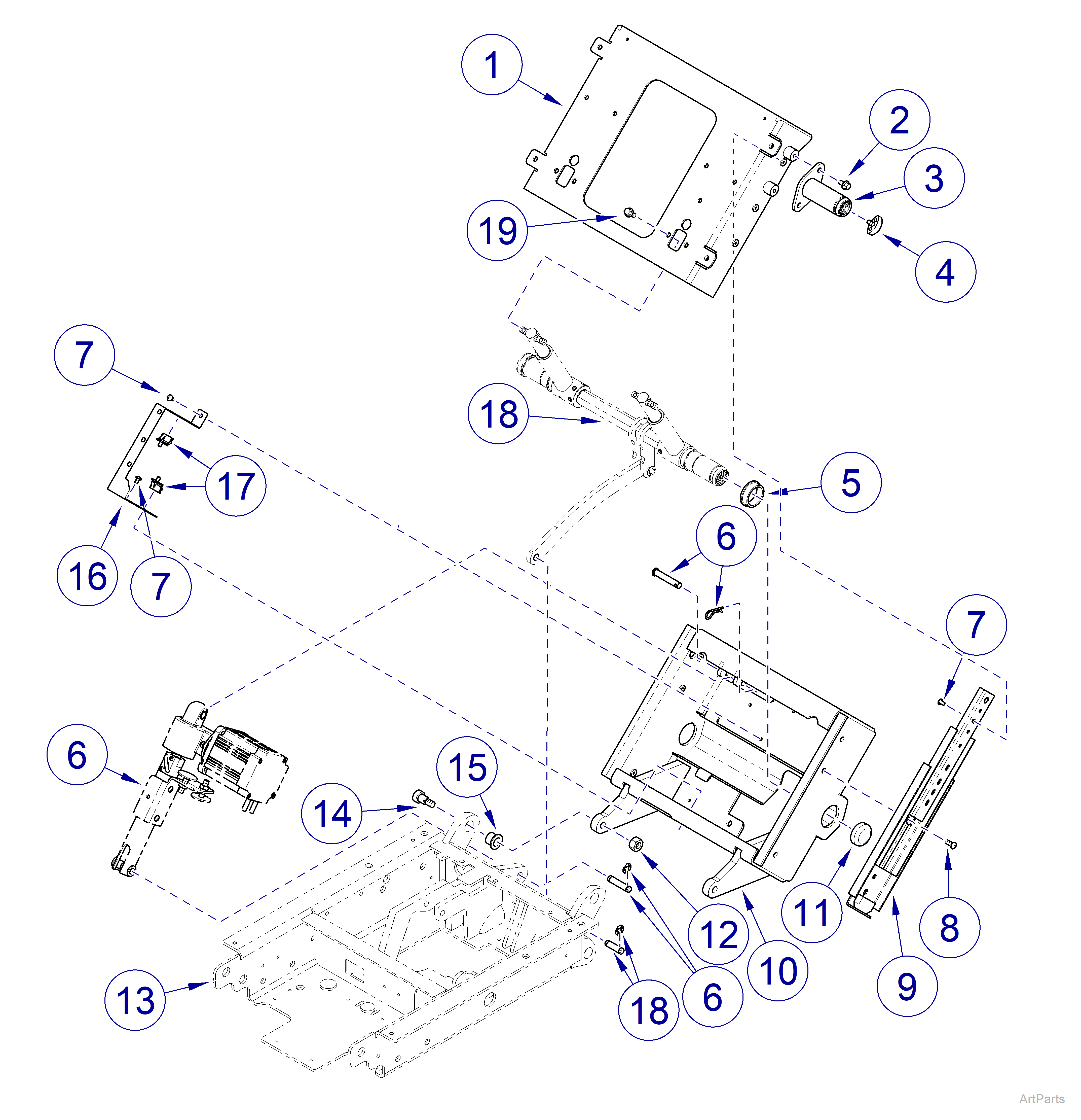

631 Chair Back Section Main Components
|
Model |
631-001 |
| Serial Number | V2200 thru Present |
| 631 Chair Back Section Main Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 1 | 030-10387-00-815 | Sliding Back Weldment | 1 |
|
2 |
040-0250-157 | Screw 1/4-20 x 1/2 inch | 4 |
|
3 |
030-2104-00-312 | Back Rail Mount | 2 |
|
4 |
016-1128-00 | T-Knob | 2 |
|
5 |
016-0131-31 | Flanged Bearing | 2 |
|
6 |
Refer to: | Back Actuator | - |
|
7 |
040-0010-47 | Screw 10-24 x 3/8 inch | 8 |
|
8 |
040-0250-42 | Screw 1/4-20 x 5/8 inch | 6 |
|
9 |
016-1612-00 | Drawer Slide | 2 |
|
10 |
Back Weldment - Non Serviceable | NSS | |
|
11 |
053-1754-00 | Spline Cover | 2 |
|
12 |
041-0500-00 | Nut | 2 |
|
13 |
Refer to: | Seat Section | - |
|
14 |
042-0014-05 | Shoulder Screw | 2 |
|
15 |
016-0131-04 | Flanged Bearing | 2 |
|
16 |
050-8745-00 | Back Limit Switch Bracket | 1 |
|
17 |
015-3025-00 | Switch - D3DC, Normally Closed | 4 |
|
18 |
Refer to: | Linkage Components | - |
|
19 |
040-0250-133 | Screw 1/4-20 x 1/2 inch | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
